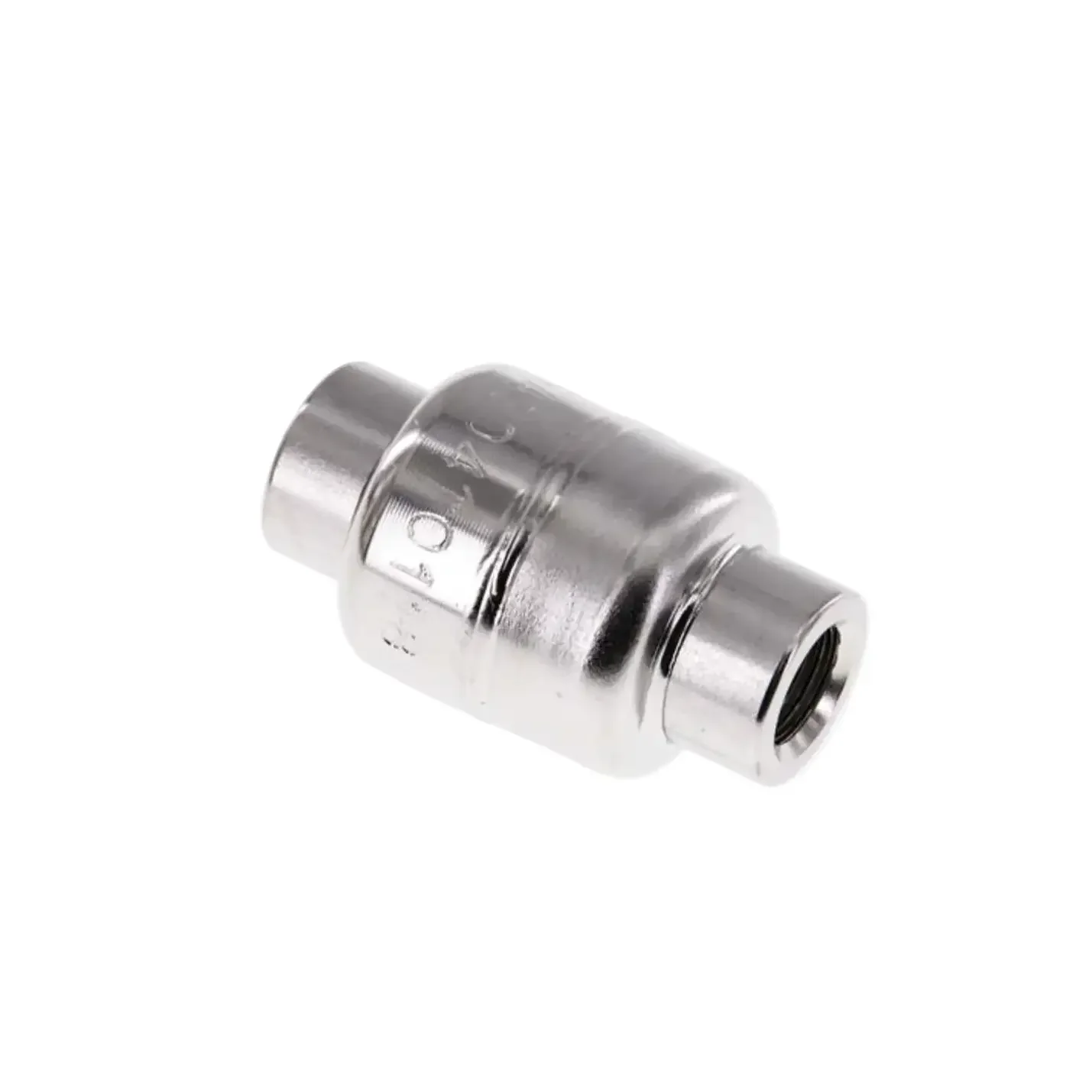

Landefeld Ruck 14 ES 4A Check Valve

- Brand: Landefeld

- Model: Ruck 14 ES 4A

- Type: Check Valve

All tech specs
  - Function: Prevents backflow in pneumatic and hydraulic systems (air, neutral gases, oil, water)
  - Valve Type: Spring-loaded poppet check valve
  - Port Size: G 1/4" (internal thread)
  - Flow Direction: Arrow-marked (one-way flow)
  - Cracking Pressure: 0.03 bar
  - Operating Pressure: 16 bar
  - Leakage Rate: Bubble-tight
  - Body Material: Stainless steel
  - Poppet Material: Stainless steel
  - Seal Material: FKM
  - Spring Material: Stainless steel
  - Temperature Range: -20 °C to +100 °C
  - Installation Position: Any
  - Protection Rating: IP65
  - Features: High flow capacity, low pressure drop, robust design, long service life, easy to install

- Dimensions: 32 diam. x 56 mm

- Weight: 150 g

- Country of origin: Germany

- HS code: 848130
