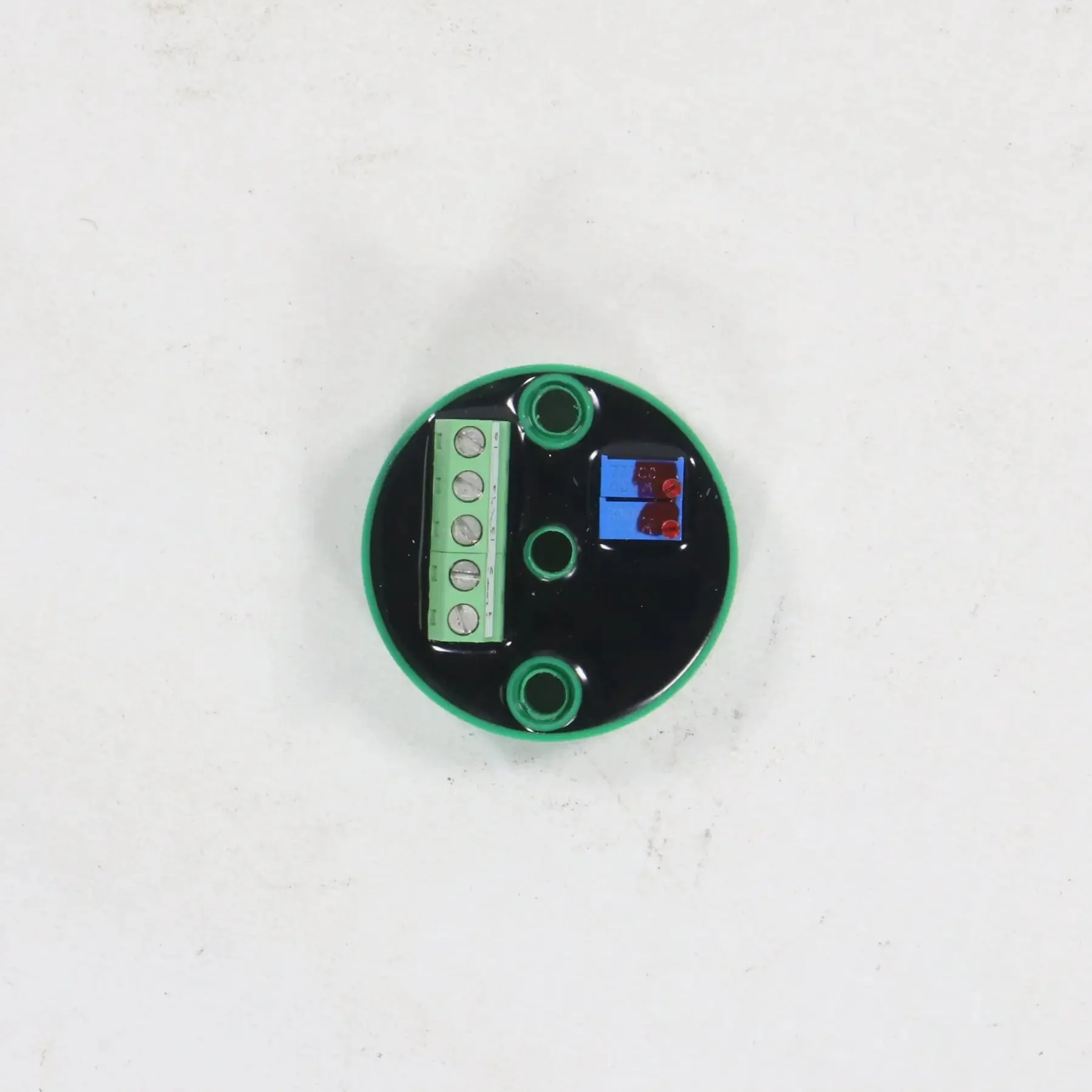

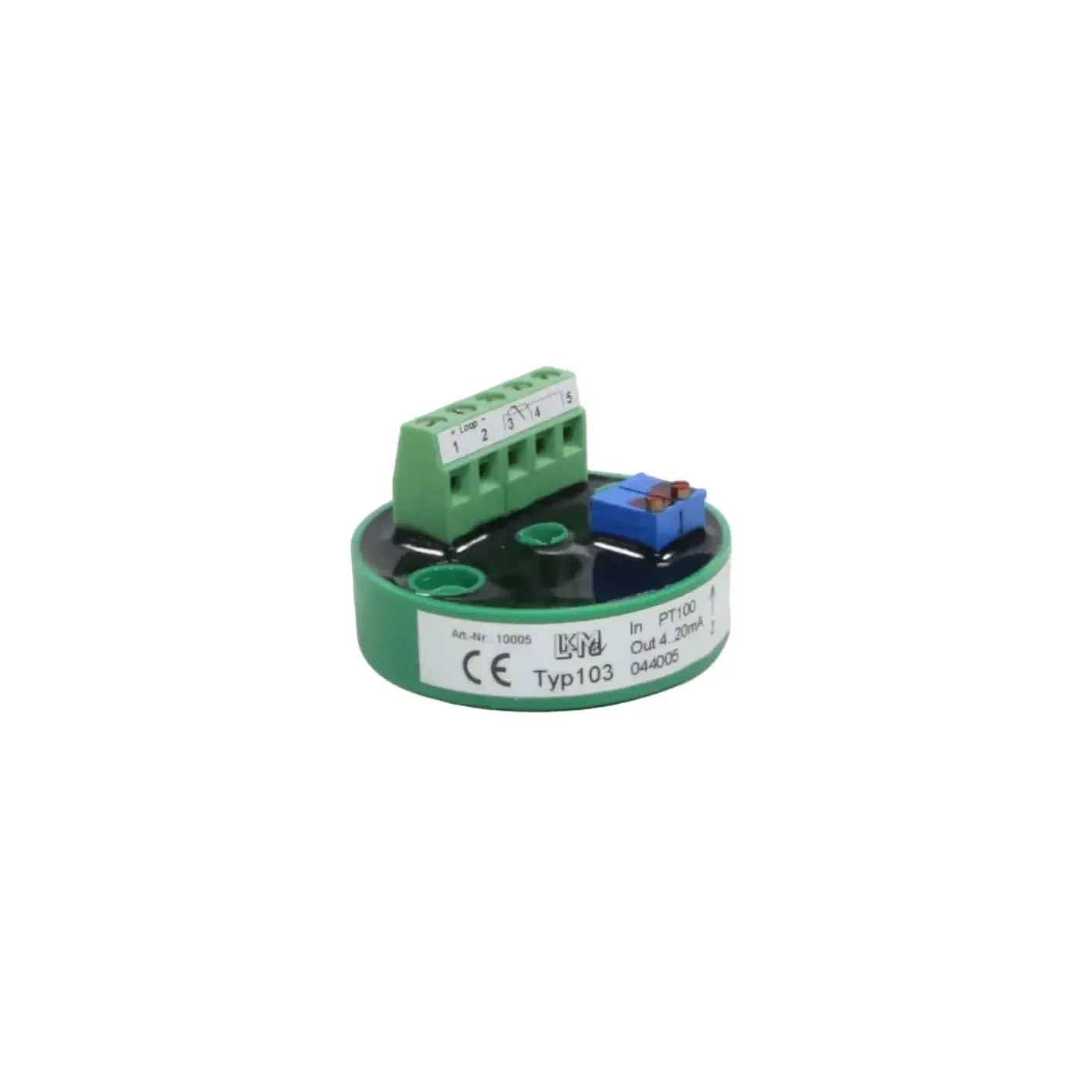

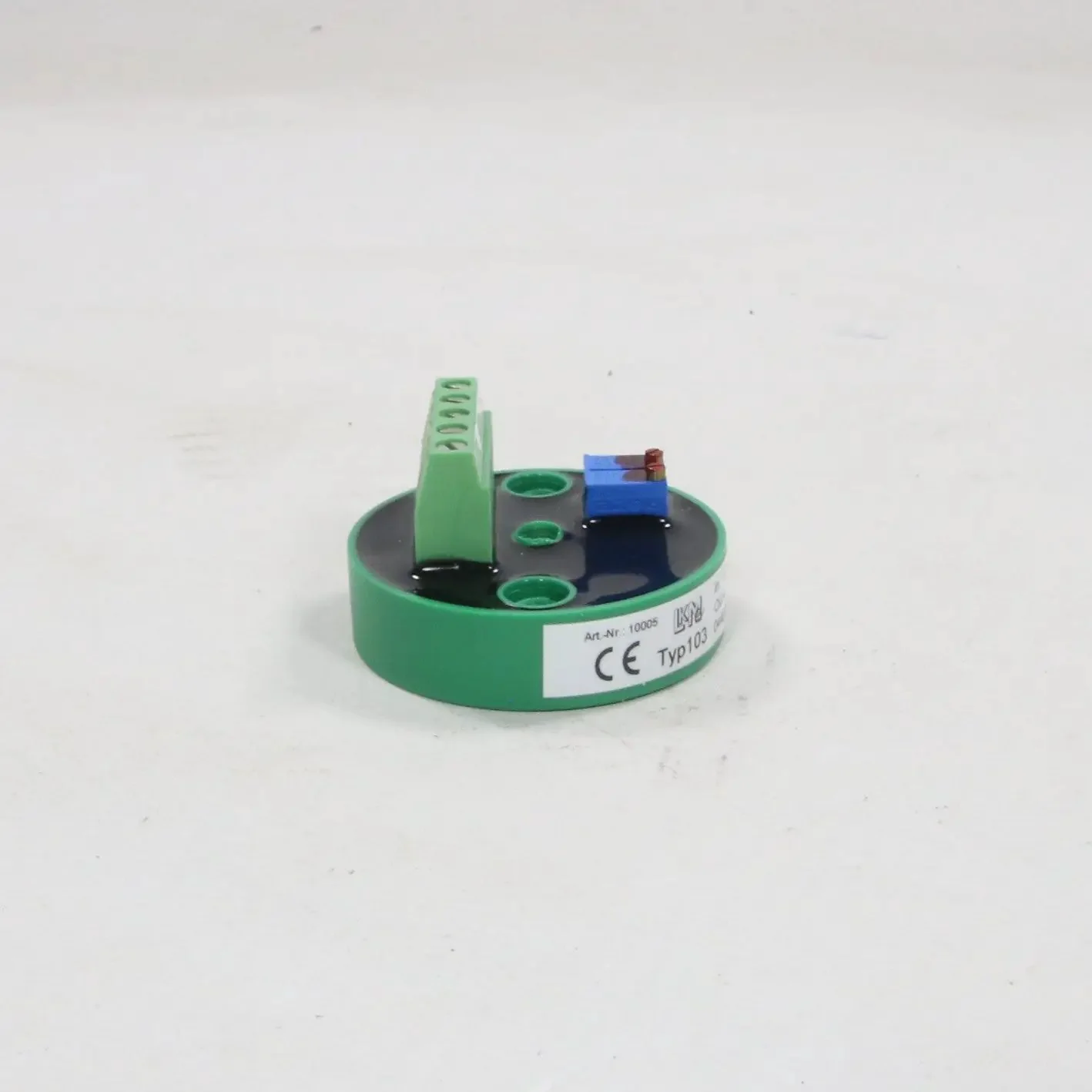

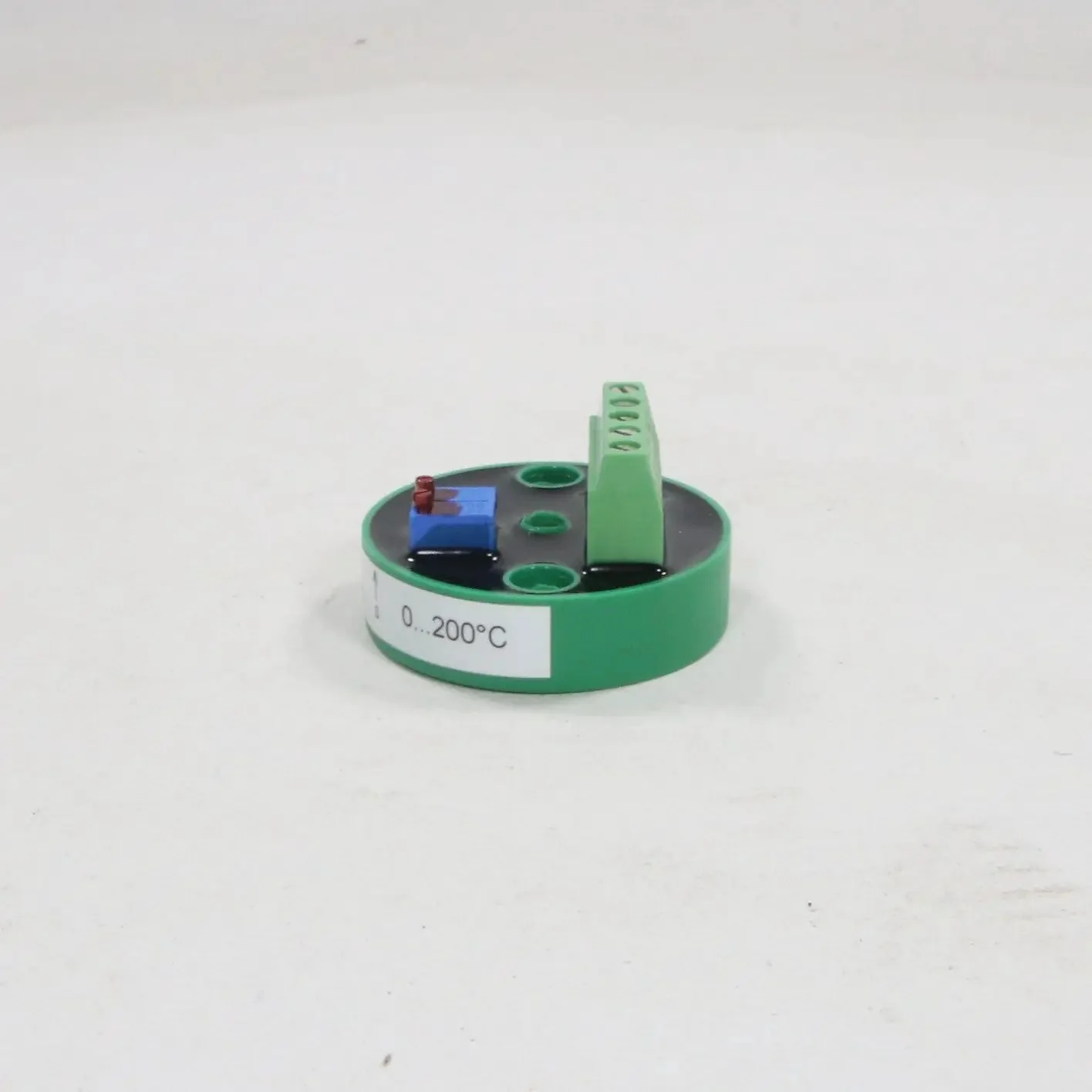

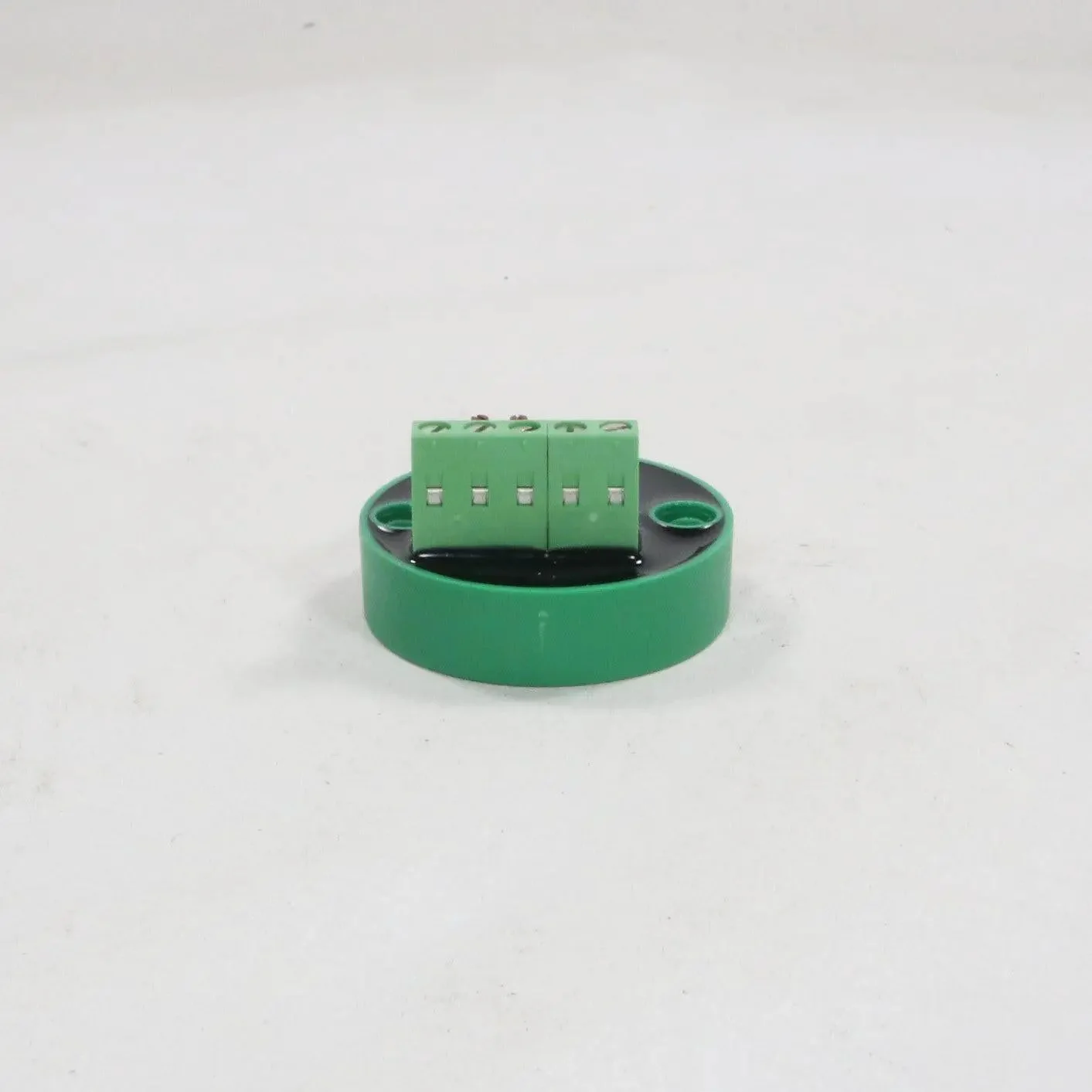

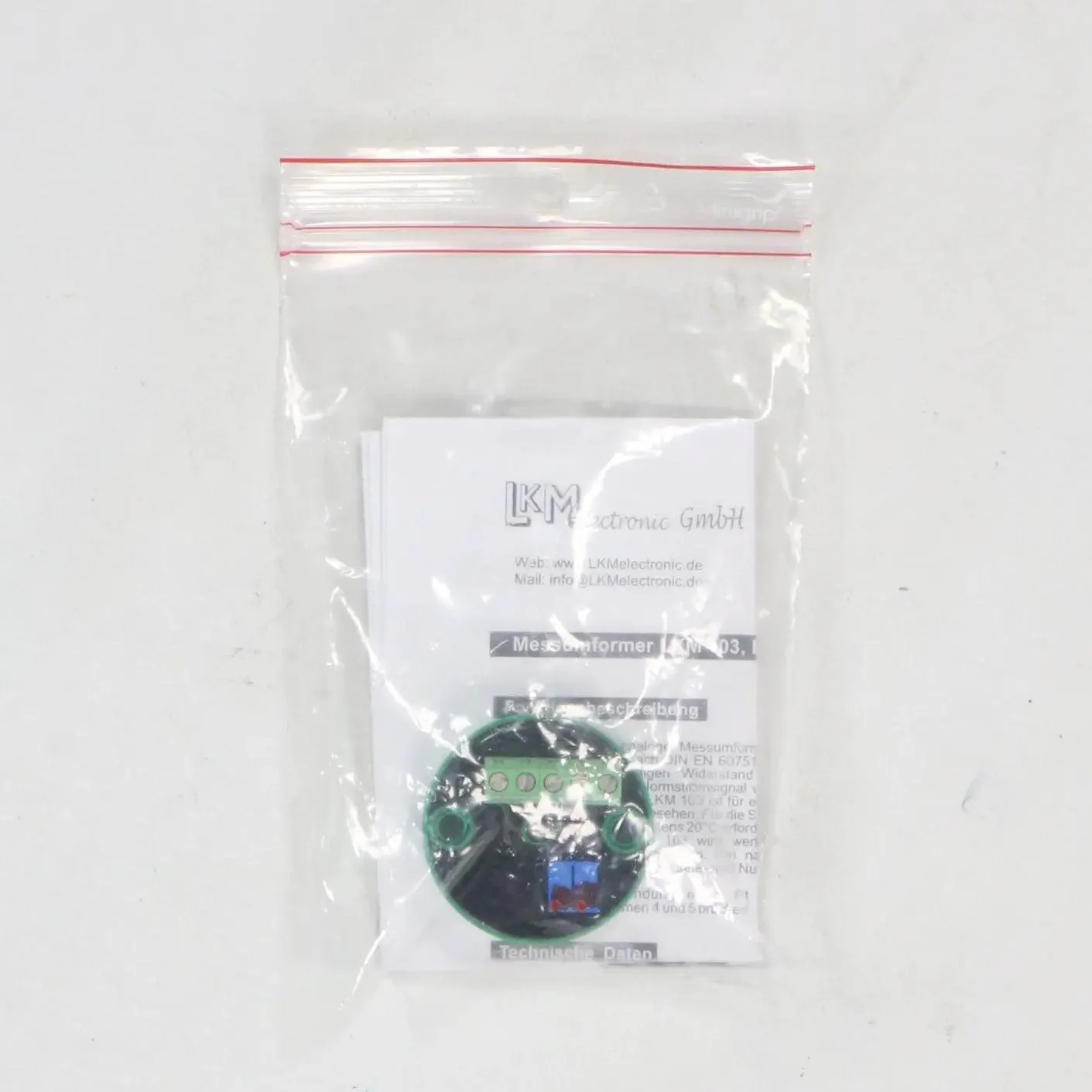

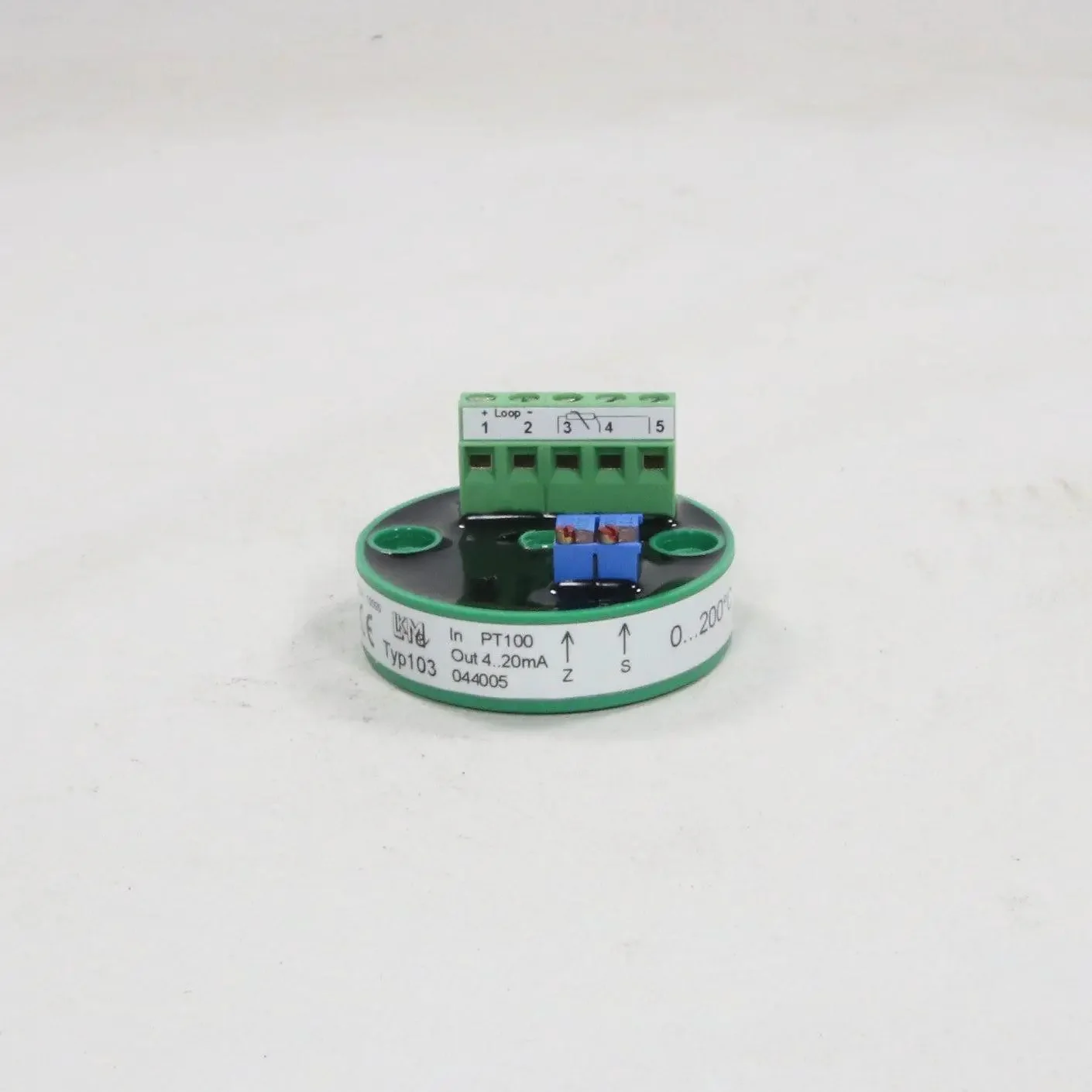

LKM Electronic Gmbh LKM 103 Head-Mount Temperature Transmitter

- Brand: LKM electronic GmbH

- Model: LKM 103

- Type: Head-Mount Temperature Transmitter / Pt100 to 4-20 mA Converter

- Part number: 10005 (044005)

- Technical specifications:
- Input: Pt100
- Temperature range: 0....200 C
- Output signal: 4...20 mA
- Supply voltage: 24 V DC
- Accuracy: Better than 0.1% of span
- Response time: Fast
- Connection: Screw terminals
- Additional features: Analogue design; vibration resistant (5 g / 10–200 Hz); green LED for status; high EMC immunity; suitable for industrial process control, machinery, HVAC, or temperature monitoring where linear 4-20 mA output is required
- Standards: Compliant with DIN EN 60751 for Pt sensors; EMC tested; industrial quality

Weight: 50 g

Dimensions: 44 diam. x 30 mm

Country of origin: Germany

HS code: 9032.89
