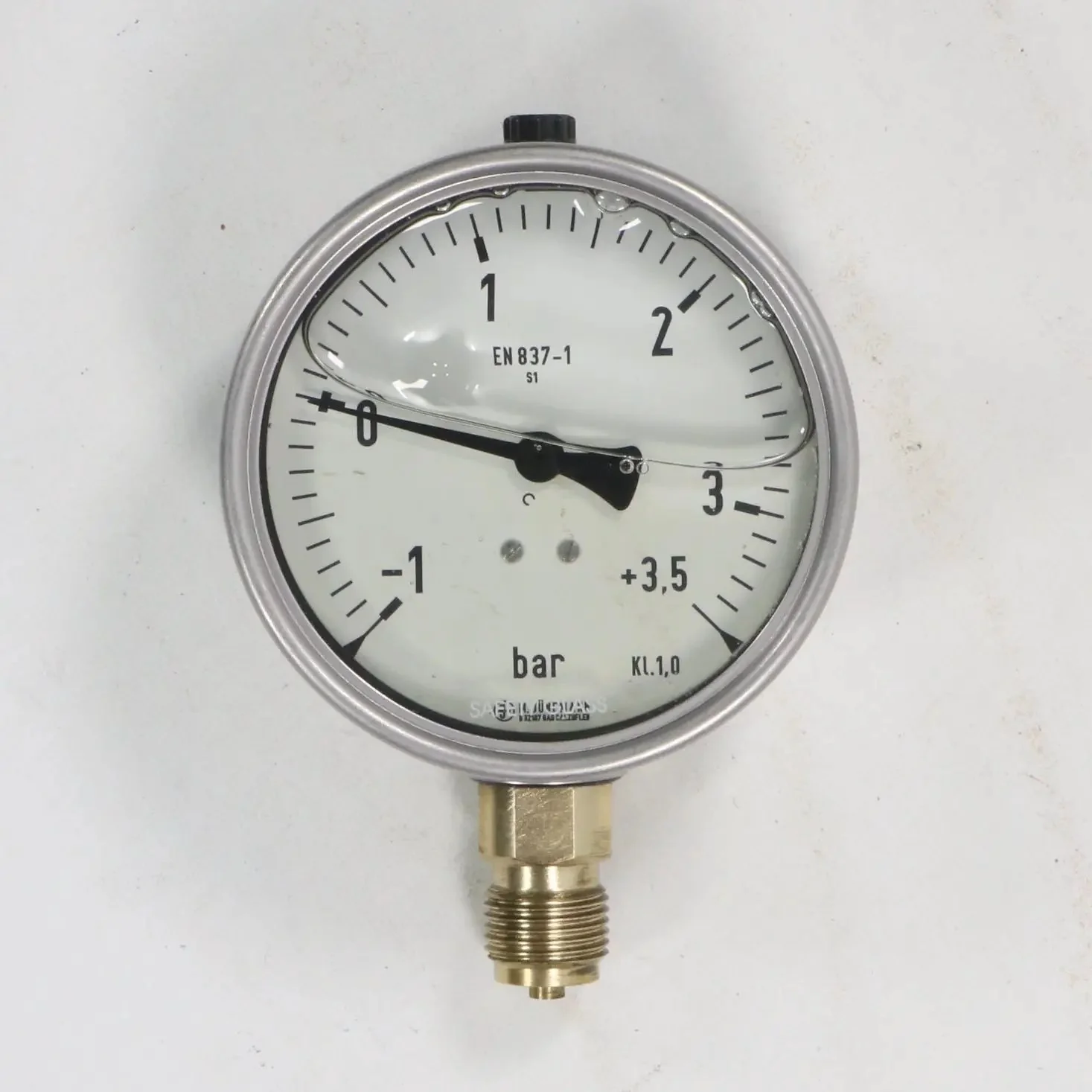

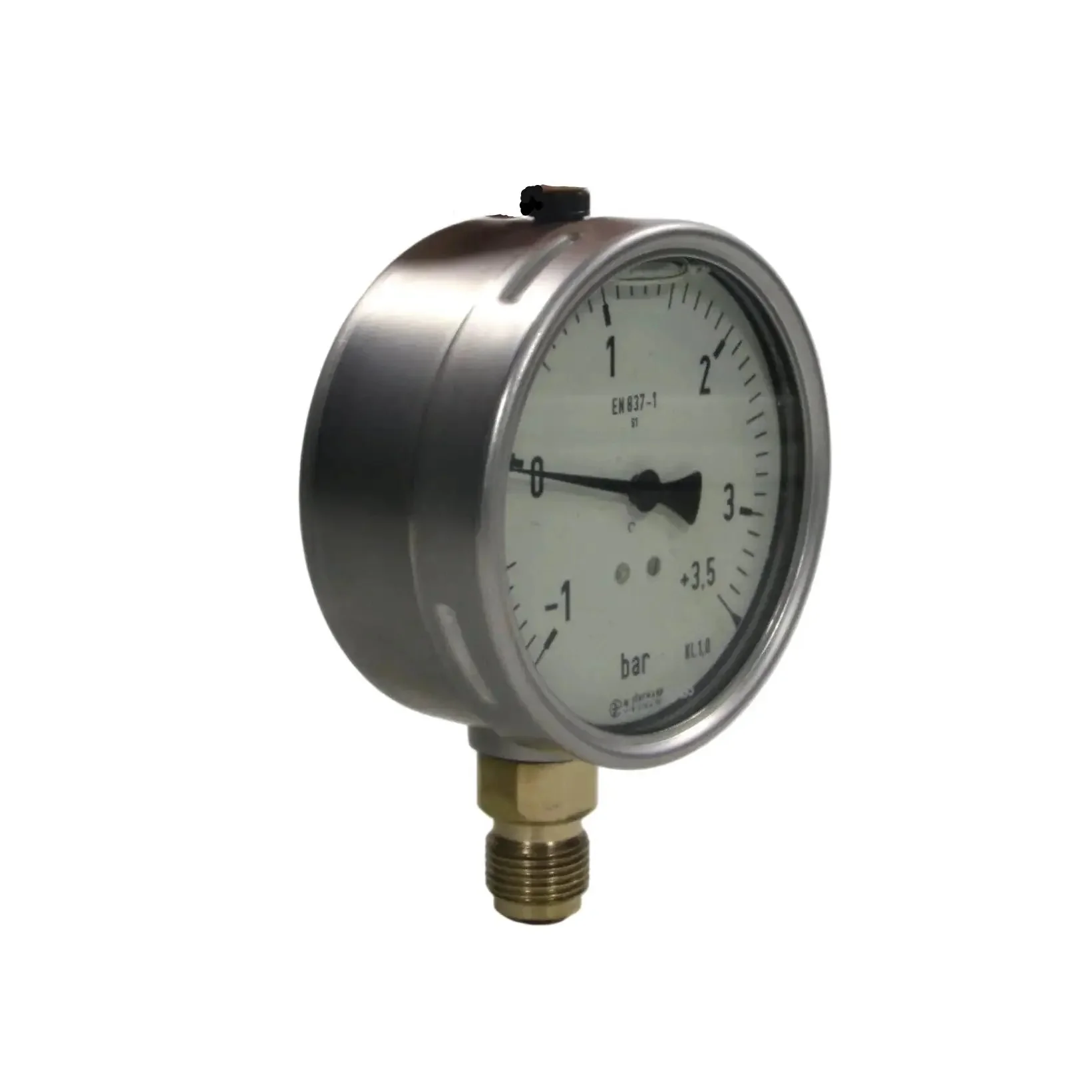

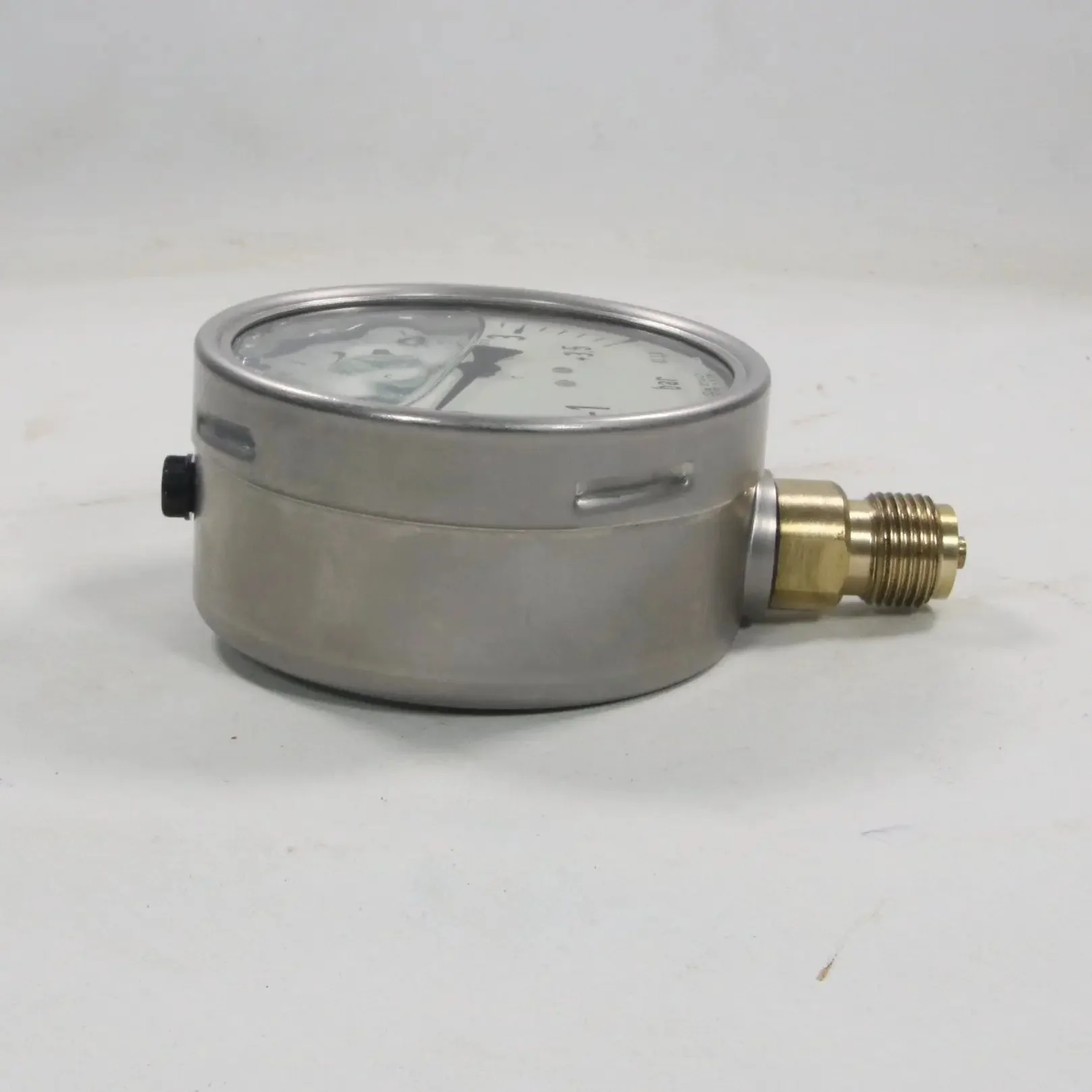

M. Junemann NG100 Manometer -1 to +3.5 bar

- Brand: M. Junemann (M. Junemann Druckmesstechnik GmbH)

- Model: NG100

- Type: Manometer

- Part number: NG100

Technical specifications:
- Nominal size : 100 mm
- Measuring range: -1 to +3.5 bar
- Accuracy class: 1.6
- Bourdon tube: C-type
- Case: Stainless steel (304); glycerine-filled
- Window: Safety glass
- Process connection: G1/2" BSP bottom
- Overpressure safety: Up to 4x full scale
- Temperature range: Ambient -20°C to +60°C
- Protection class: IP65
- Additional features: Glycerine filling for vibration resistance; blow-out safety; zero adjustment screw; suitable for compressors, pumps, hydraulic systems, or process lines with pulsating pressures
- Standards: Compliant with EN 837-1 (pressure gauges); DIN 16005 (safety); CE marked

Weight: 1.0 kg

Dimensions: 150 x 100 x 50 mm

Country of origin: Germany

HS code: 9026.20
