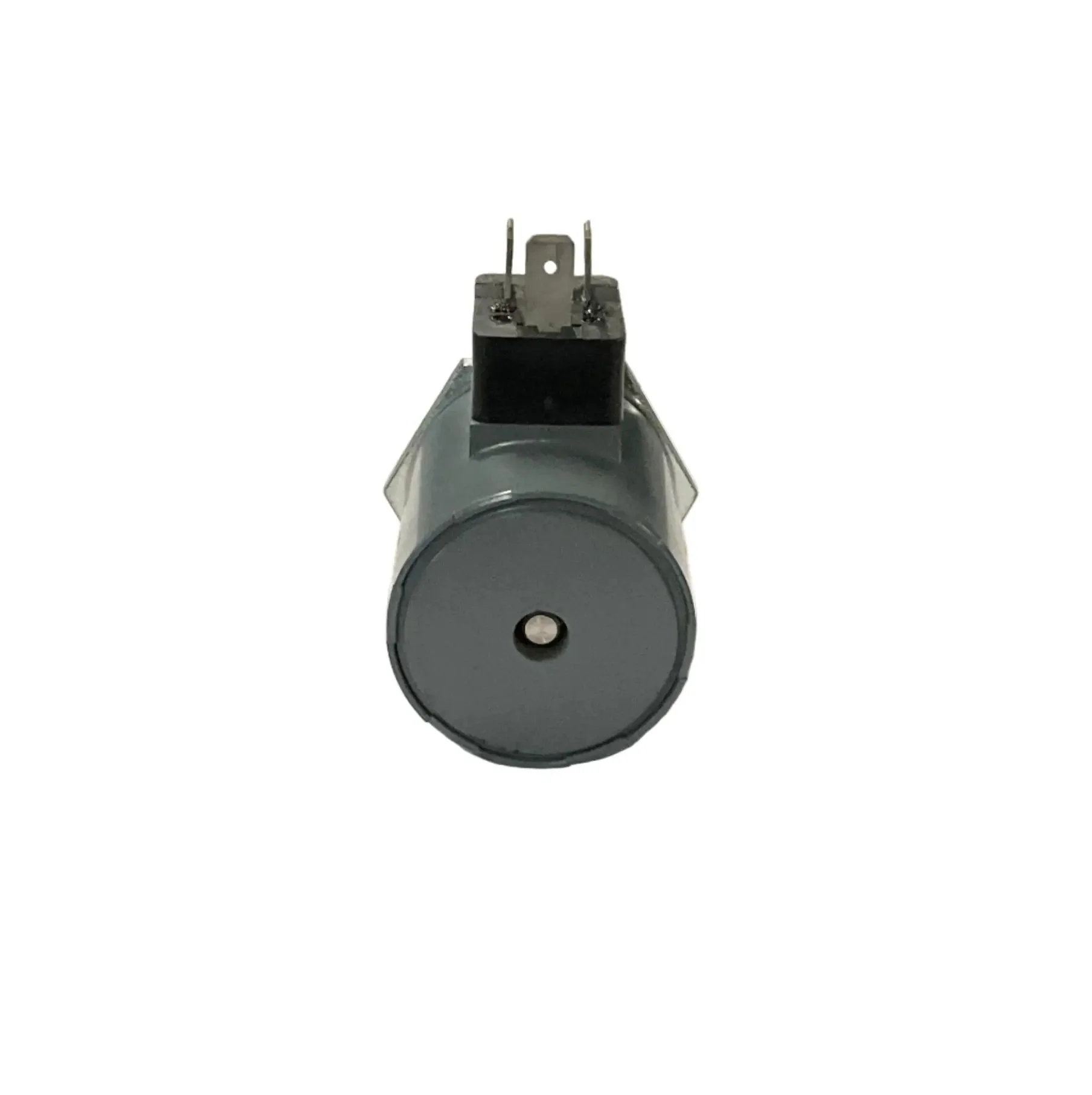

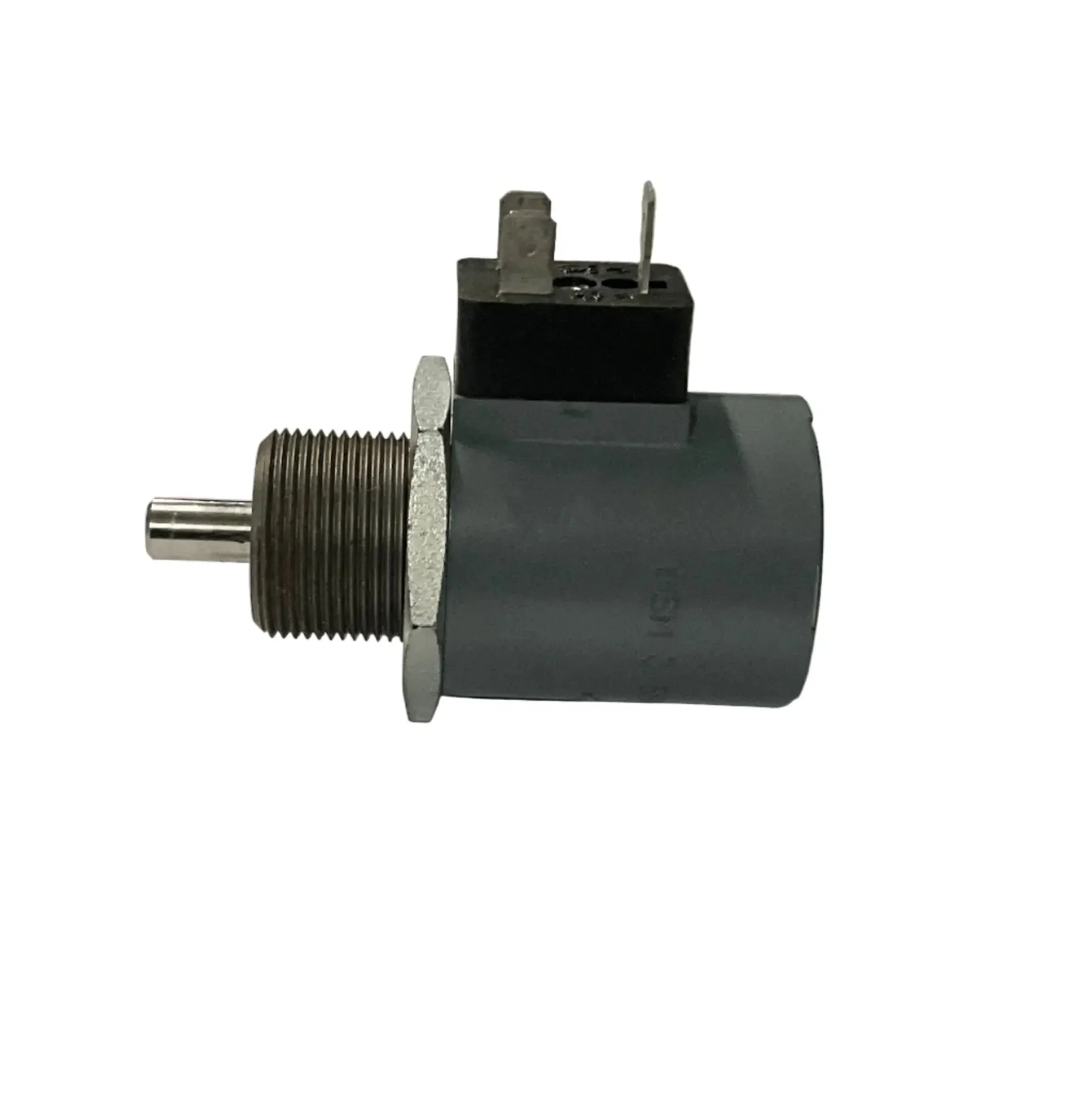

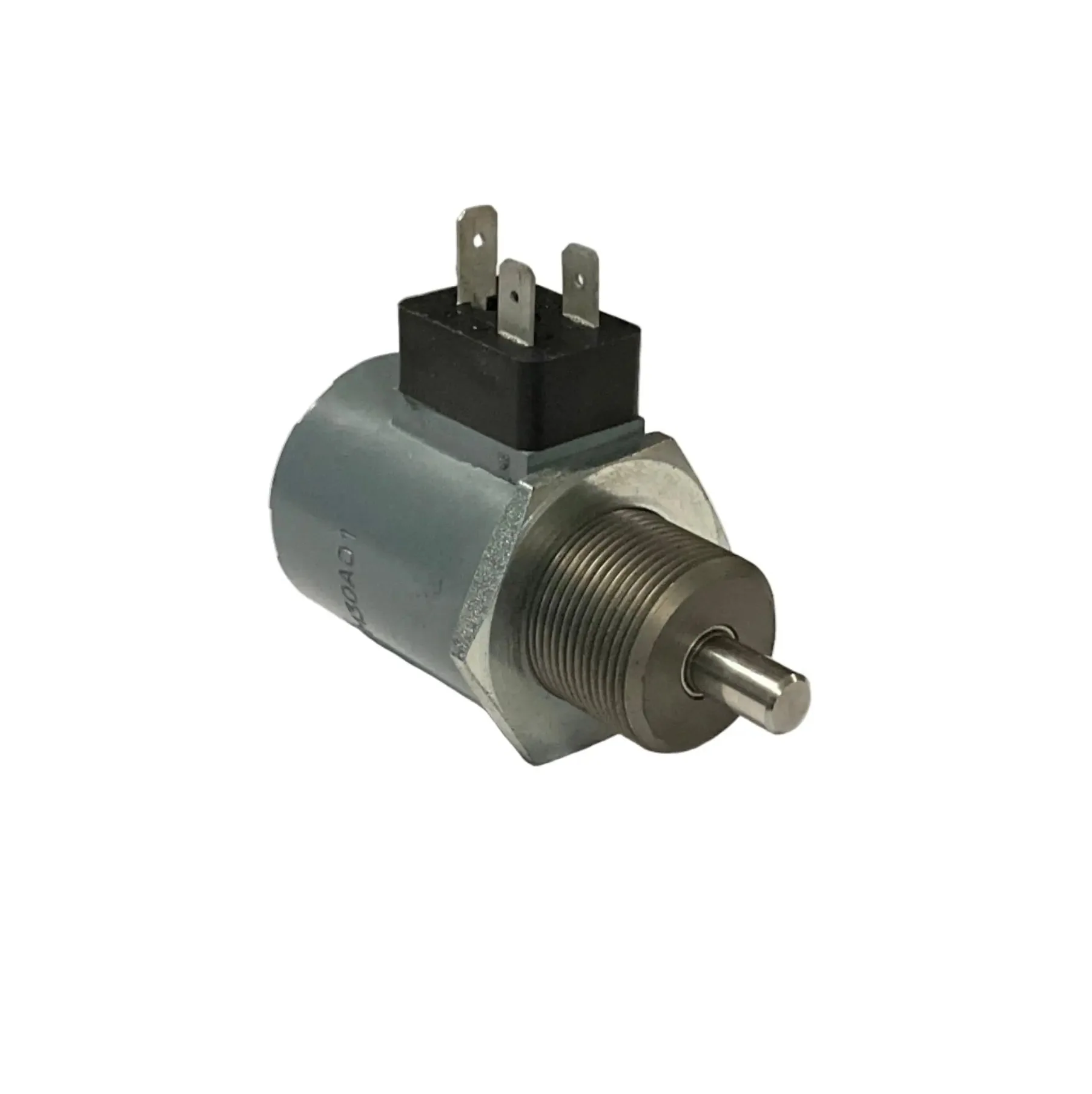

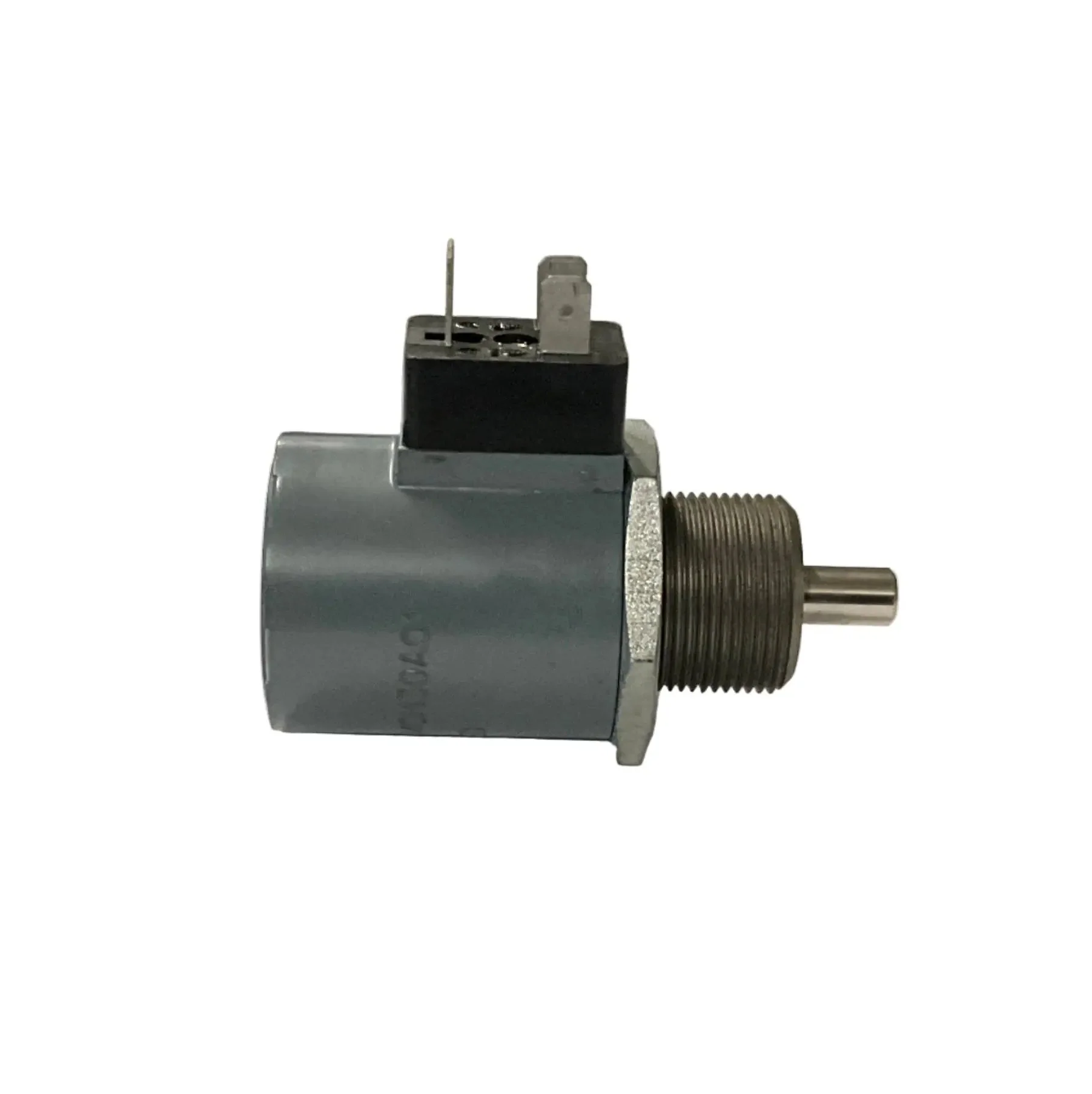

Magnet-Schultz G HU Z 040 M30 A01 Shotbolt Lock Unit
Brand: Magnet-Schultz
Model: G HU Z 040 M30 A01
Type: Shotbolt Lock Unit (Single Acting Solenoid)
Part Number: MSM 0/55291
Technical Specs:
- Size (Diameter): 40 mm
- Stroke: 10 mm (0.31
- Admissible Lateral Force in Normal Position: 1500 N
- Magnetic Force: 8 N
- Operation: Pull type (spring to lock, energized to unlock)
- Voltage: 24 V DC
- Power Consumption: 12.9 W
- Duty Cycle: 100% (continuous operation)
- Electrical Connection: DIN EN 175301-803
- Return Spring: Integrated to define locking bolt position in de-energized state (spring reset)
- Protection Rating: IP54
- Operating Temperature Range: -20°C to 80°C
- Housing Material: Steel
- Locking Bolt Material: Stainless steel
- Additional Features:
- Nearly horizontal force vs. stroke characteristic
- Robust design to absorb defined lateral forces
- Certifications: CE compliant
Dimensions: 90 x 60 x 40mm
Weight: 500g
Country of Origin: Germany
HS Code: 8505.90
Original: $147.42
-70%$147.42
$44.23
