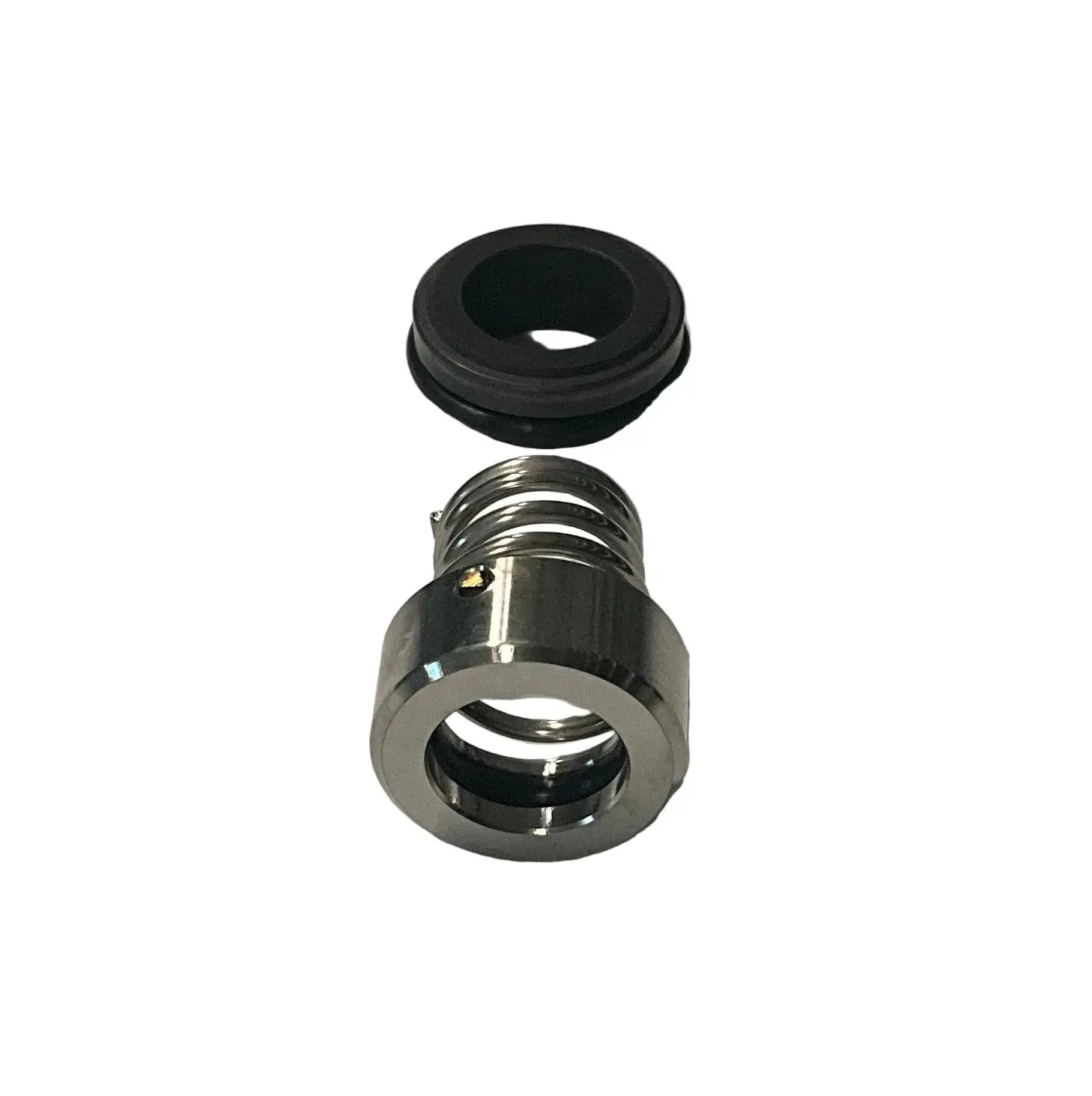

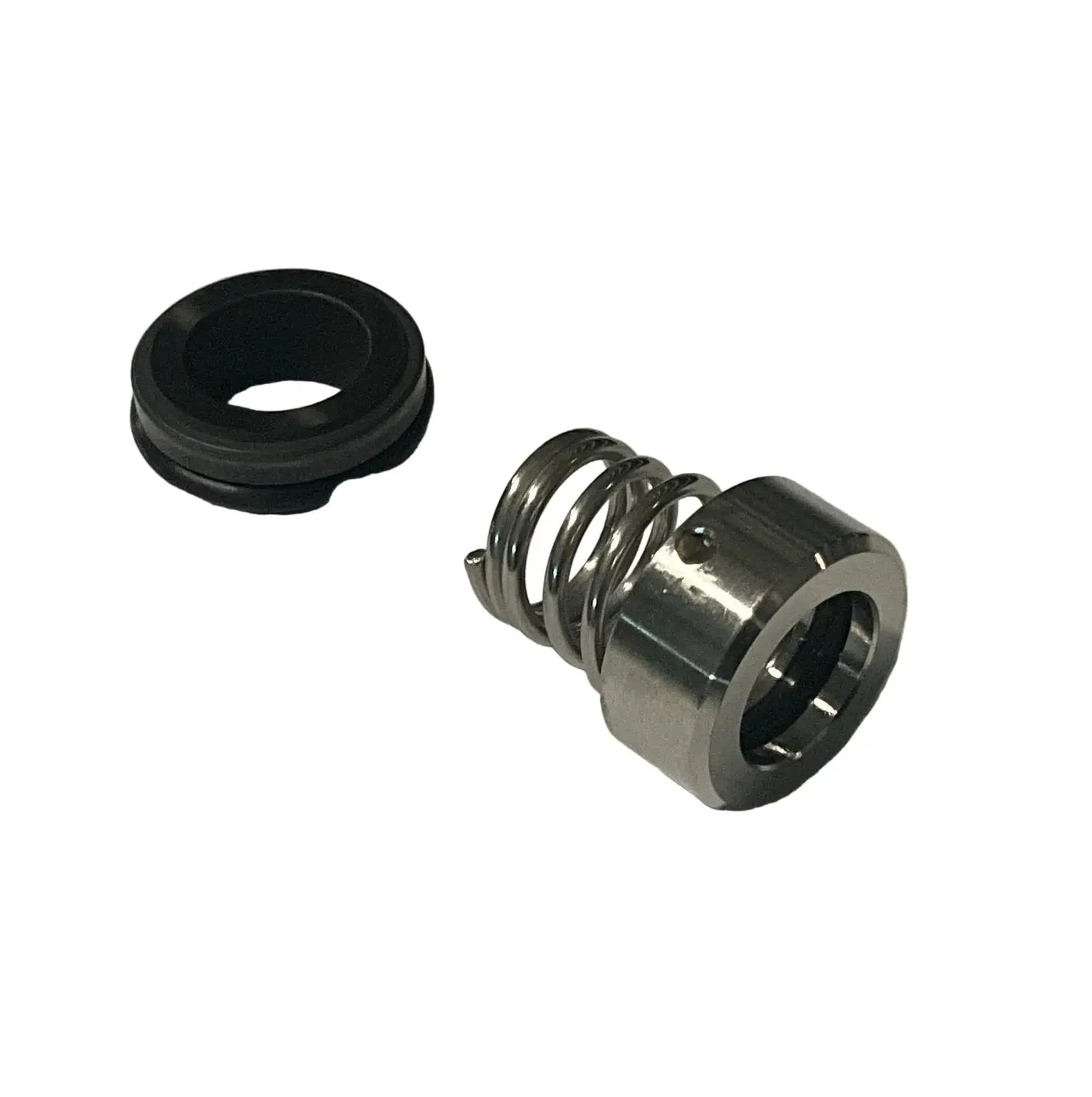

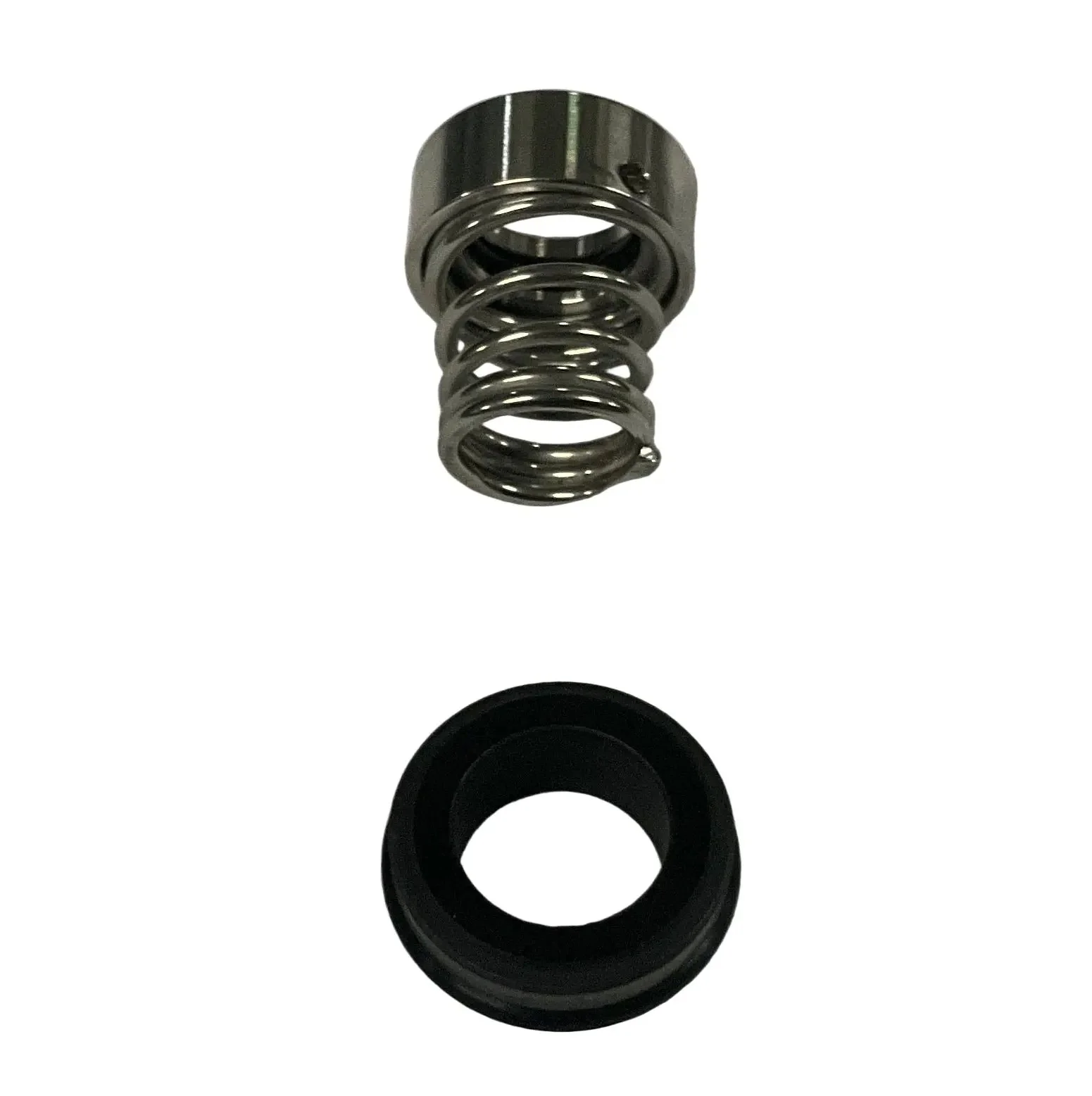

Eriks TCD 014/R SS/CAR/E Mechanical Seal

Brand: ERIKS
Model: TCD 014 /R SS/CAR/E
Type: Mechanical Seal (Complete Seal Assembly)
Part Number: 12412338 (ERIKS Item #: 6003185, KA-0140-TCDR-XCE)

Technical Specs:
- Shaft Diameter: 14 mm (0.551 in)
- Seal Type: Single mechanical seal, complete assembly
- Materials:
  - Primary Seal Face: Stainless Steel
  - Secondary Seal Face: Carbon (CAR)
  - Elastomer: EPDM (E, Ethylene Propylene Diene Monomer)
- Direction of Rotation: /R indicates right-hand rotation
- Operating Pressure: 10 bar
- Operating Temperature Range: -20°C to +120°C
- Media: Suitable for water, oils, and non-aggressive fluids compatible with stainless steel, carbon, and EPDM
- Additional Features:
  - Complete seal assembly for easy installation
  - Likely unbalanced design
  - Independent of direction of rotation in some configurations, though /R specifies right-hand rotation
  - Designed for reliable sealing under moderate pressure and temperature conditions
- Certifications: CE compliant

Dimension:
- Shaft Diameter: 14 mm
- Overall Dimensions: 30 x 30 x 20 mm

Weight: 60 g

Country of Origin: Germany

HS Code: 8484.20
