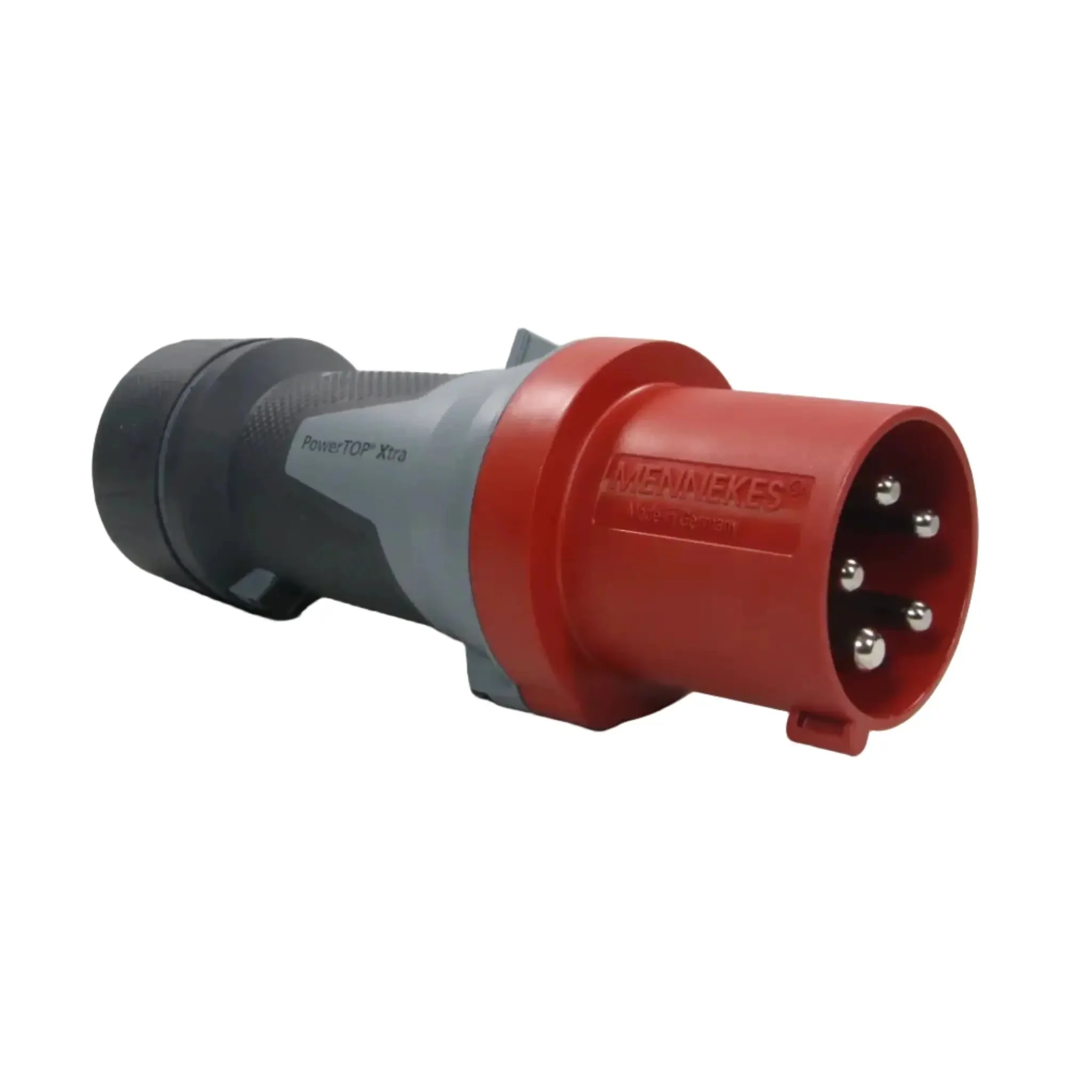

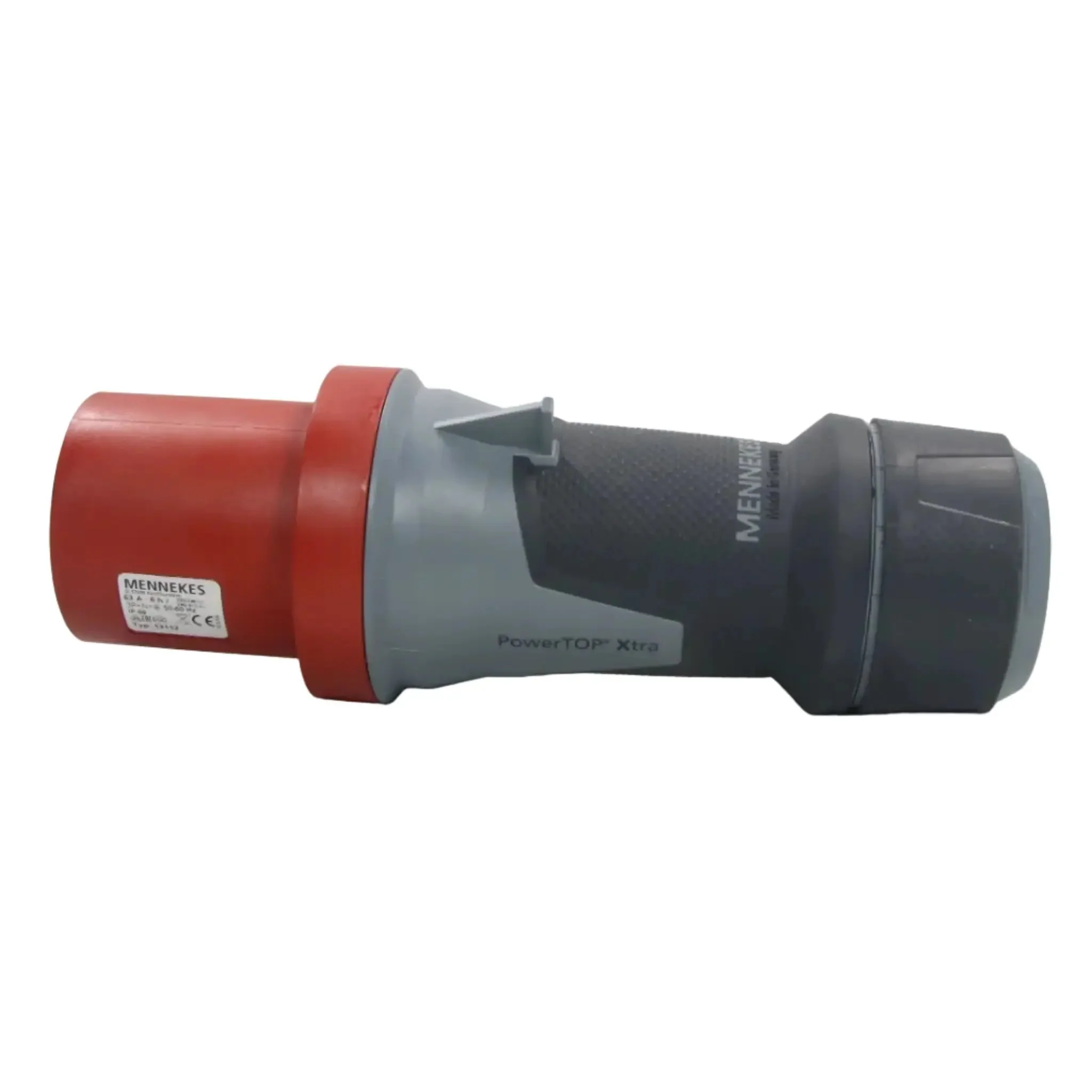

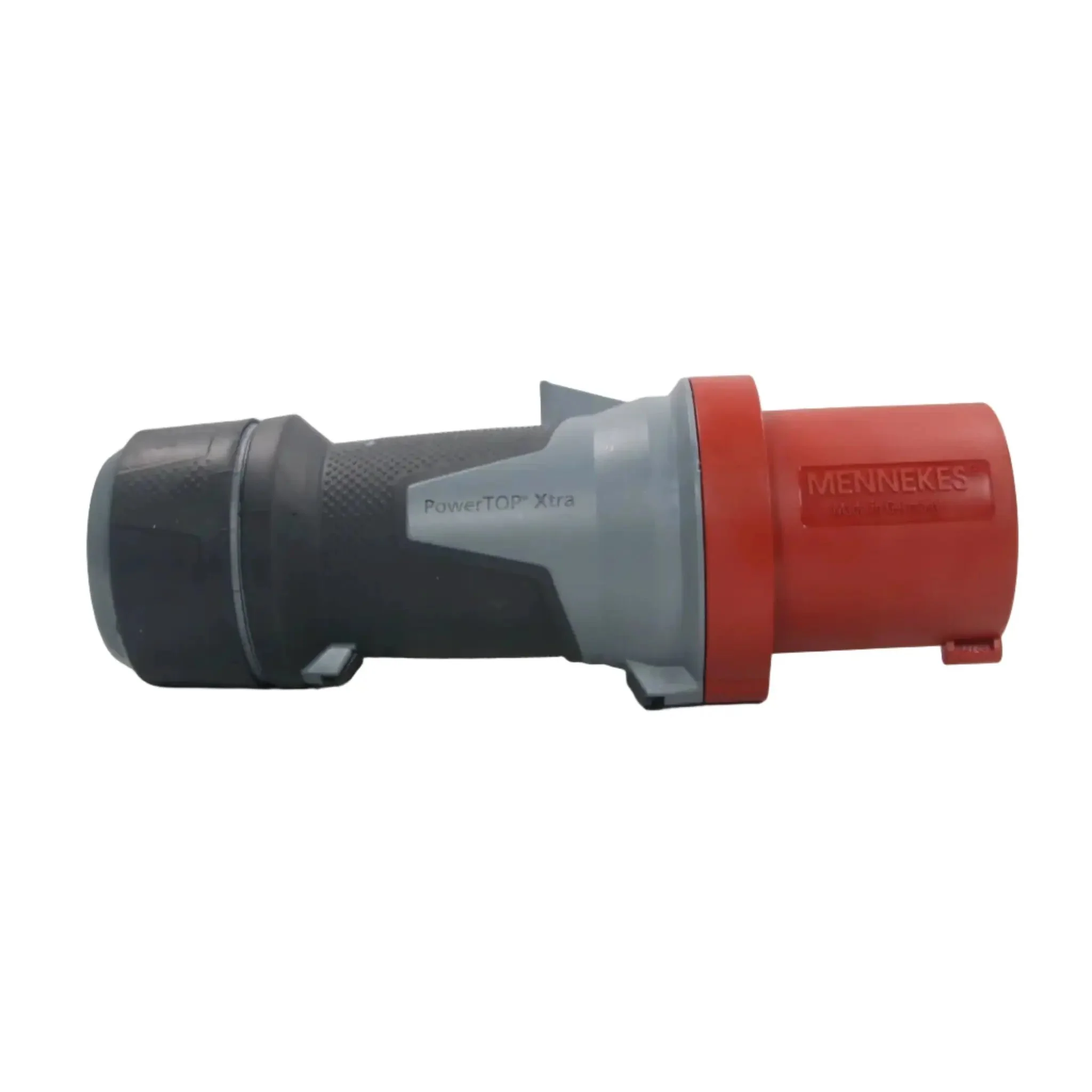

Mennekes Powertop Extra Industrial CEE Plug

- Brand: Mennekes

- Model: PowerTOP Xtra

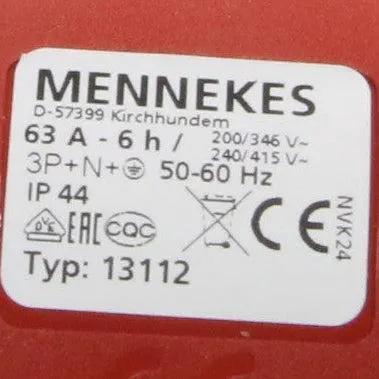

- Part number: 13112

- Type: Industrial CEE Plug (Male)

- All tech specs:
- Rated current: 63 A

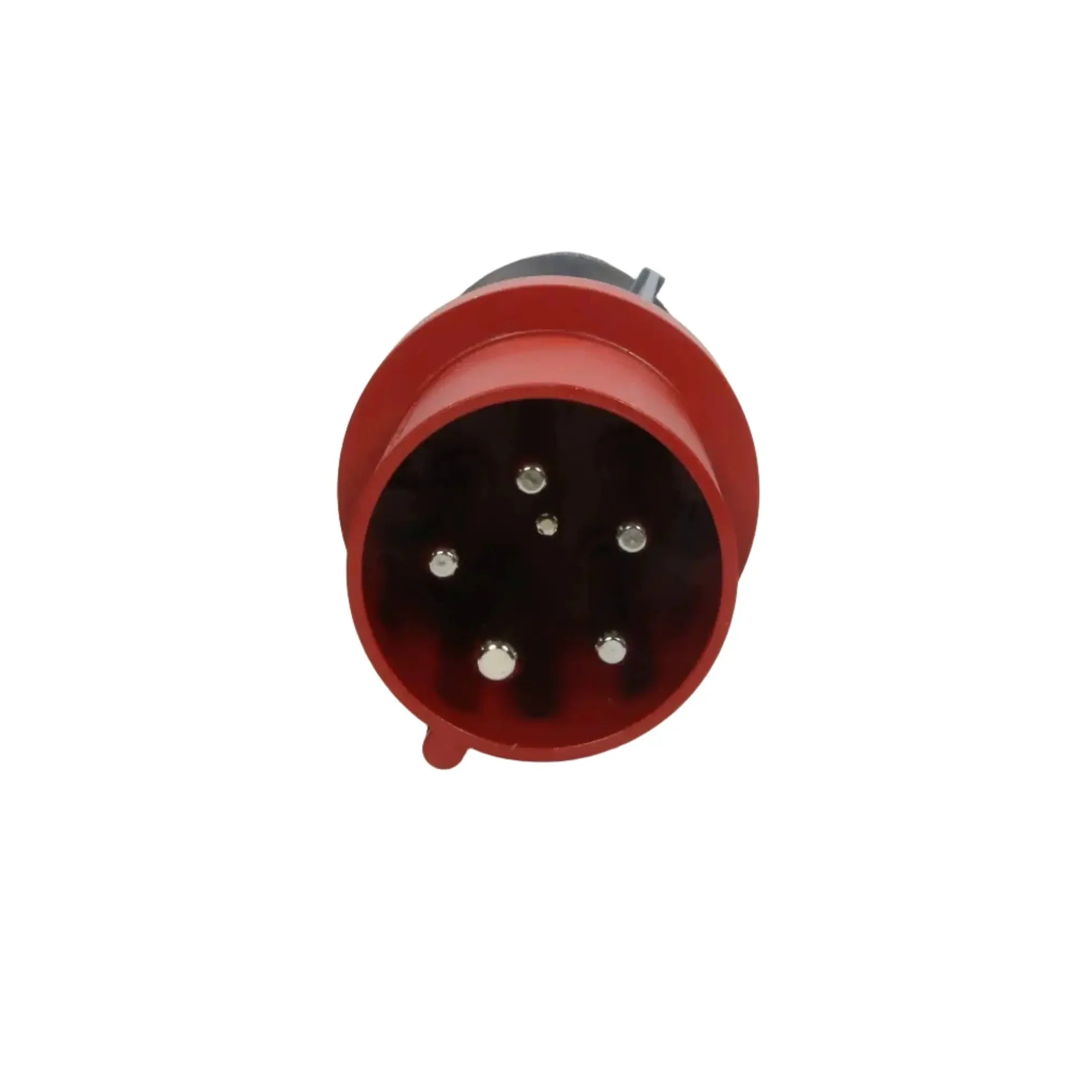

- Number of poles: 5-pole (3P + N + PE / 3 phases + neutral + earth)
- Rated voltage: 400 V (50/60 Hz)
- Clock position (earth/keying): 6 h
- Color code: Red
- Protection class: IP44
- Connection type: Screw terminals

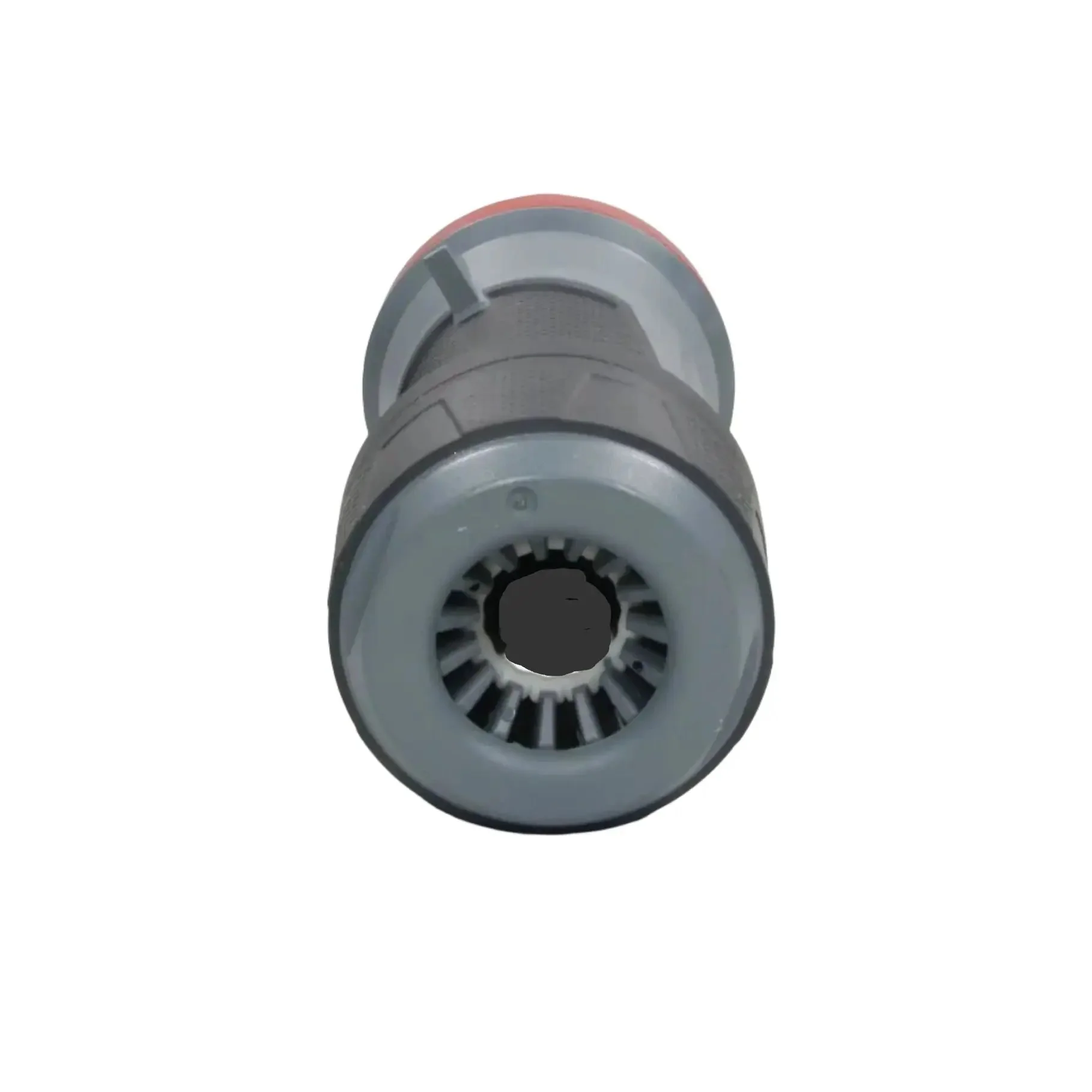

- Cable entry: Screw gland with sealing
- Contact material: Nickel-plated contacts (CuZn / brass)
- Housing material: Plastic (highly heat-resistant contact carrier, polyamide 6 PA6 base with rubberised 2-component grip area)
- Features: Rubberised grip area for better handling, frame/box terminals, strain relief and kink protection, highly heat resistant contact carrier, integrated cable gland
- Plug-in direction: Straight
- Standards compliance: IEC 60309-2 / EN 60309-2
- Suitable for: Industrial applications, heavy-duty use, construction sites, events, camping, data centers, etc.

Dimensions: 250 x 100 x 80 mm

Weight: 900 g

Country of origin: Germany

HS code: 853669
