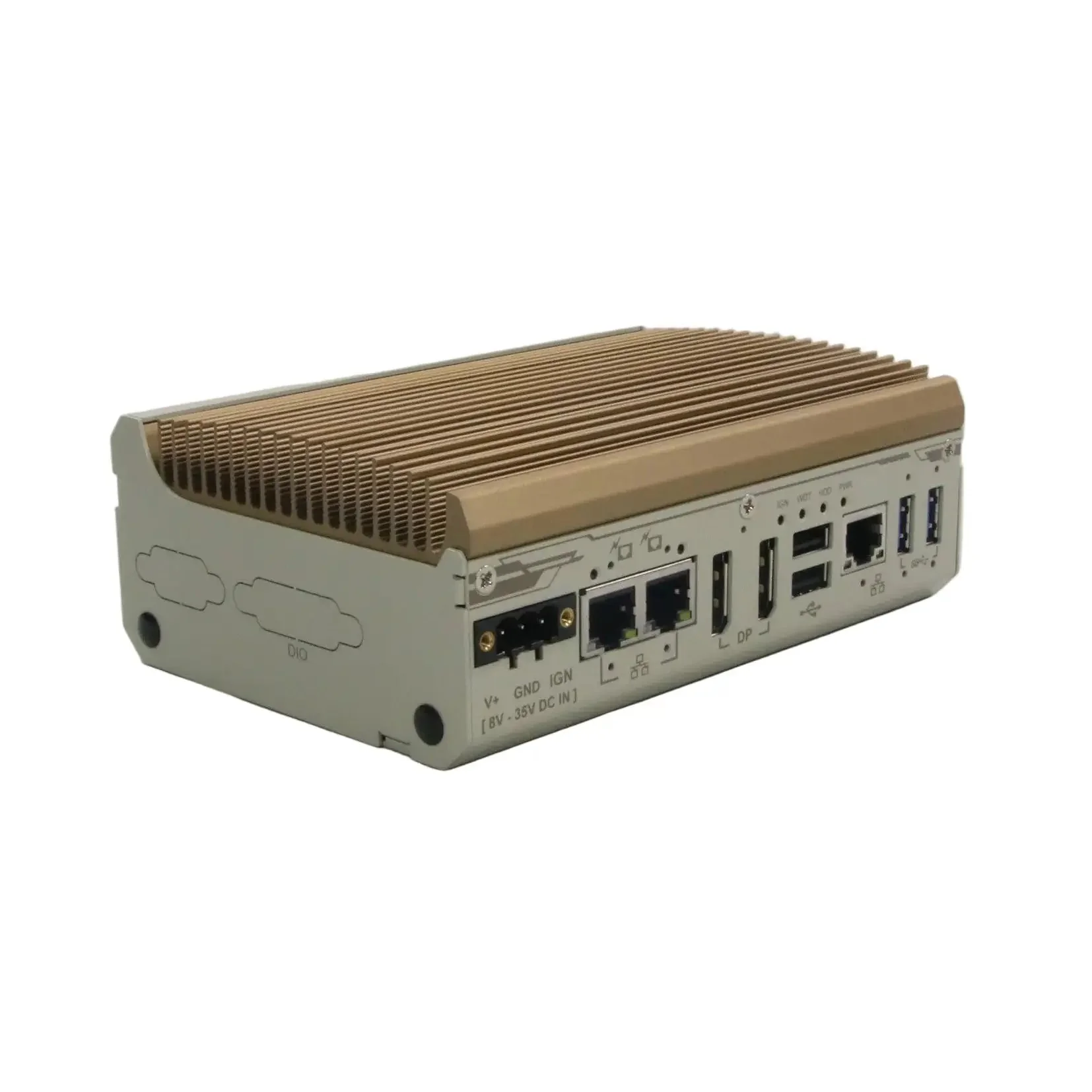

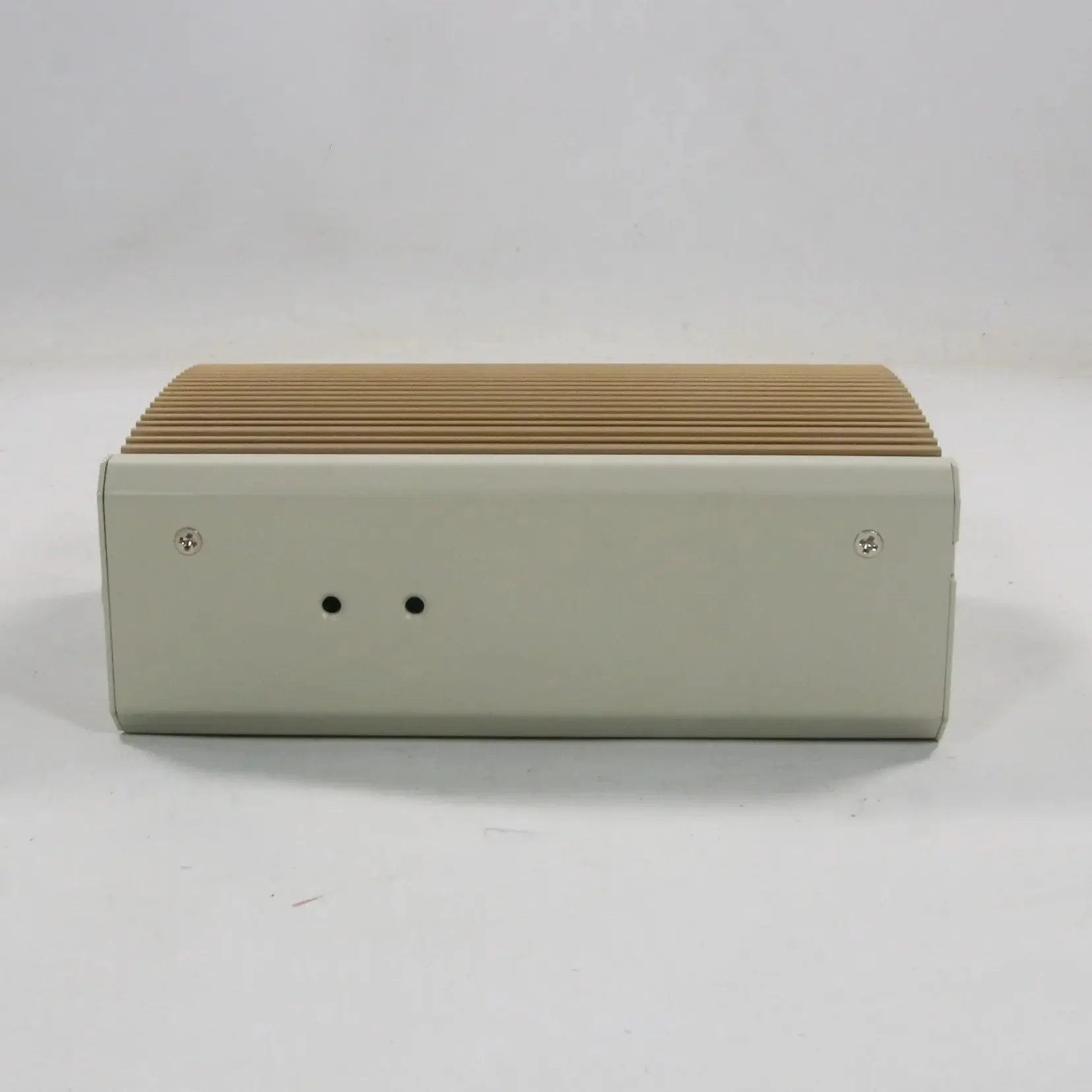

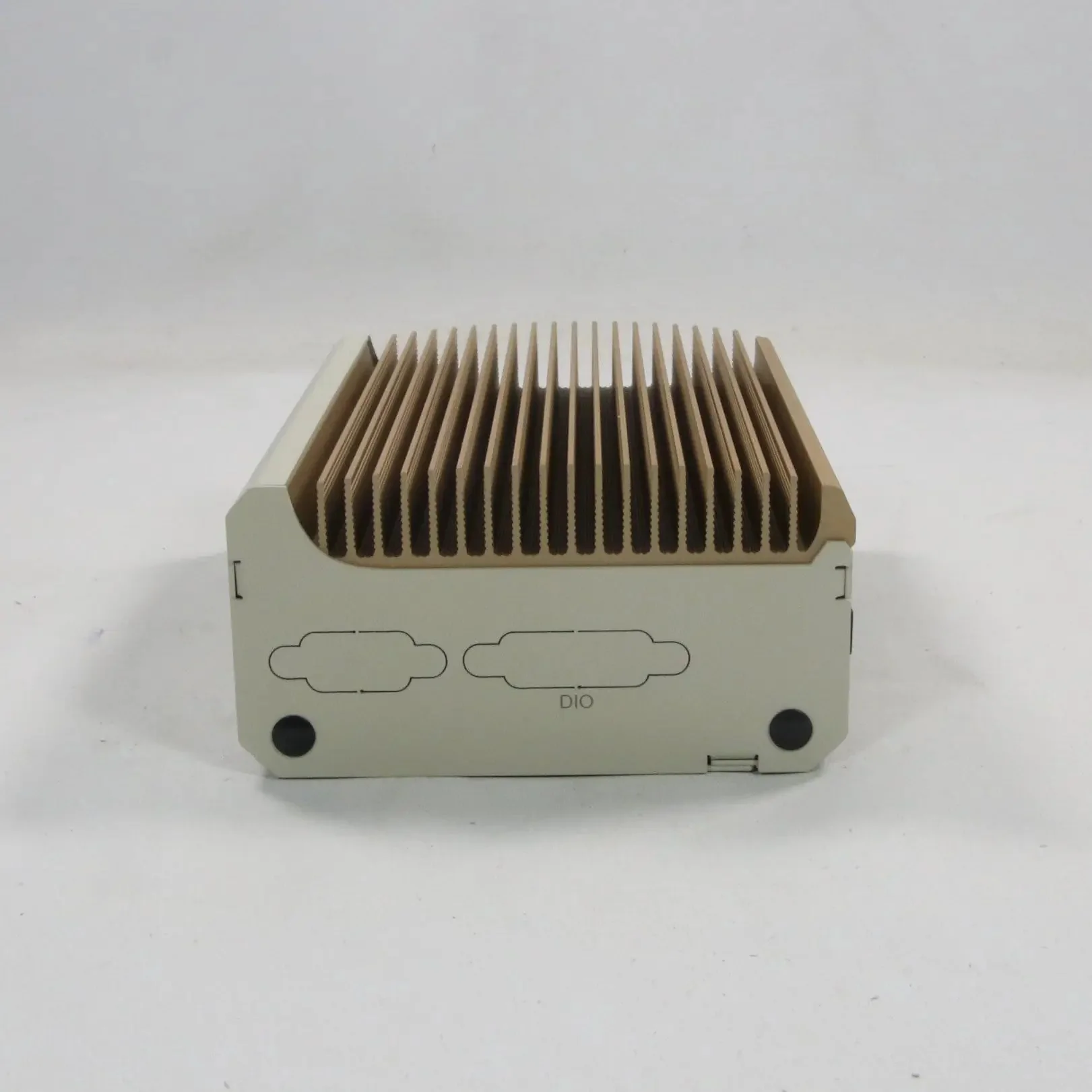

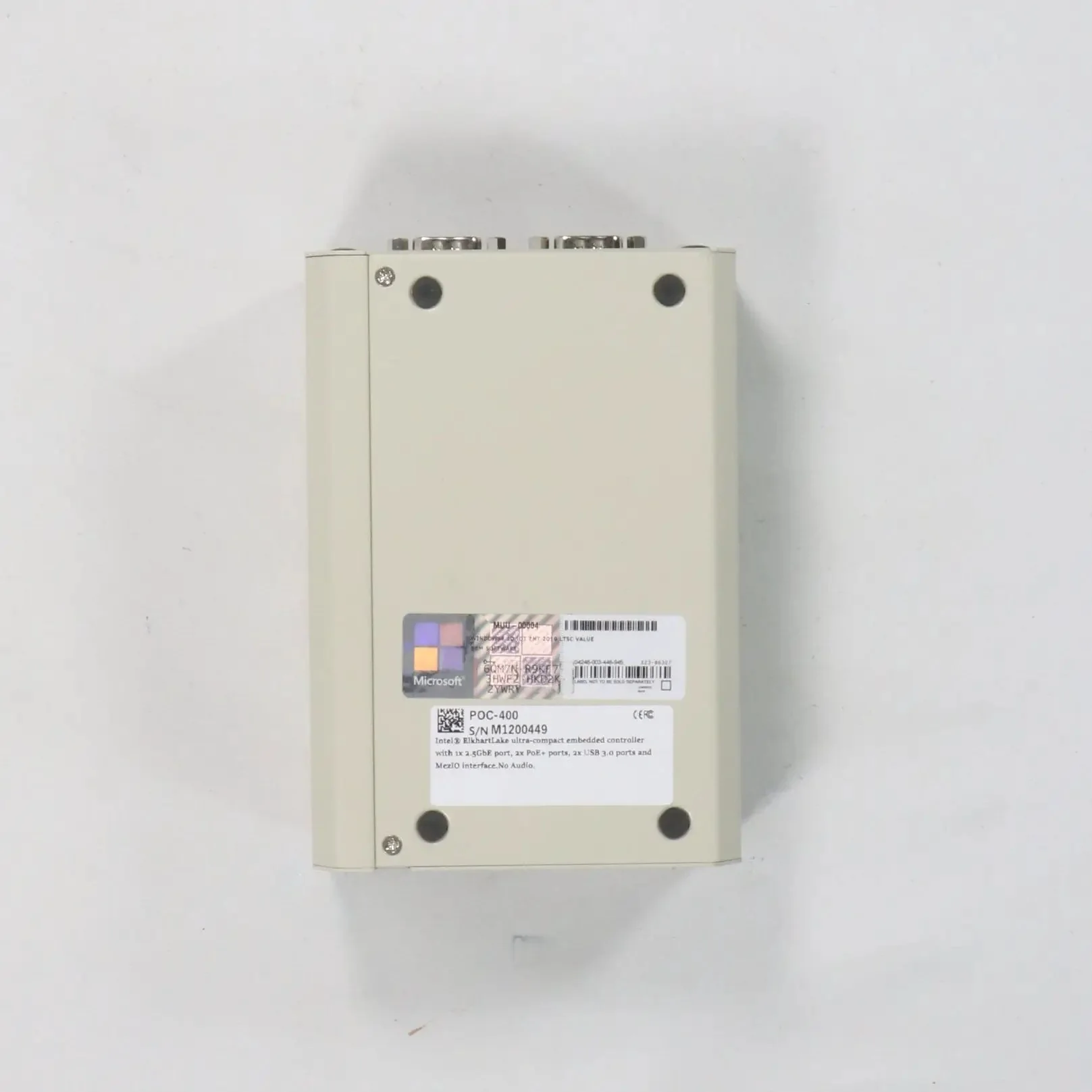

Neousys Technology Inc. POC-400 Ultracompact Embedded Controller

- Brand: Neousys Technology Inc.

- Model: POC-400

- Type: Ultracompact Embedded Controller / Industrial PC

- Part number: POC-400

- Technical specifications:
- Processor: Intel® Elkhart Lake x6425E quad-core 2.0 Ghz
- Storage: 1 x M2 2280 SATA Interface
- Display outputs: 2 x DisplayPort

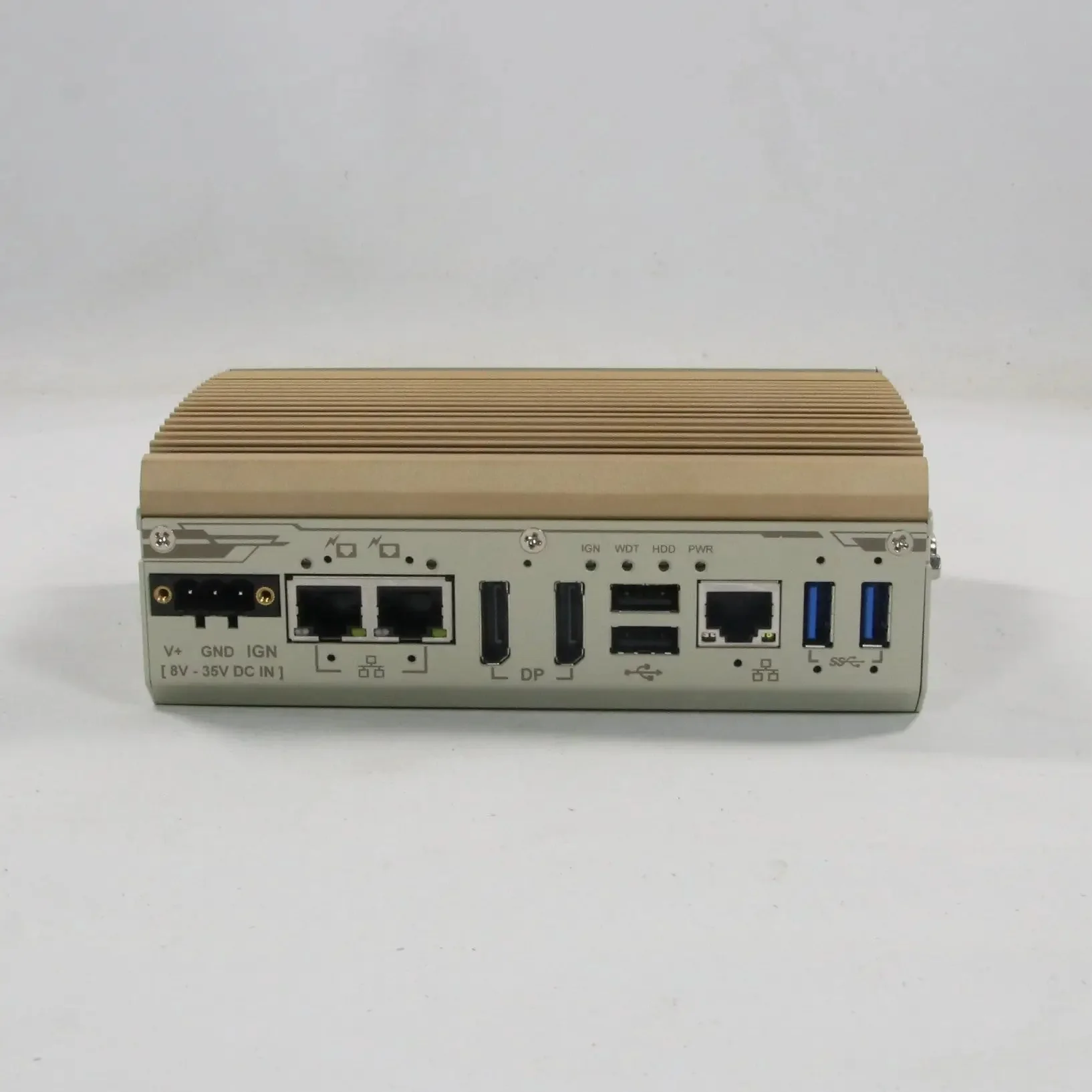

- I/O ports:
  - 1 x 2.5 GbE Port
  - 2 x USB 3.0
  - 2 x USB 2.0

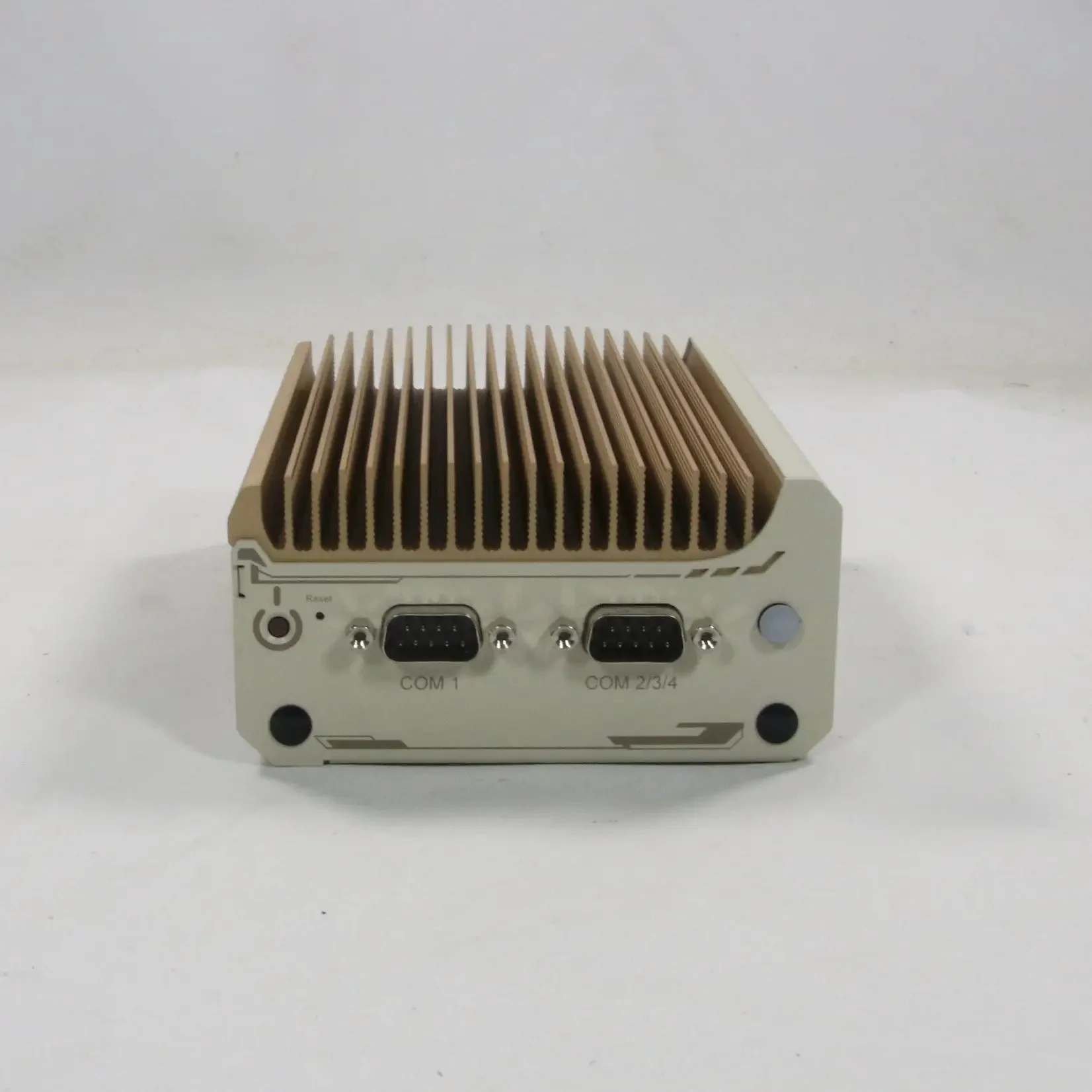

  - 2 x COM (RS-232/422/485)
  - 2 x PoE+ Ports
  - 1 x MezIO Expansion Port
- Power input: 8–35 V DC (3 pin plug-in adapter)
- Operating temperature: -25°C to +70°C
- Vibration/shock: MIL-STD-810G compliant

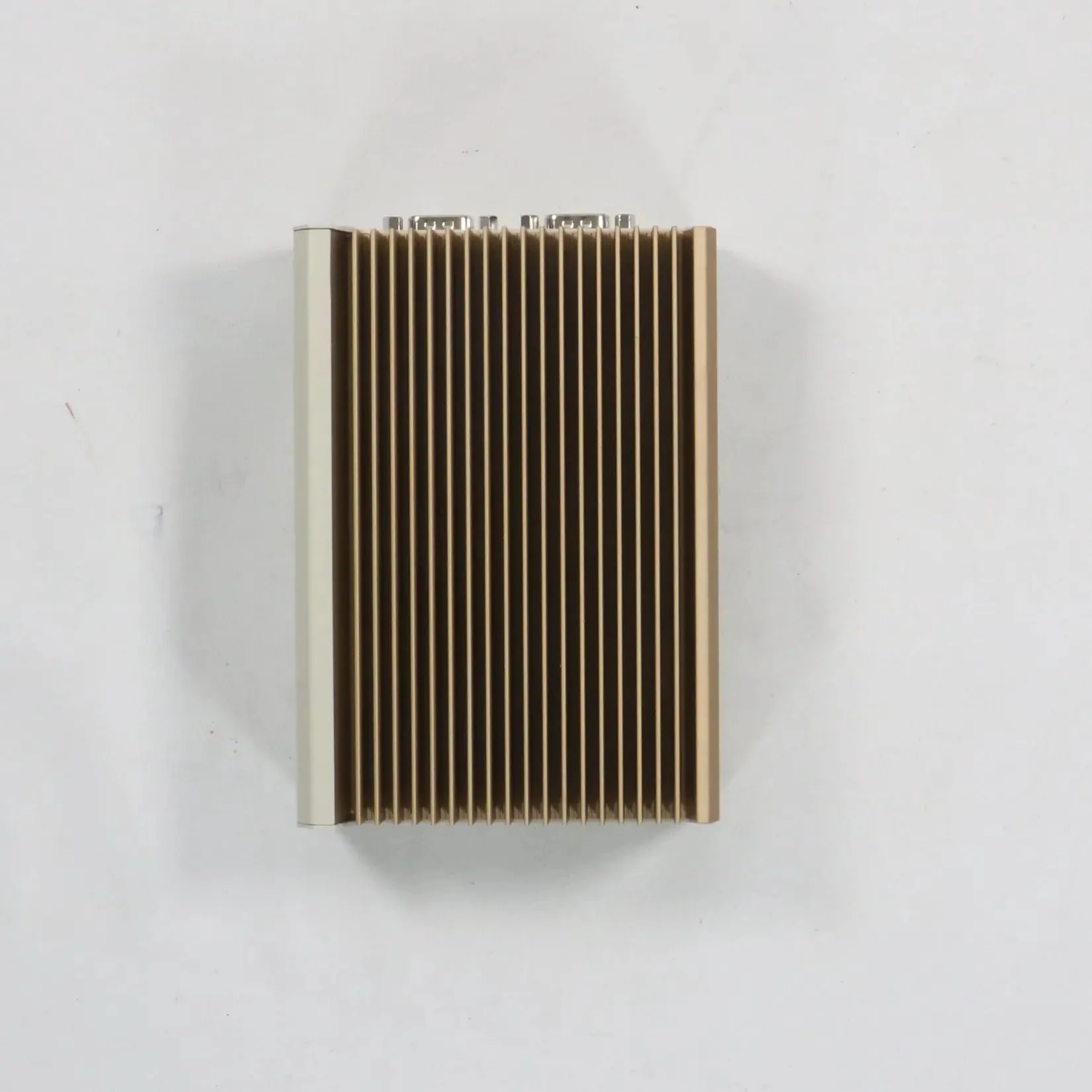

- Protection: Fanless aluminum chassis with heat dissipation fins; no moving parts
- Mounting: DIN rail
- Additional features: Extremely compact; low power consumption; ignition sense for vehicle applications; support for Windows 10/11 IoT, Linux; suitable for edge computing, vision inspection, AGV/AMR, or in-vehicle telematics
- Standards: CE, FCC, RoHS; MIL-STD-810G for vibration/shock

Weight: 1.5 kg

Dimensions: 56 x 108 x 153 mm

Country of origin: Taiwan

HS code: 8471.41
