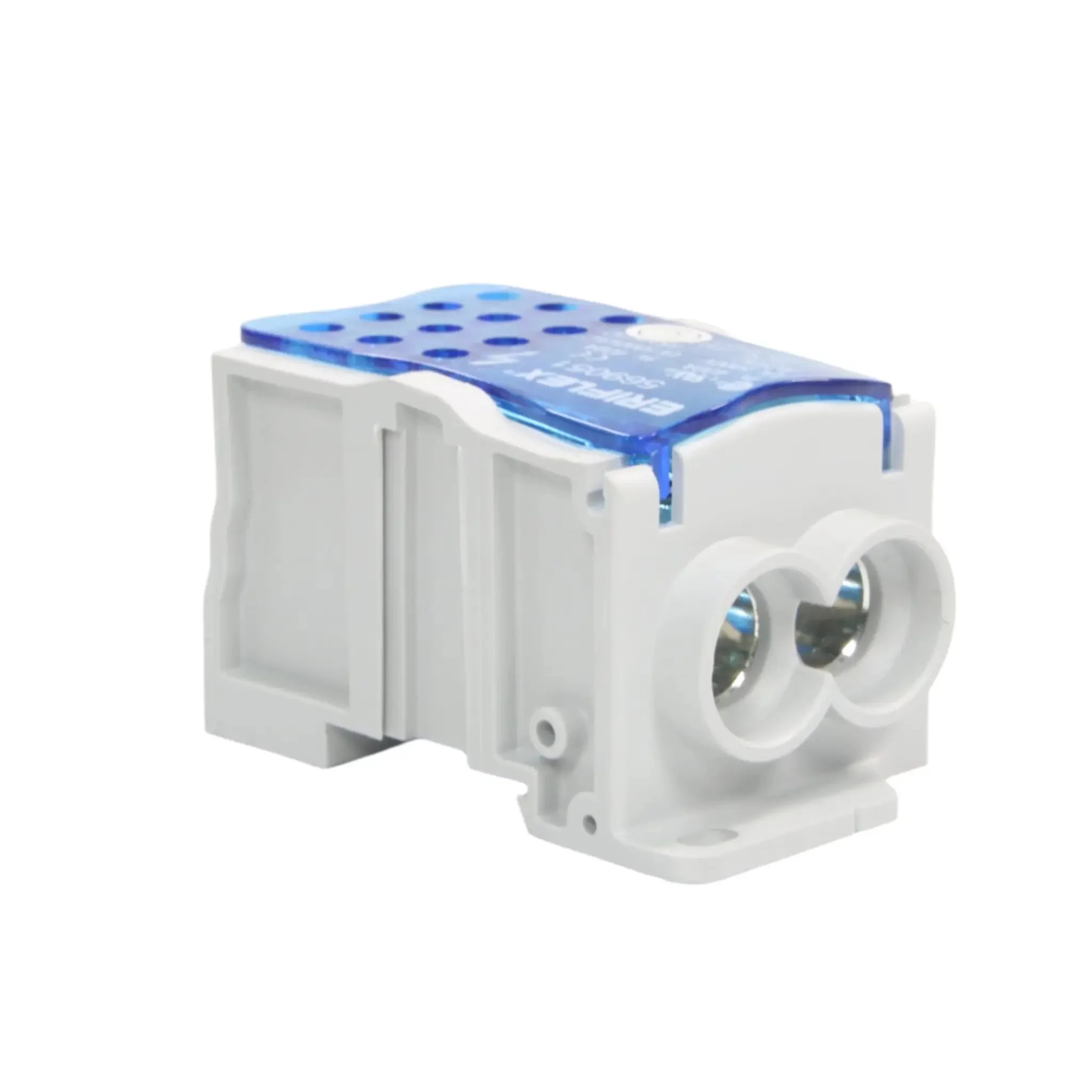

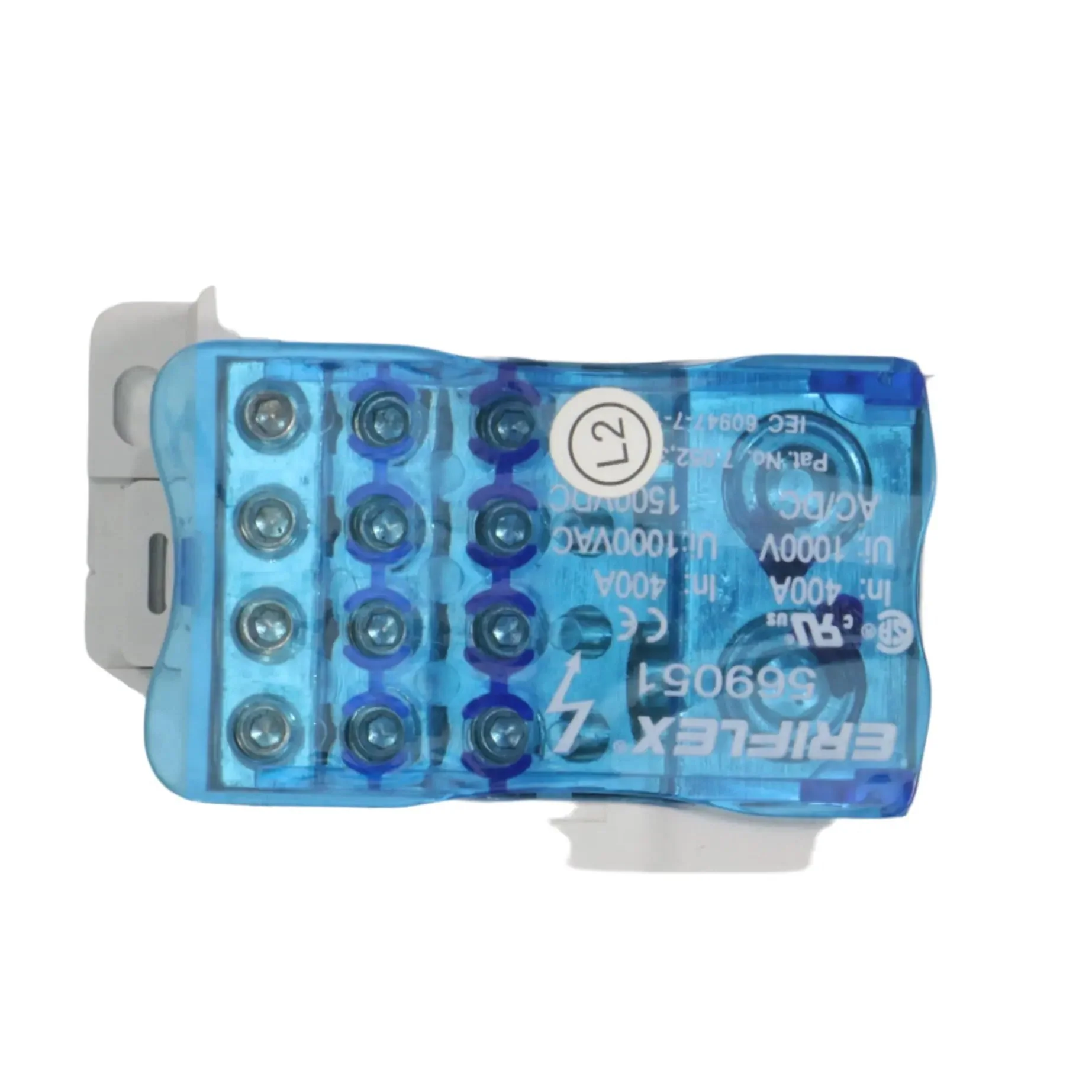

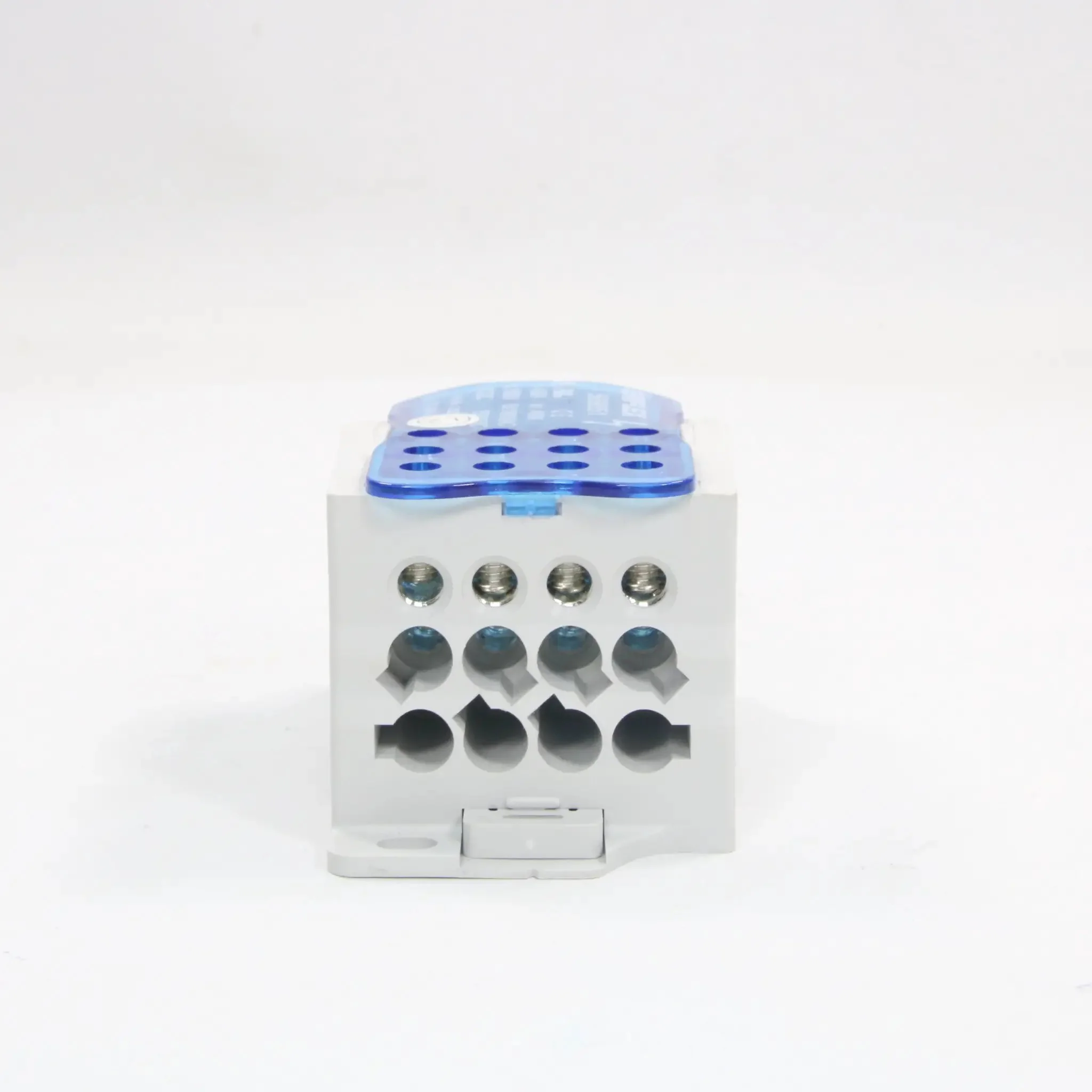

nVent ERIFLEX 569051 Single Pole Distribution Block UD-400212CU

nVent ERIFLEX 569051 Single Pole Distribution Block UD-400212CU
Part Number:                             569051
Alternate Part Number:            UD-400212CU
UPC:                                           782856687603
Type:                                          Single Pole Distribution Block
Max Current Rating (IEC):        400 A
Max Working Voltage (IEC):     1000 VAC/1500 VDC
Short Circuit Current:               10 kA
Line Side Connections:             2 cables
Line Side Wire Size:                  35 to 95 mm² compact stranded, 8 to 3/0 AWG
Load Side Connections:           12 cables
Load Side Wire Size:                2.5 to 10 mm² compact stranded, 2.5 to 10 mm² stranded (ferrule), 14 to 6 AWG
Conductor Material:                 Copper (tinned copper block)
Housing Material:                     Thermoplastic, Halogen-Free
Protection Class:                      IP20 (finger-safe)
Dimensions:                             96 x 56 x 50 mm (3.79 x 2.20 x 1.99 in)
Weight:                                     Approx. 420 gram
Mounting:                                 DIN rail or panel mount with screws
Certifications:                          CE, UL (CSA C22.2 No. 158), IEC 60947-7-1, EN 45545 HL3/R23, RoHS compliant
Applications:                            Power distribution in industrial automation, solar applications, HVAC, control panels
Features:                  Visual inspection window for wire and connection confirmation, modular snap-together blocks for multi-pole configurations, tinned copper block for corrosion resistance, 95% fill ratio, screw retaining cover (hinged and removable)
