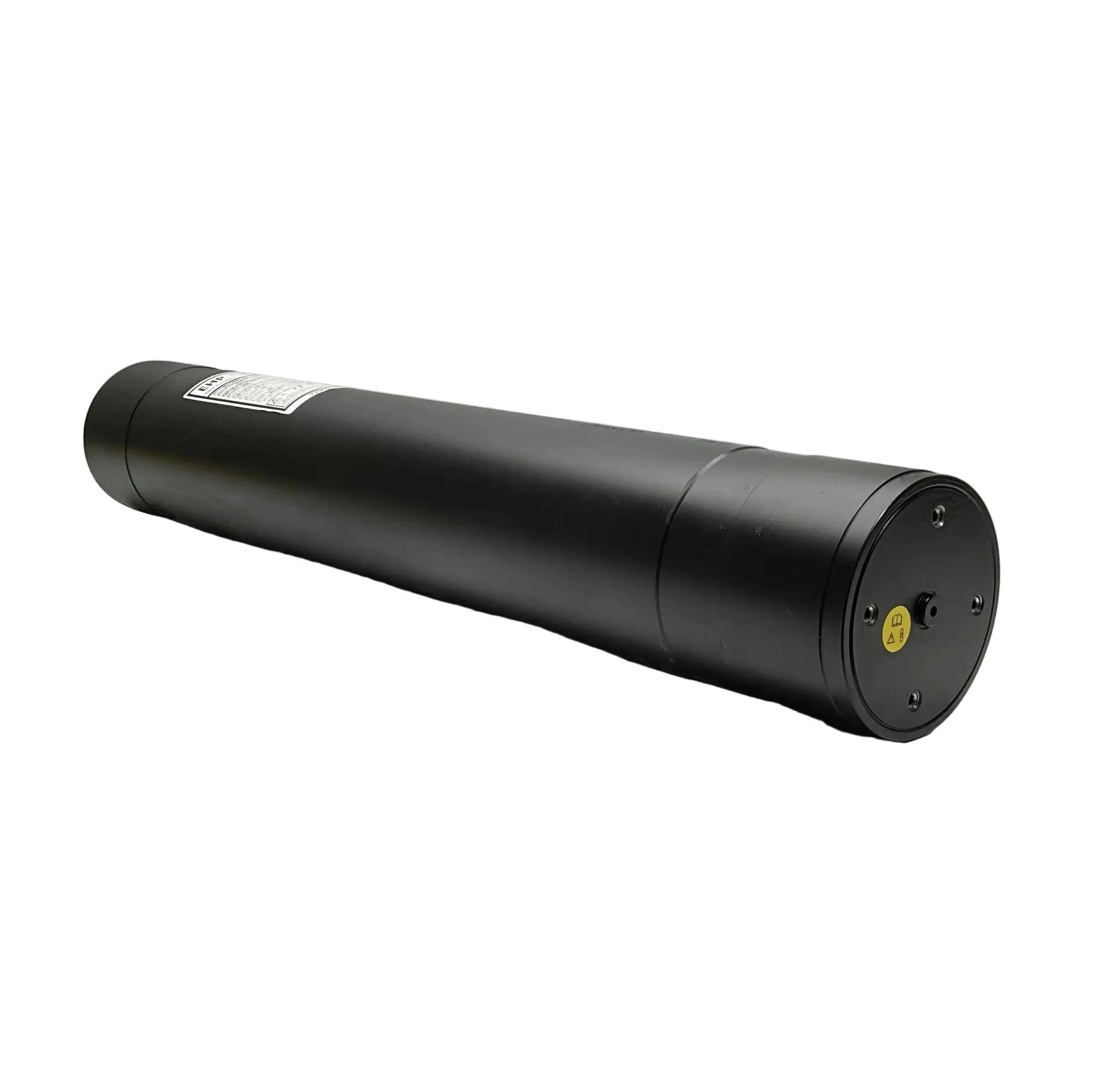

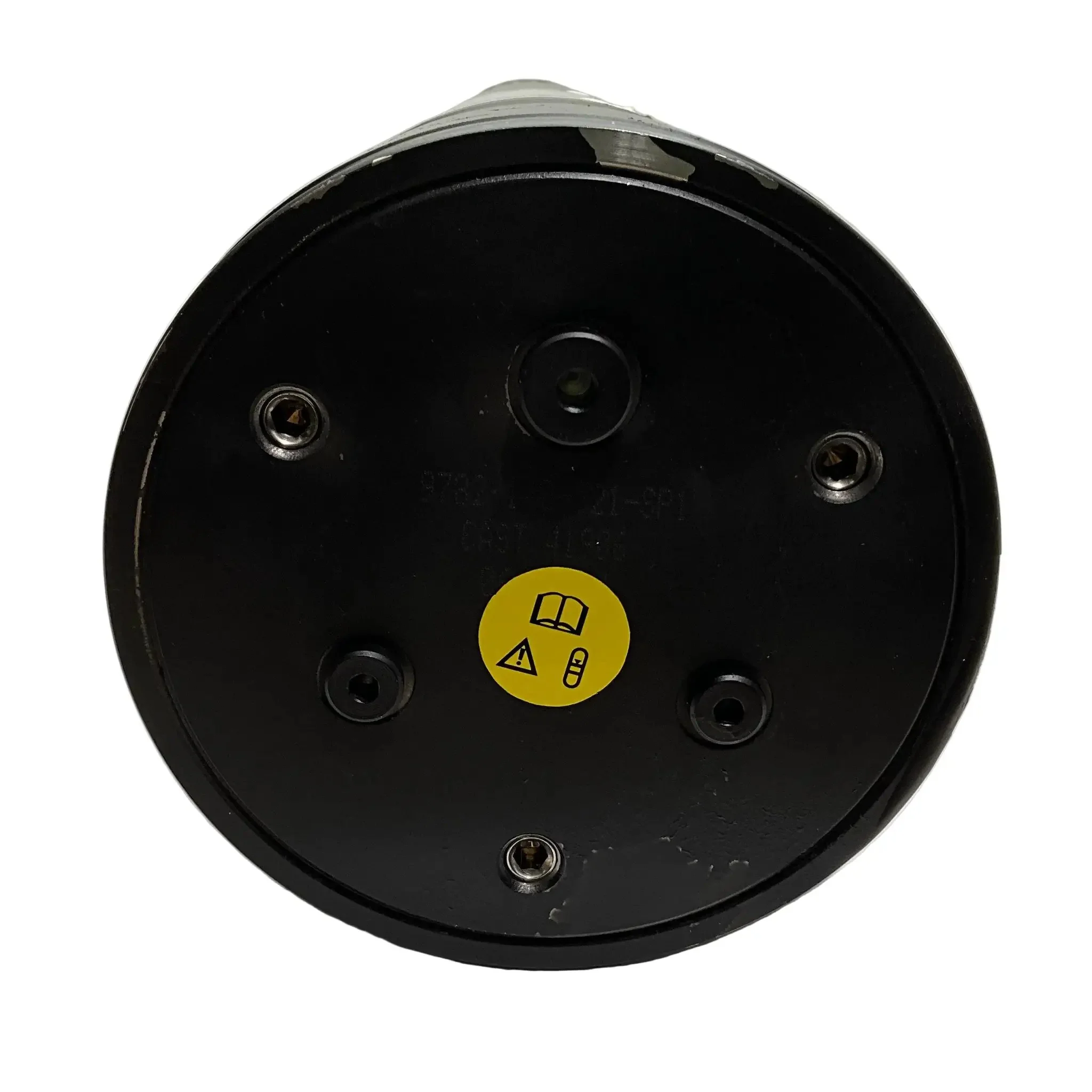

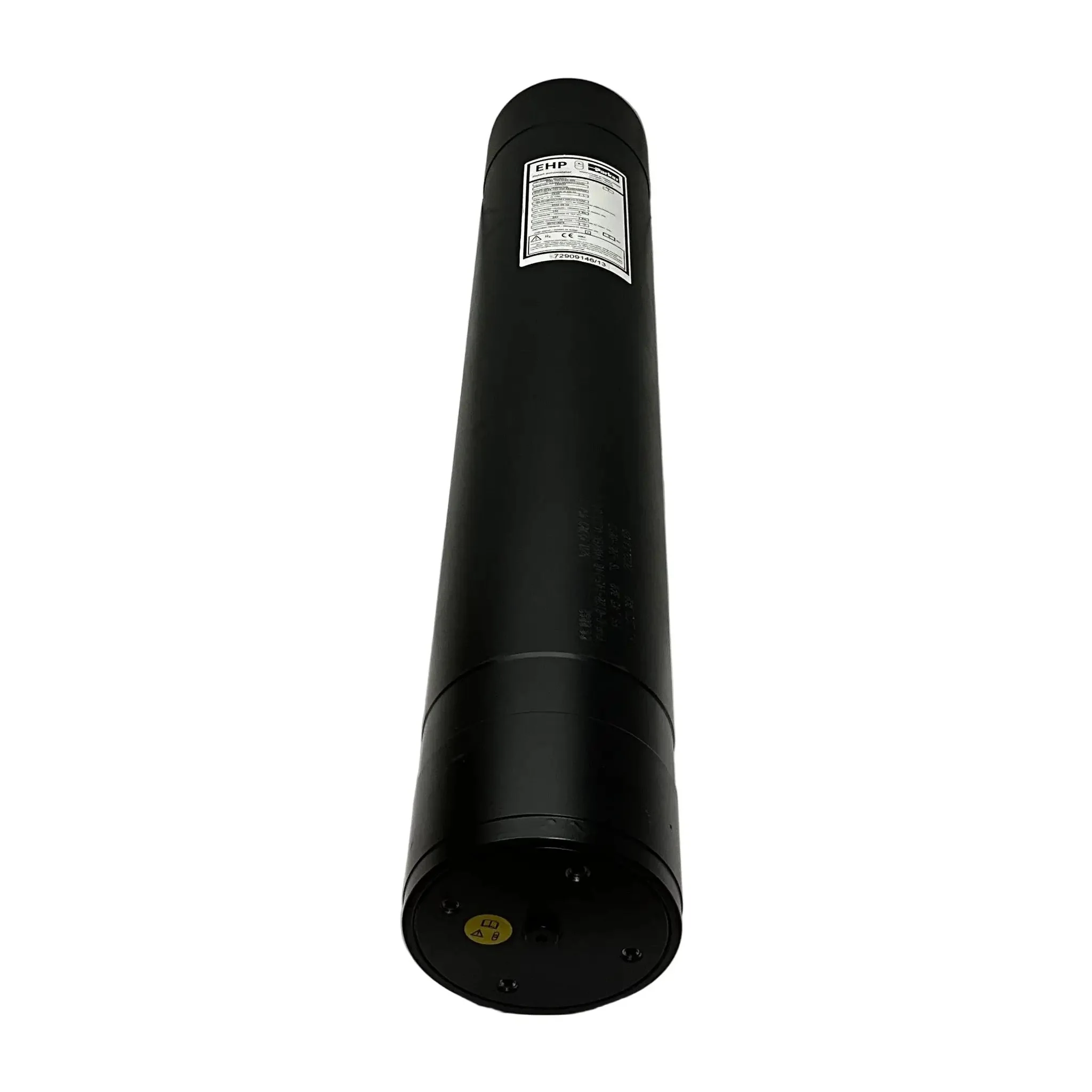

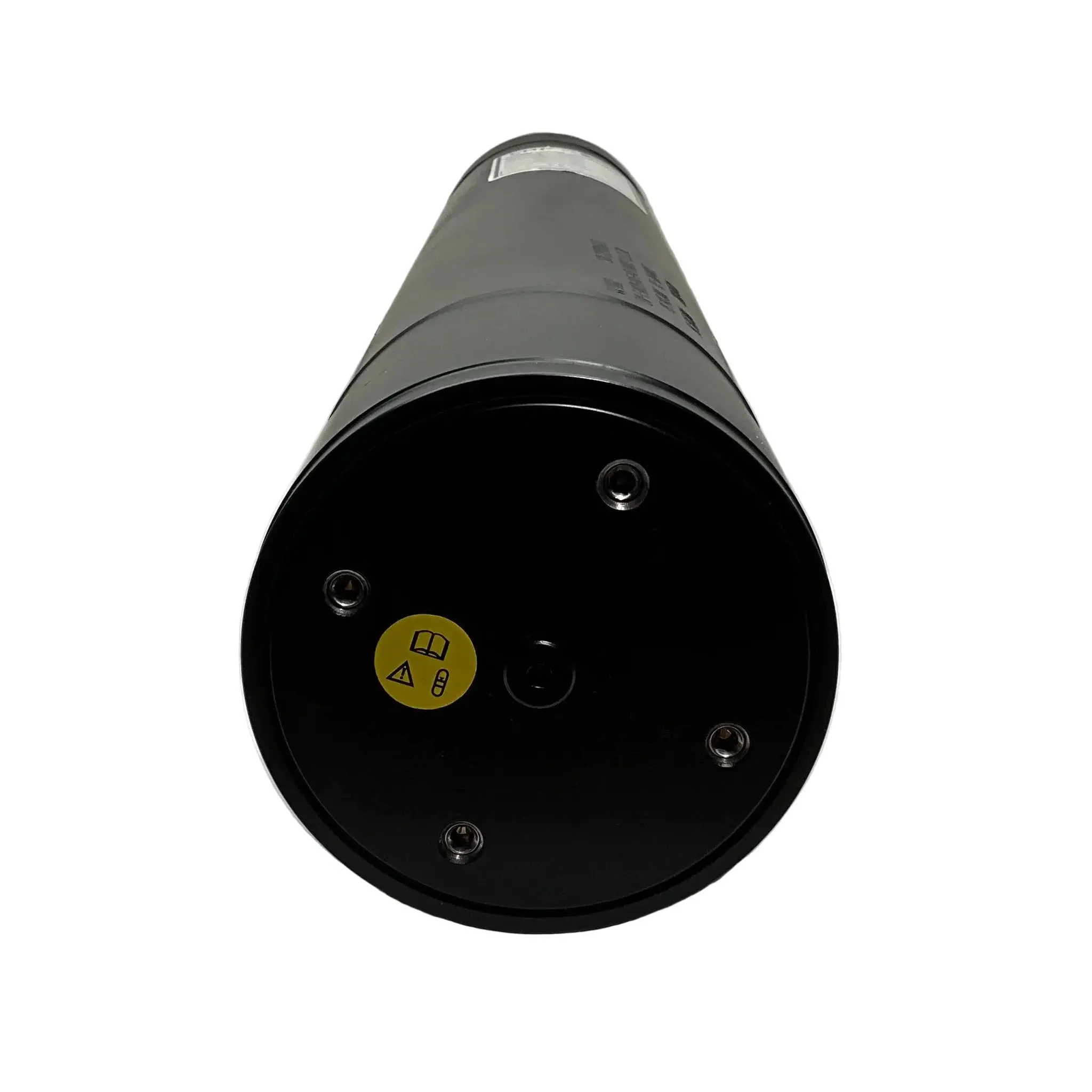

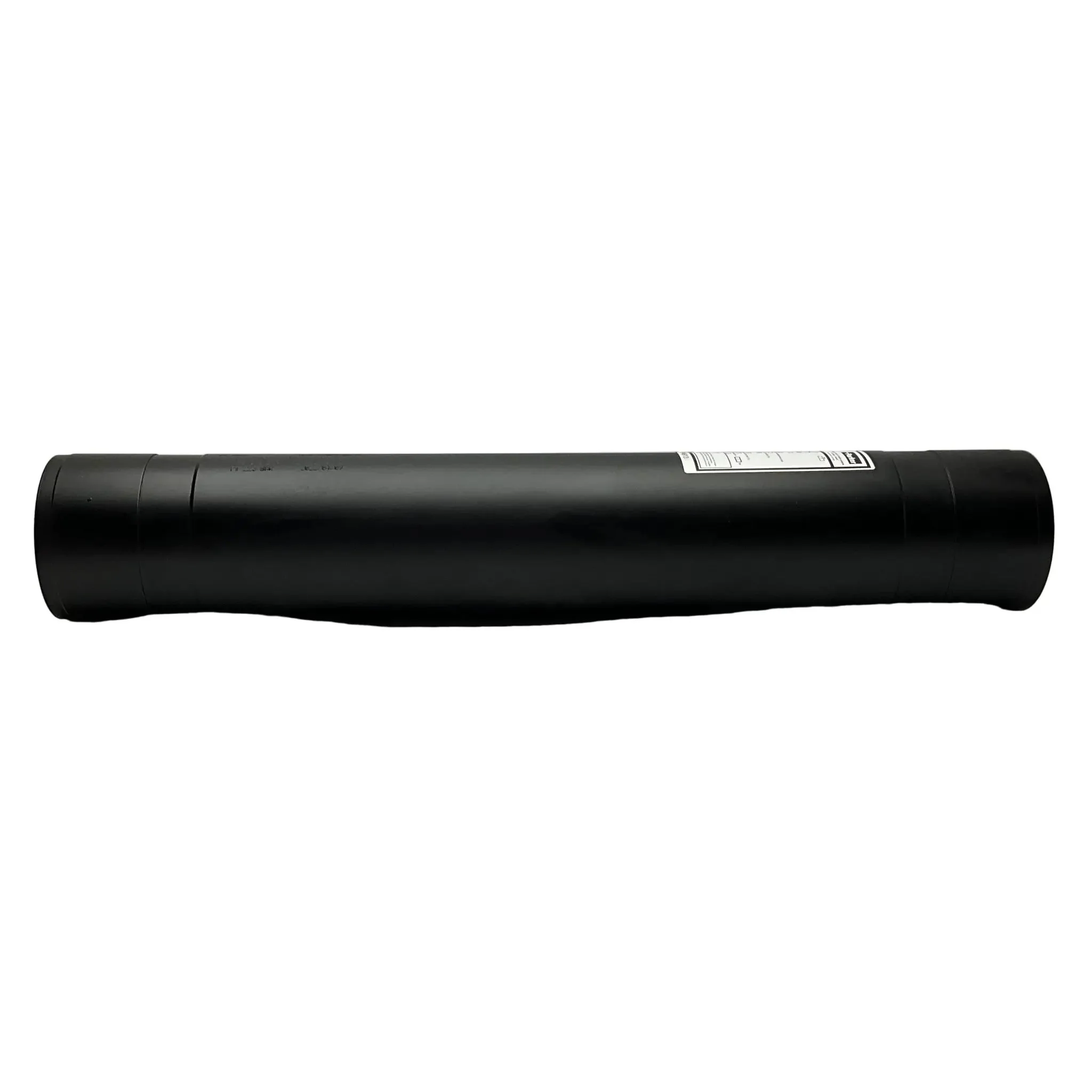

Parker Hannifin EHP Large Bore Piston Accumulator

- Brand: Parker Hannifin
- Model: EHP - Large Bore Piston Accumulator
- Type: Piston Accumulator

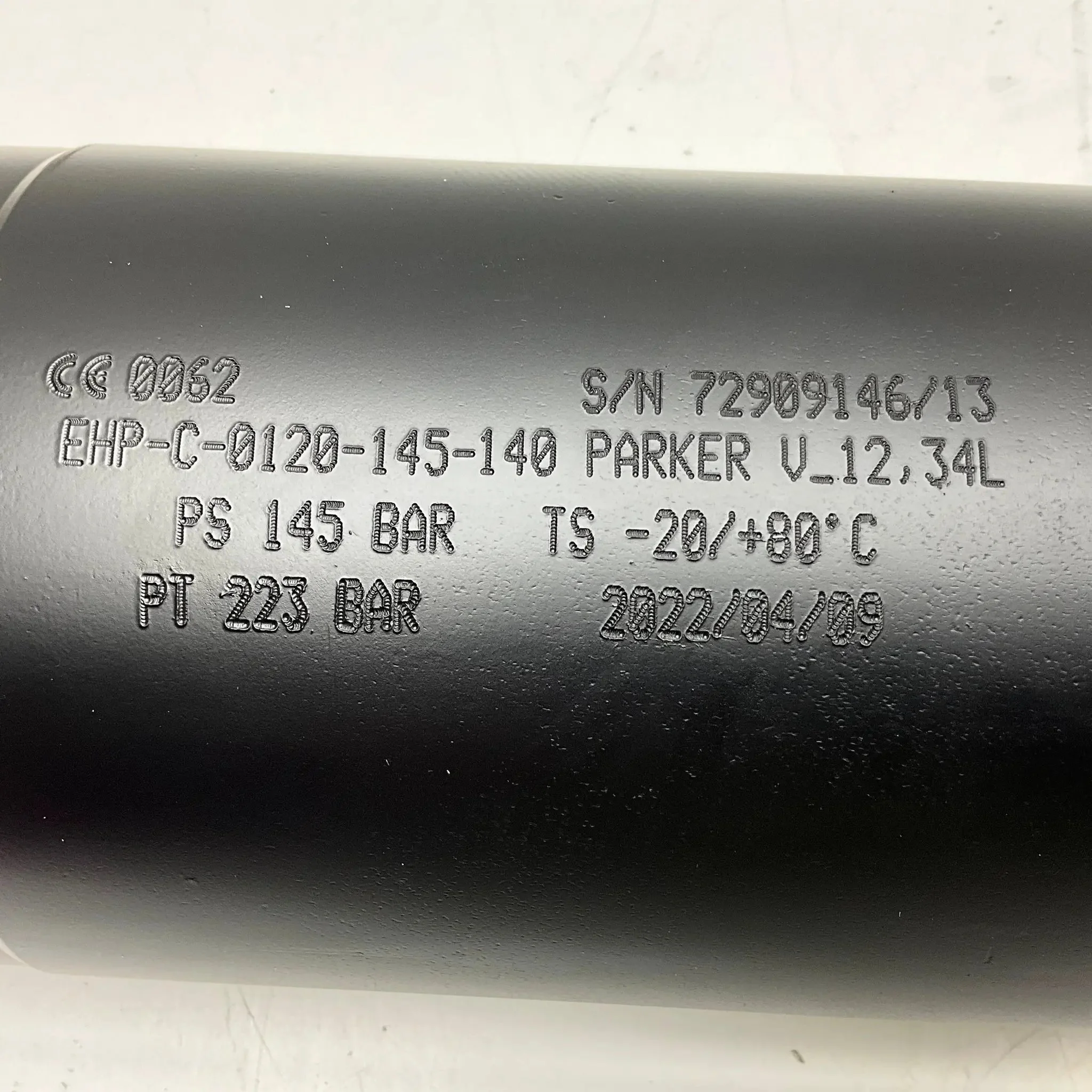

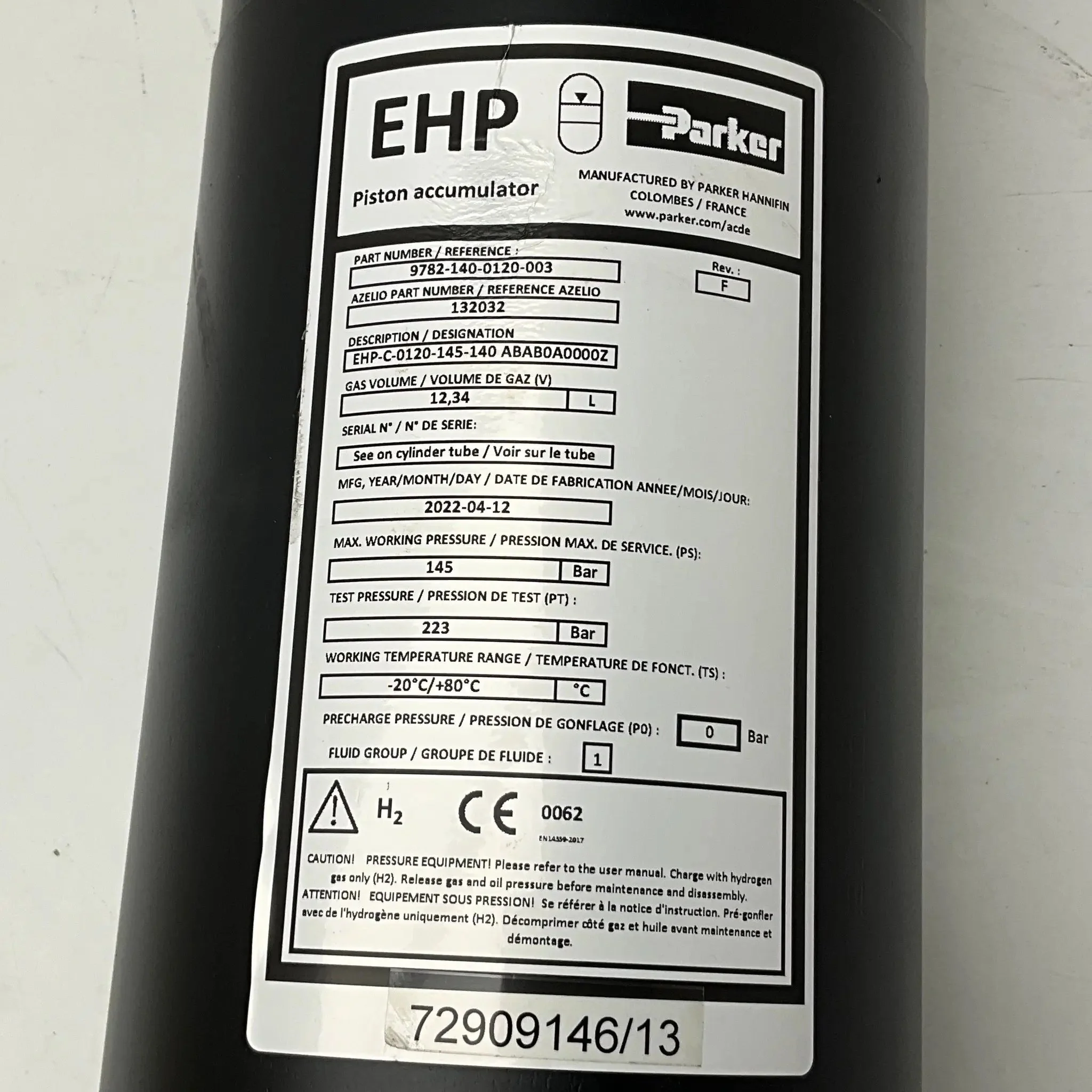

- Part Number: EHP-C-0120–145-140 ABAB0A0000Z

Technical Specs:
- Series: EHP (European Large Bore Piston Accumulator, formerly Olaer/Oiltech)
- Bore Diameter: 140 mm
- Nominal Volume: 12.34 L
- Maximum Operating Pressure: 145 bar , Test Pressure: 223 bar
- Material: Carbon steel body
- Piston Seals: Standard
- Fluid Ports: Standard configuration
- Temperature Range: -20°C to +80°C
- Additional Features: High flow rates, long service life, low maintenance, modular accessories
- Certifications: PED 2014/68/EU

Dimensions: 940 x 160 diam. mm

Weight: 48 kg

Country of Origin: France

HS Code: 8412.90
