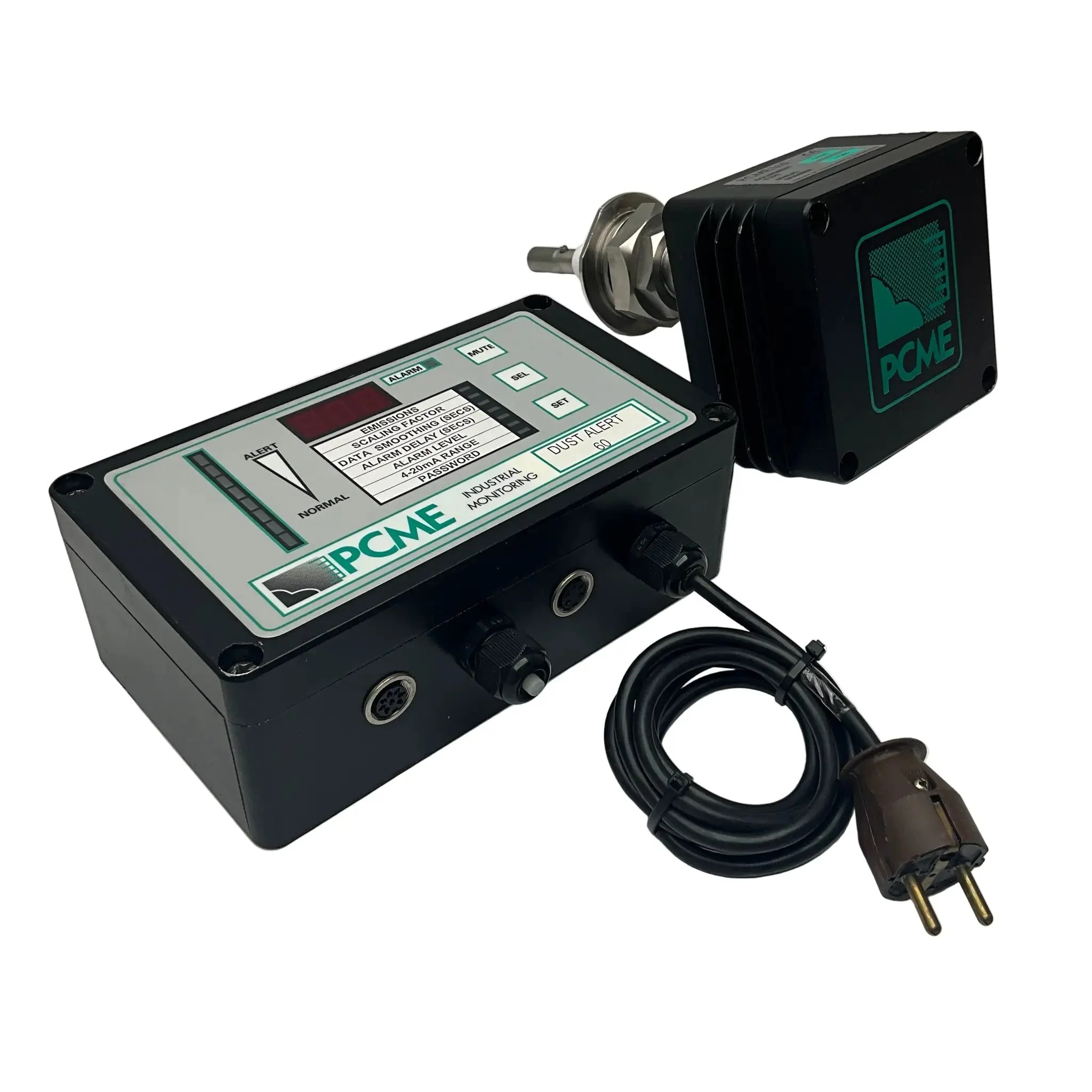

PCME Industrial Monitoring DA60 Monitor/Controller & Sensor

Brand: PCME (ENVEA Group)
Model: Dust Alert DA60
Type: Electrodynamic Dust Monitor/Controller & Sensor
Part Number: DA60

Technical Specs:
- Measurement Principle: Electrodynamic (AC Triboelectric) technology – detects charged particles moving in the gas stream
- Measurement Range: 0 – 1000 mg/m³
- Sensitivity: 0.1 mg/m³
- Response Time: 1 second
- Output Signals:
  – 4-20 mA
- Supply Voltage: 115 – 240 V AC, 50/60 Hz 1A

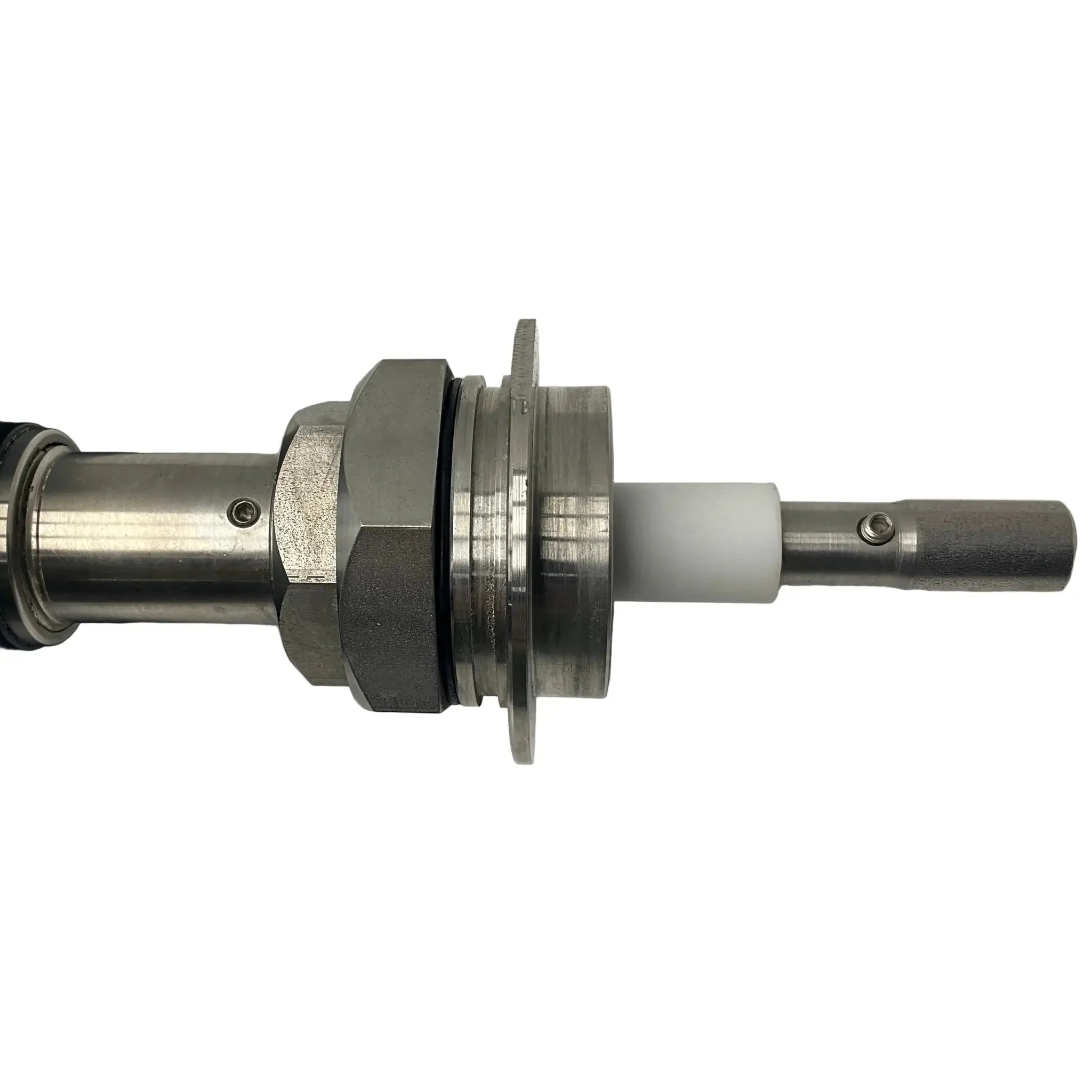

- Insertion Length: 100 mm into duct (standard)
- Process Temperature: -20 °C to +250 °C (standard probe)
- Process Pressure: ± 500 mbar (standard)
- Duct Diameter: 250 mm to 6 m
- Enclosure Rating: IP66 (sensor and controller)
- Ambient Temperature (controller): -20 °C to +50 °C
- Approvals: ATEX Cat 3D/3G (zone 22/2)

Dimensions: Controller: 220 x 150 x 80 mm - Sensor: 270 x 150 x 120 mm

Weight:  - Controller: 2.1 kg  - Sensor : 2.0 kg

Country of Origin: United Kingdom

HS Code: 9031.80
