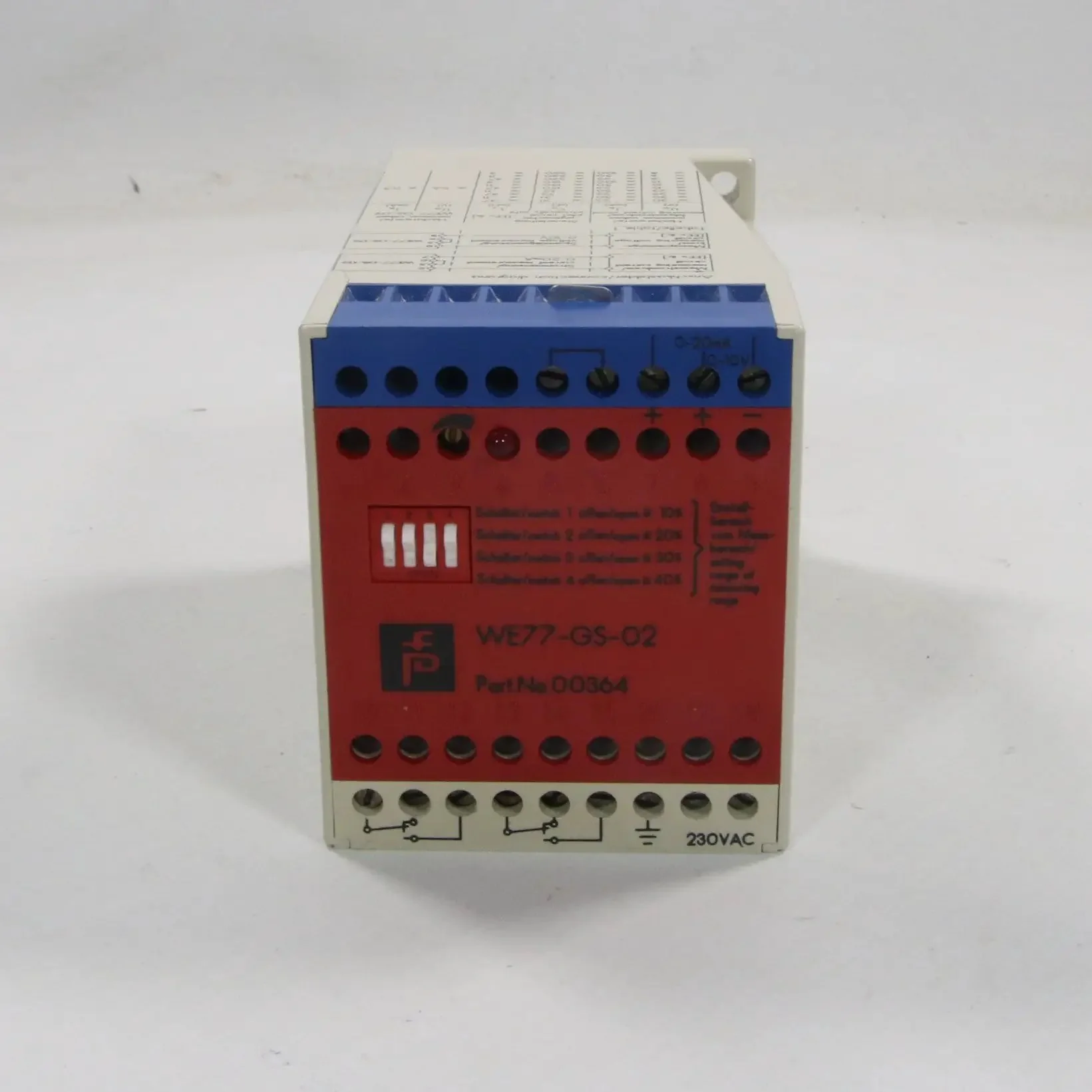

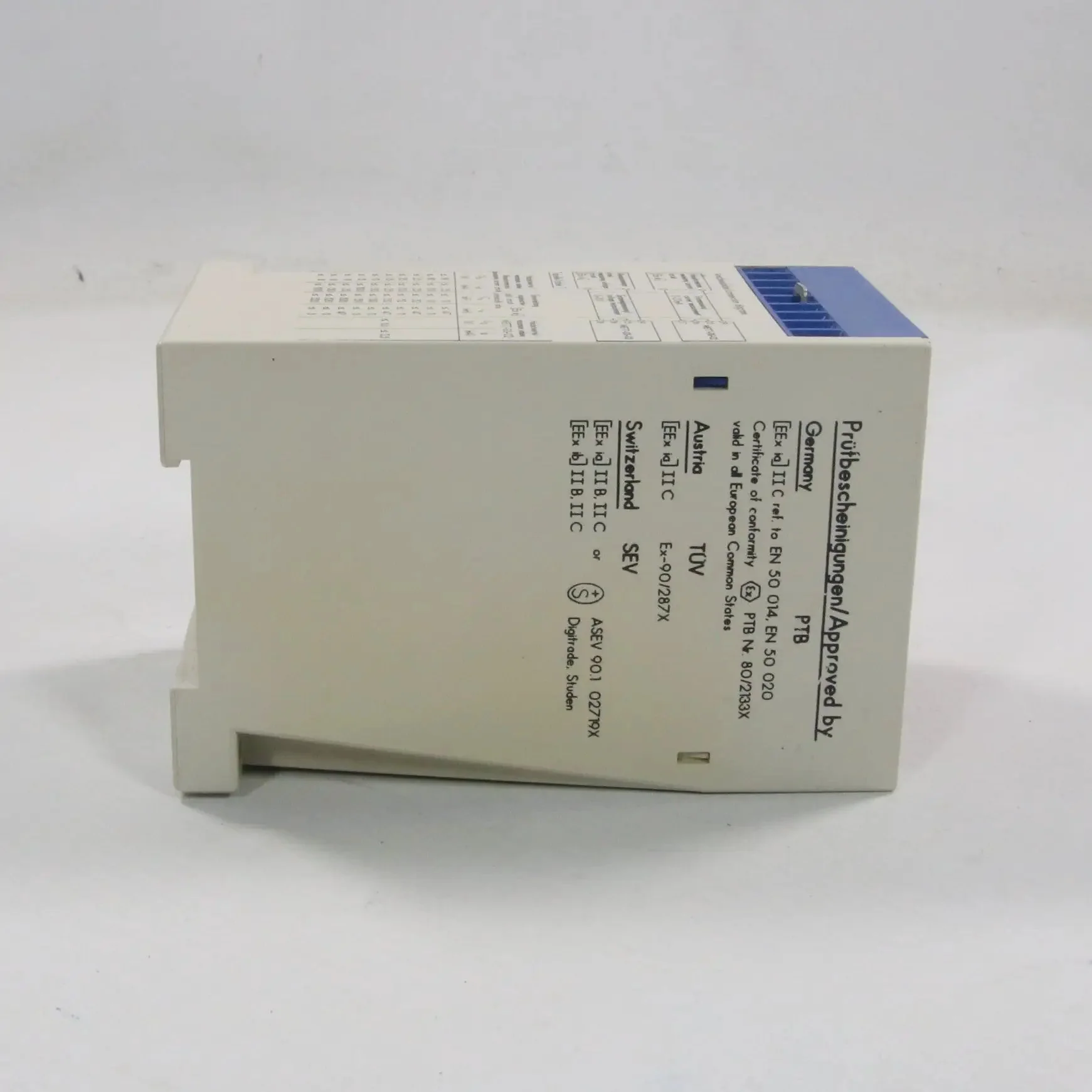

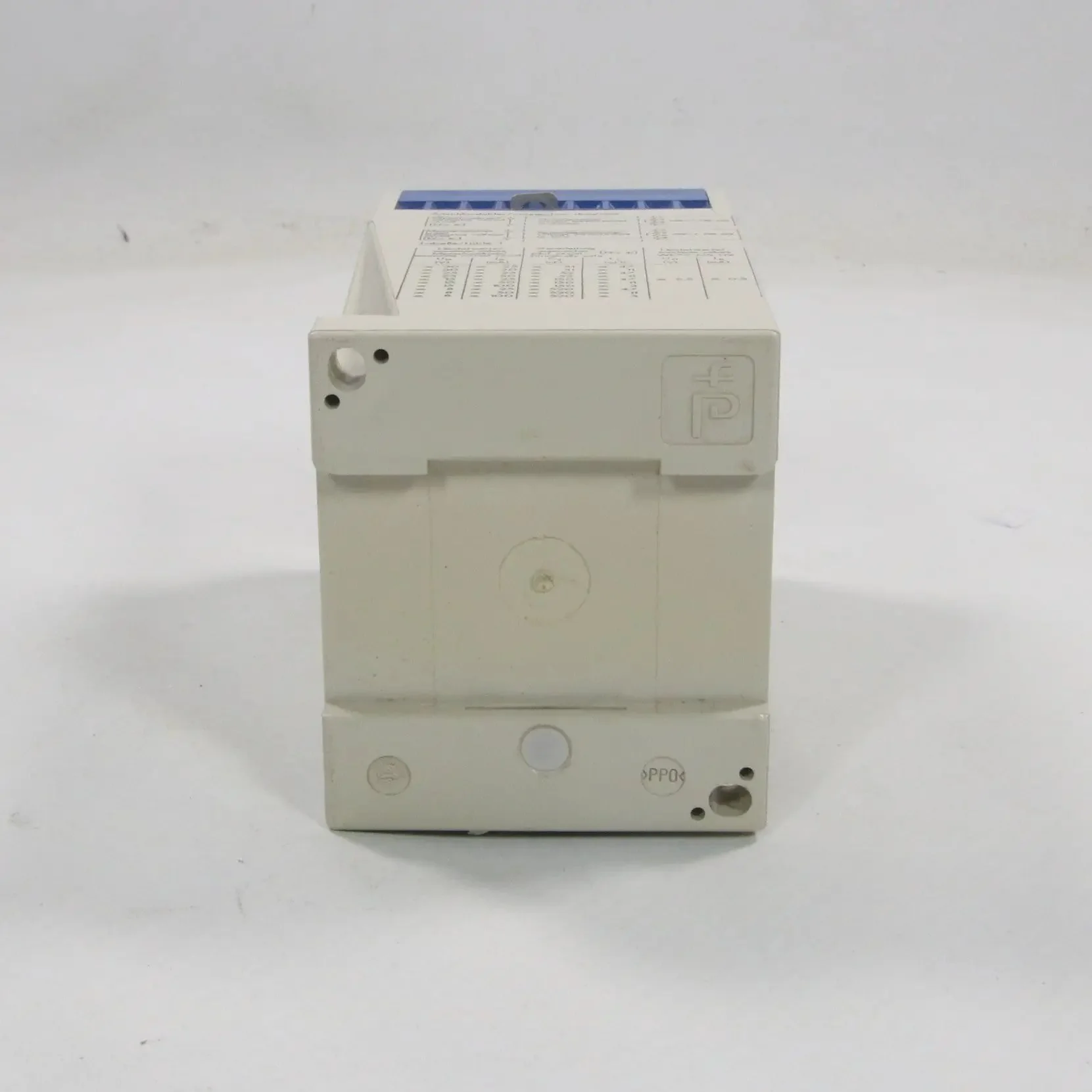

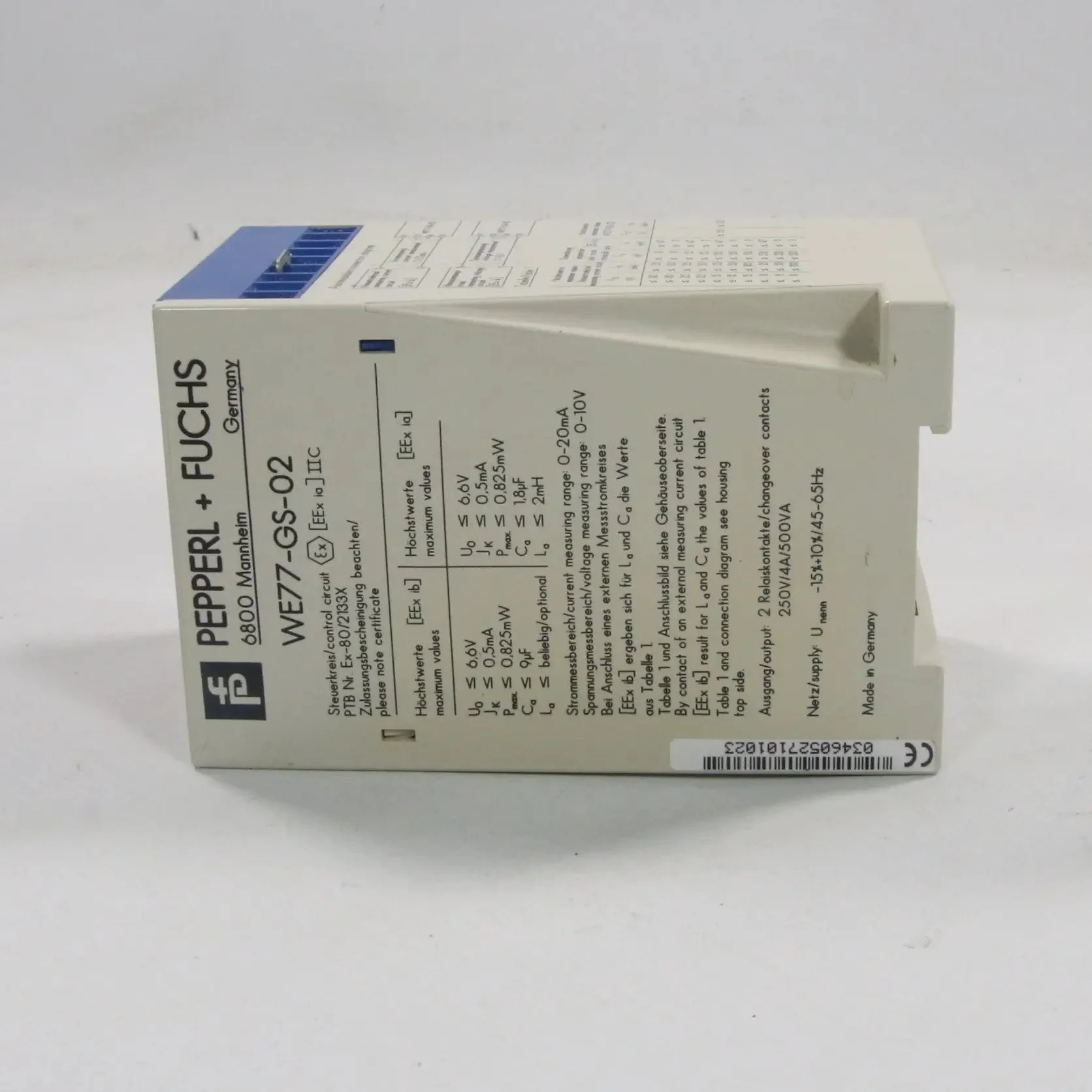

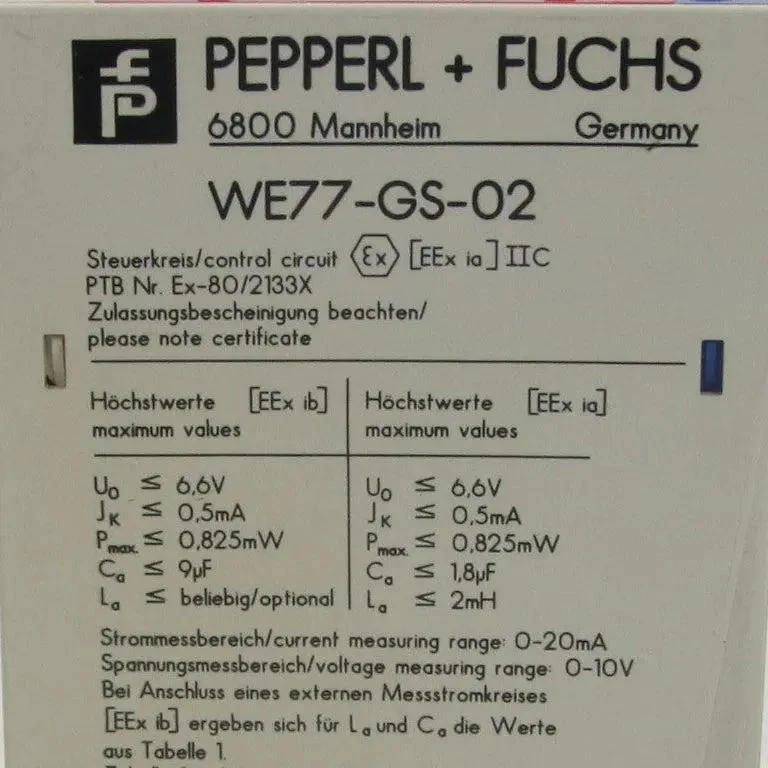

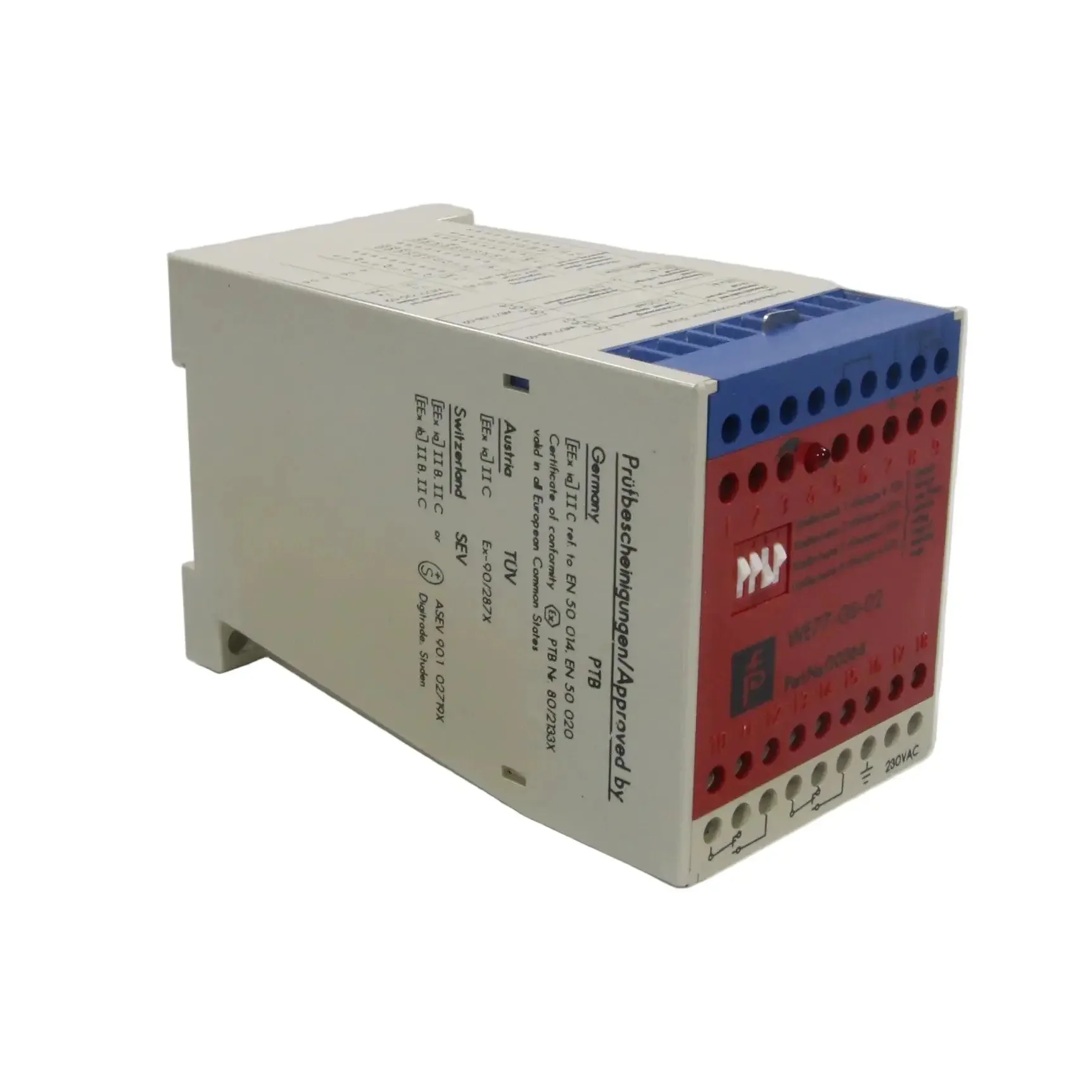

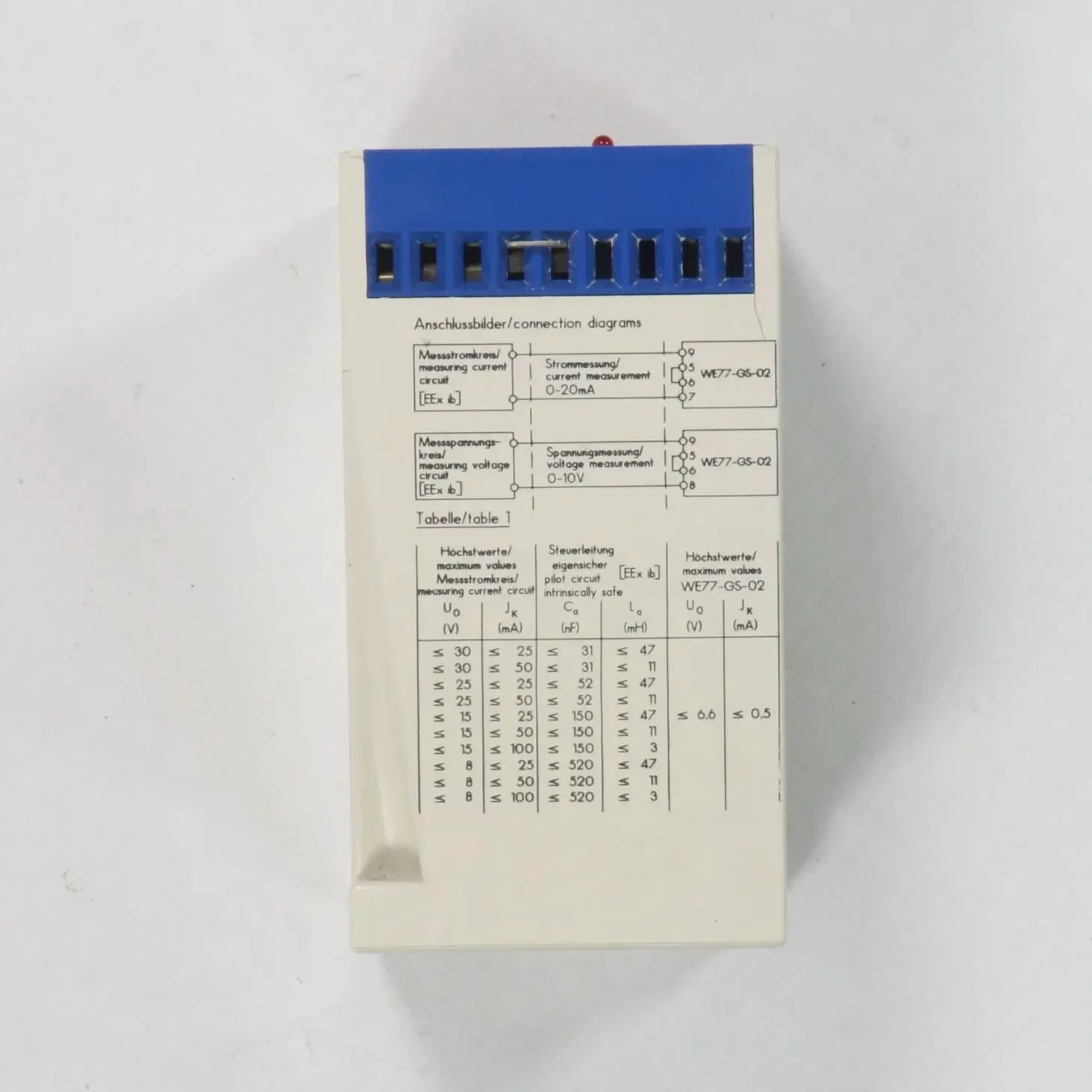

Pepperl + Fuchs WE 77-GS-02 Trip Amplifier - 00364

- Brand: Pepperl + Fuchs (P+F)

- Model: WE77-GS-02

- Type: Trip Amplifier / Limit Value Switch

- Part number: 00364

- Technical specifications:
- Function: Single-channel current monitoring (0…20 mA)
- Input: 0…20 mA analogue signal
- Supply voltage: 115 / 230 V AC
- Outputs: Two independent relay outputs
- Relay contact rating: 4 A / 250 V AC / 500 VA (cos φ > 0.7)
- Additional features: LED indication for coarse adjustment; high accuracy; compact modular housing; suitable for distinguishing materials or bore diameters via analogue signals; robust for control cabinet use
- Standards: Compliant with relevant IEC/EN standards; CE marked

Weight: 400 g

Dimensions: 110 x 70 x 60 mm

Country of origin: Germany

HS code: 8536.41
