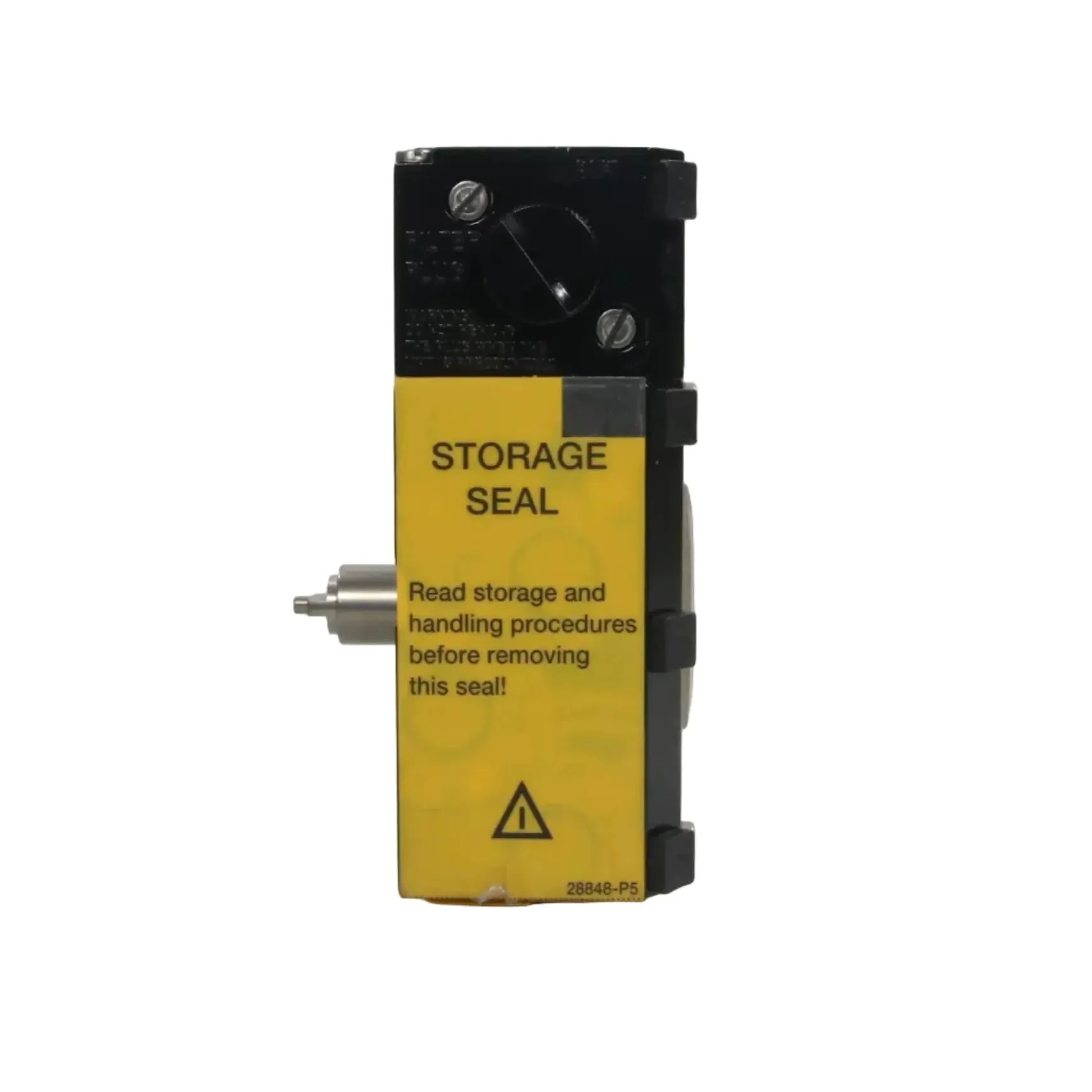

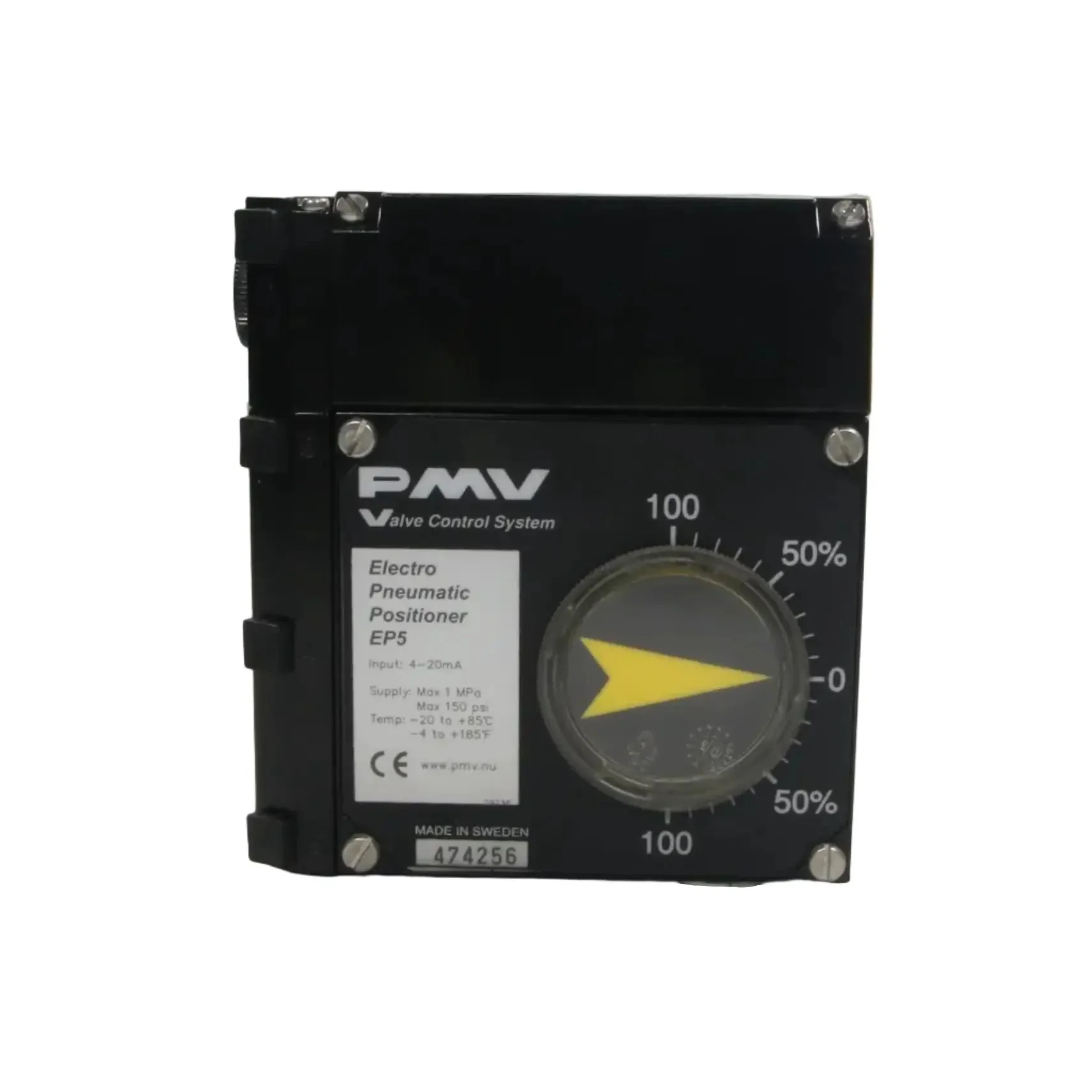

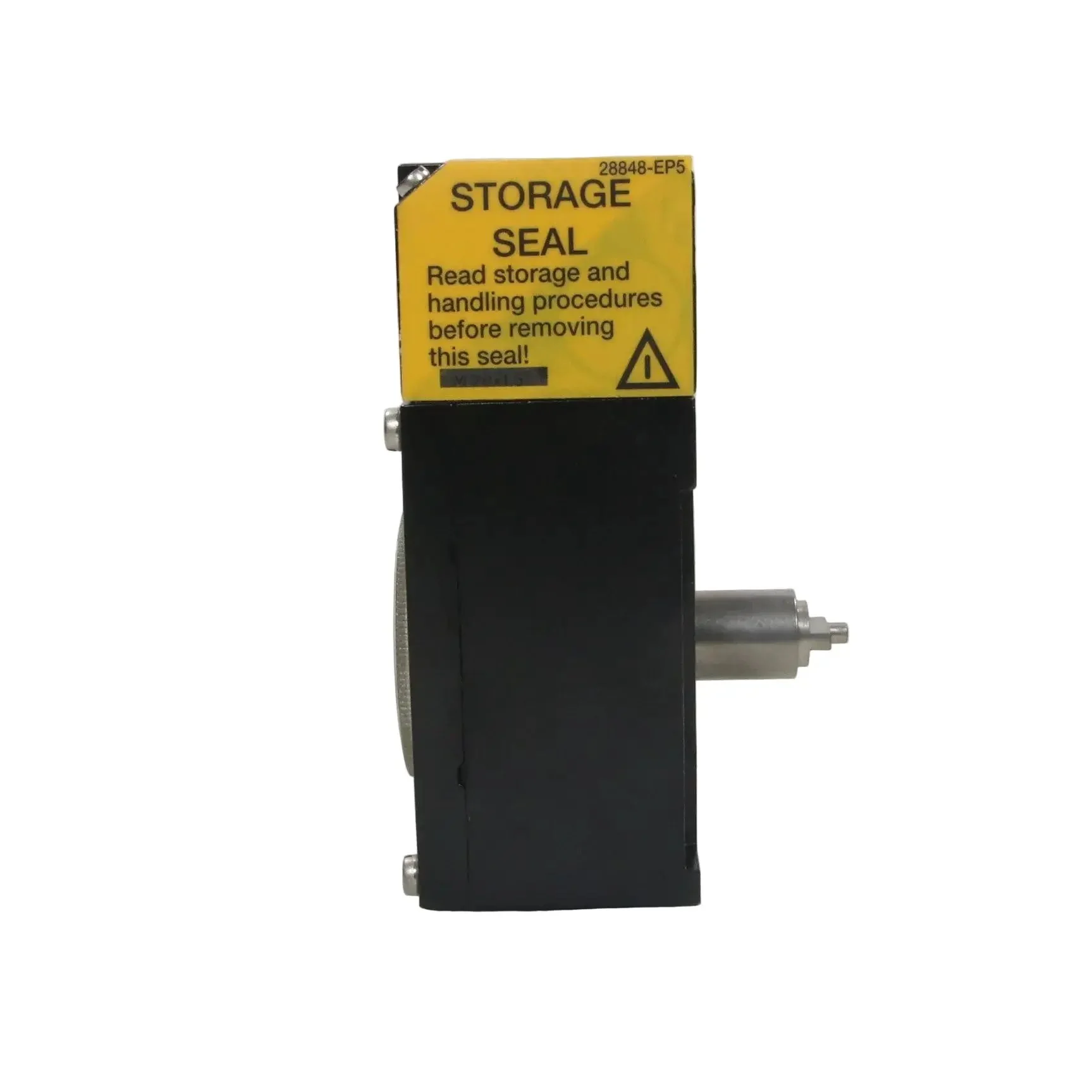

PMV EP5 Electro-Pneumatic Positioner
- Brand: PMV (a Rotork brand)
- Model: EP5
- Type: Electro-Pneumatic Positioner
- All tech specs:
- Function: Converts a 4–20 mA control signal into a proportional pneumatic output pressure to precisely position pneumatic actuators (linear or rotary) in valve control applications
- Input Signal: 4–20 mA DC
- Supply Pressure: 10 bar (Max 1 MPa)
- Output Pressure Range: 0.4 – 7 bar
- Air Consumption: ≤ 0.3 Nm³/h (normal air) at 1.4 bar supply in steady state
- Accuracy: ±0.5 % of full stroke (linearity + hysteresis + repeatability)
- Hysteresis: ≤ 0.5 %
- Repeatability: ±0.3 %
- Sensitivity: ≤ 0.2 %
- Dead Band: ≤ 0.1 %
- Response Time: ≤ 1 second for 90 % step change
- Mounting: NAMUR (VDI/VDE 3845) for rotary, IEC 534-6 for linear
- Protection Rating: IP66 / NEMA 4X
- Operating Temperature: –40 °C to +85 °C
- Housing Material: Aluminium die-cast with epoxy coating
- Connections: Connector thread - G¼", Gauge thread - G1/8"
- Electrical Connection: M20 × 1.5
- Certifications: ATEX, IECEx, FM, CSA, SIL 2/3 capable, NEPSI, KOSHA
- Features: Non-contact position sensor, auto-calibration, manual override, low air consumption, robust against vibration and shock
- Dimensions: 140 x 60 x 145 mm
- Weight: 1.7 kg
- Country of origin: Sweden
- HS code: 903289
Original: $188,803.33
-70%$188,803.33
$56,641.00
Description
- Brand: PMV (a Rotork brand)
- Model: EP5
- Type: Electro-Pneumatic Positioner
- All tech specs:
- Function: Converts a 4–20 mA control signal into a proportional pneumatic output pressure to precisely position pneumatic actuators (linear or rotary) in valve control applications
- Input Signal: 4–20 mA DC
- Supply Pressure: 10 bar (Max 1 MPa)
- Output Pressure Range: 0.4 – 7 bar
- Air Consumption: ≤ 0.3 Nm³/h (normal air) at 1.4 bar supply in steady state
- Accuracy: ±0.5 % of full stroke (linearity + hysteresis + repeatability)
- Hysteresis: ≤ 0.5 %
- Repeatability: ±0.3 %
- Sensitivity: ≤ 0.2 %
- Dead Band: ≤ 0.1 %
- Response Time: ≤ 1 second for 90 % step change
- Mounting: NAMUR (VDI/VDE 3845) for rotary, IEC 534-6 for linear
- Protection Rating: IP66 / NEMA 4X
- Operating Temperature: –40 °C to +85 °C
- Housing Material: Aluminium die-cast with epoxy coating
- Connections: Connector thread - G¼", Gauge thread - G1/8"
- Electrical Connection: M20 × 1.5
- Certifications: ATEX, IECEx, FM, CSA, SIL 2/3 capable, NEPSI, KOSHA
- Features: Non-contact position sensor, auto-calibration, manual override, low air consumption, robust against vibration and shock
- Dimensions: 140 x 60 x 145 mm
- Weight: 1.7 kg
- Country of origin: Sweden
- HS code: 903289
