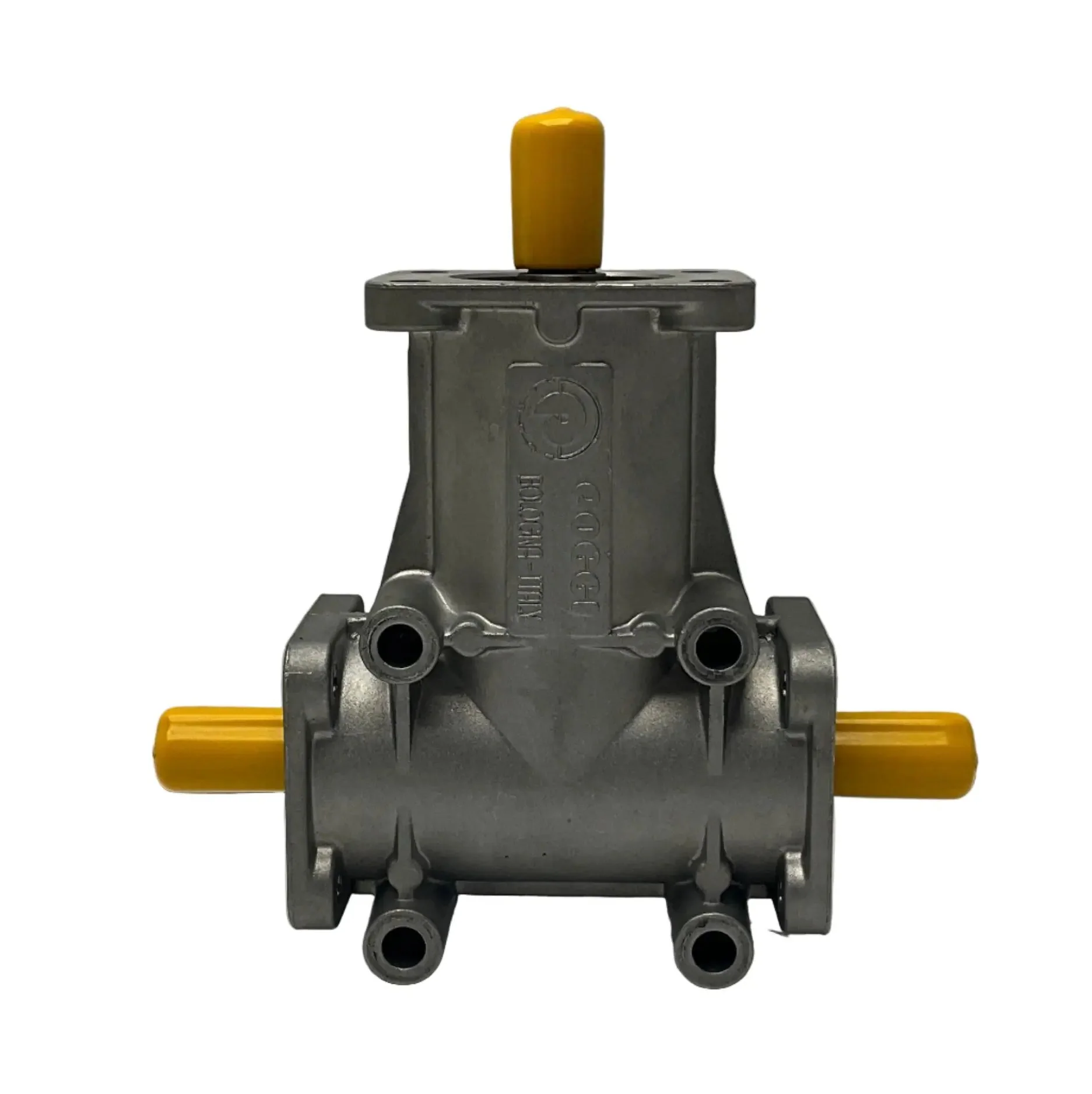

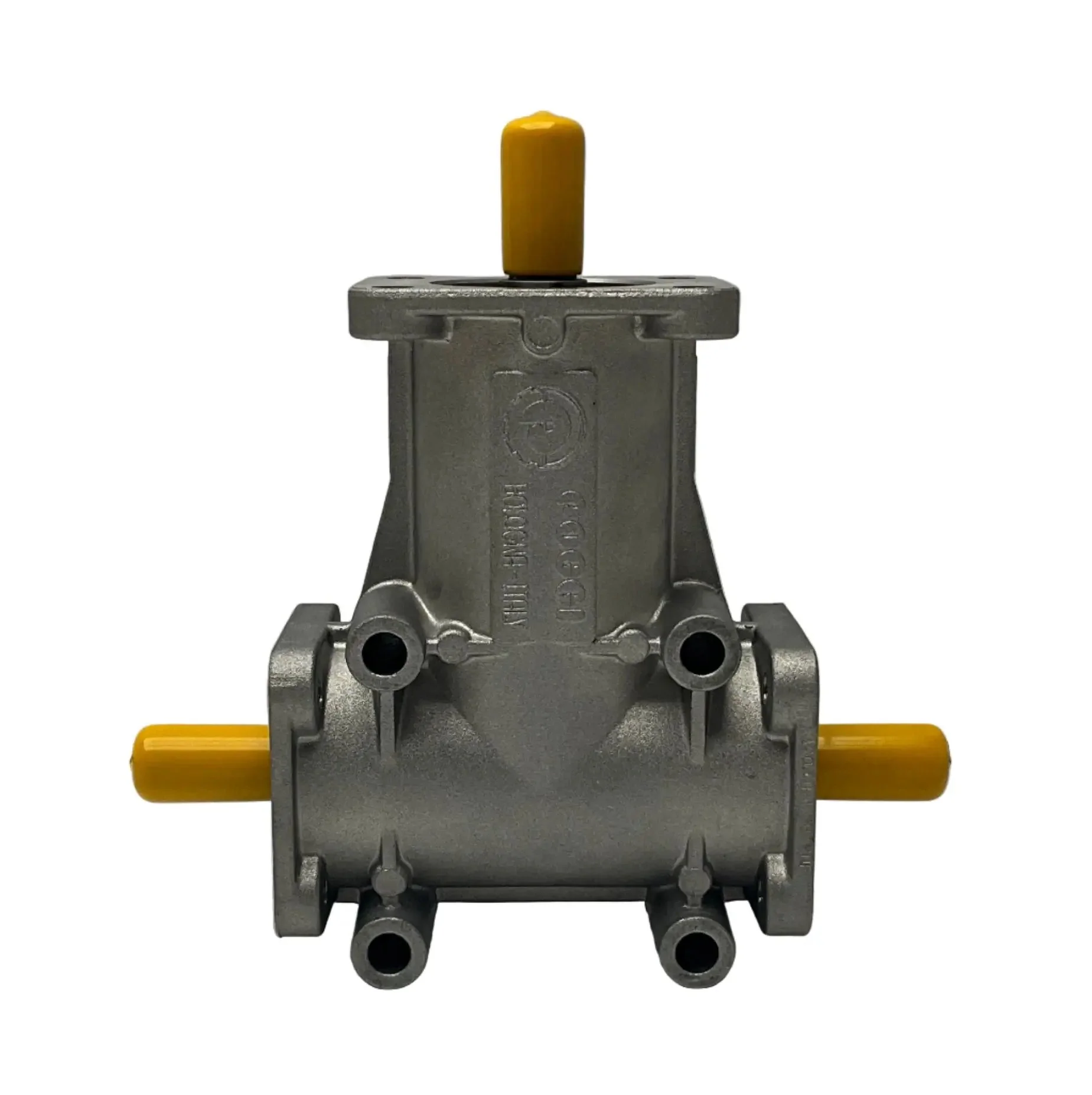

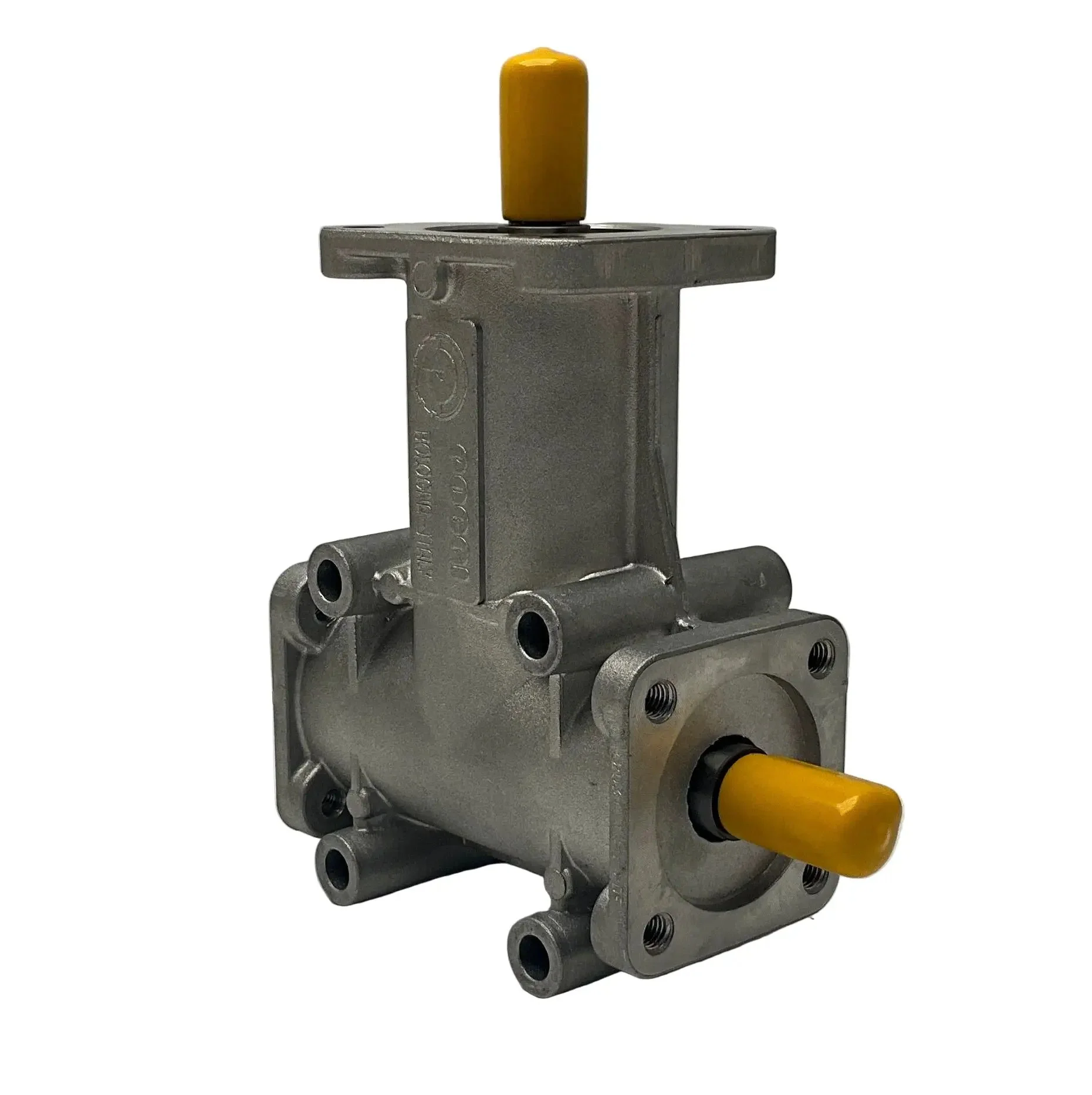

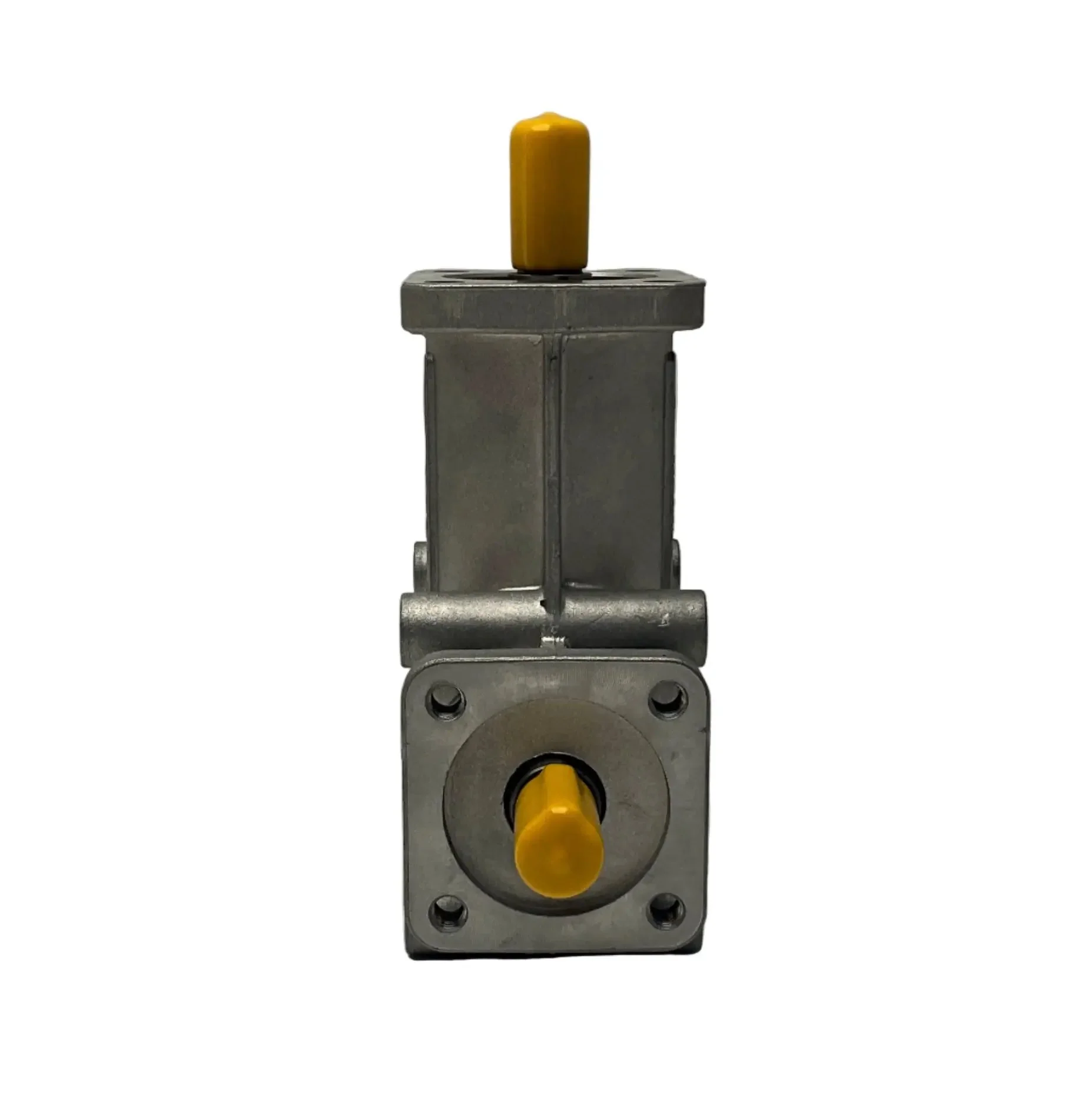

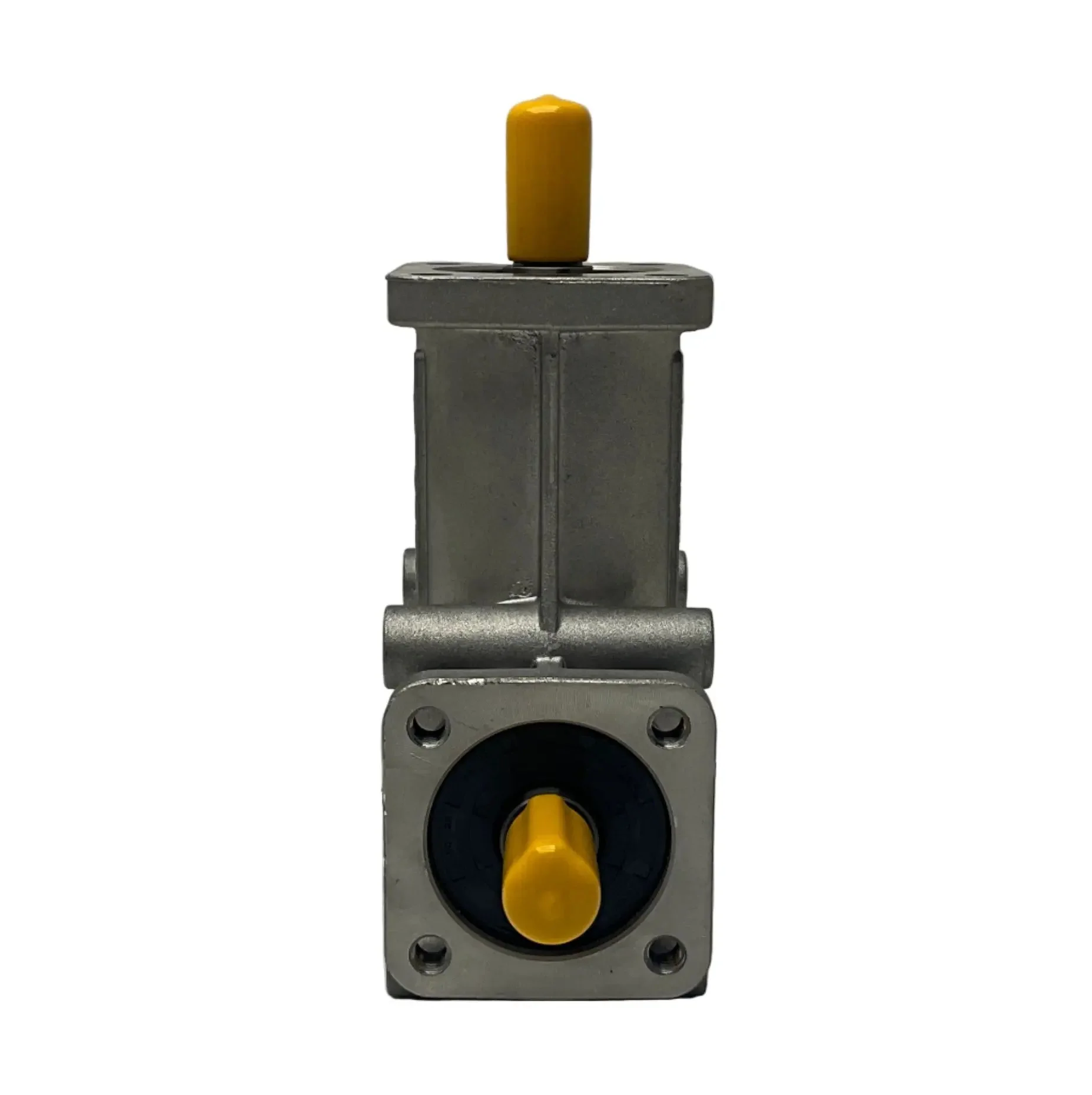

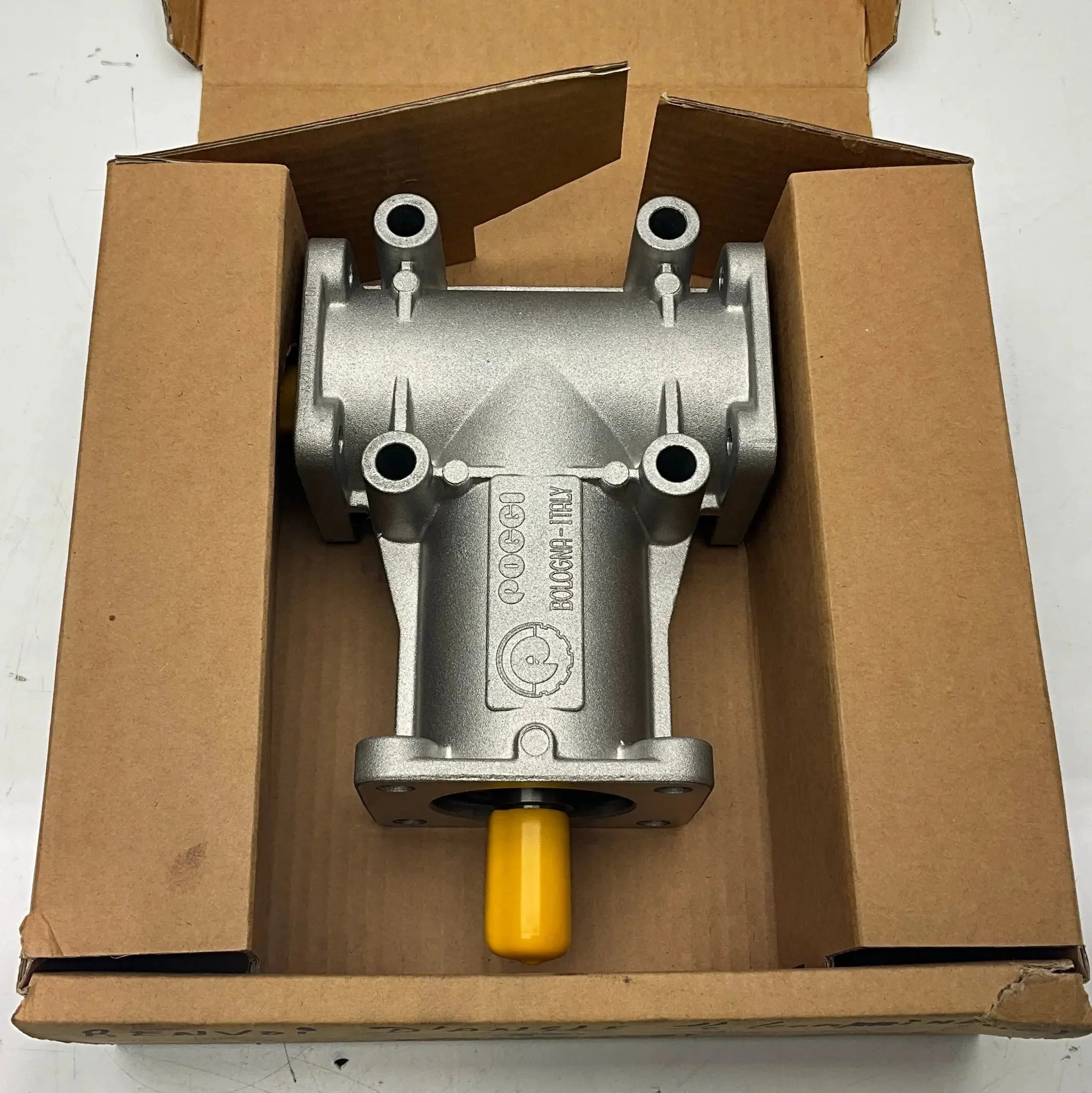

Poggi A2031 R12 D12 DF Right Angle Gearbox

Brand: Poggi
Model: A2031
Type: Right Angle Bevel Gearbox

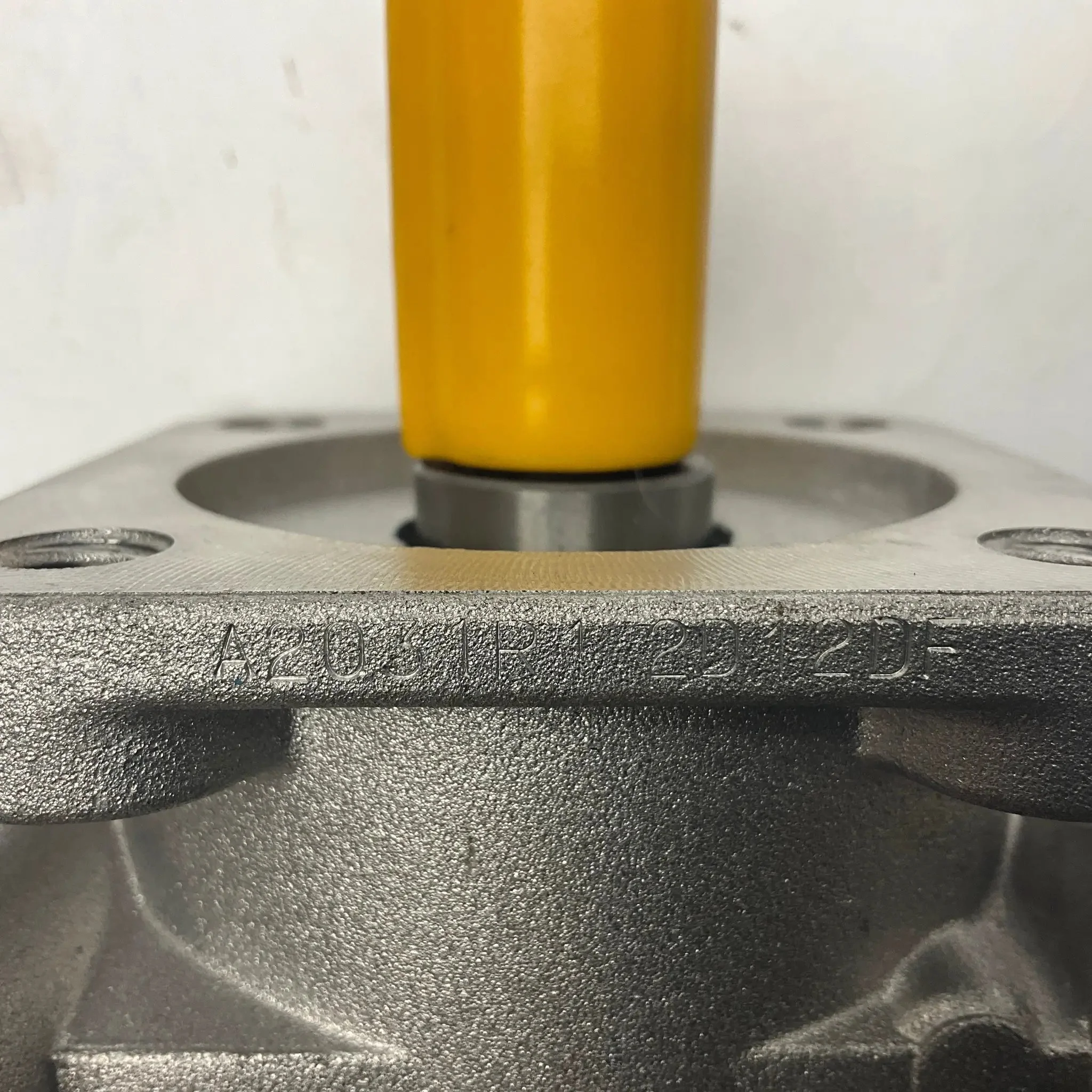

Part Number: A2031 R12 D12 DF

Technical Specs:
Function: Right angle bevel gearbox for torque transmission at 90 degrees
Gear Type: Spiral bevel gears
Reduction Ratio: 1:2
Shaft Configuration: D1/2 (two shafts, input and output with matching diameters; DF denotes flange mounting)
Shaft Diameter: Ø19 mm (h7 tolerance)
Number of Ways: 3-way
Housing Material: Aluminum alloy
Bearings: Electric motor grade deep groove ball bearings
Max Torque: Up to 87 Nm
Operating Life: Approx. 10,000 hours
Angular Backlash: 15-30 arc minutes
Operating Temperature: -18°C to +77°C
Mounting Position: Any orientation
Noise Level: Low
Lubrication: Factory sealed and lubricated for life
Additional Features: Corrosion-resistant housing

*N.O.S.

Dimension: 280 x 280 x 100 mm (Box)

Weight: 4.8 kg

Country of Origin: Italy

HS Code: 8483.40
