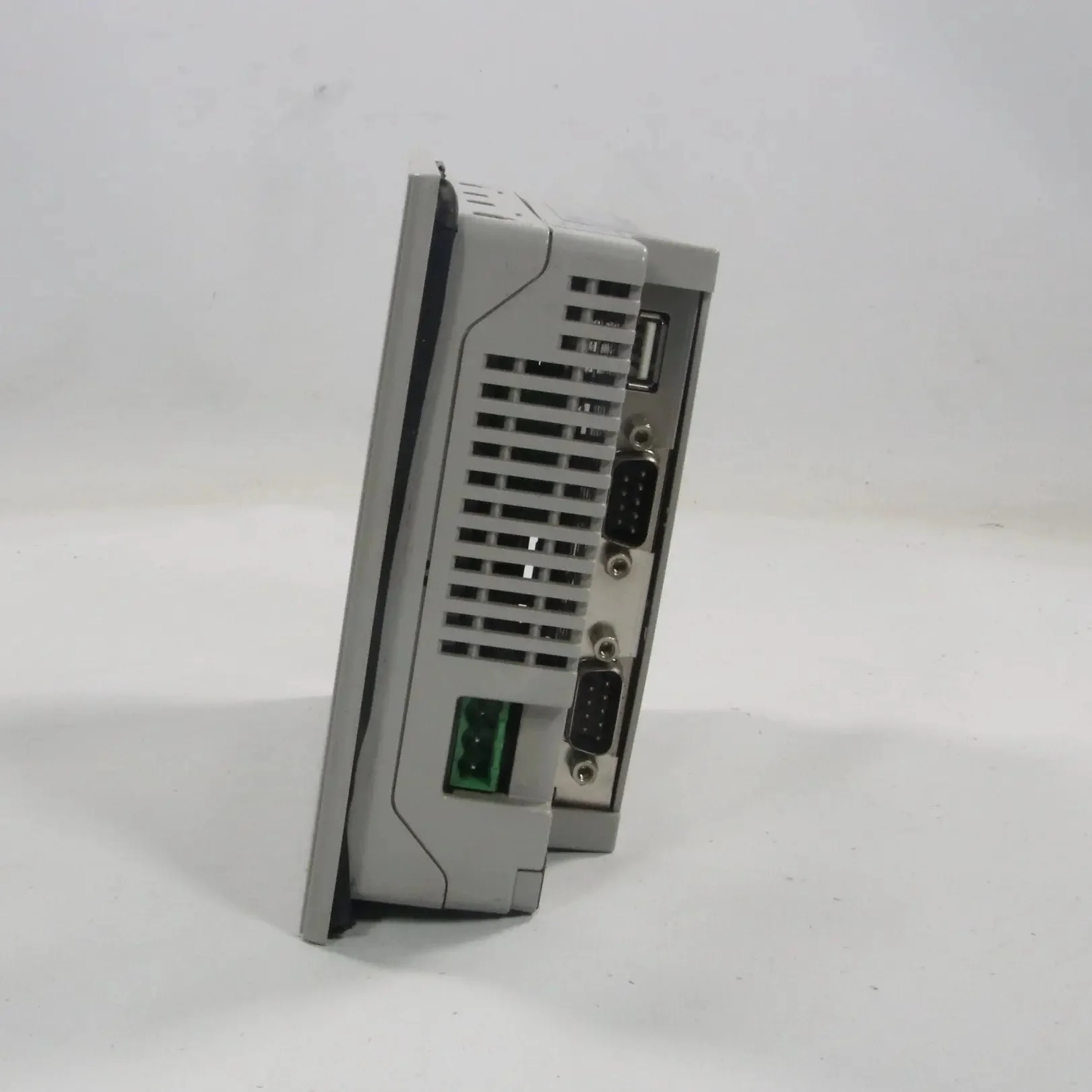

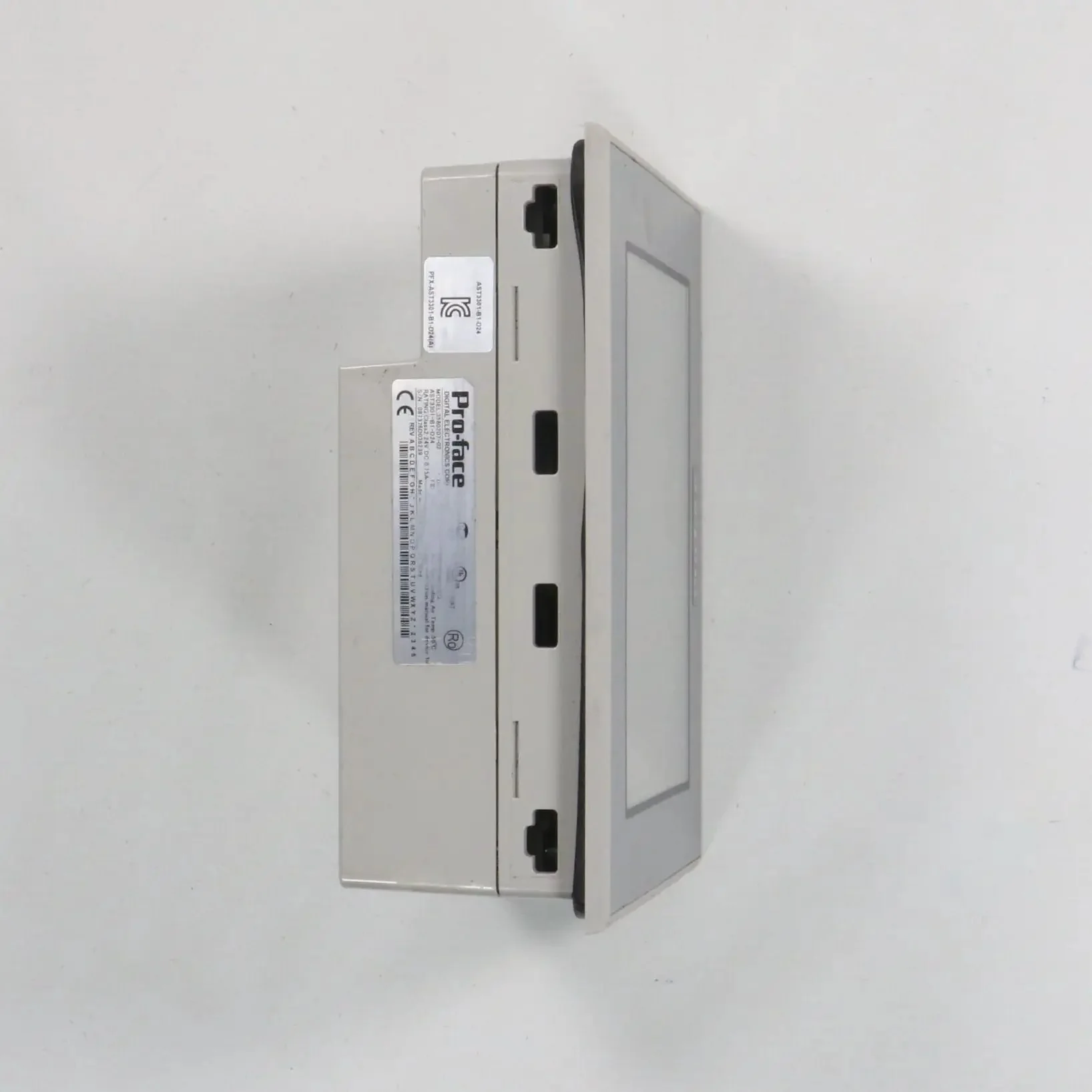

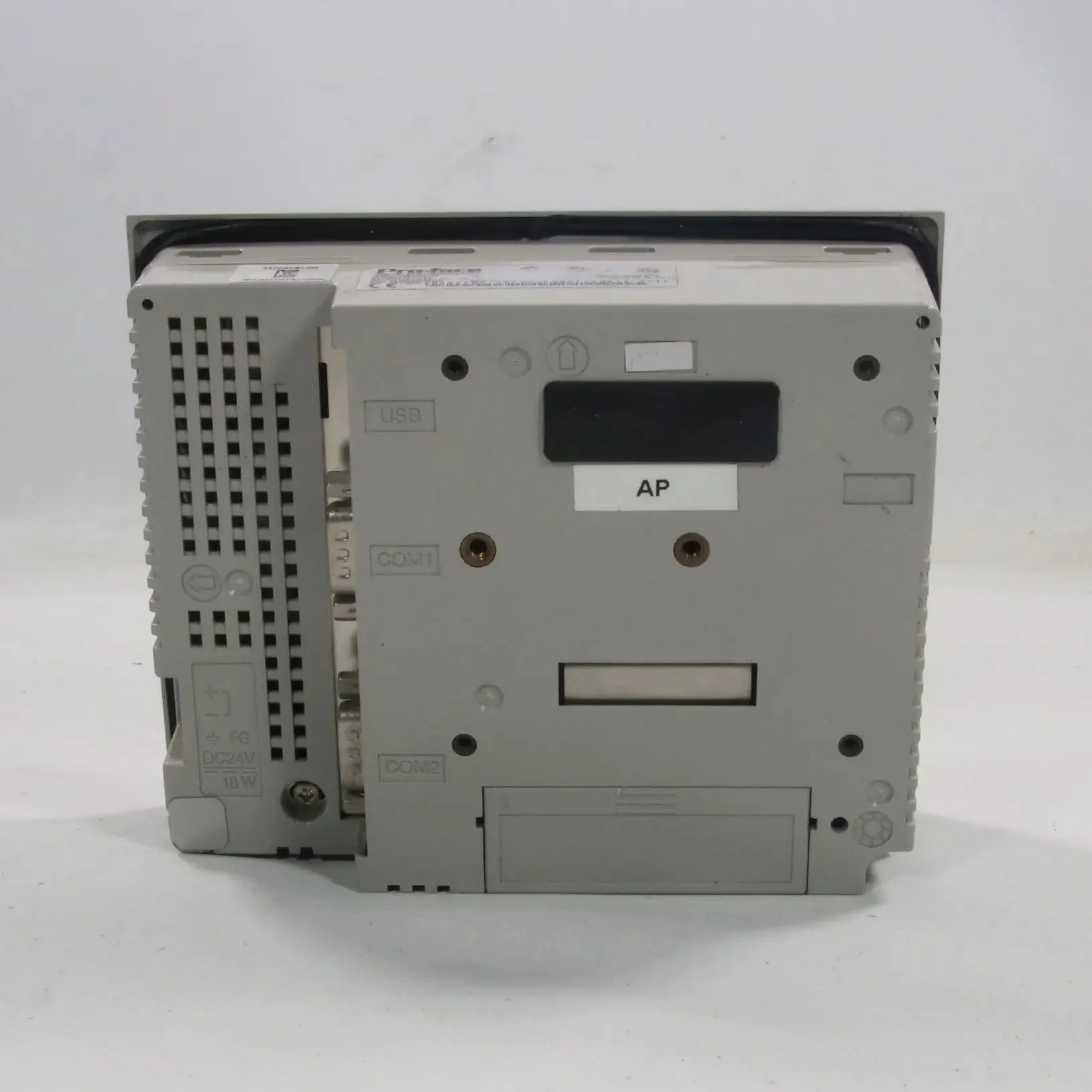

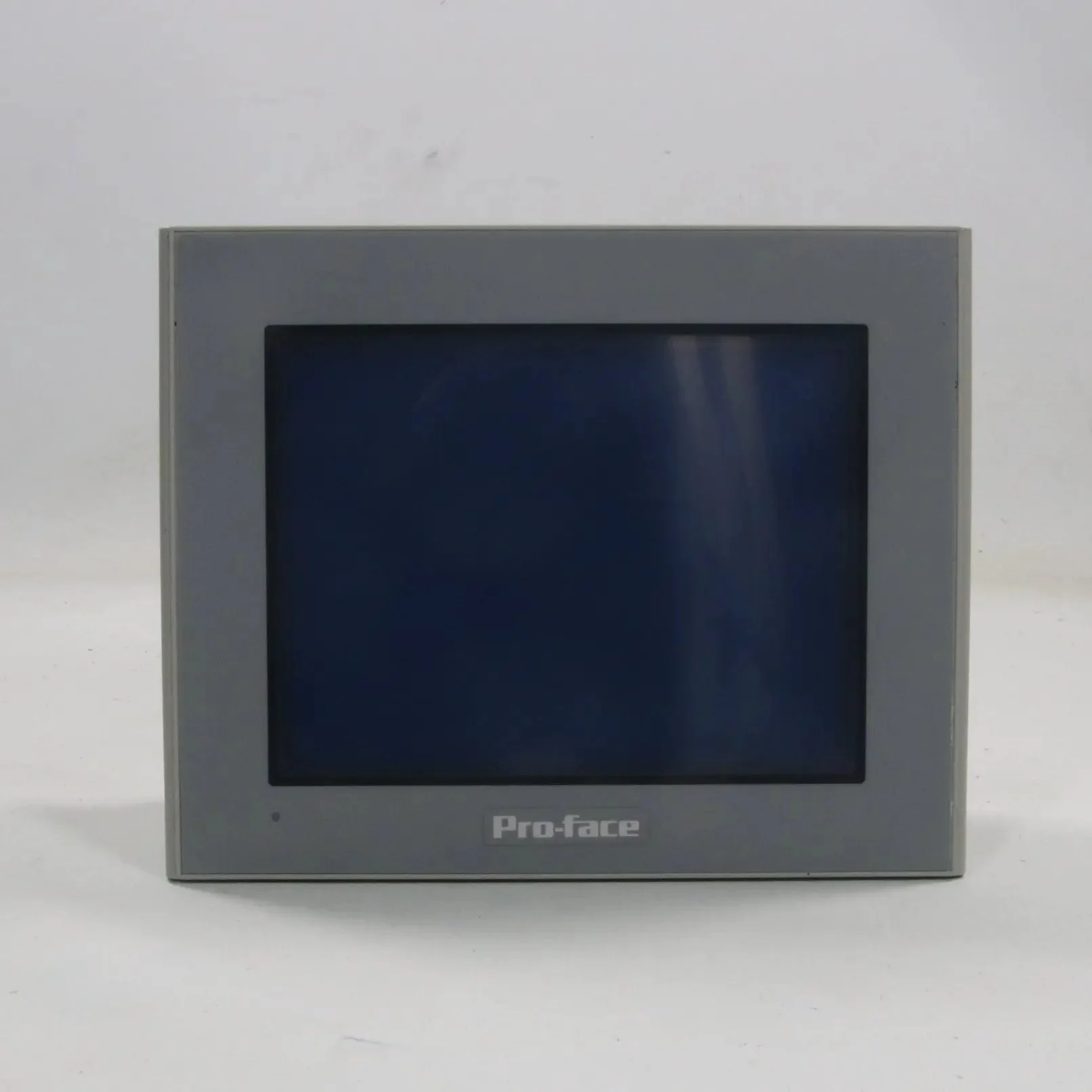

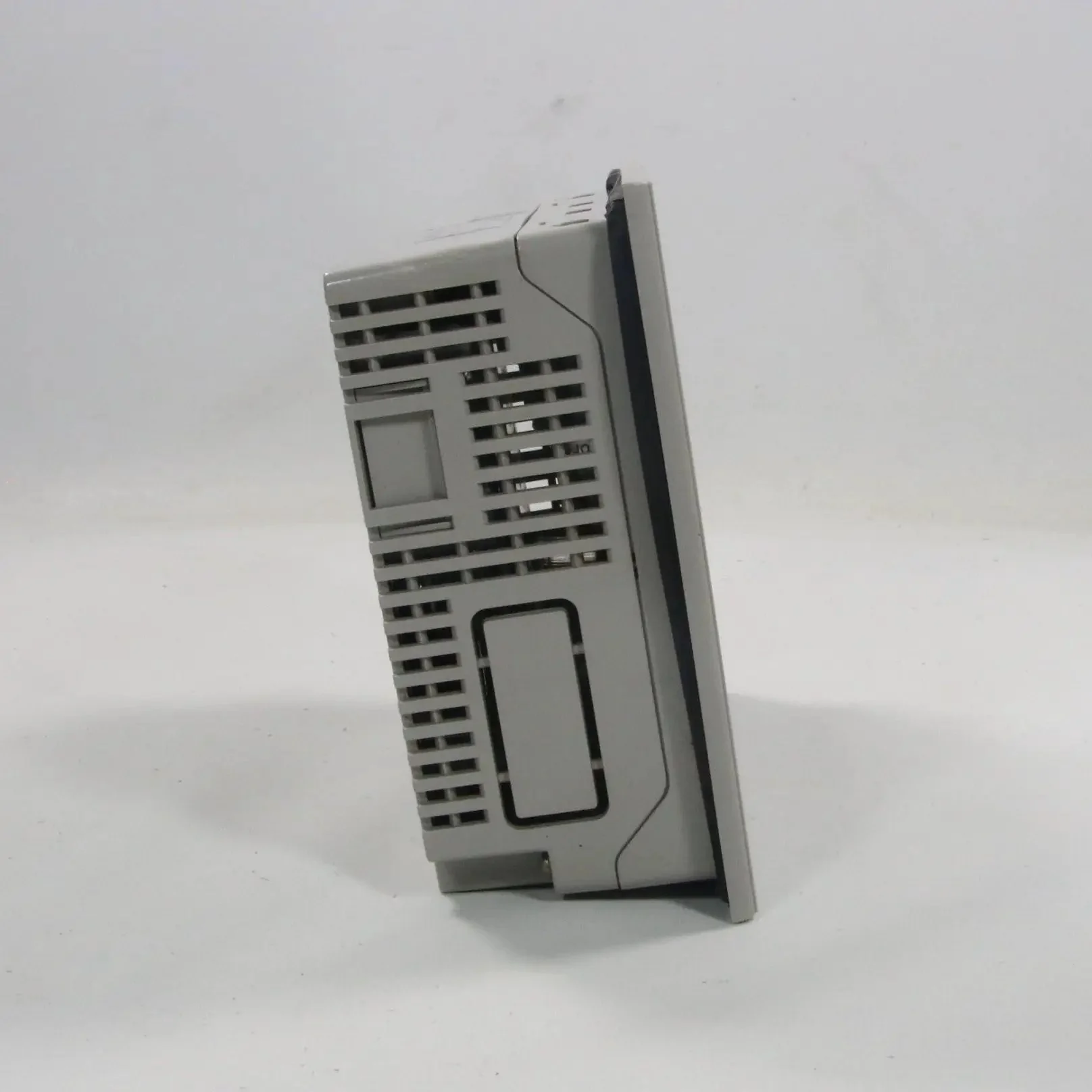

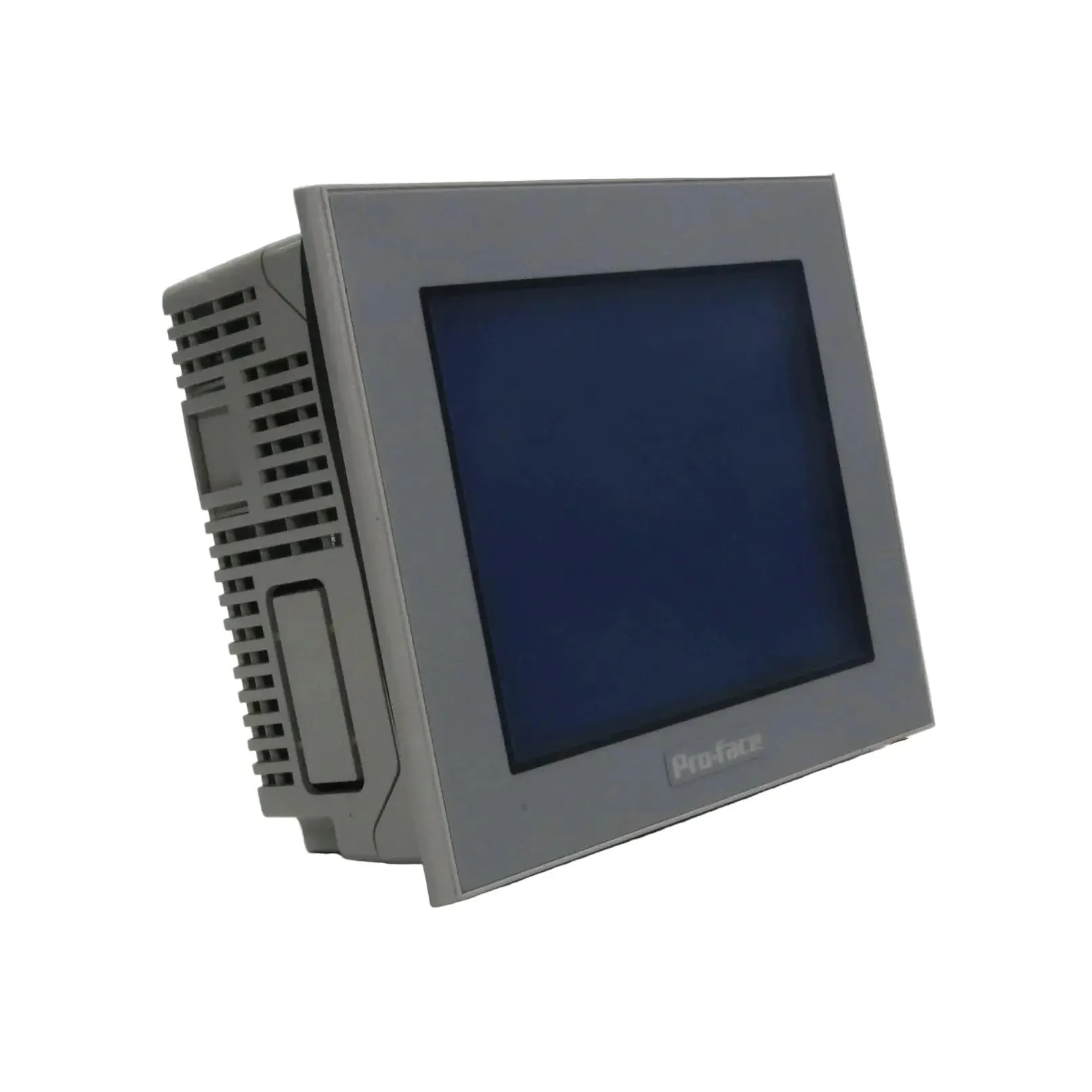

Pro-face 3580207-02 Touch Screen Operator Interface

- Brand: Pro-face (Schneider Electric)

- Model: AST3301-B1-D24

- Type: Touch Screen Operator Interface / HMI Panel

- Part number: 3580207-02

- Technical specifications:
- Display: 5.7" TFT LCD
- Touch screen: Analog resistive touch
- Processor: RISC CPU
- Configuration software: GP-Pro EX
- Interfaces:
  - 2 x RS232/RS422/RS485
  - 1 x USB
- Power supply: 24 V DC
- Operating temperature: 0°C to +50°C
- Protection: IP65 front
- Mounting: Panel mount
- Additional features: No integrated keys/buttons (pure touch); alarm management; recipe handling; password protection;  legacy model
- Standards: IEC/EN compliant for HMI panels; CE, UL, cULus approvals

Status: Discontinued

Weight: 750 g

Dimensions: 170 x 135 x 60 mm

Country of origin: China

HS code: 8537.10
