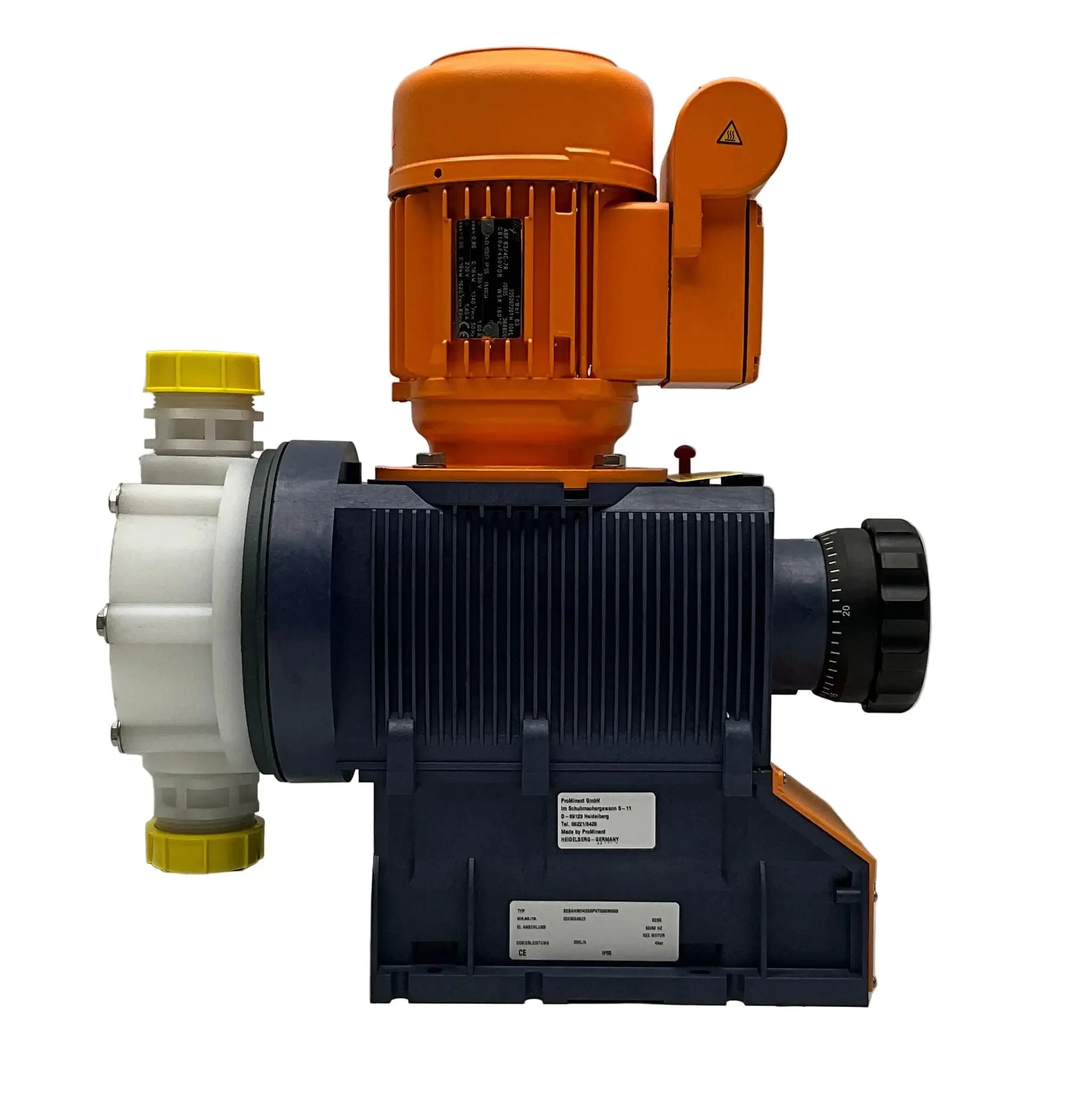

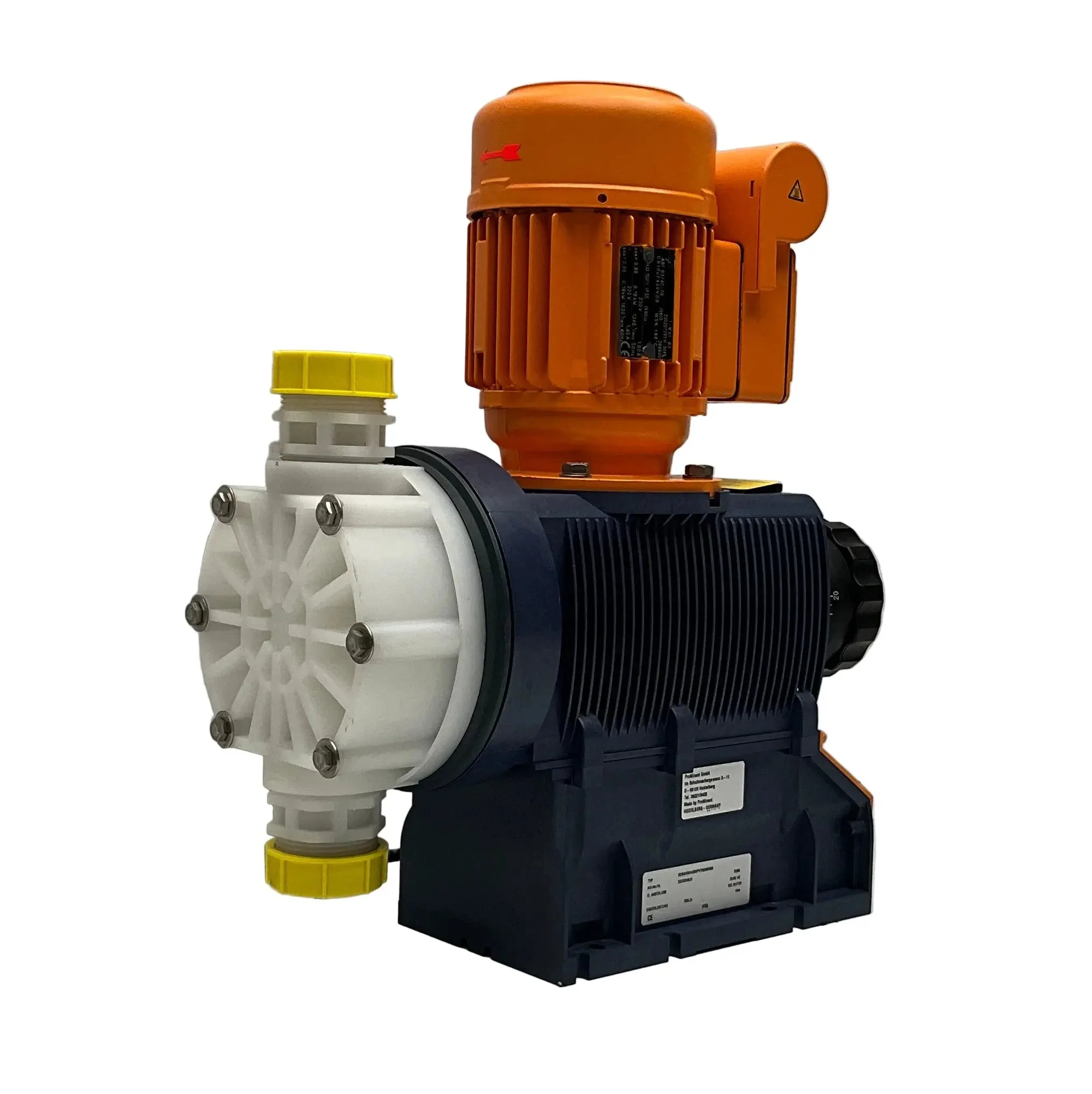

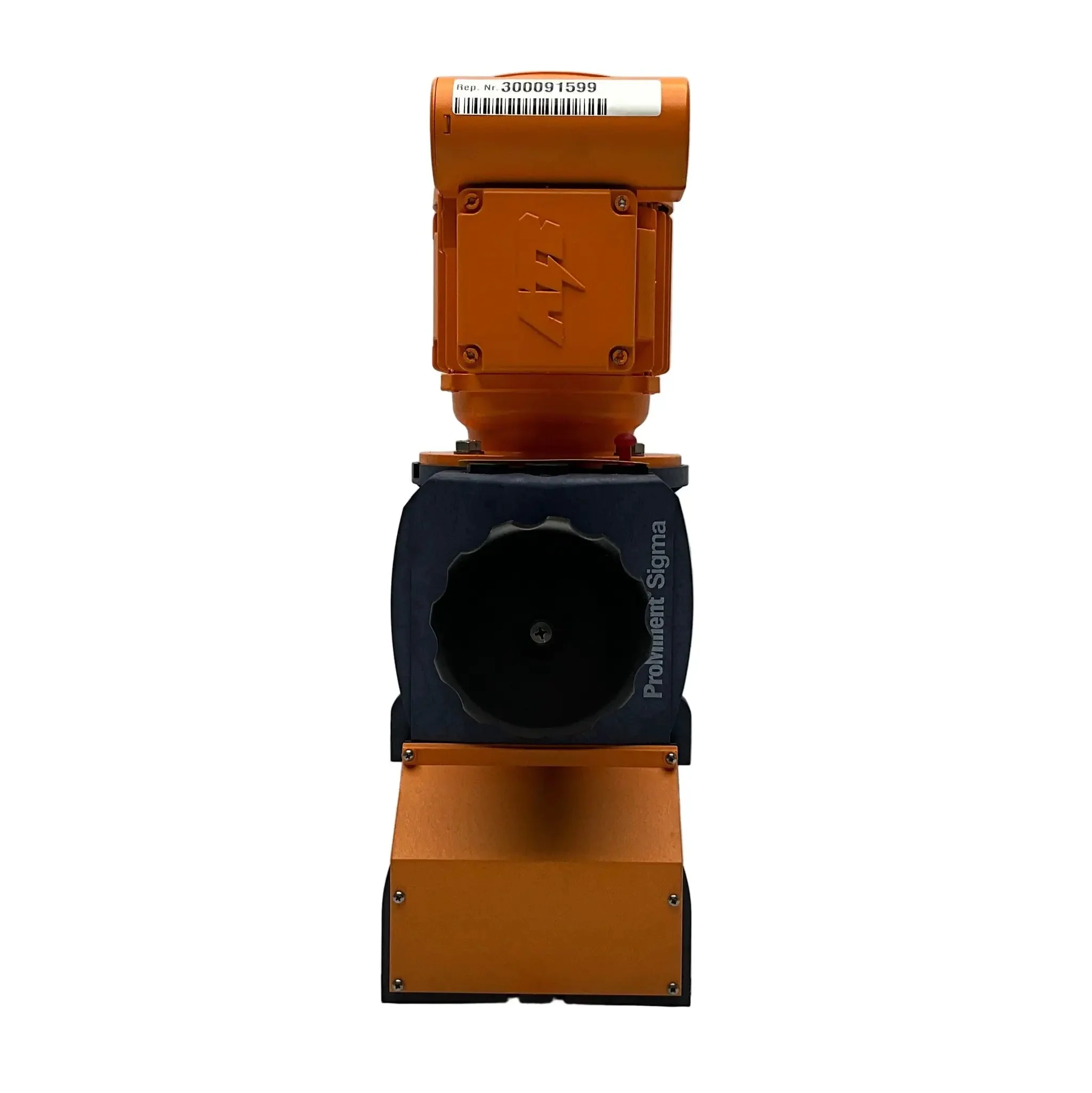

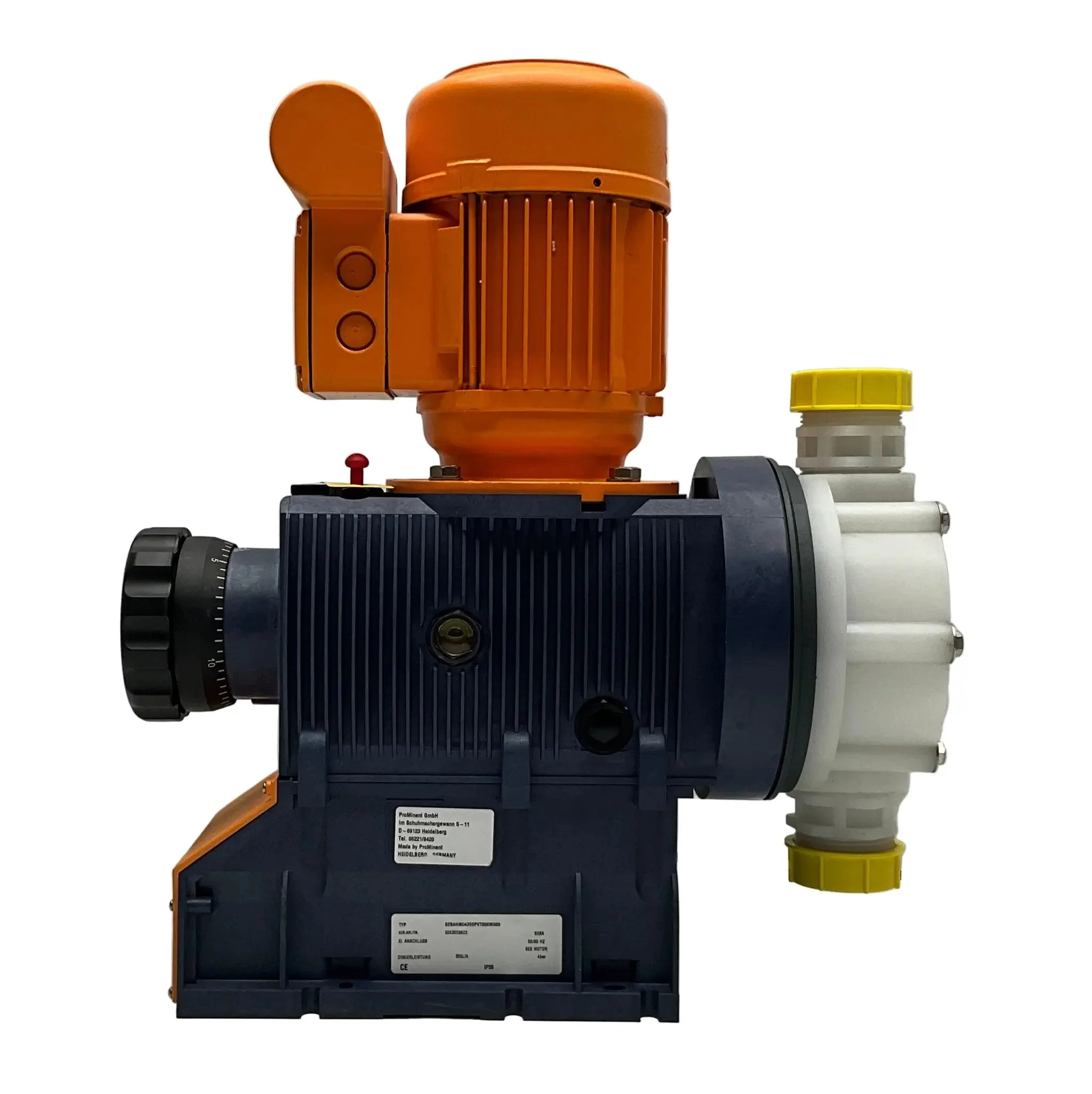

Prominent Sigma S2BA Metering Pump

Brand: ProMinent
Model: Sigma S2BA
Type: Motor-Driven Metering Pump

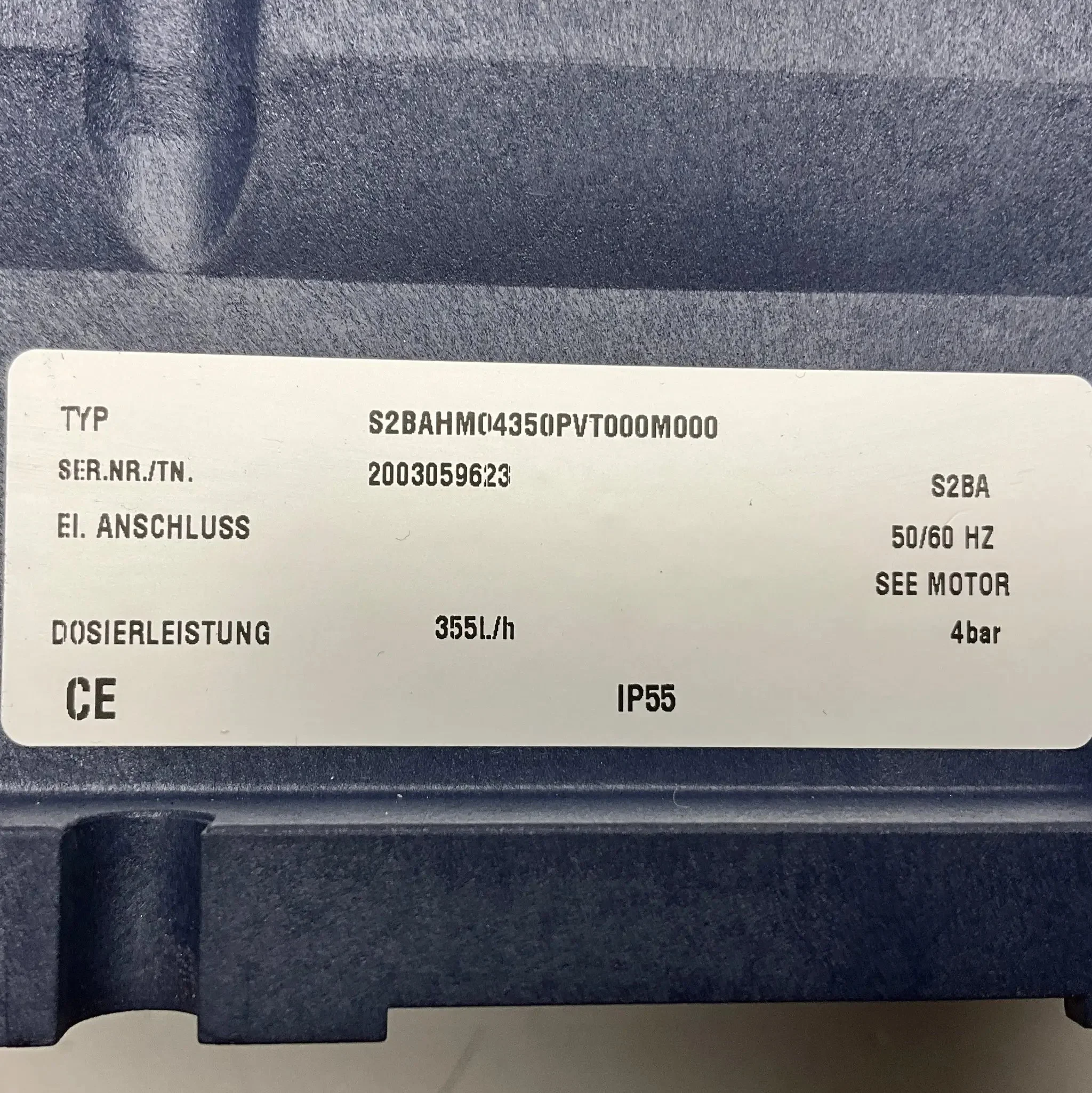

Part Number: S2BAHM04350PVT000M000

Technical Specs:
- Pump Type: Diaphragm
- Capacity Range: 355 l/h
- Pressure Range: 4 bar
- Stroke Volume: 29.4 ml
- Stroke Rate: 238 strokes/min

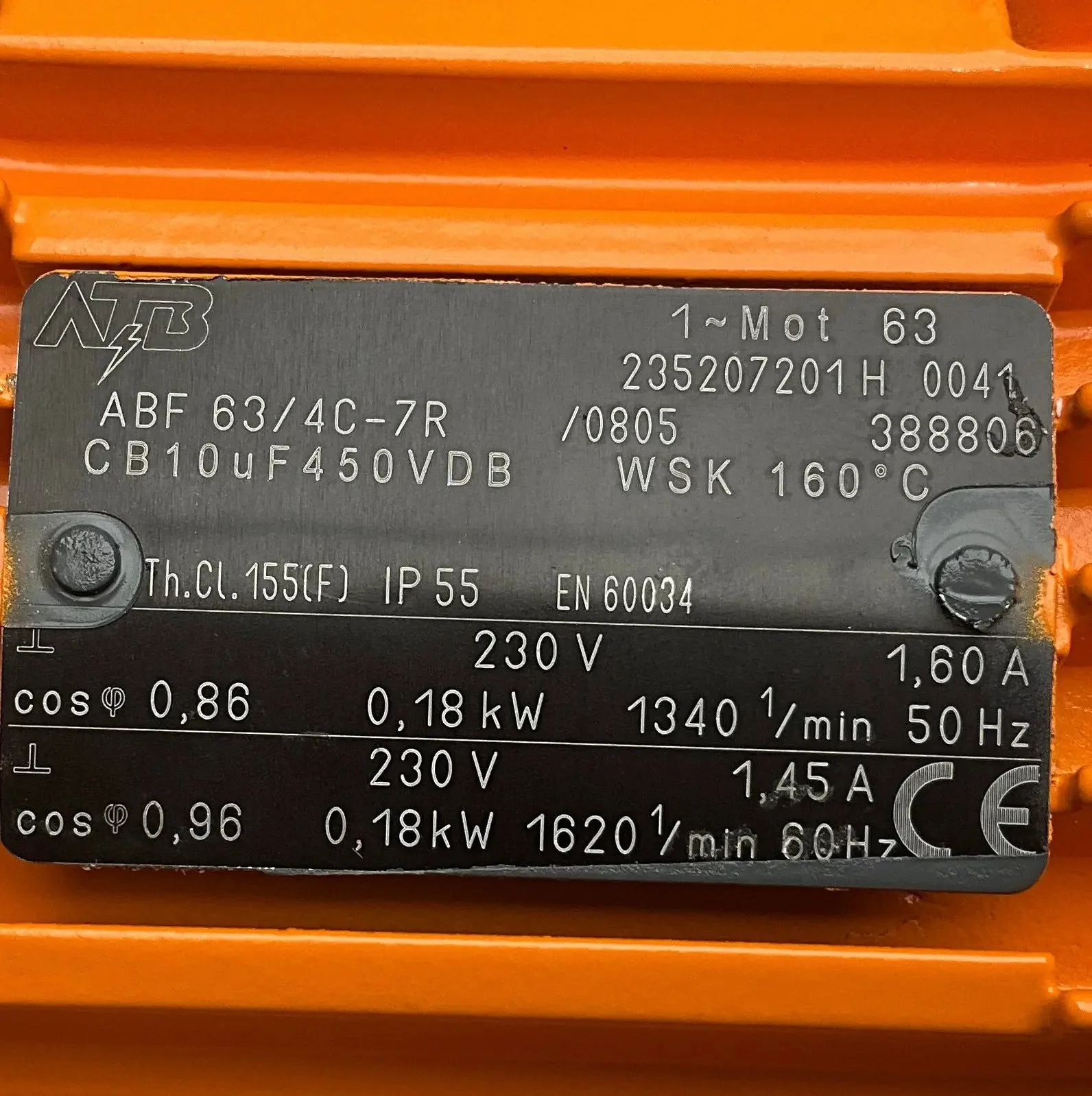

- Power End: Single phase, 230 V AC, 0.18kW, 1340 rpm
- Supply Voltage: 230 V AC, 50 Hz
- Current Consumption: 1.60 A
- Diaphragm Material: PTFE

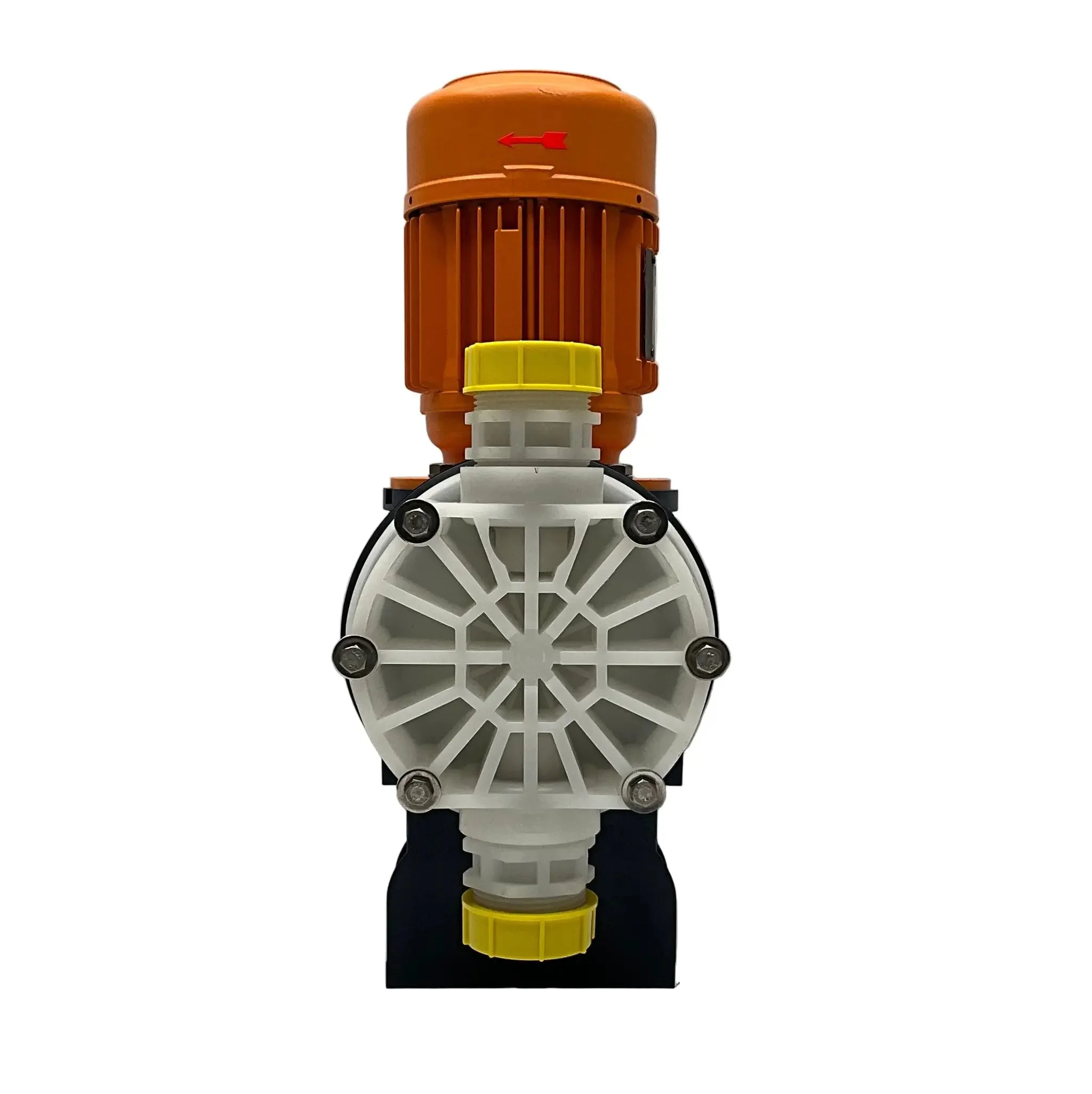

- Pump Head Material: PVDF
- Valve Material: Ceramic balls
- Safety Features: Integrated relief valve for overload protection, bleed option for priming
- Operating Temperature Range: 0°C to 50°C
- Additional Features:
  - Long service life with patented multi-layer safety diaphragm
  - Physiologically safe wetted materials (F design)
  - Modular design with consistent operating and control concept across Sigma series
- Certifications: CE Compliant

Dimensions: 600 x 600 x 270 mm

Weight: 17 kg

Country of Origin: Germany

HS Code: 8413.81
