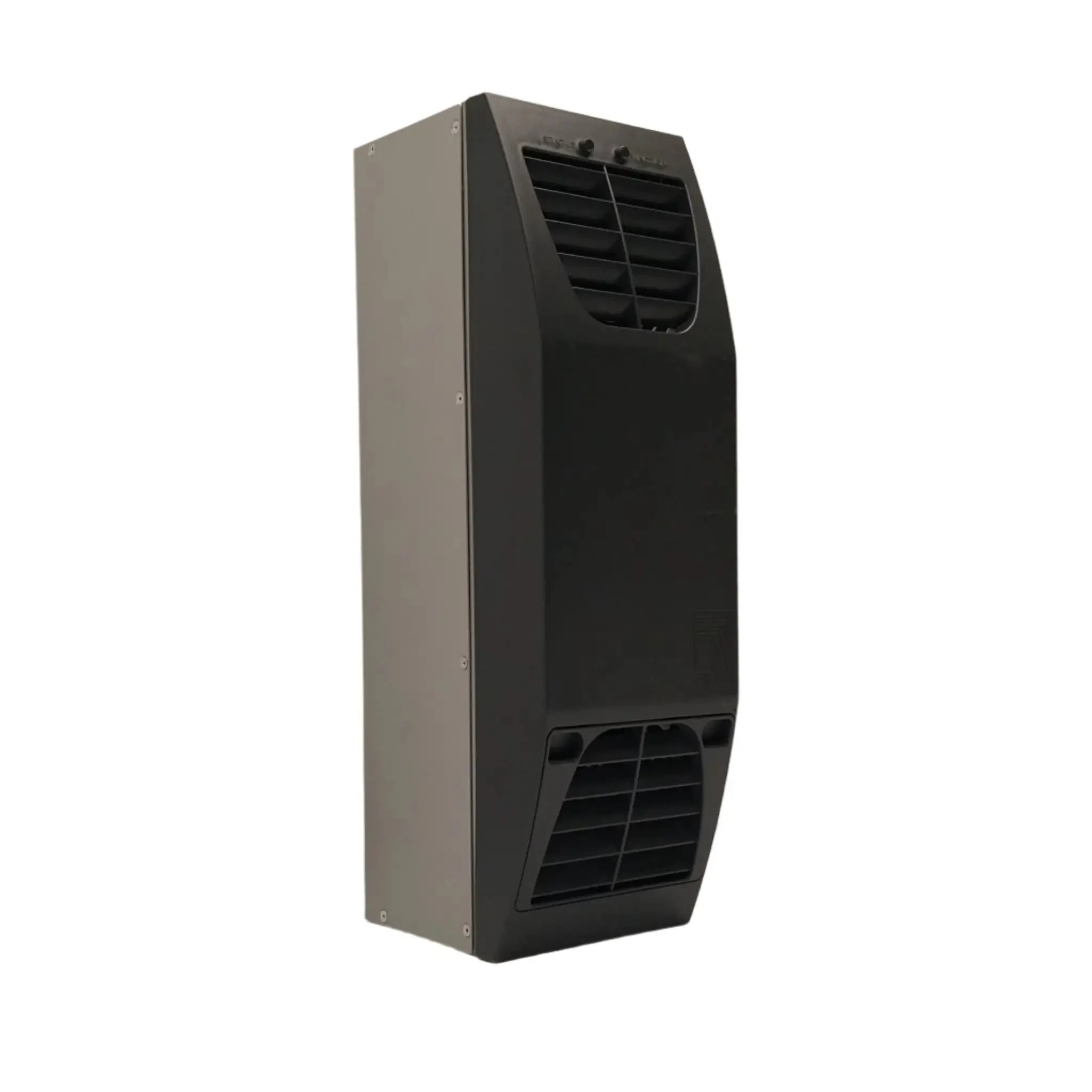

Rittal SK 3201200 Thermoelectric Cooler

Brand: Rittal
Serie: SK
Type: Thermoelectric Cooler
Model: SK 3201200
Part number: 3201200
Volt: 100–240 V (1-phase)
Fase: 1-phase
Amp: 1.9 A
Hz: 50/60 Hz
Kw: 0.1 kW
Weight: 3.7 kg
Dimension: Length, Width, Height: 155 mm, 125 mm, 400 mm

• Additional Specs:
• Cooling/Heating Output: 80 W / 80 W
• Airflow: 45 m³/h (external and internal circuits)
• Temperature Control: PID control (factory setting: cooling +35°C / heating +5°C)
• Protection Class:
• External circuit: IP34
• Internal circuit: IP54
• Material: Anodized aluminum
• Color: RAL 7015
• Mounting: Wall-mounted
• Electrical Connection: Plug-in spring connection terminal
• Operating Temperature Range: -30°C to +55°C
• Cooling Setting Range: +5°C to +55°C
• Heating Setting Range: -10°C to +20°C
• Pre-fuse: Miniature circuit-breaker/fuse: 4 A
• Standards Compliance: IEC 60 529, RoHS compliant
