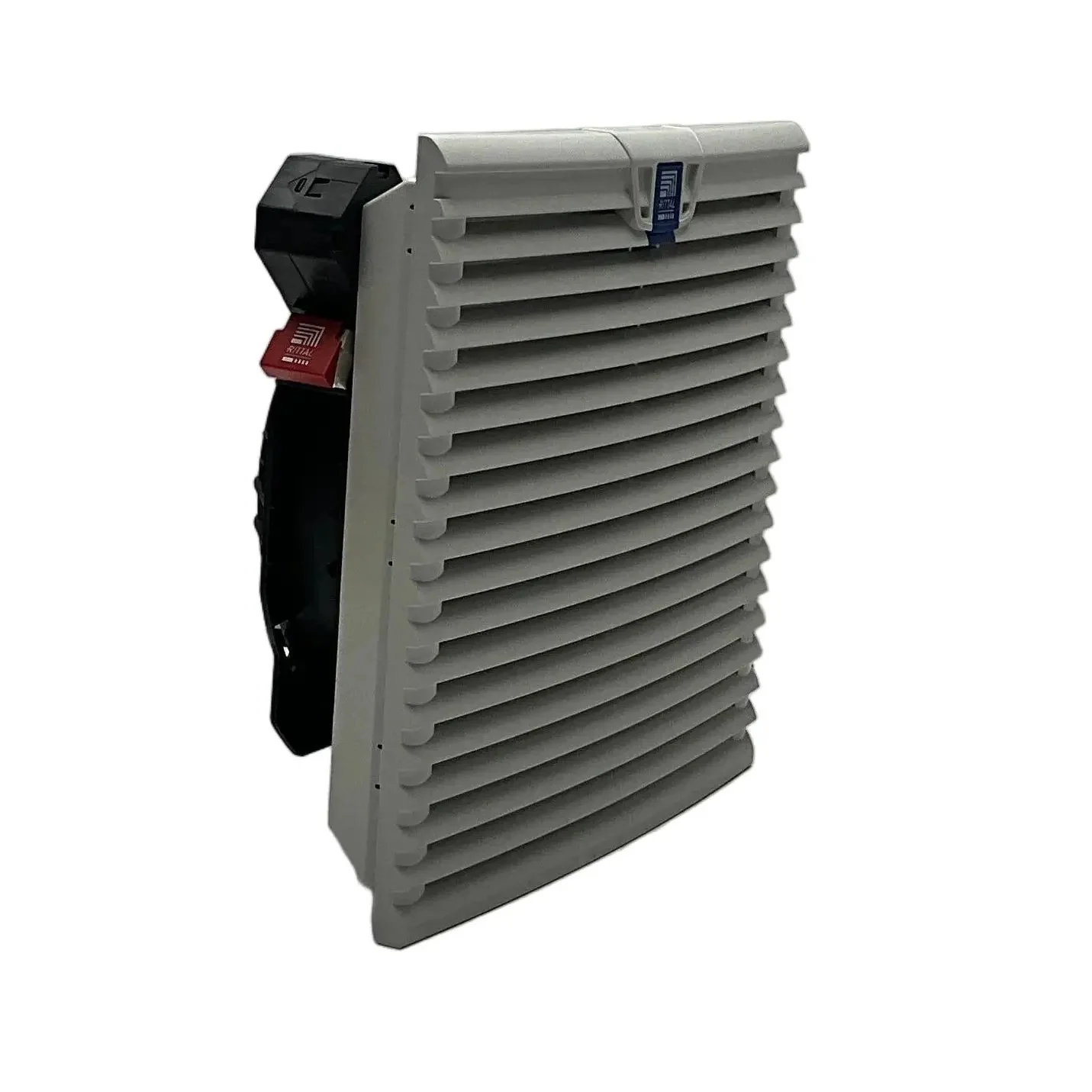

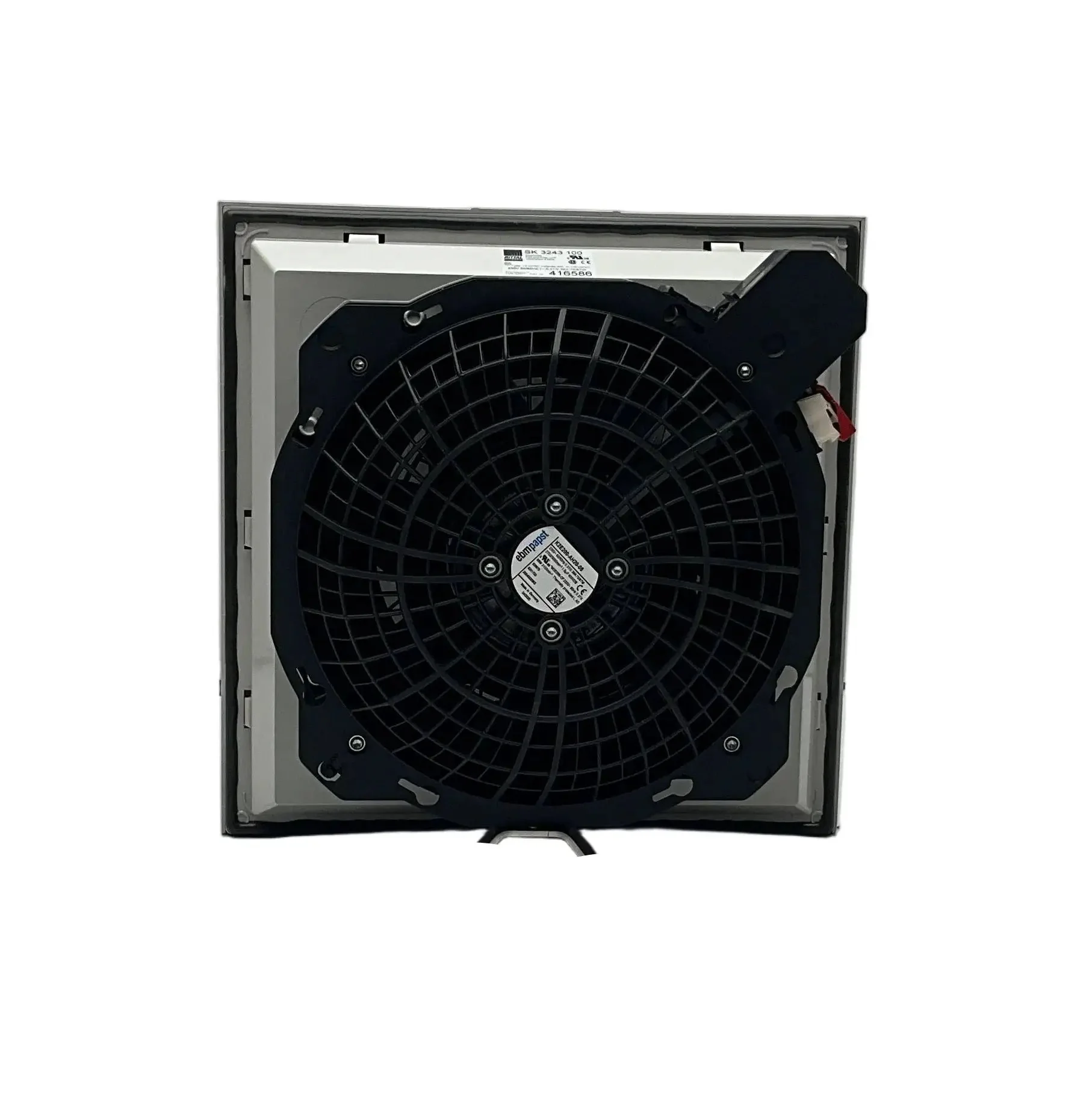

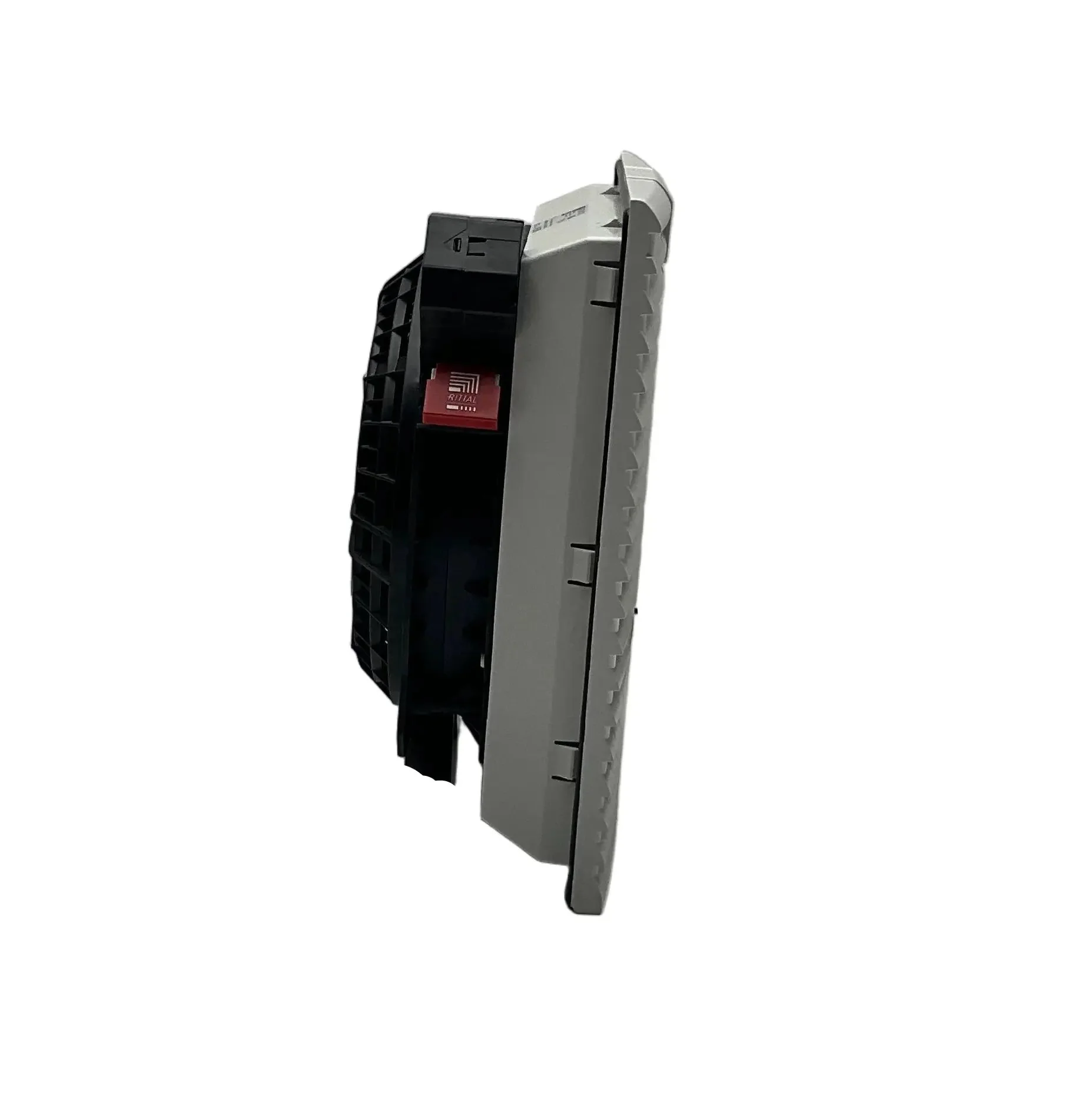

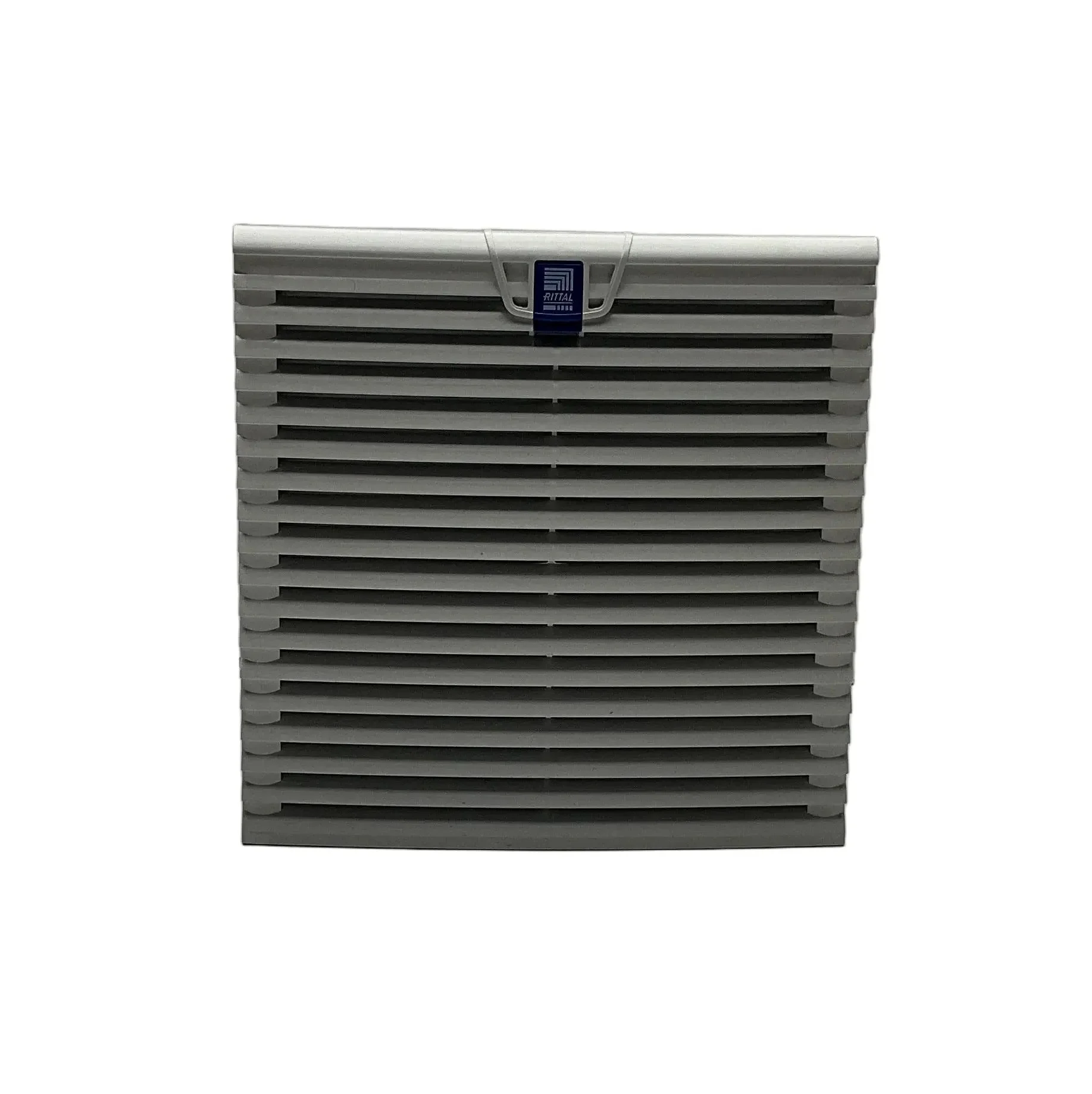

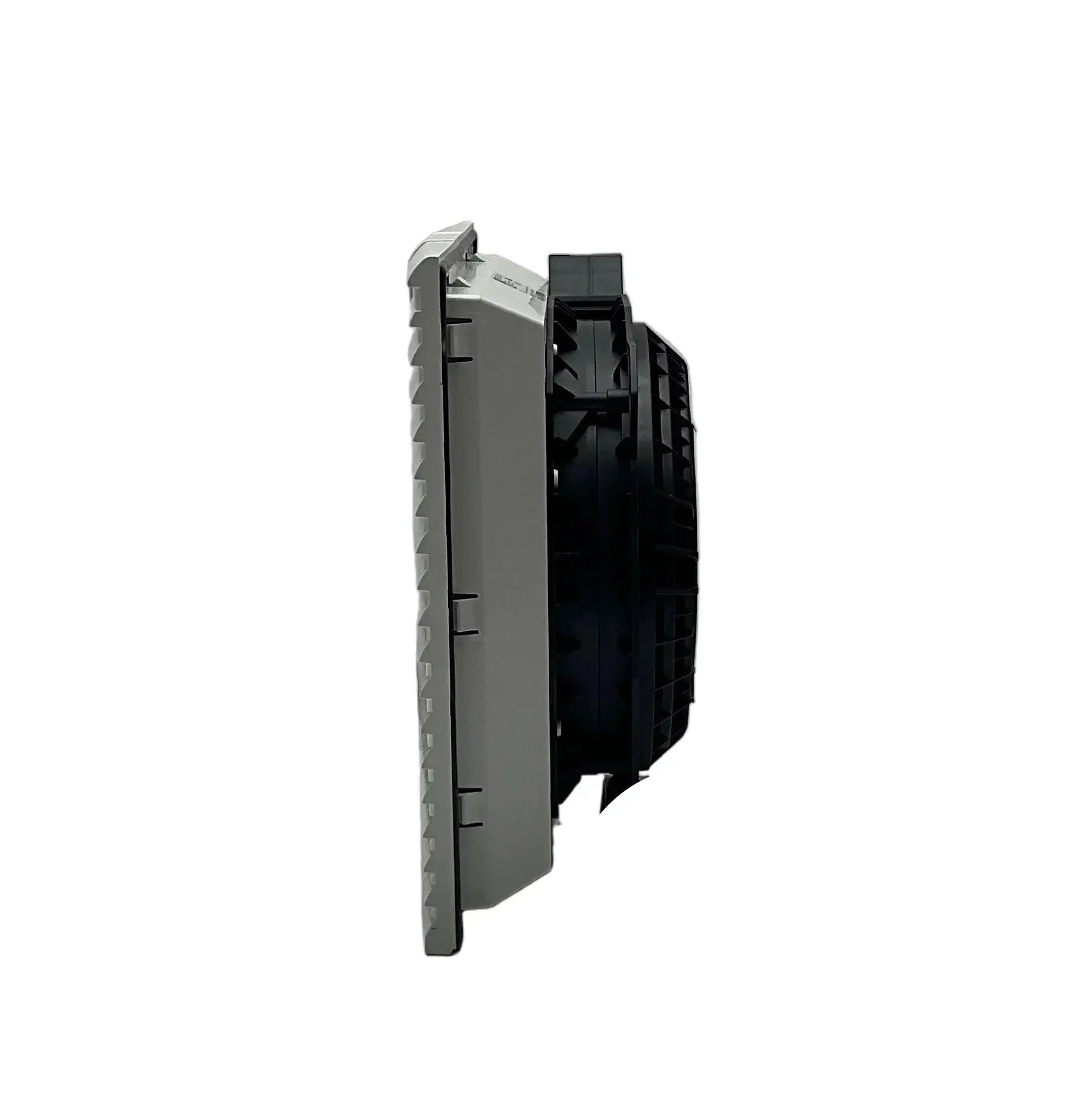

Rittal SK 3243.100 Filter Fan Unit

- Brand: Rittal
- Model: SK 3243.100
- Type: Filter Fan Unit (TopTherm Series)
- Part Number: 416586

- Technical Specs:
- Function: Forced ventilation of enclosures
- Air Flow Rate: 410 m³/h (unrestricted) / approx. 320 m³/h (with filter mat)

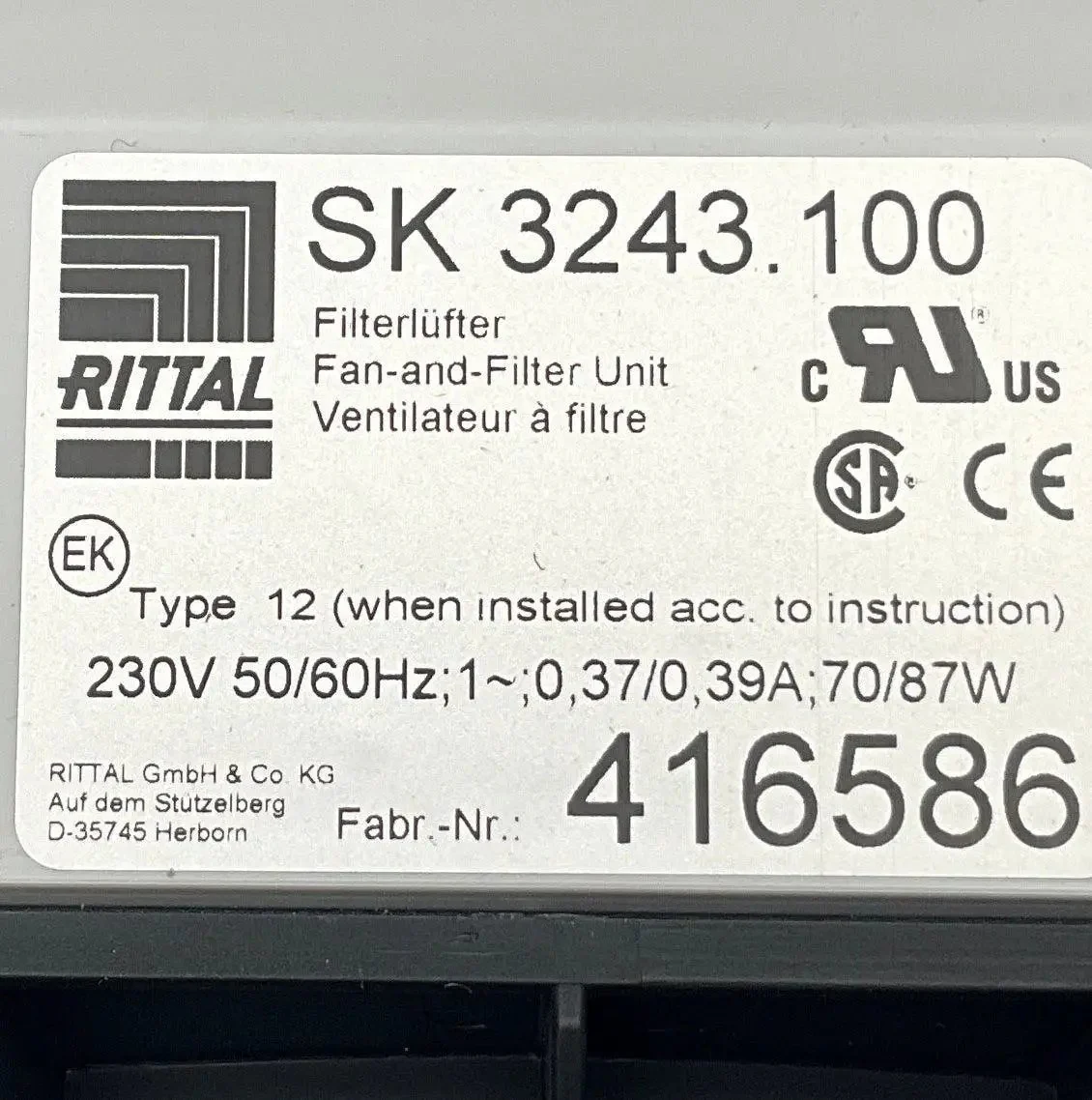

- Voltage: 230 V AC, 50/60 Hz (single-phase)
- Power Consumption: 70 W at 50 Hz / 87 W at 60 Hz
- Rated Current: 0.37 A at 50 Hz / 0.39 A at 60 Hz
- Noise Level: 59 dB(A)
- Filter Mat: G3 coarse dust filter
- Filter Class: G3 (EN 779)
- Protection Class: IP54
- Operating Temperature: -15 °C to +55 °C
- Mounting: External mounting on enclosure
- Additional Features:
  - Quick filter mat replacement
  - Low maintenance
  - High air throughput for effective cooling
  - Compatible with Rittal enclosure cut-outs

Dimensions: 330 x 320 x 130 mm

Weight: 3.3 kg

Country of Origin: Germany

HS Code: 8414.59
