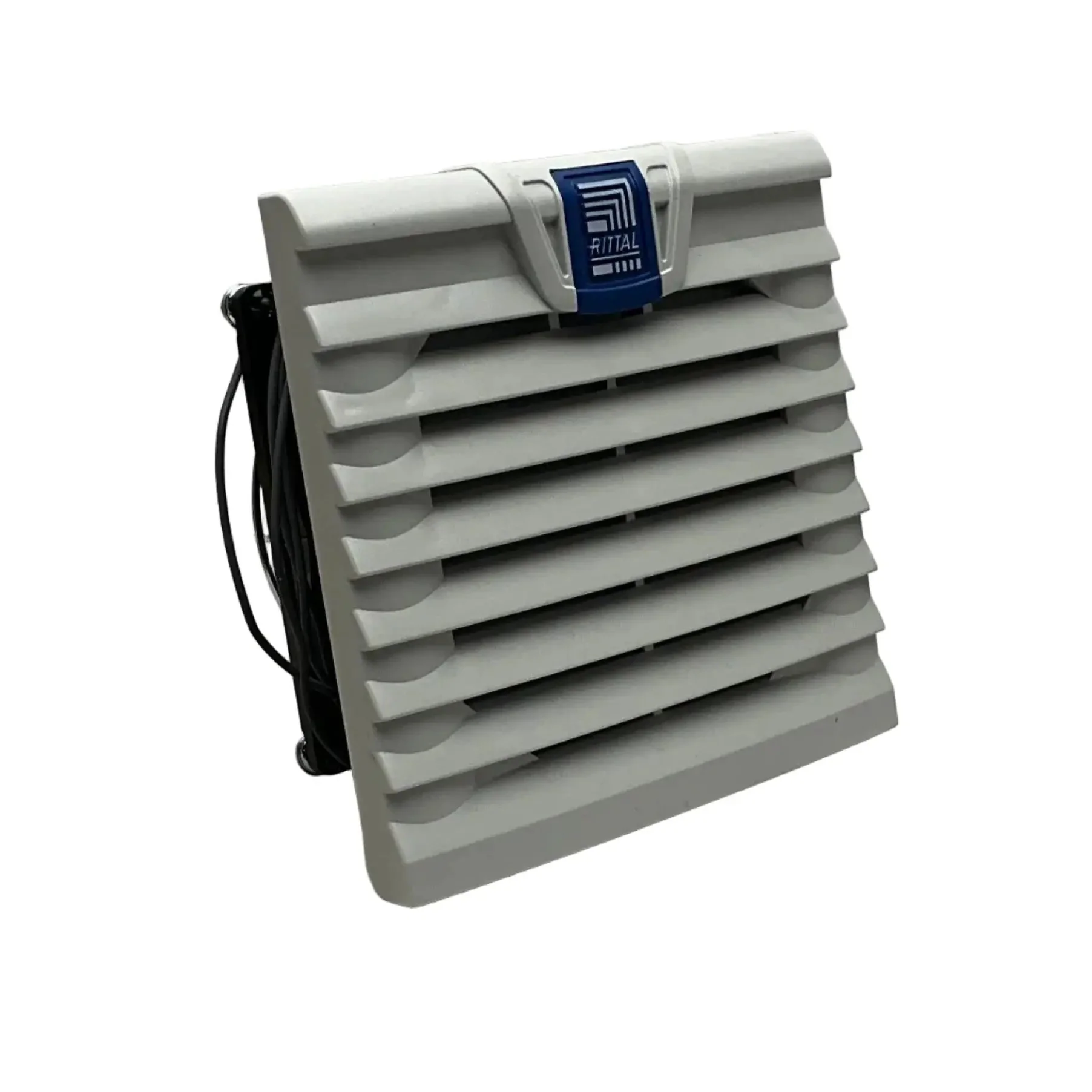

Rittal SKC 3237.100 Fan & Filter Unit

- Brand: Rittal
- Model: SKC 3237.100
- Type: Filter & Fan Unit
- Part Number: 6849040

- Technical Specs:
- Function: Forced ventilation of enclosures with integrated filter mat on intake side
- Air Flow: 15 - 18 m³/h (with filter mat)
- Voltage: 230 V AC, 50/60 Hz
- Power Consumption: 12 W at 50 Hz
- Rated Current: 0.065 A at 50 Hz
- Fan Direction: Intake
- Filter Mat: Chopped fibre
- Protection Class: IP54
- Operating Temperature: -15 °C to +55 °C
- Mounting: External mounting on enclosure (cut-out required)
- Connection: Wires
- Additional Features:
  - Reversible
  - Quick filter mat replacement
  - Low maintenance
  - High air throughput for effective cooling
  - Compatible with Rittal enclosure cut-outs (standard 3237 series)

Dimensions: 130 x 130 x 75 mm

Weight: 520 g

Country of Origin: Germany

HS Code: 8414.59
