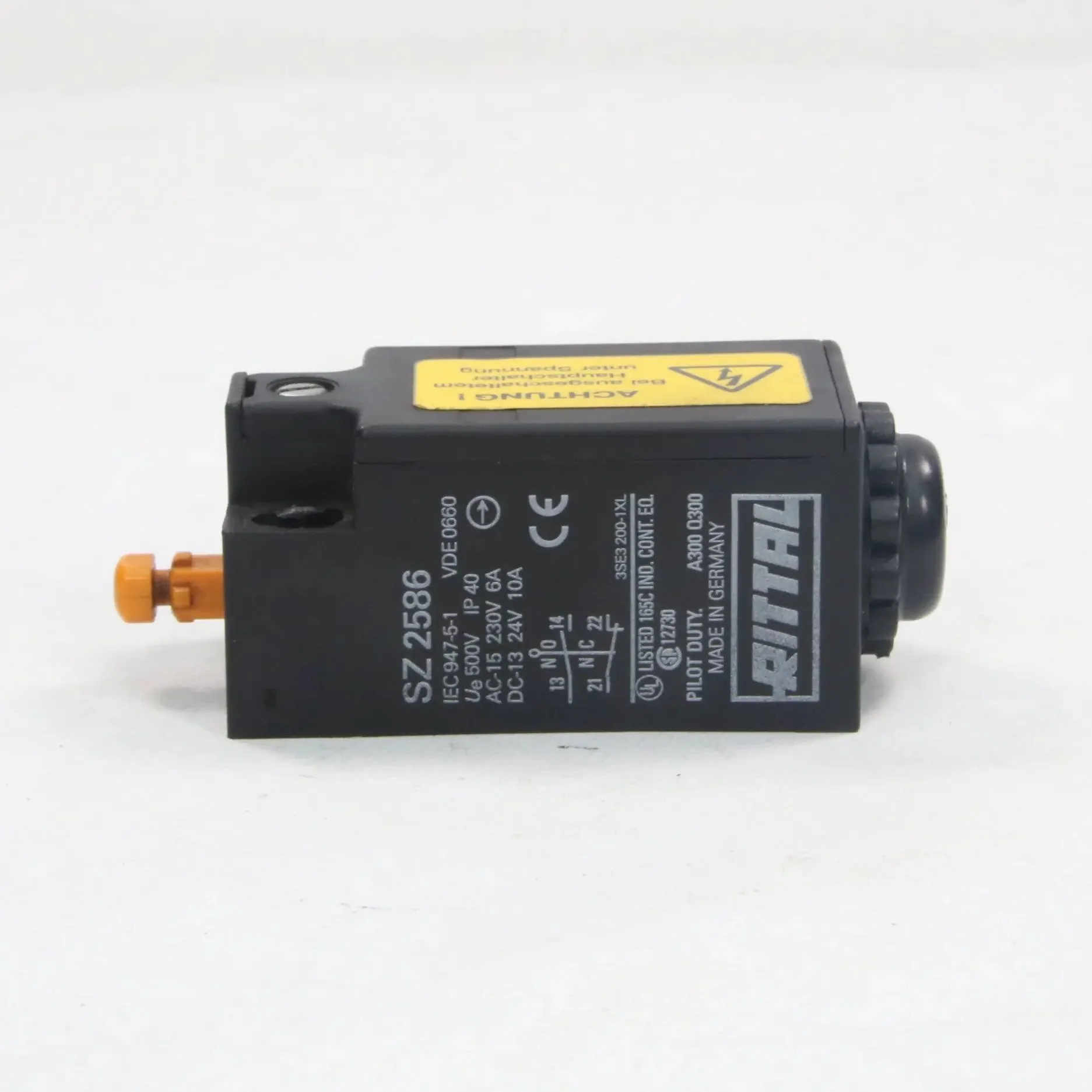

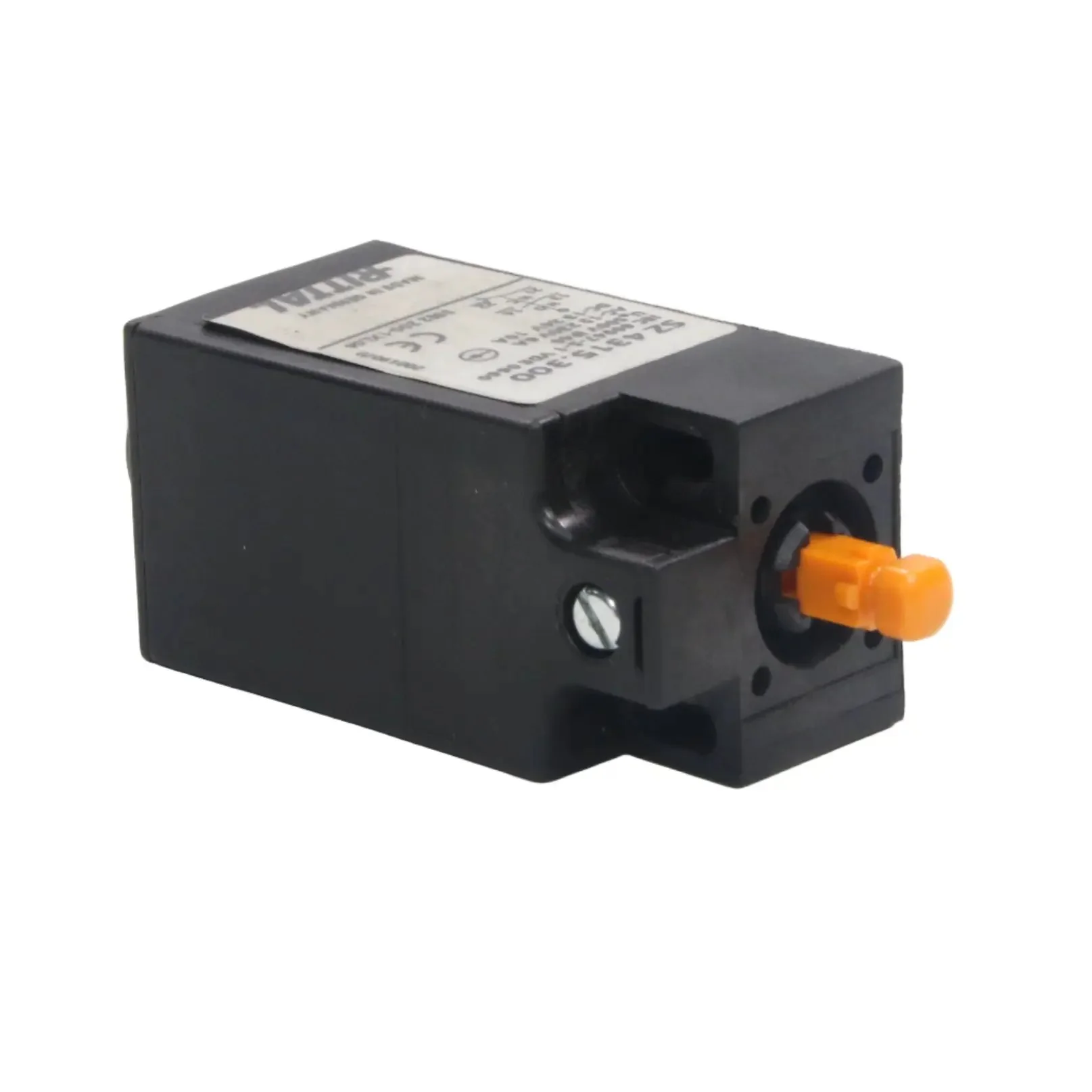

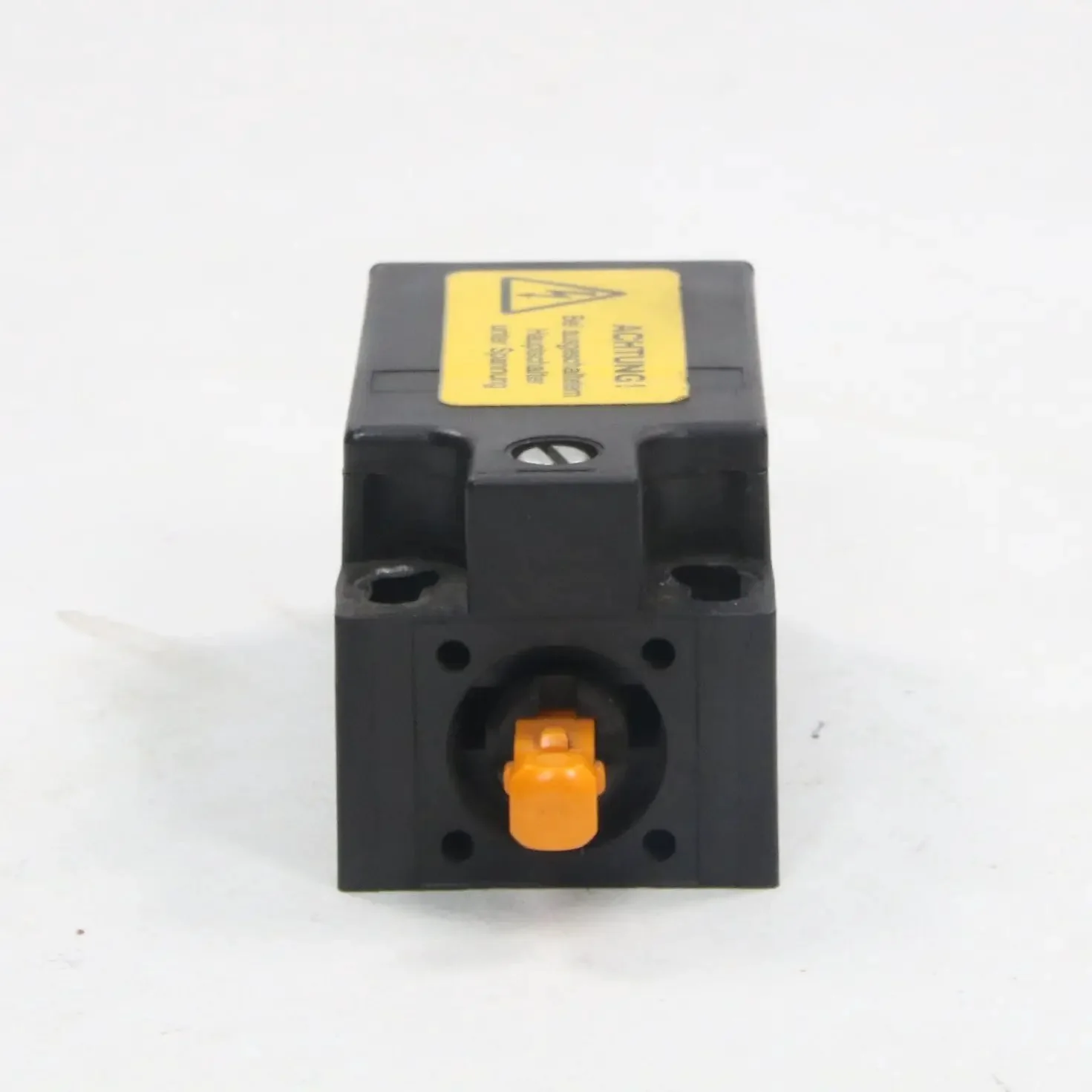

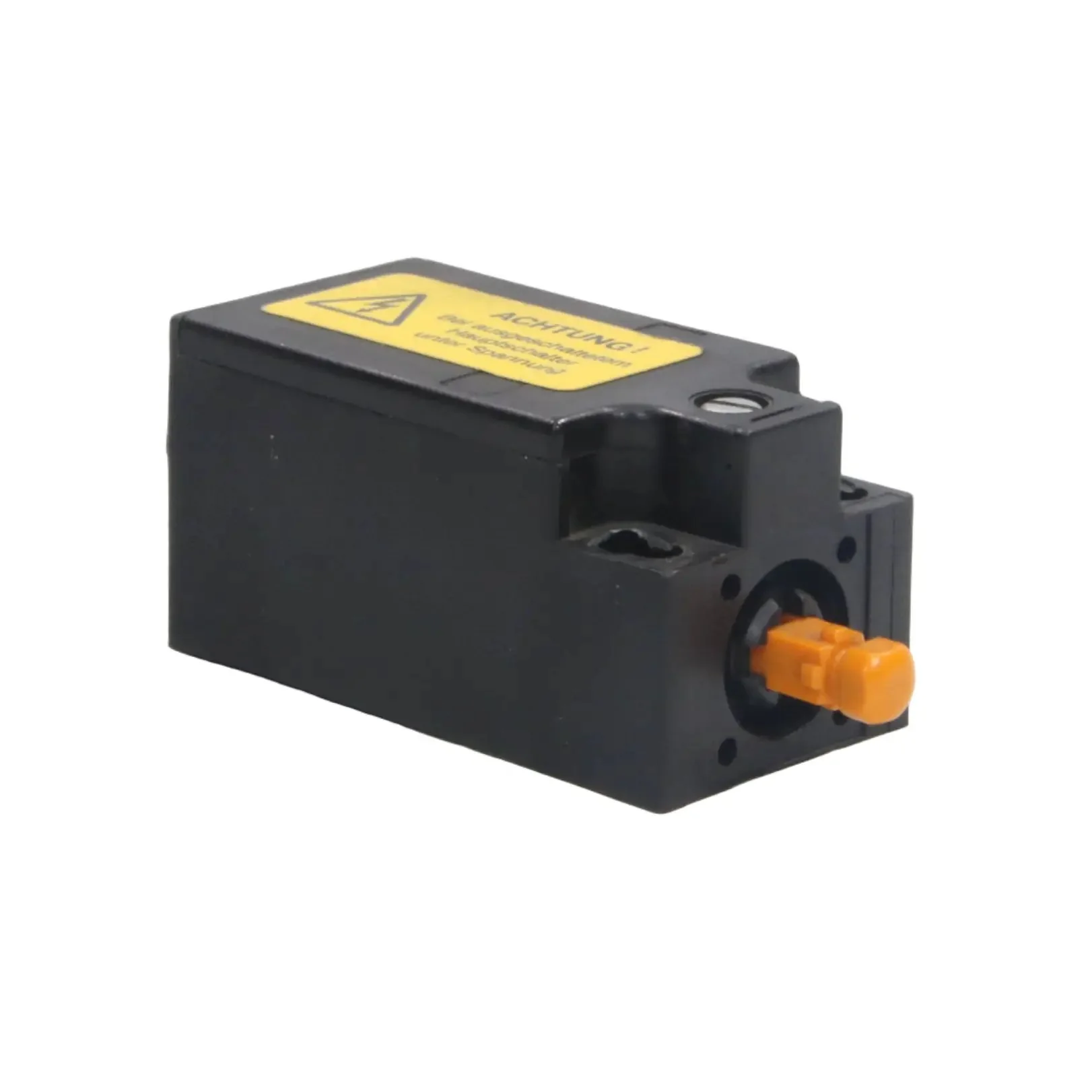

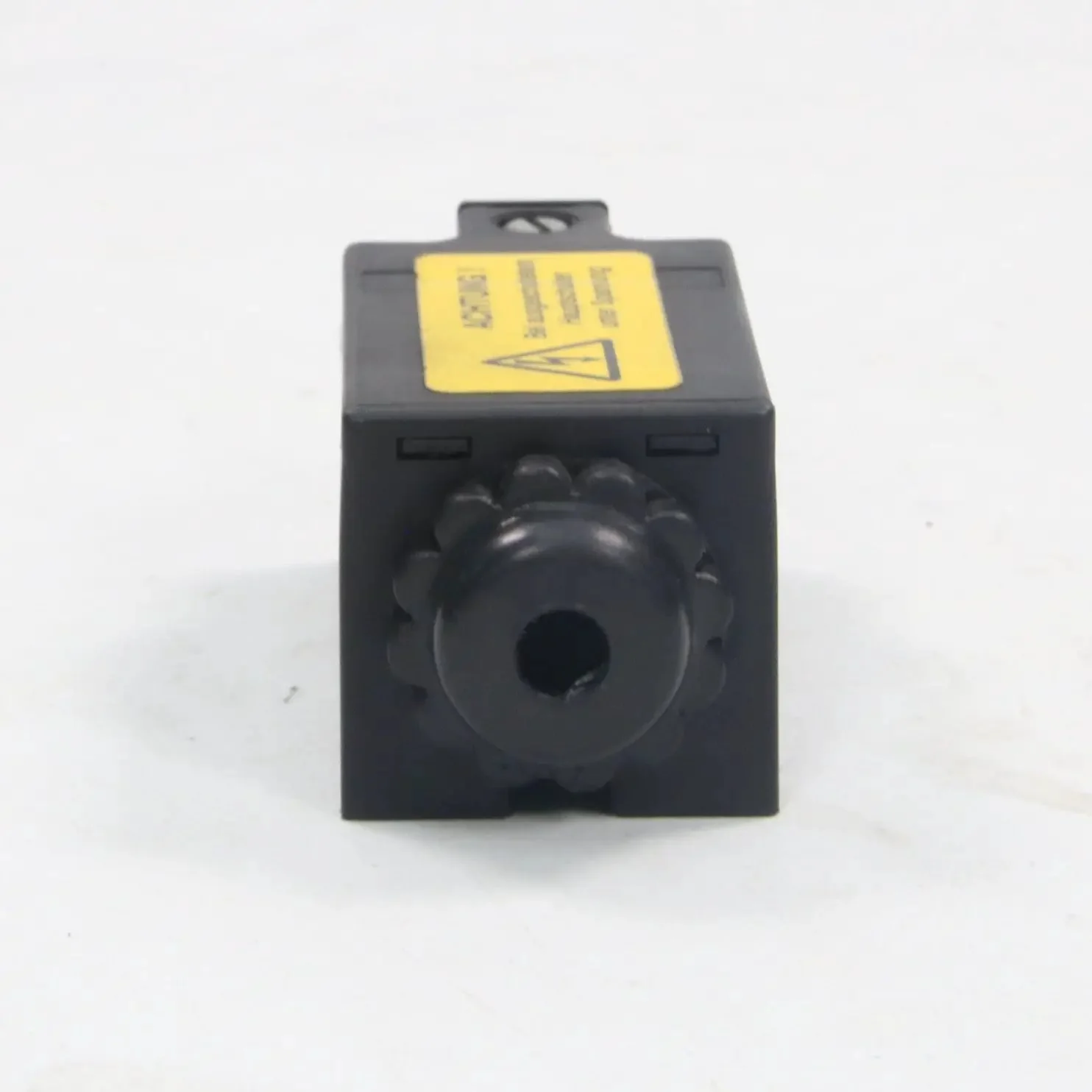

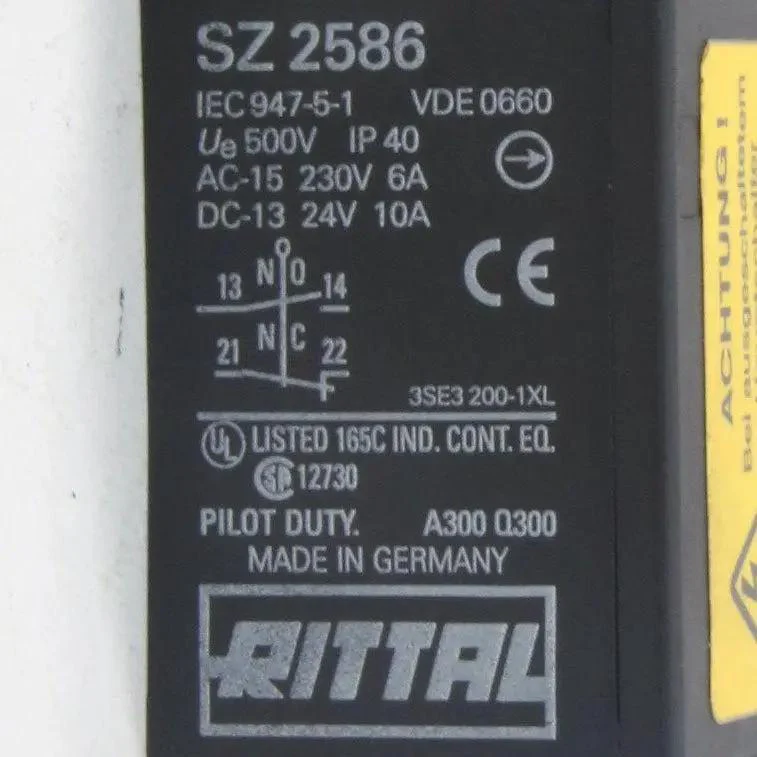

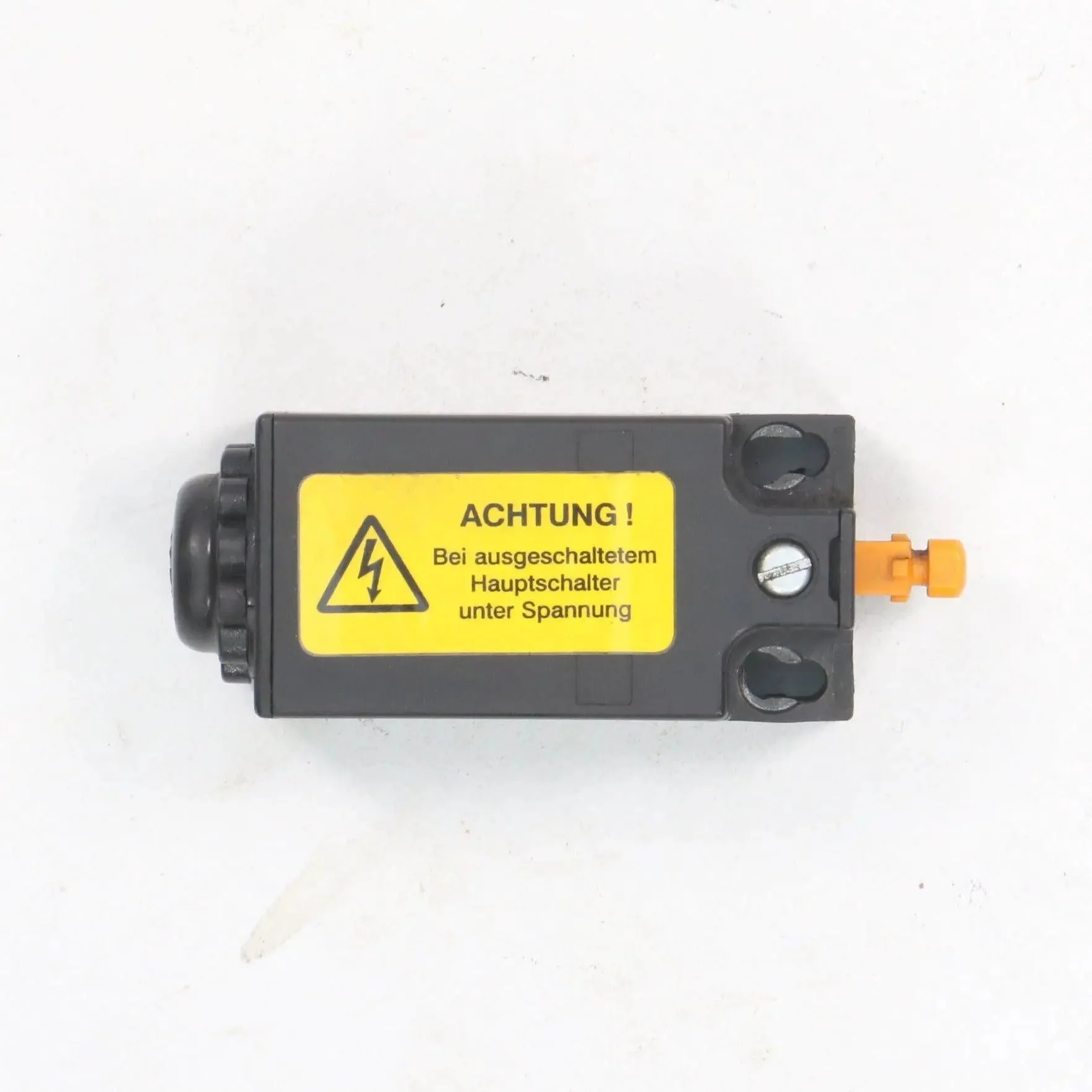

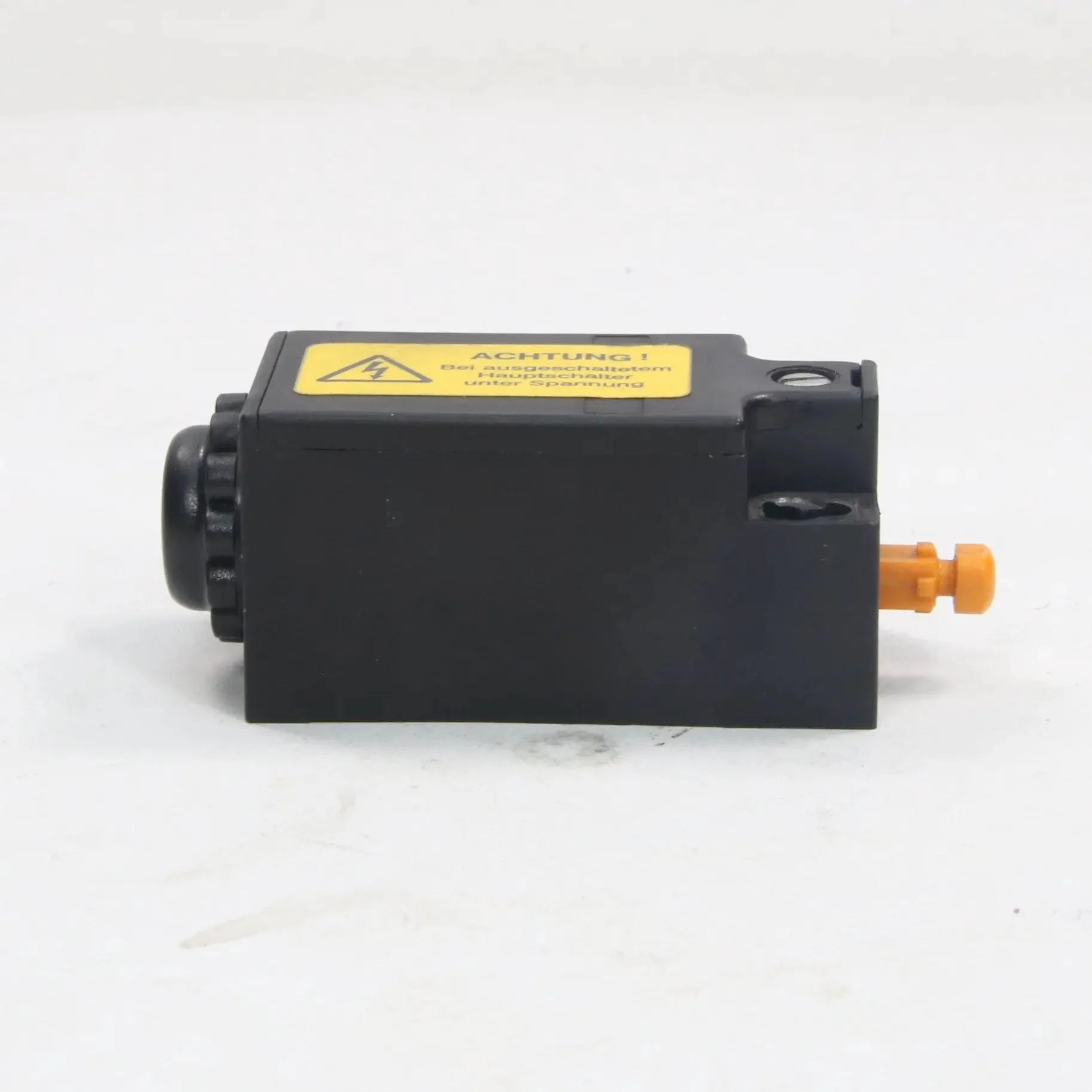

Rittal Plunger Limit Switch
Brand: Rittal
Models: SZ 2586 / SZ 4315.300
Type: Limit Switch
All Tech Specs:
- Material: Thermoplastic
- Output Configuration: 1 Normally open + 1 Normally closed (1NO + 1NC)
- Contact Operation: Snap action
- Actuator Type: Plunger (for door contact)
- Contact Current max.: 6 A AC (AC-15 230V), 10 A DC (DC-13 24V)
- Connection: Cable
- Protection Class: IP40
- Standards: IEC 60947-5-1, VDE 0660
- Operating Temperature Range: -25°C to +70°C
- Mechanical Life: >1 million cycles
- Electrical Life: >500,000 cycles
- Certification: CE marked; RoHS compliant
- Features: Suitable for enclosure doors; tamper-resistant; easy installation in Rittal cabinets
Dimensions: 80 x 30 x 30 mm
Weight: 70 g
Country of Origin: Germany
HS Code: 8536.50
Original: $16.13
-70%$16.13
$4.84
Description
Brand: Rittal
Models: SZ 2586 / SZ 4315.300
Type: Limit Switch
All Tech Specs:
- Material: Thermoplastic
- Output Configuration: 1 Normally open + 1 Normally closed (1NO + 1NC)
- Contact Operation: Snap action
- Actuator Type: Plunger (for door contact)
- Contact Current max.: 6 A AC (AC-15 230V), 10 A DC (DC-13 24V)
- Connection: Cable
- Protection Class: IP40
- Standards: IEC 60947-5-1, VDE 0660
- Operating Temperature Range: -25°C to +70°C
- Mechanical Life: >1 million cycles
- Electrical Life: >500,000 cycles
- Certification: CE marked; RoHS compliant
- Features: Suitable for enclosure doors; tamper-resistant; easy installation in Rittal cabinets
Dimensions: 80 x 30 x 30 mm
Weight: 70 g
Country of Origin: Germany
HS Code: 8536.50
