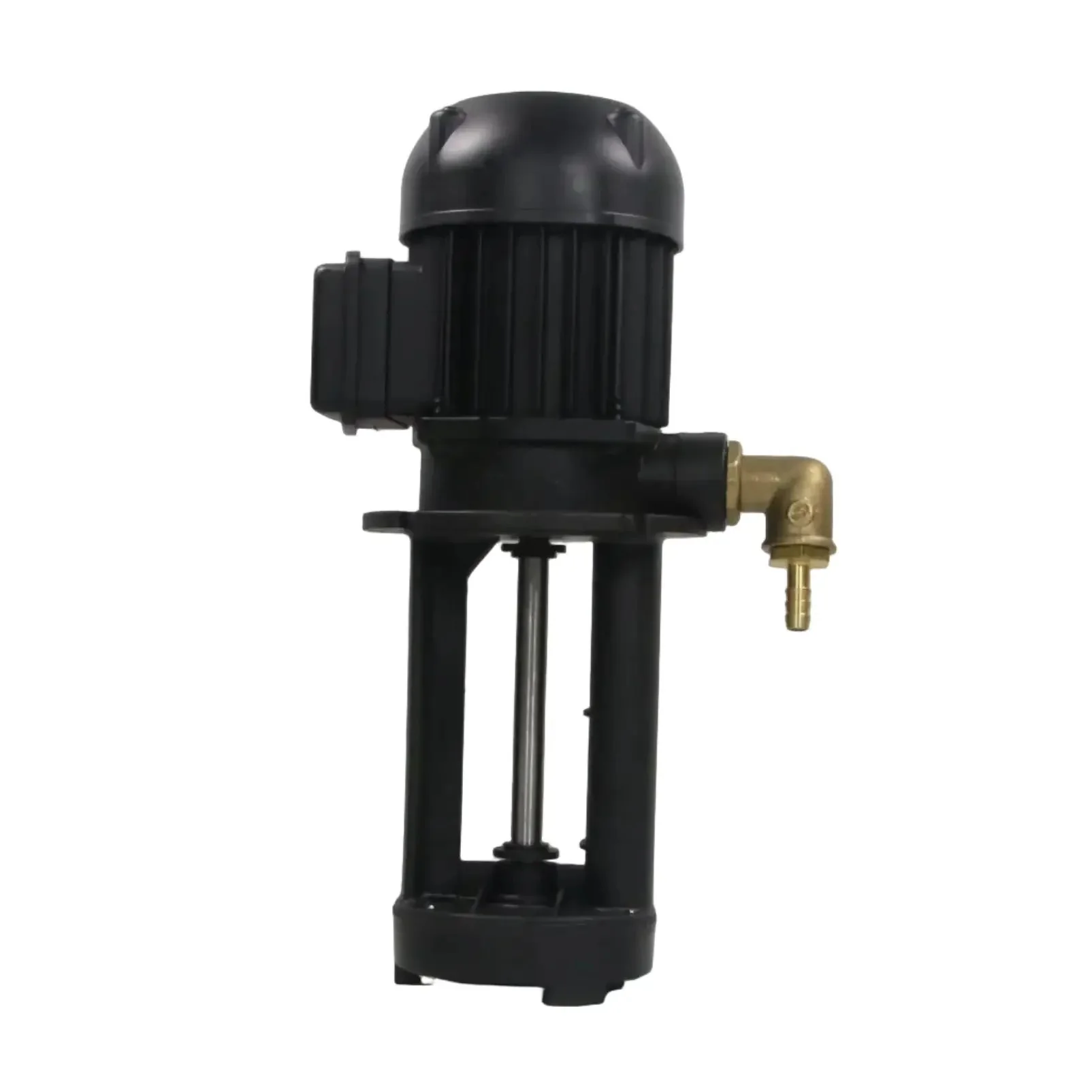

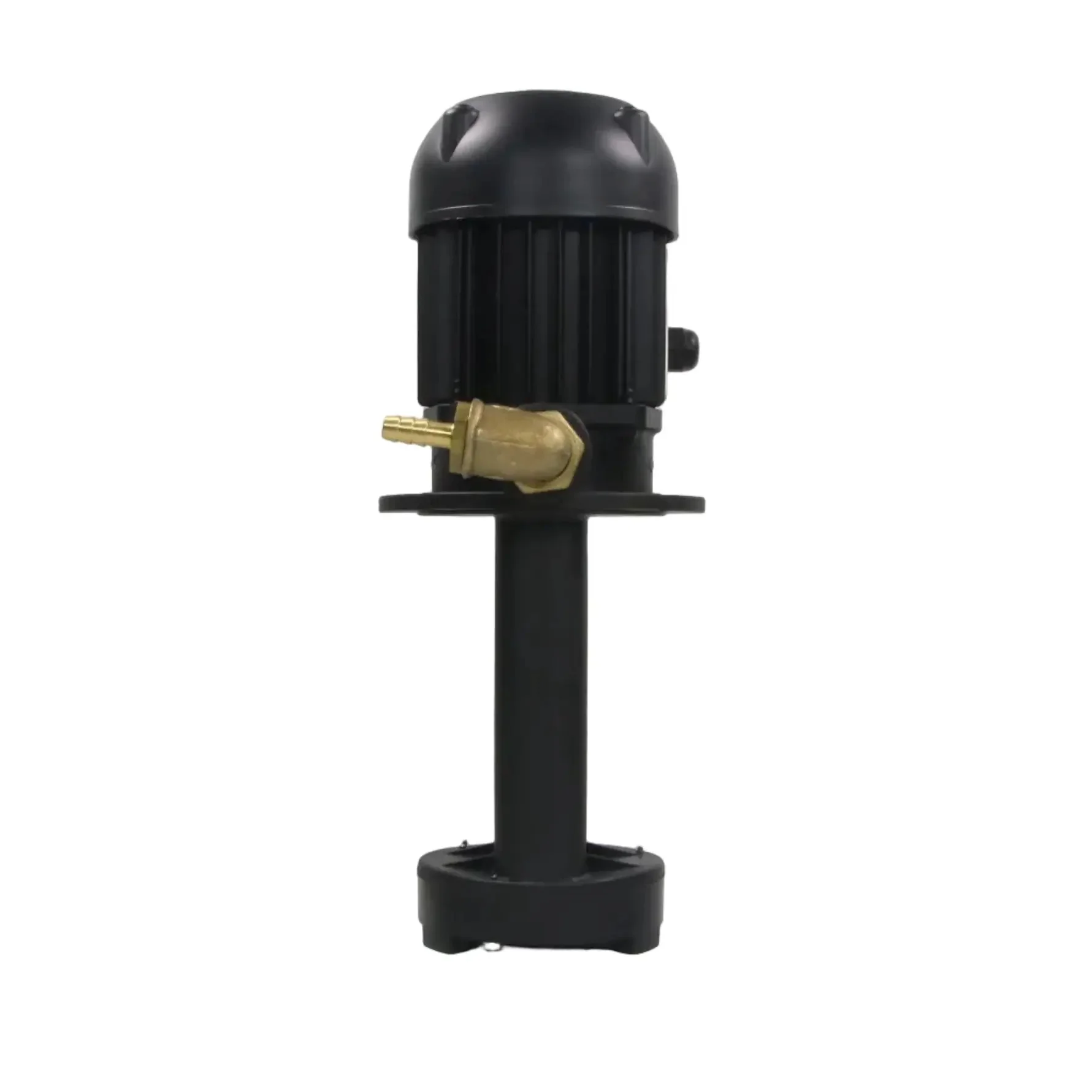

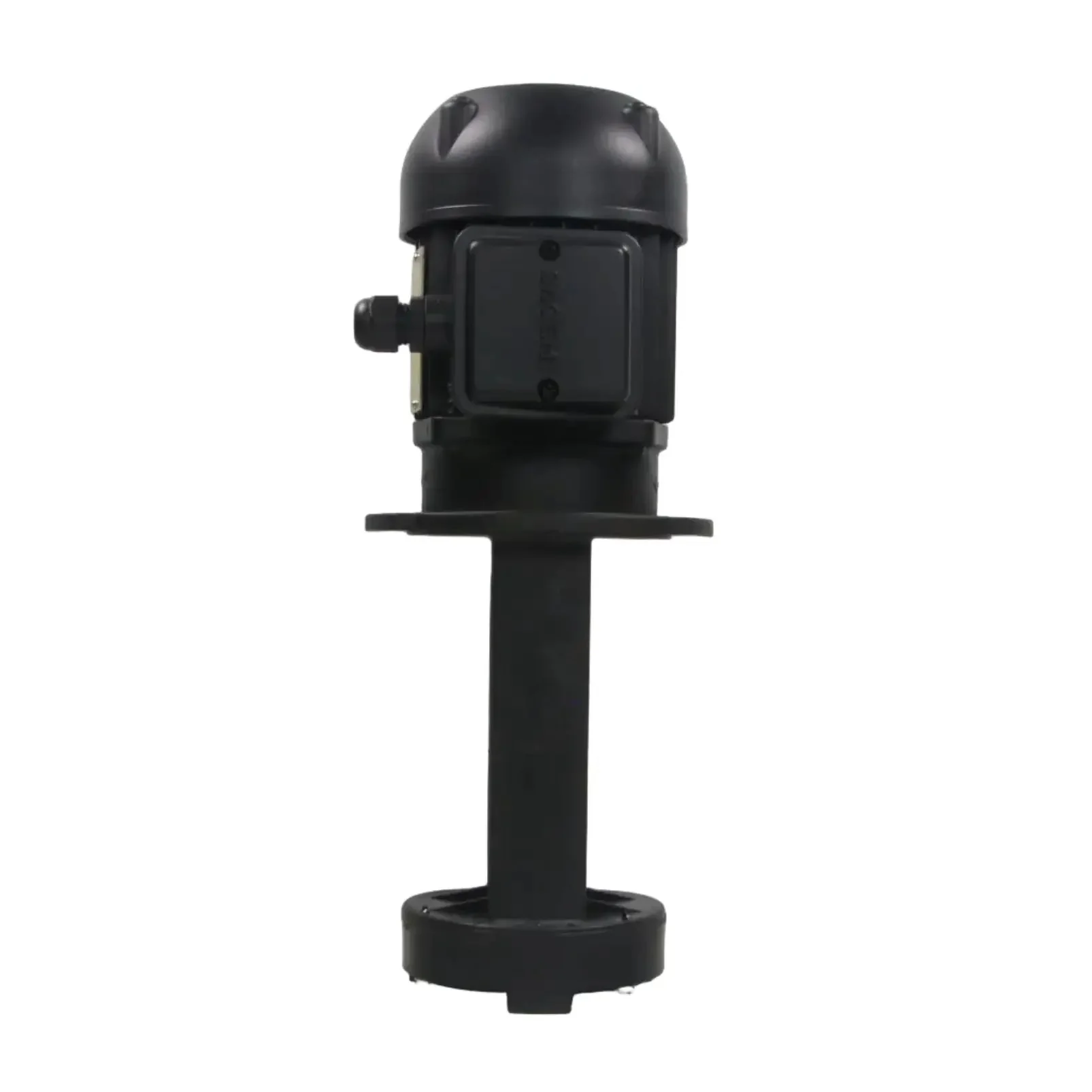

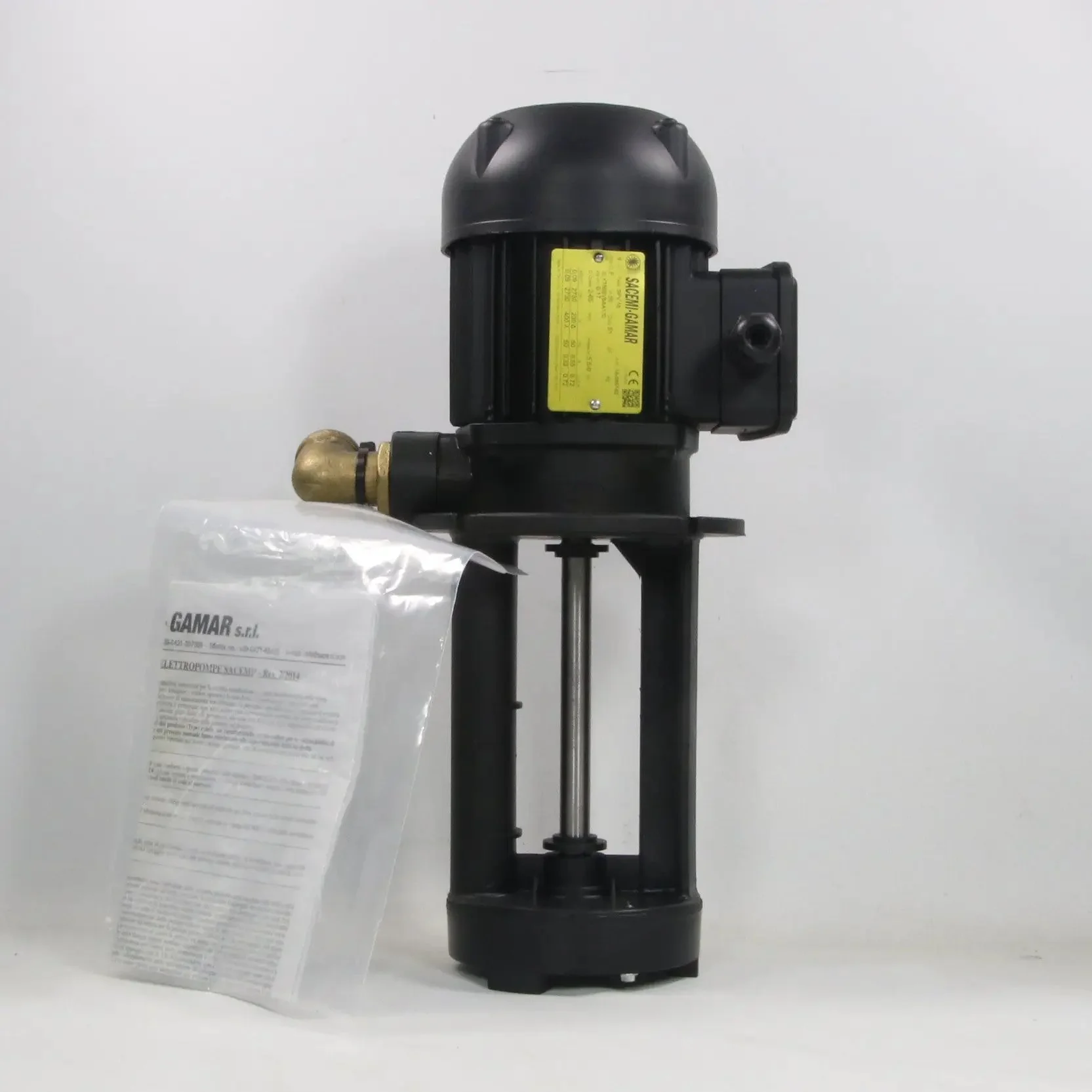

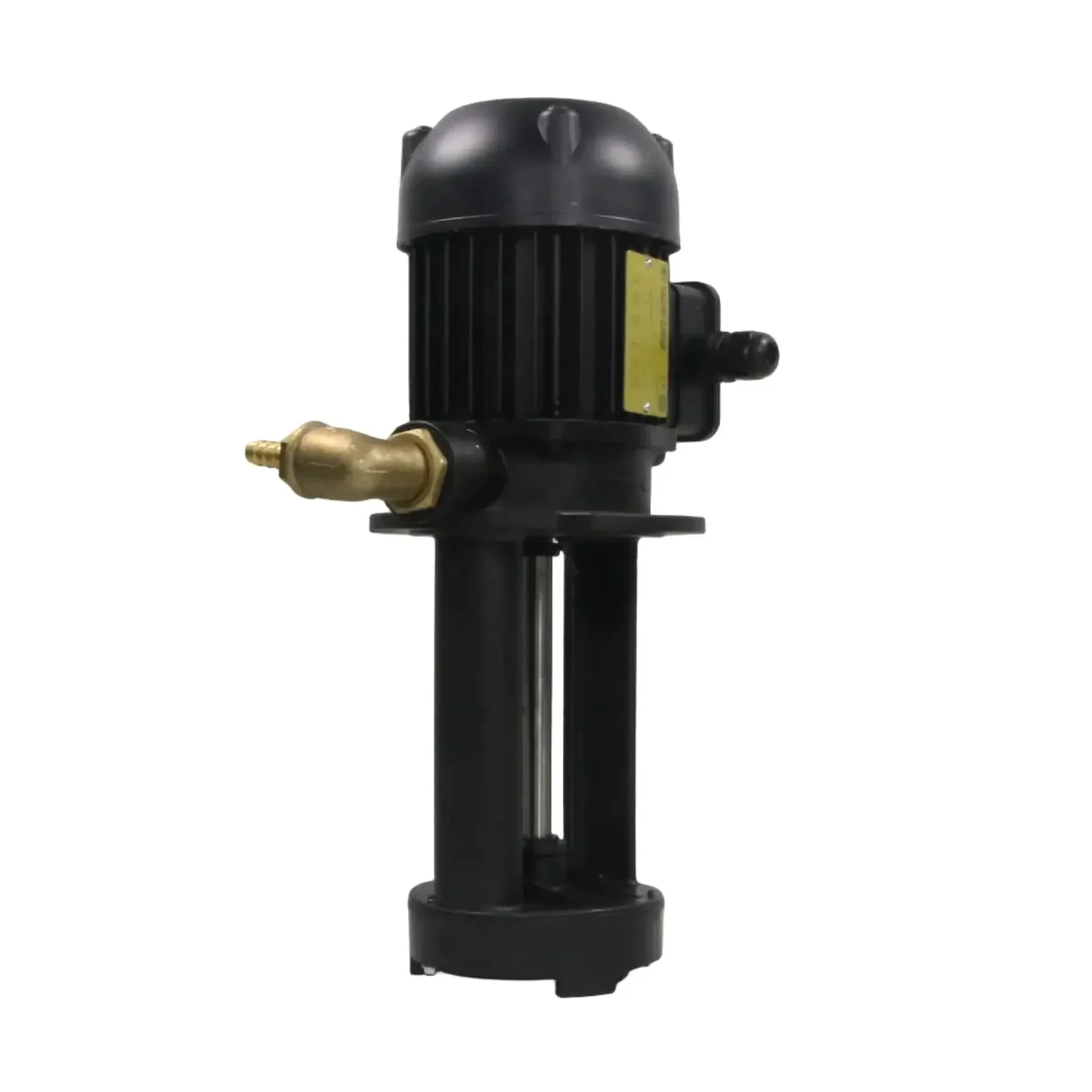

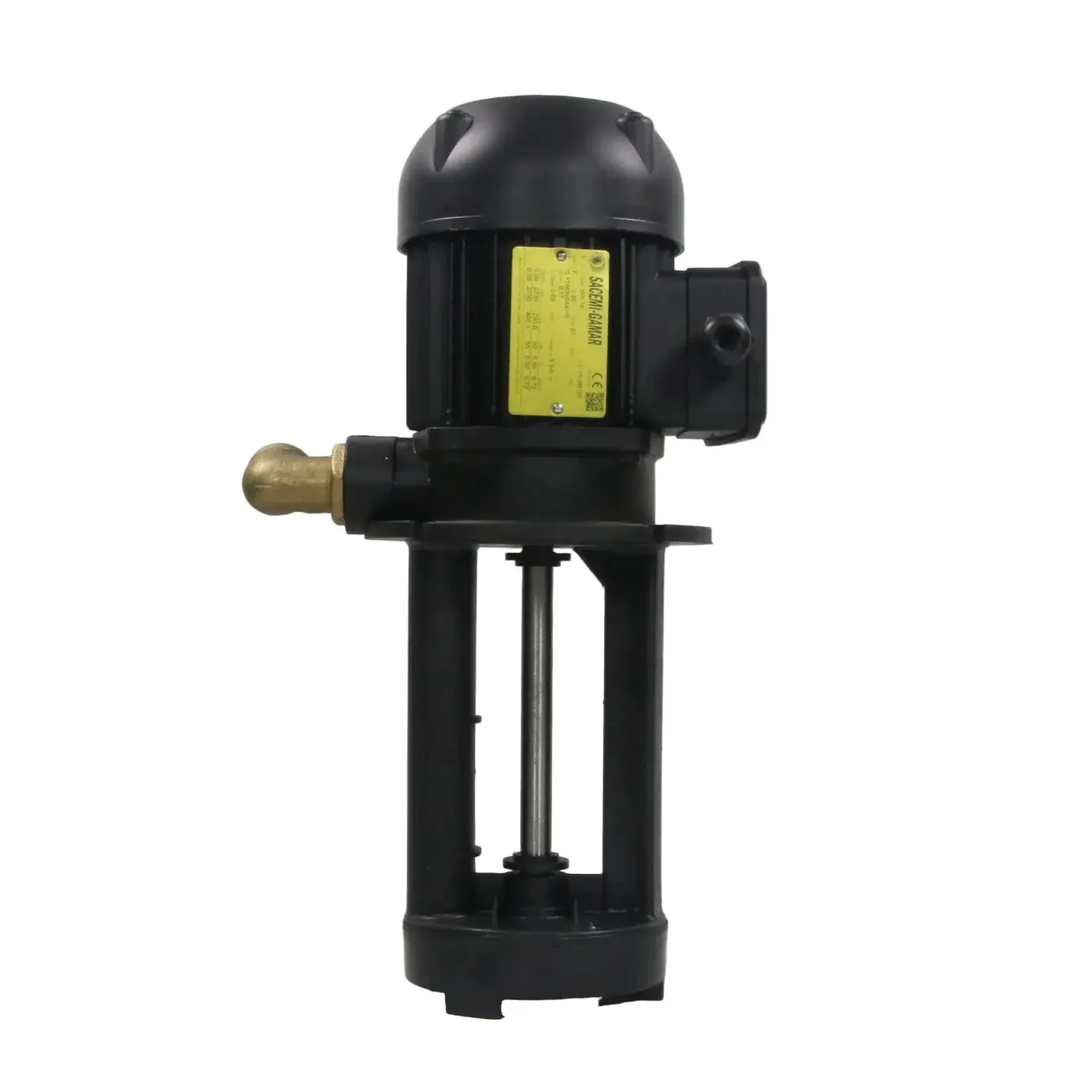

Sacemi-Gamar SPV 18 Immersion Coolant Pump

- Brand: Sacemi-Gamar

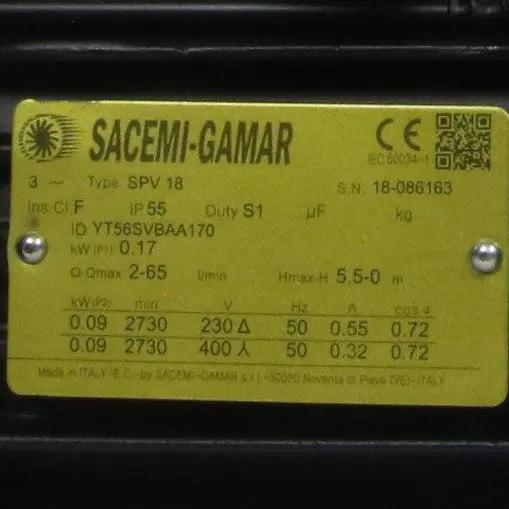

- Model: SPV 18

- ID Number: YT56SVBAA170

- Type: Immersion Coolant Pump

- All tech specs:
- Pumped fluids: Water, emulsions, oily substances, coolants; viscosity not exceeding 21 cSt (3° Engel); max. liquid temperature 70 °C
- Hydraulic components: Impeller, volute (scroll), pump body in PBT
- Motor: 3~Phase Electric motor, power P3 ≈ 0.17 kW
- Voltage: 380-415 V - 50 Hz
- Immersion length ("B" stem height): 170 mm
- Q - Qmax: 2 - 65 l/min
- Installation note: Liquid level in tank should remain 3-4 cm below support flange; for dirty liquids, use compartmentalised tank to allow sludge settling
- Mounting: Vertical immersion with flange support; suitable for non-inflammable coolants
- Protection: IP55
- Features: Compact design, high reliability, suitable for continuous duty (S1) in coolant recirculation

Dimensions: 320 x 200 x 150 mm

Weight: 3.2 kg

Country of origin: Italy

HS code: 841370
