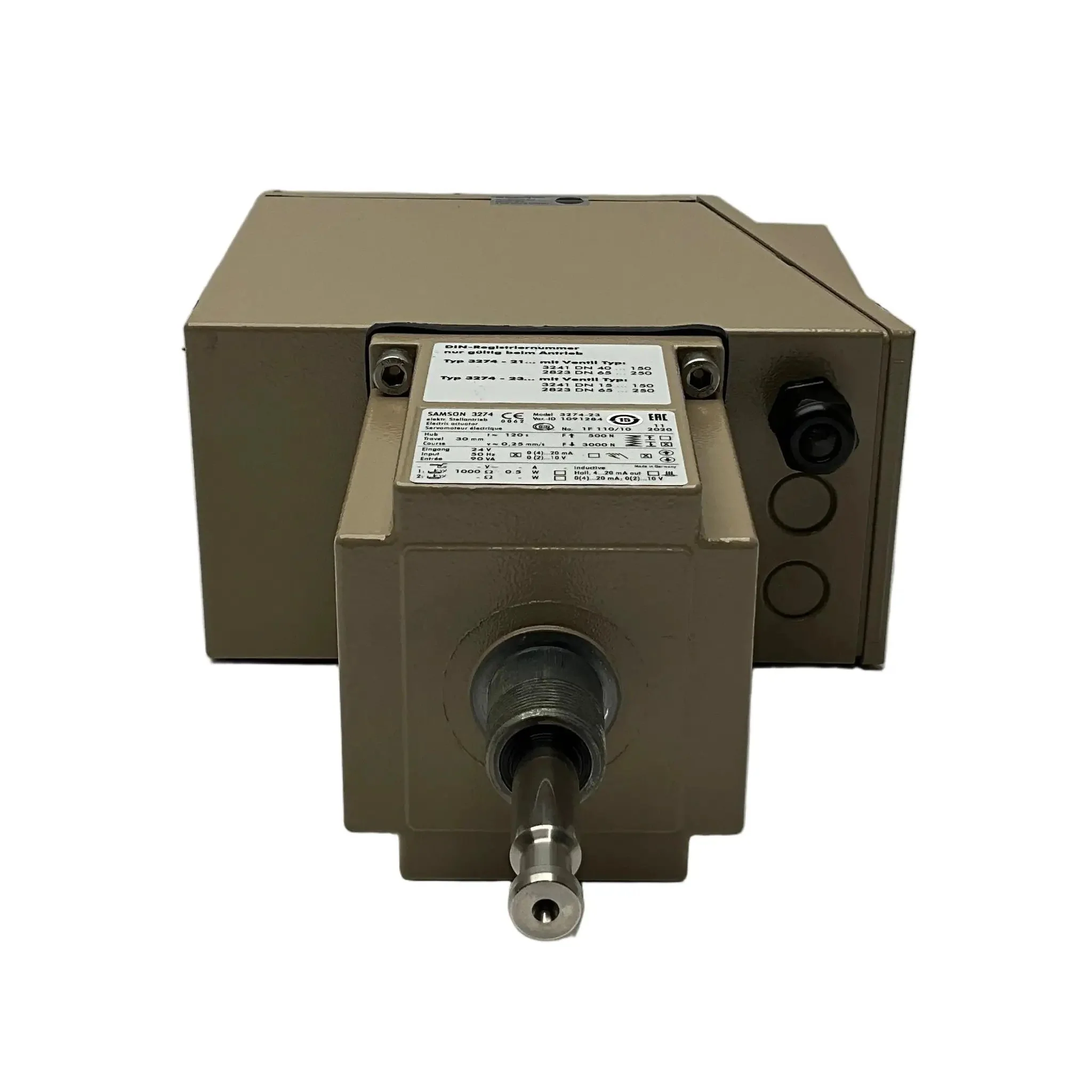

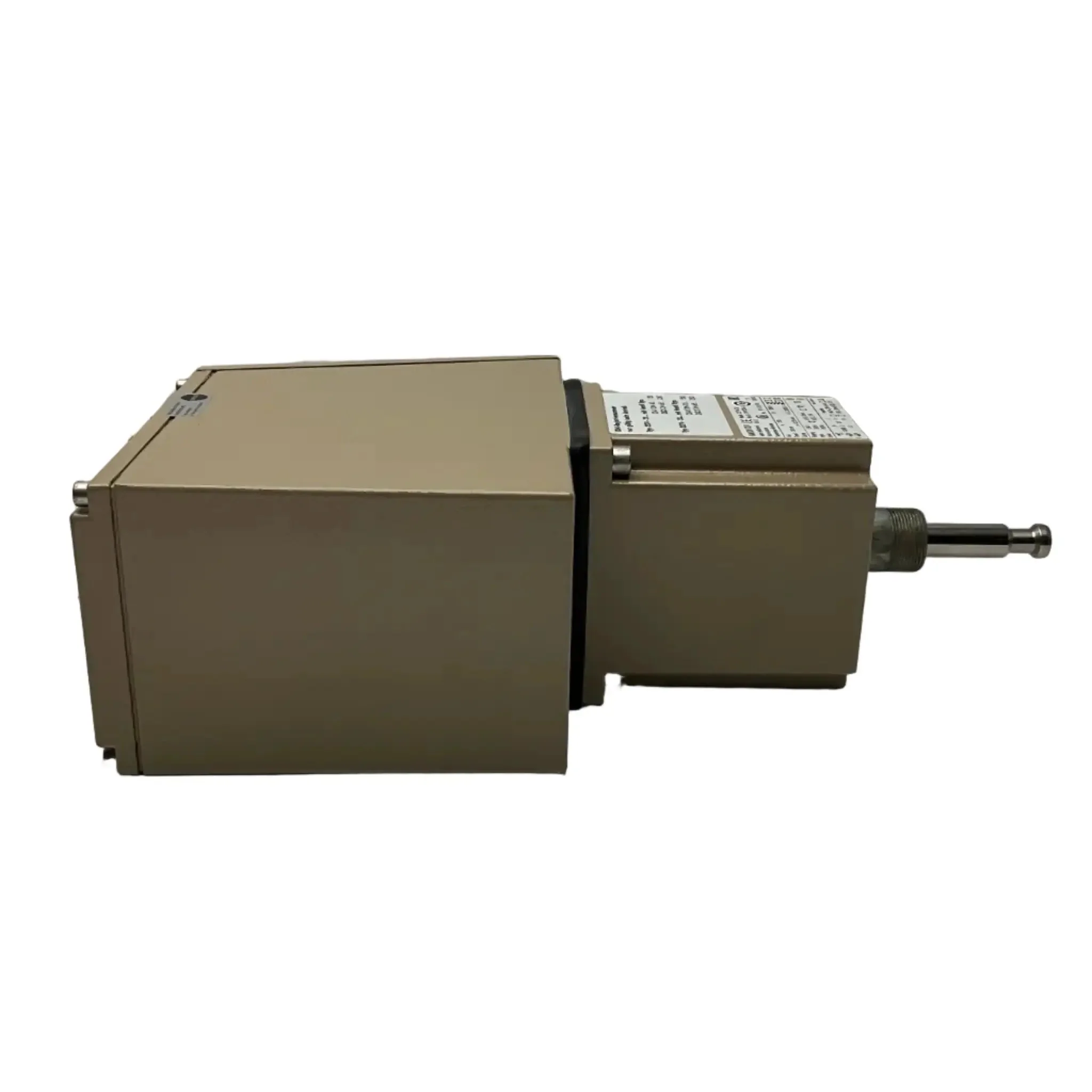

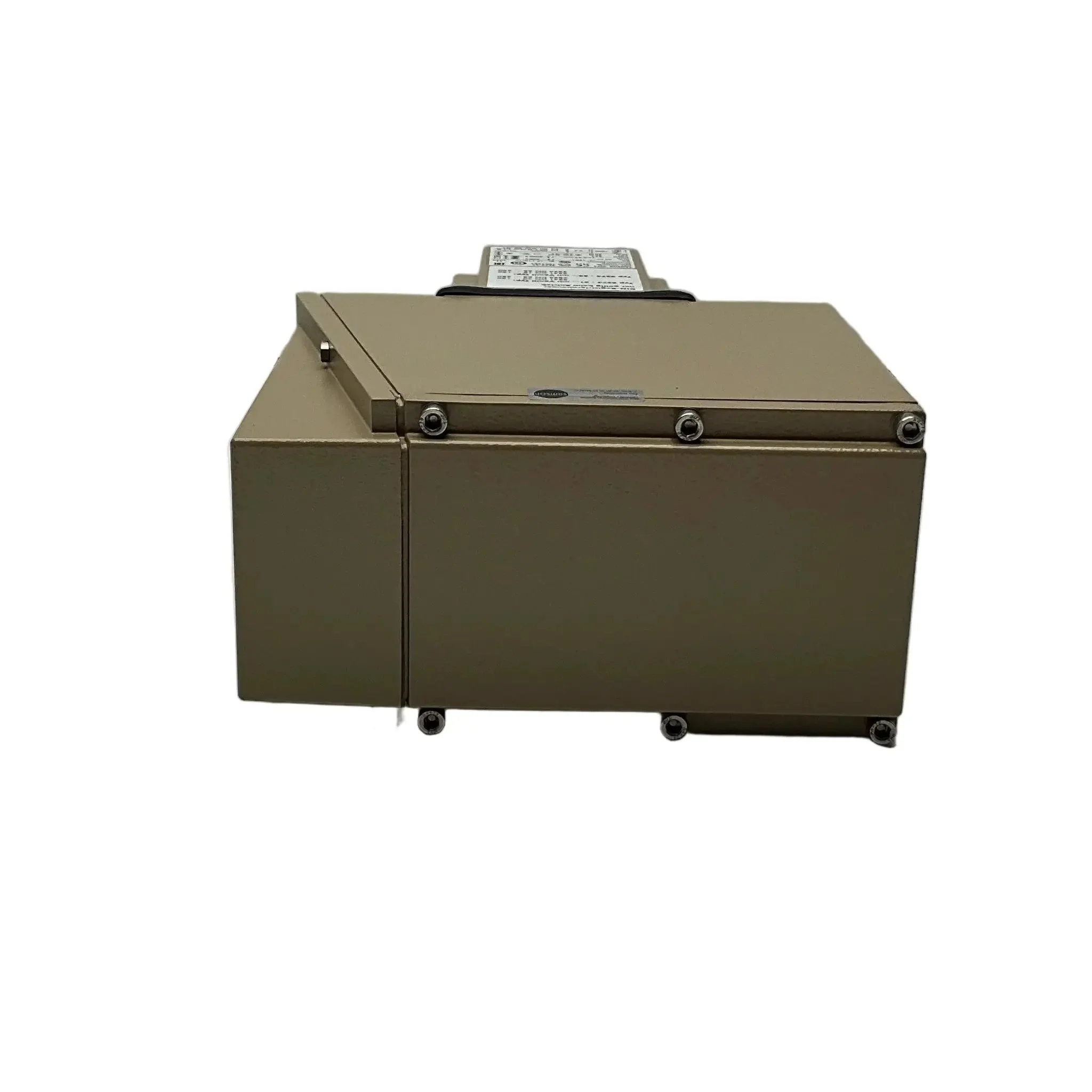

Samson 3274-23 Electrohydraulic Actuator
- Brand: Samson
- Model: 3274-23
- Type: Electrohydraulic Actuator
- Part Number: 1091284
- Technical Specs:
- Actuator Type: Electrohydraulic actuator (Linear) for control valves
- Thrust Force: 3 kN - out, 500 Nm - In
- Stroke: 30 mm
- Actuating Speed: 120 s
- Power Supply: 24 V AC/DC
- Power Consumption: Approx. 90 VA
- Control Signal: 0(4)–20 mA
- Positioning Accuracy: ±0.5 % of span
- Dead Band: Adjustable ≤ 0.1 %
- Fail-Safe Action: Spring-return
- Override: Electric
- Position Feedback: 0(4)–20 mA
- Enclosure Rating: IP65
- Ambient Temperature: –20 °C to +60 °C
- Housing Material: Die-cast aluminum, powder-coated
- Mounting: NAMUR (VDI/VDE 3847)
- Additional Features:
- Integrated positioner
- Overload protection
- Maintenance-free operation
- Reversible direction of action
- Safety function (spring return on power failure)
Dimensions: 420 x 240 x 130 mm
Weight: 13 kg
Country of Origin: Germany
HS Code: 8501.10
Original: $255,139.64
-70%$255,139.64
$76,541.89
