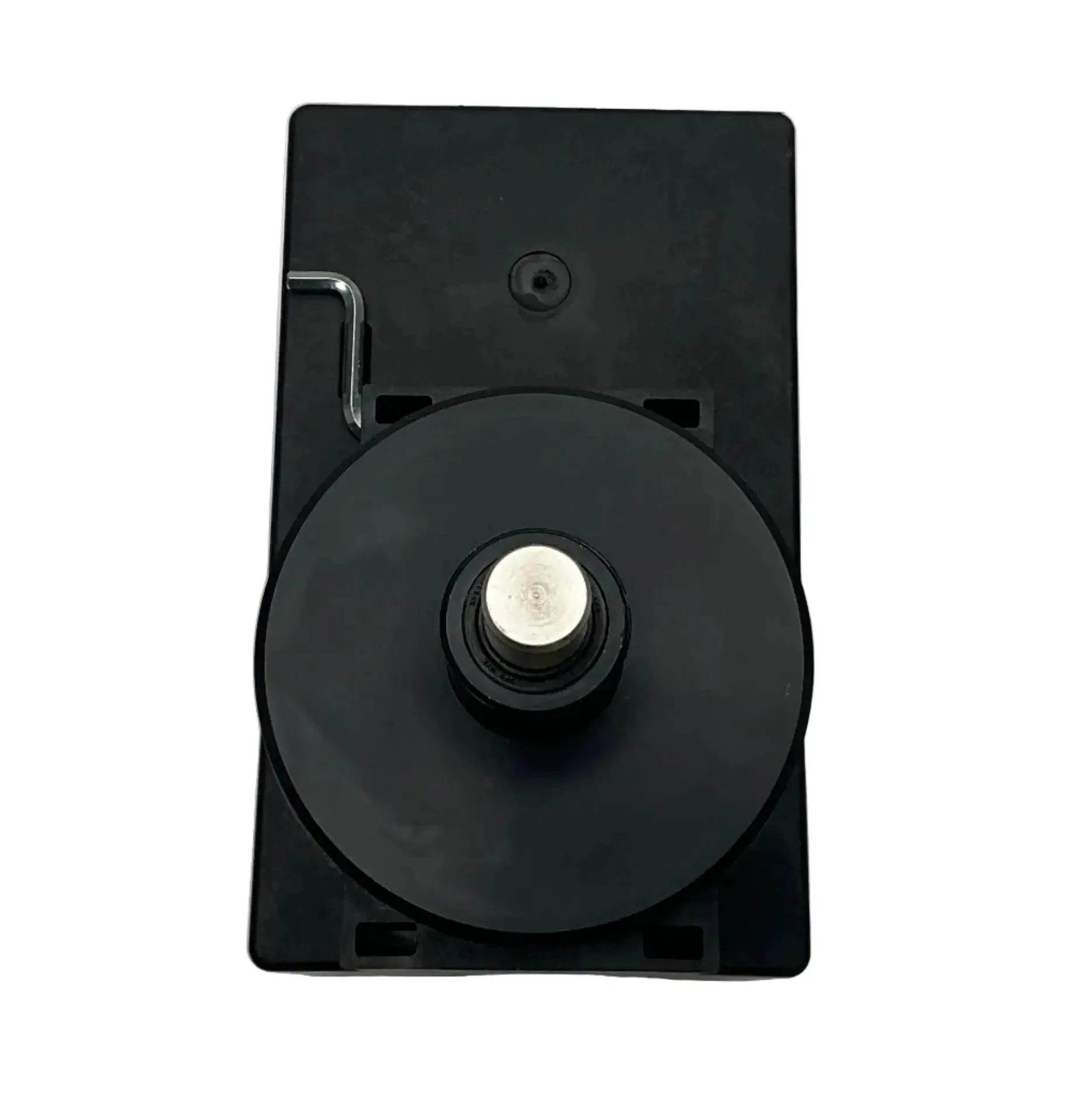

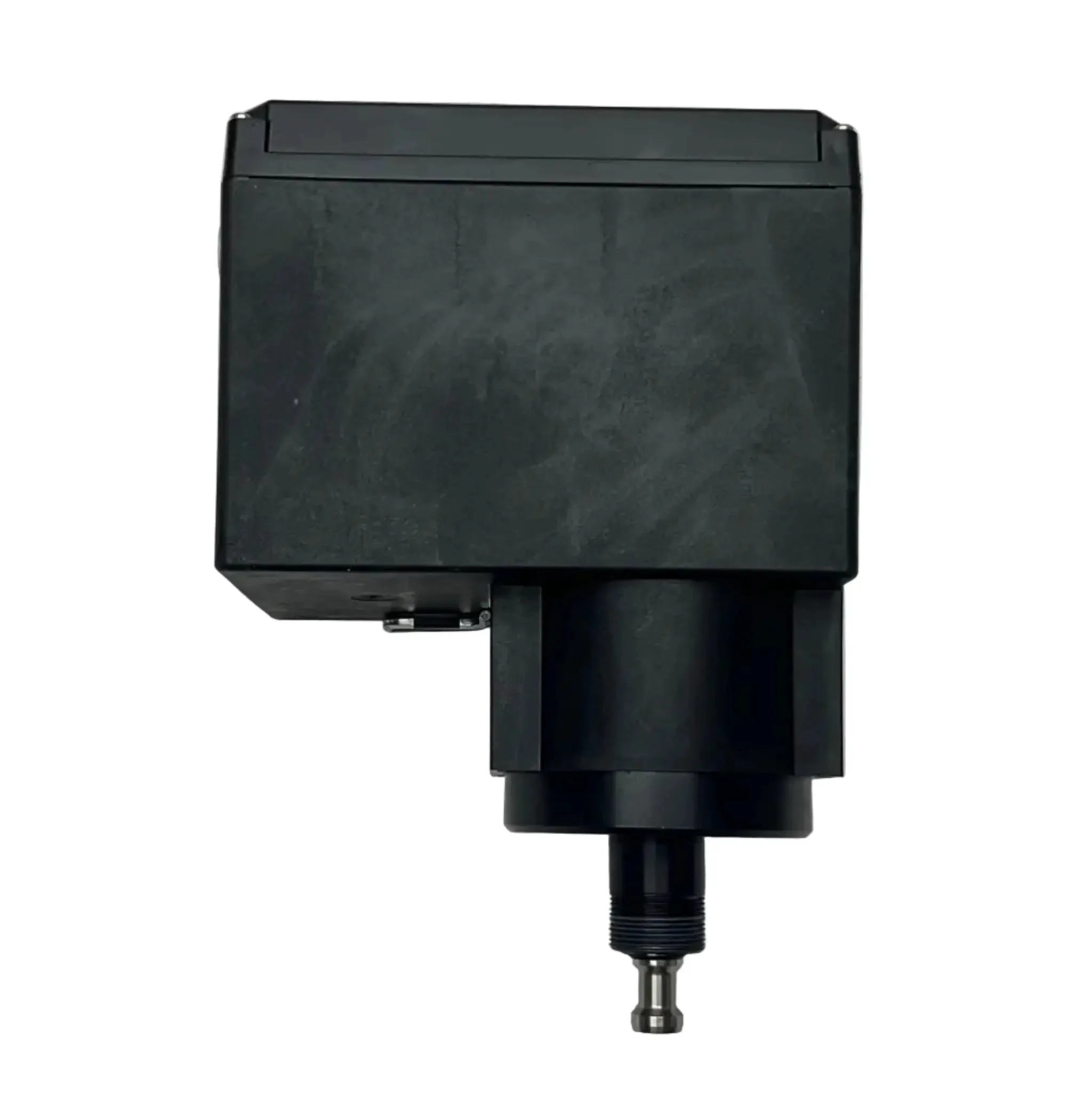

Samson 3374-15 Electric Actuator
- Brand: Samson
- Model: 3374-15
- Part Number: 3374-14000665
- Type: Electric Actuator
- All tech specs
- Function: Electric linear actuator for positioning control valves in heating, ventilation, and industrial processes
- Actuator Force: 2.5 kN
- Stroke: 30 mm
- Actuating Speed: 0.25/0.5 mm/s
- Supply Voltage: 24 V AC, 50/60 Hz
- Power Consumption: 8...20 VA
- Digital Positioner: 0(4)….20mA
- Manual Override: Yes
- Fail-Safe Action: Stem extends or retracts
- Spring Return Time: < 15 s
- Operating Temperature: -5 °C to +60 °C
- Protection Rating: IP54
- Housing Material: Plastic
- Ring Nut: No
- Electrical Connection: M20 × 1.5 cable gland
- Certifications: CE compliant
- Features: Compact design, easy manual adjustment, long service life (>100,000 cycles)
Dimensions: 200 x 120 x 300 mm
Weight: 3.5 kg
Country of origin: Germany
HS code: 850110
