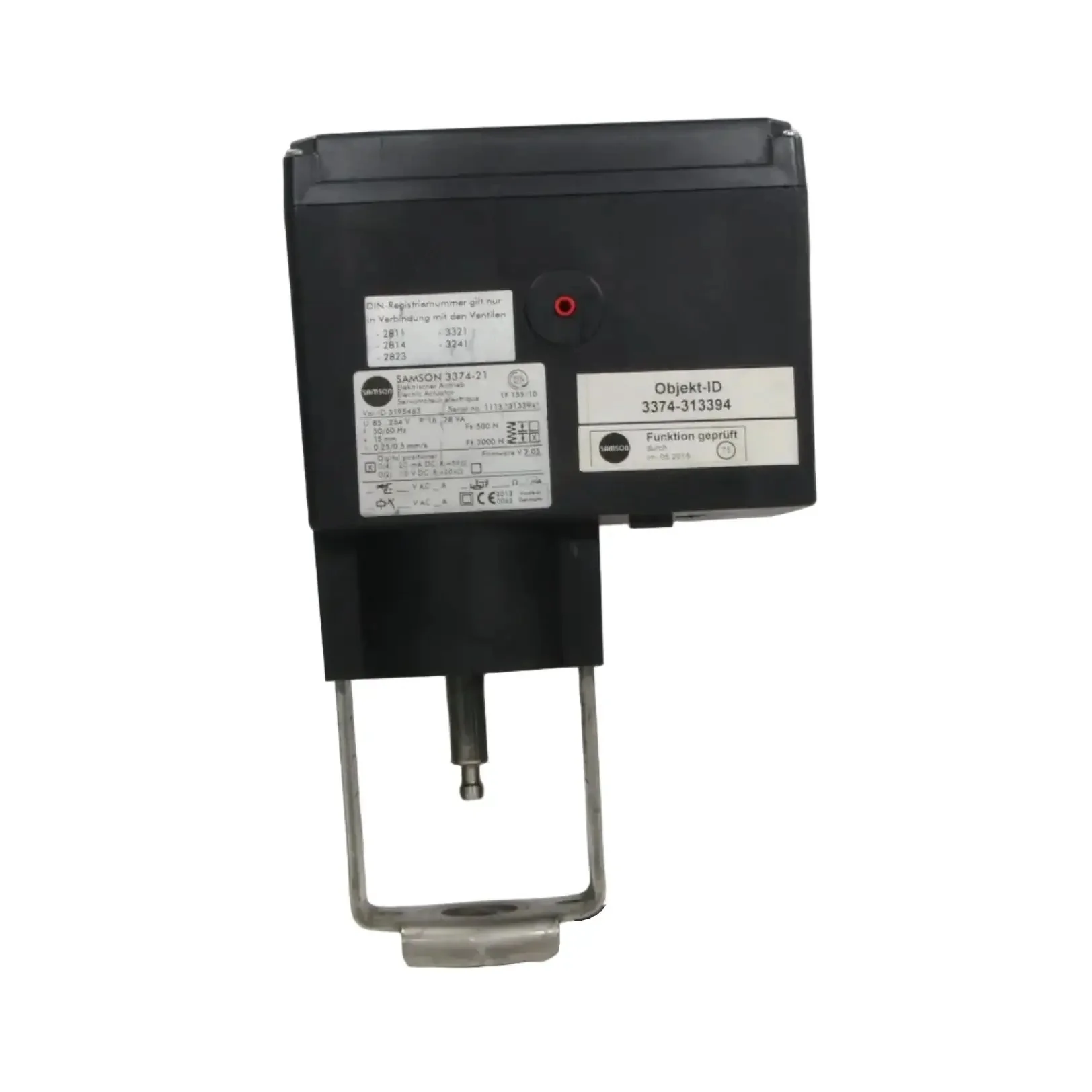

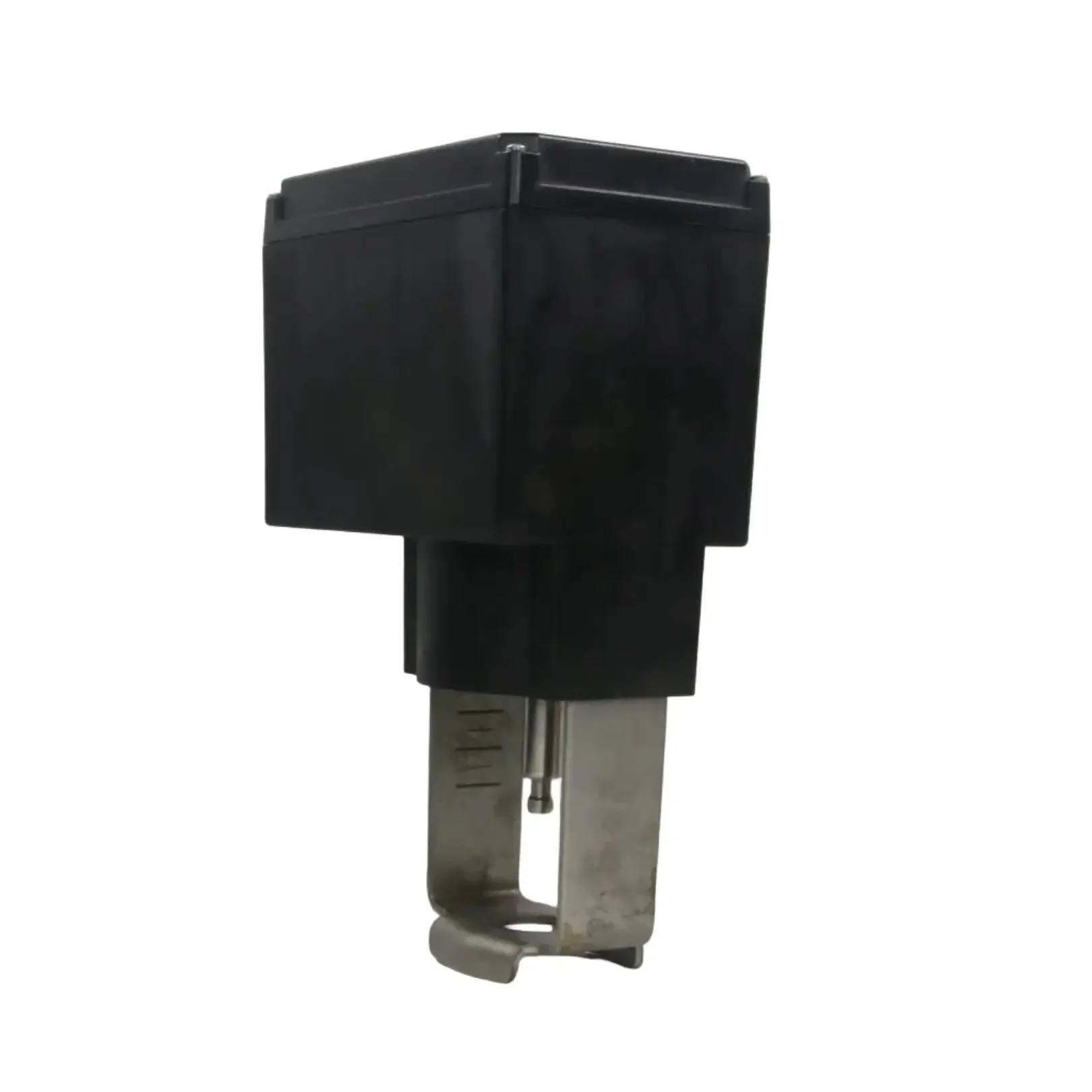

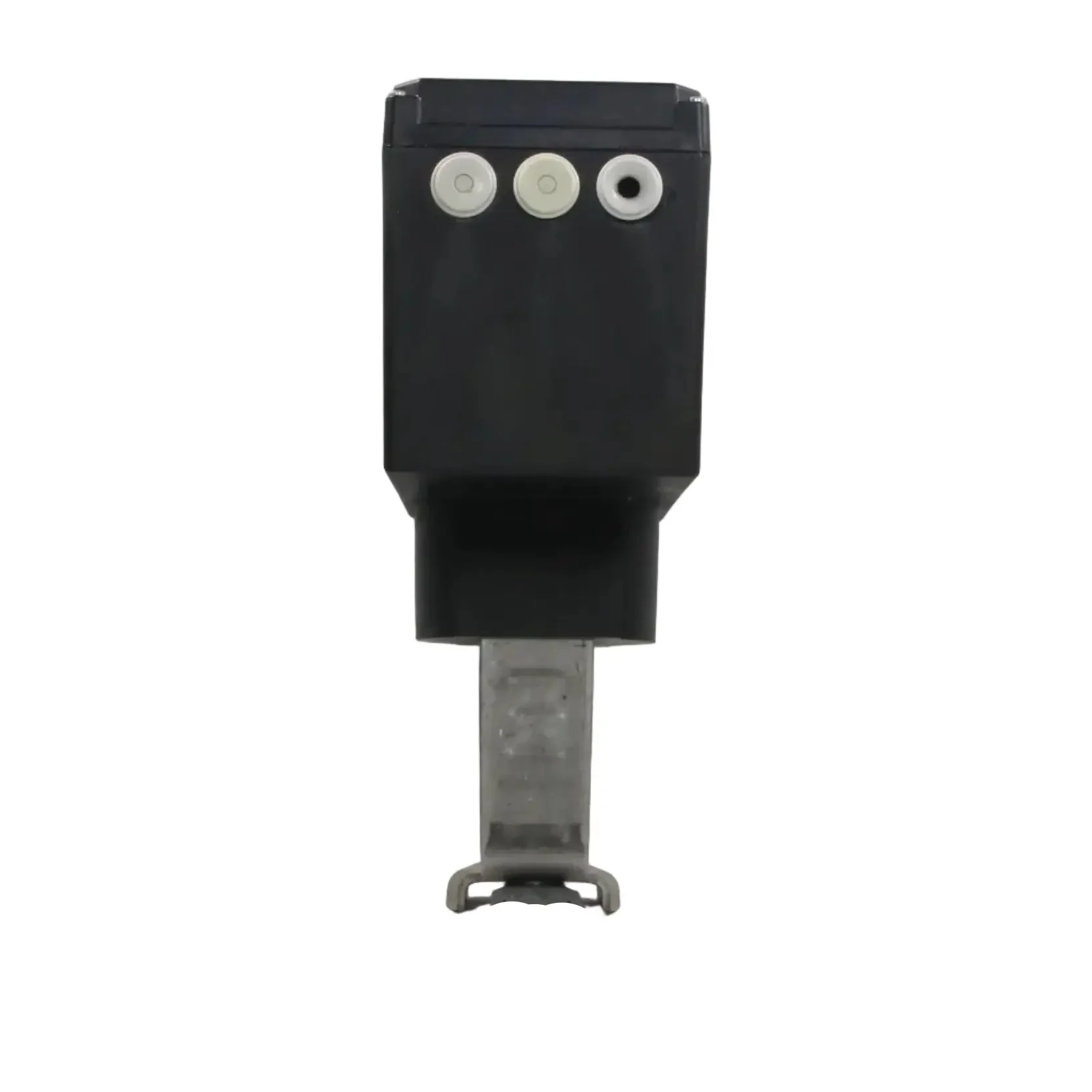

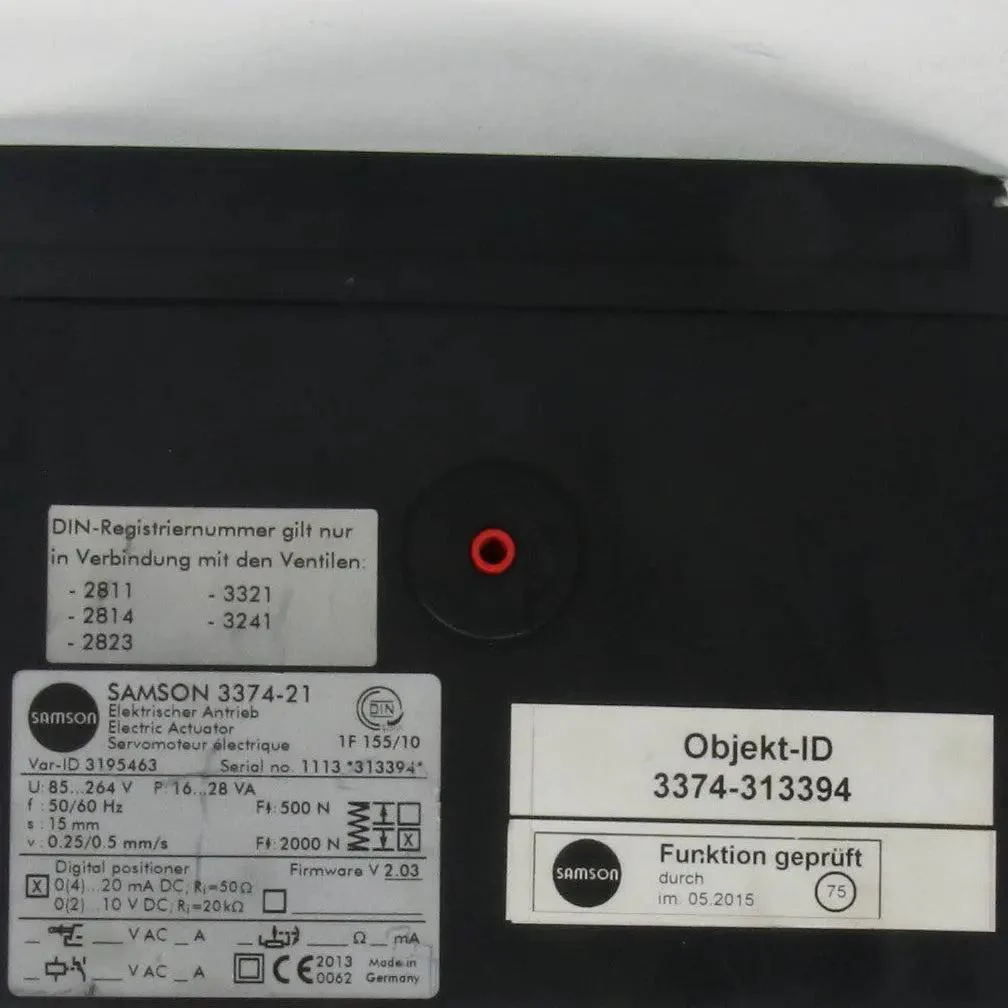

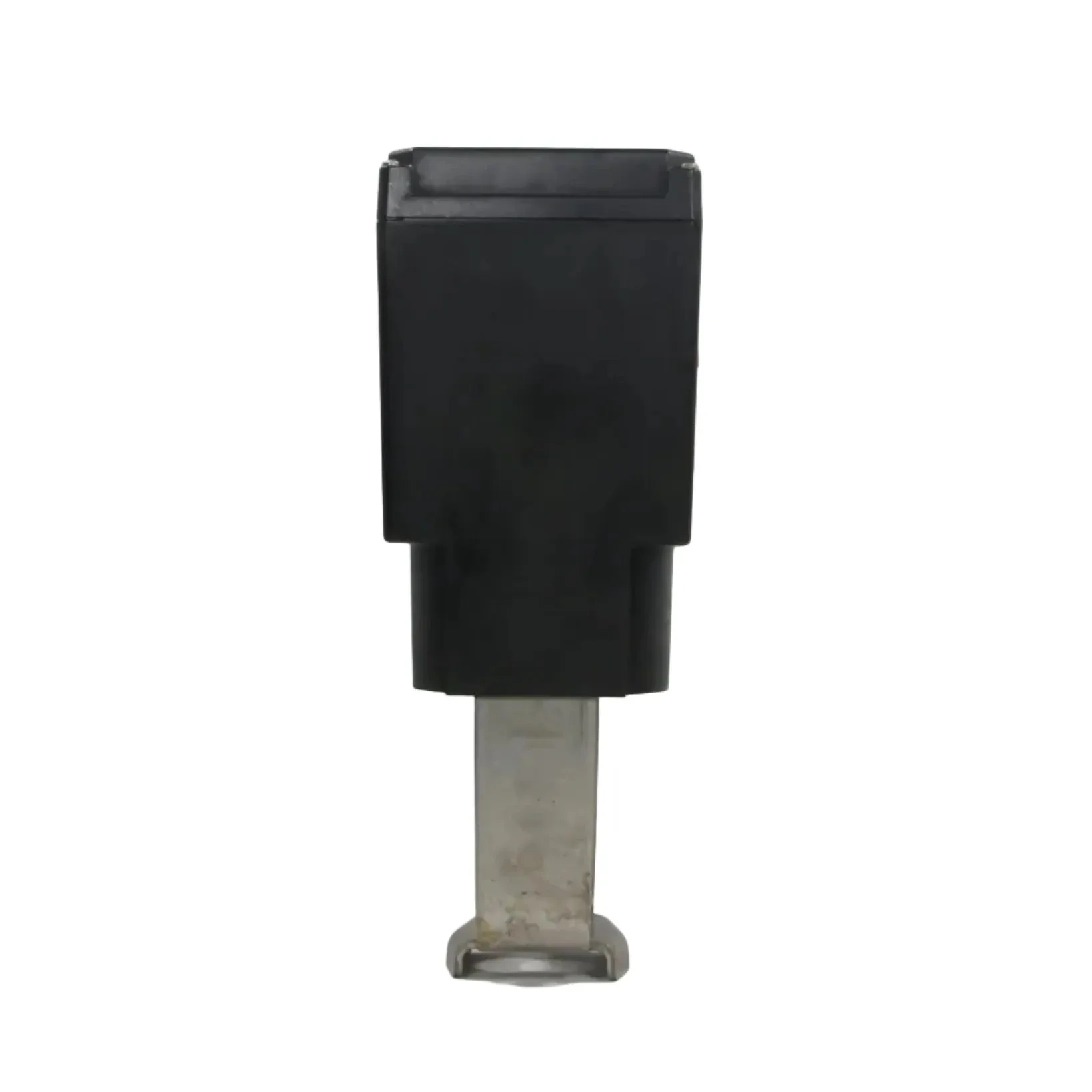

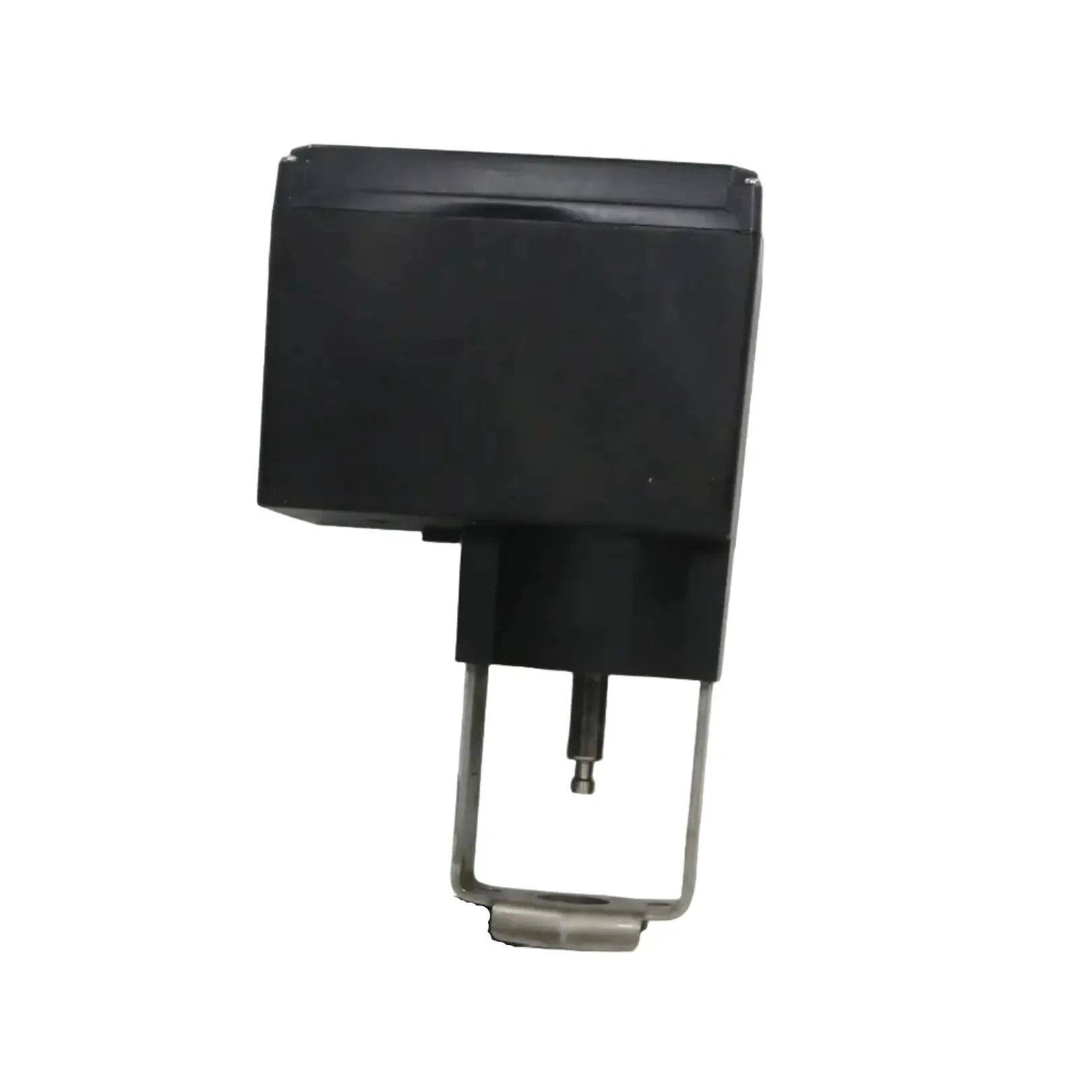

Samson 3374-21 Electric Actuator

- Brand: Samson
- Model: 3374-21

- Part Number: 3374-313394
- Type: Electric Actuator
- All tech specs
  - Function: Electric linear actuator for positioning control valves in heating, ventilation, and industrial processes
  - Actuator Force: 2 kN
  - Stroke: 15 mm
  - Actuating Speed:0.25/0.5 mm/s
  - Supply Voltage: 230 V AC, 50/60 Hz (±10 %)
  - Power Consumption: 16...28 VA
  - Feedback Signal: 0/4–20 mA
  - Manual Override: Yes
  - Fail-Safe Action: Stem extends
  - Spring Return Time: < 15 s
  - Operating Temperature: -5 °C to +60 °C
  - Protection Rating: IP54
  - Housing Material: Plastic
  - Mounting: Direct yoke mounting on SAMSON control valves (2811, 2814, 2823, 3321, 3241)
  - Electrical Connection: M20 × 1.5 cable gland
  - Certifications: CE compliant
  - Features: Overload protection, compact design, easy manual adjustment, long service life (>100,000 cycles)
- Dimensions: 200 x 120 x 320 mm
- Weight: 4.0 kg
- Country of origin: Germany
- HS code: 850110
