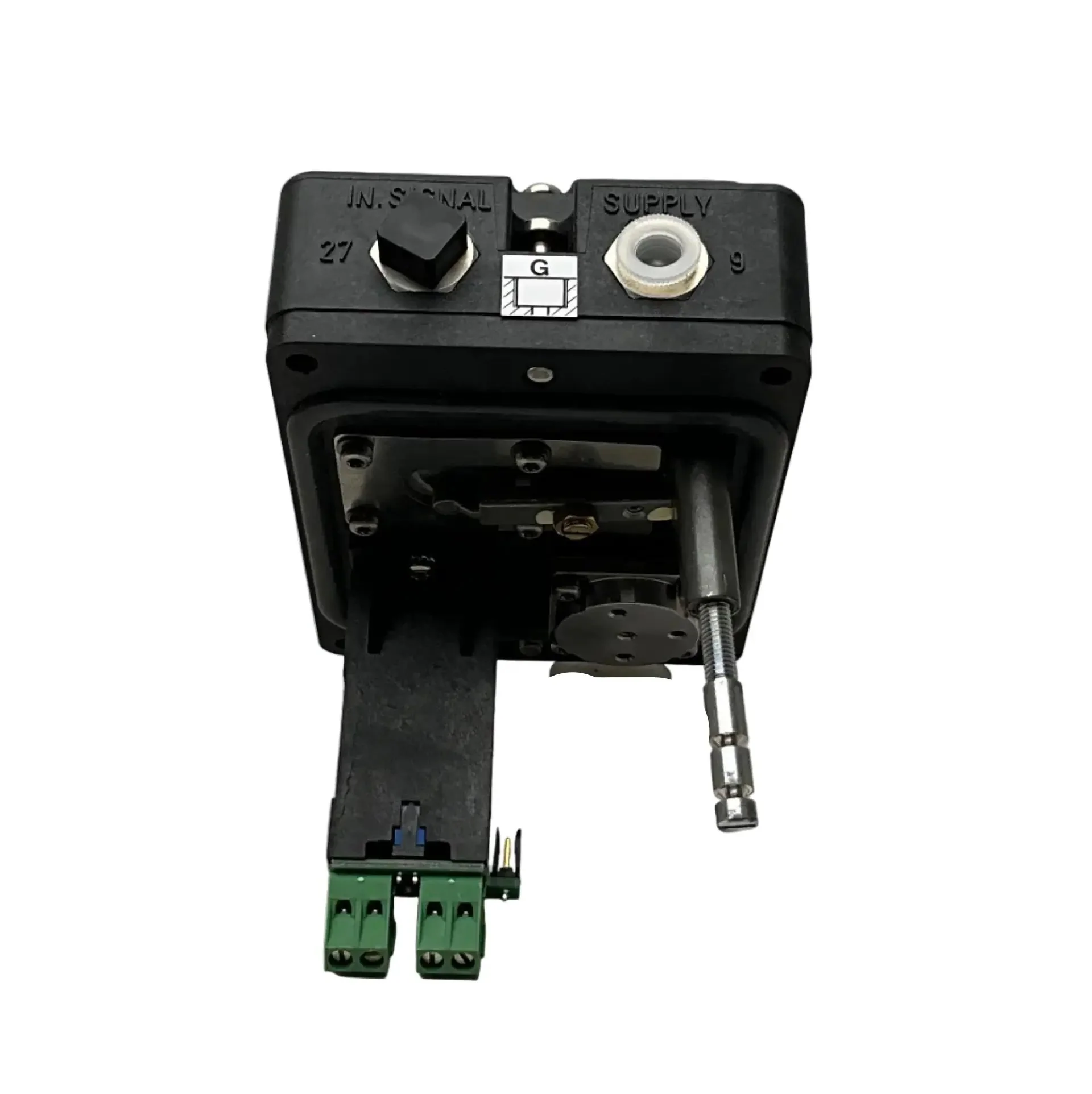

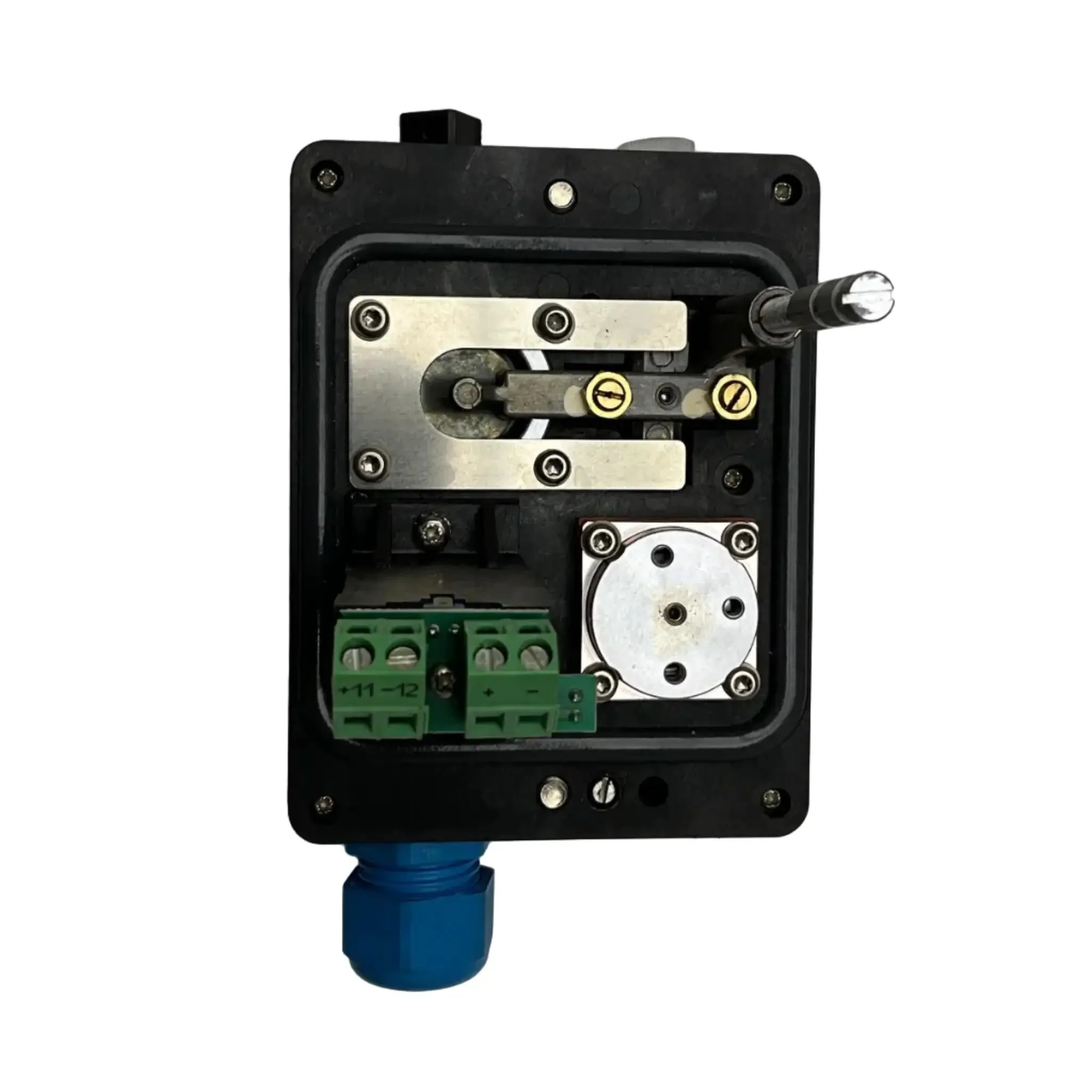

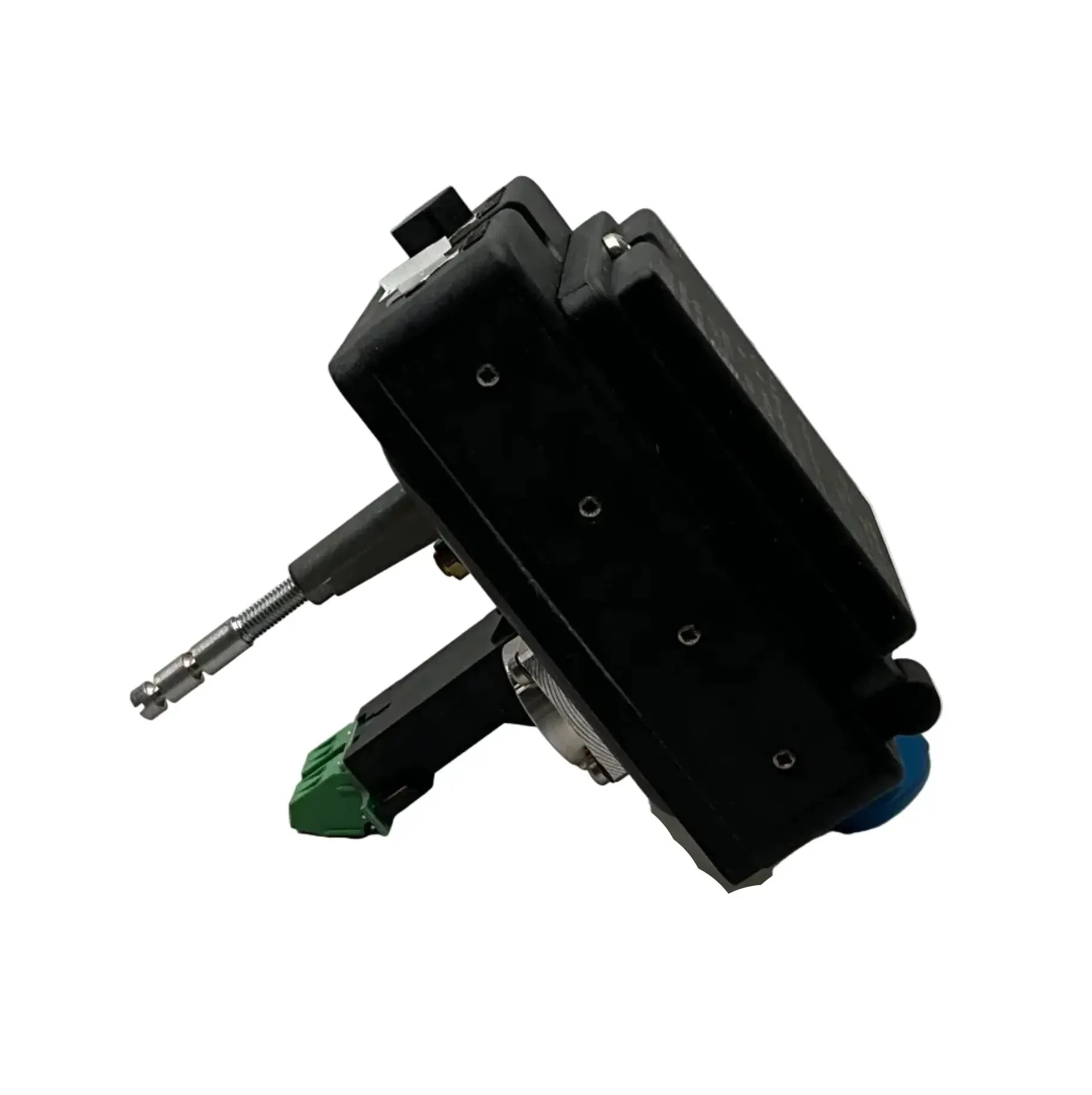

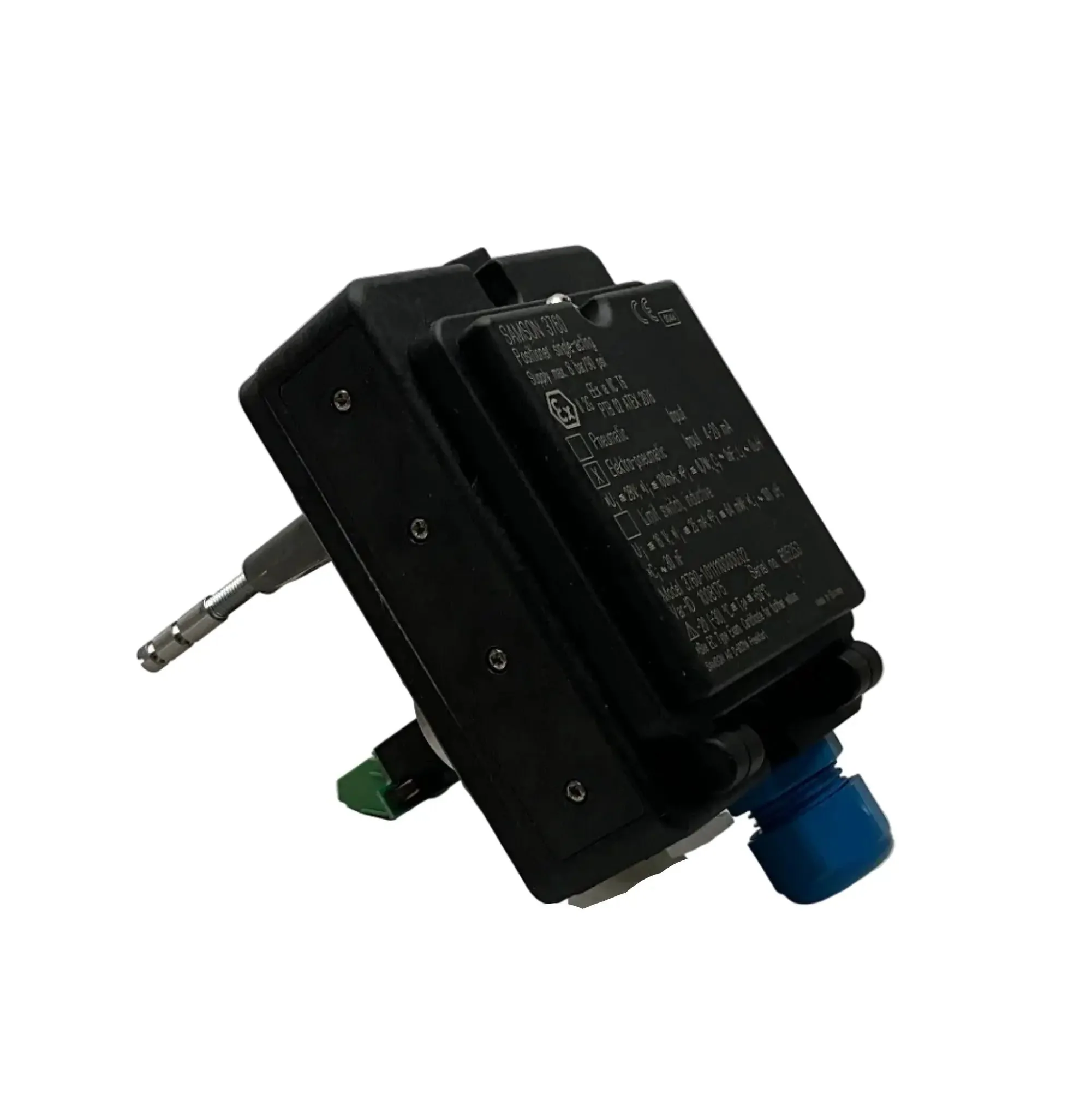

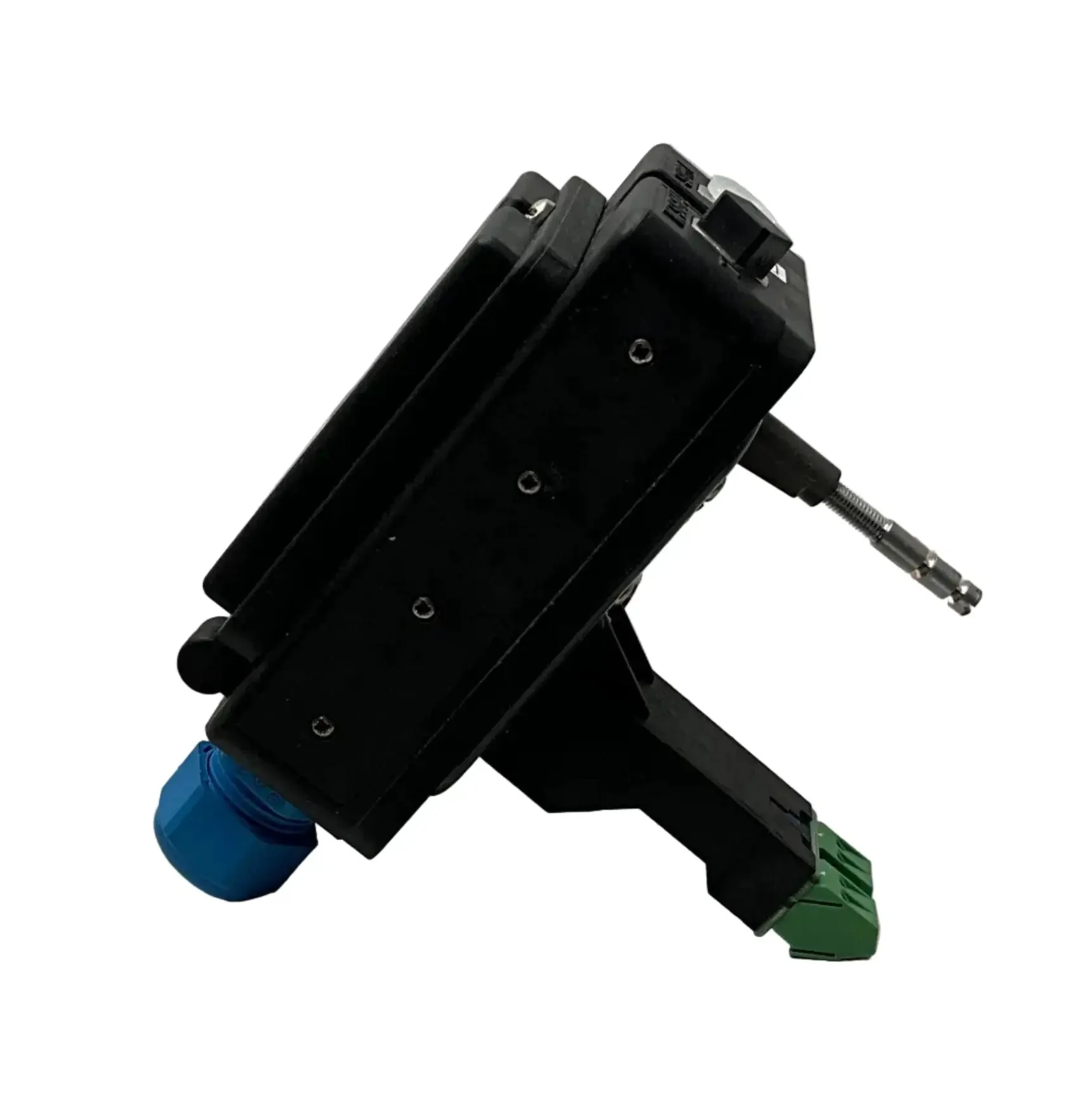

Samson 3760 Single Acting Positioner
- Brand: Samson
- Model: 3760
- Type: Single-Acting Pneumatic Positioner
- Part Number: 3760-10111100000.02 (Var ID.: 626729)
- Technical Specs:
- Function: Elektro pneumatic positioner for single-acting linear or rotary actuators; converts a 4–20 mA control signal into a pneumatic output signal to position the valve precisely
- Input Signal: 4–20 mA
- Output Signal: 0.2–1 bar (3–15 psi)
- Characteristic: Linear (standard), equal percentage, or quick-opening (cam plate selectable)
- Air Supply: 1.4–6 bar, filtered instrument air (class 3 ISO 8573-1)
- Air Consumption: < 0.3 Nm³/h at 1.4 bar supply in steady state
- Hysteresis: ≤ 0.5 %
- Linearity: ≤ 0.5 %
- Repeatability: ≤ 0.3 %
- Dead Band: ≤ 0.1 %
- Sensitivity: ≤ 0.1 %
- Ambient Temperature: –40 °C to +80 °C
- Mounting: NAMUR
- Enclosure Rating: IP66 / NEMA 4X

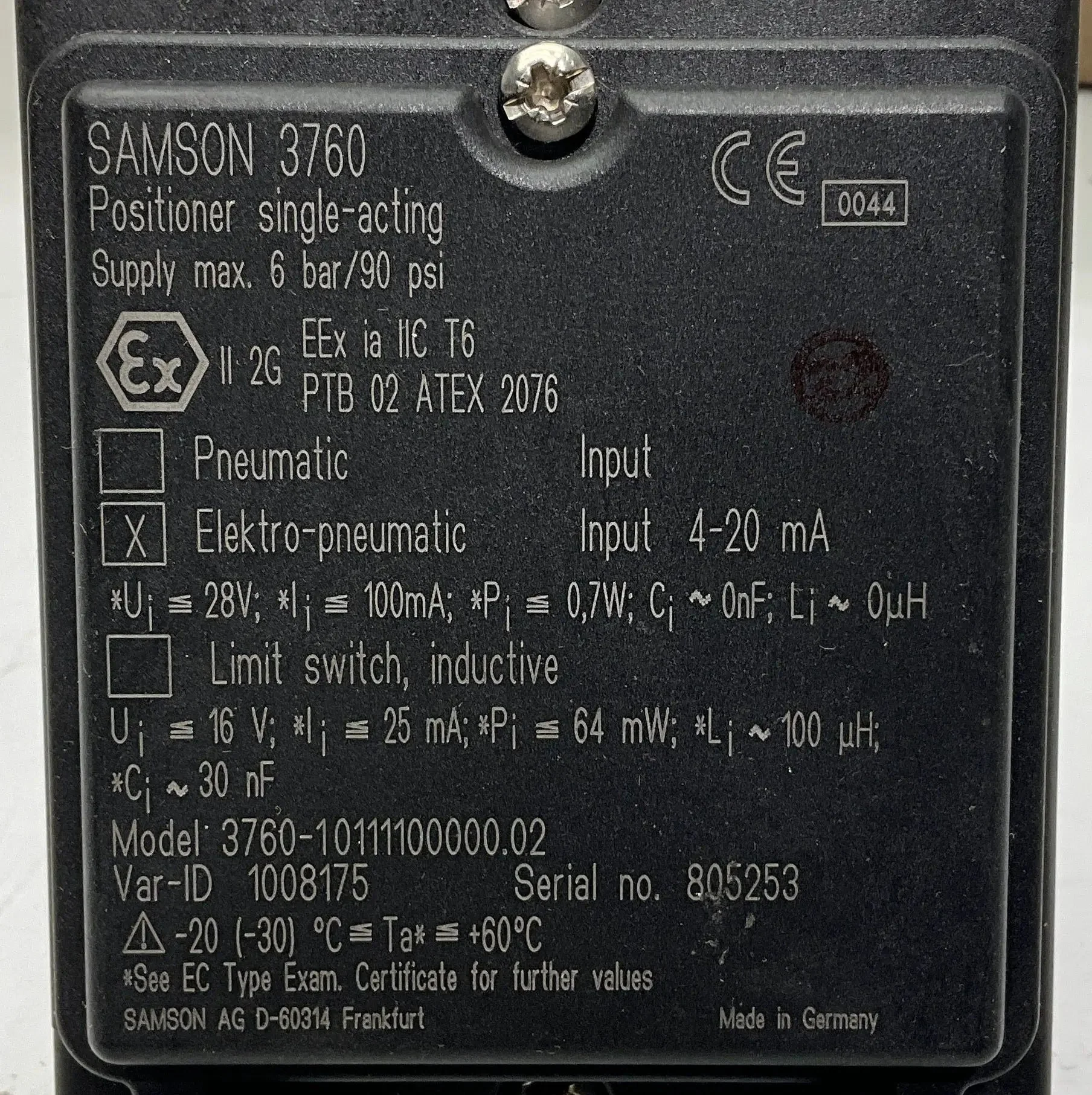

- Explosion Protection: Ex II 2G, EEx ia IIC T6, PTB 02 ATEX 2076
- Pneumatic Connections: G 1/8
- Electrical Connection: M20 × 1.5
- Material: Aluminum housing
- Additional Features:
- Adjustable zero and span
- Low air consumption
- Simple mounting and calibration
Dimensions: 160 x 90 x 150 mm
Weight: 600 g
Country of Origin: Germany
HS Code: 9032.89
