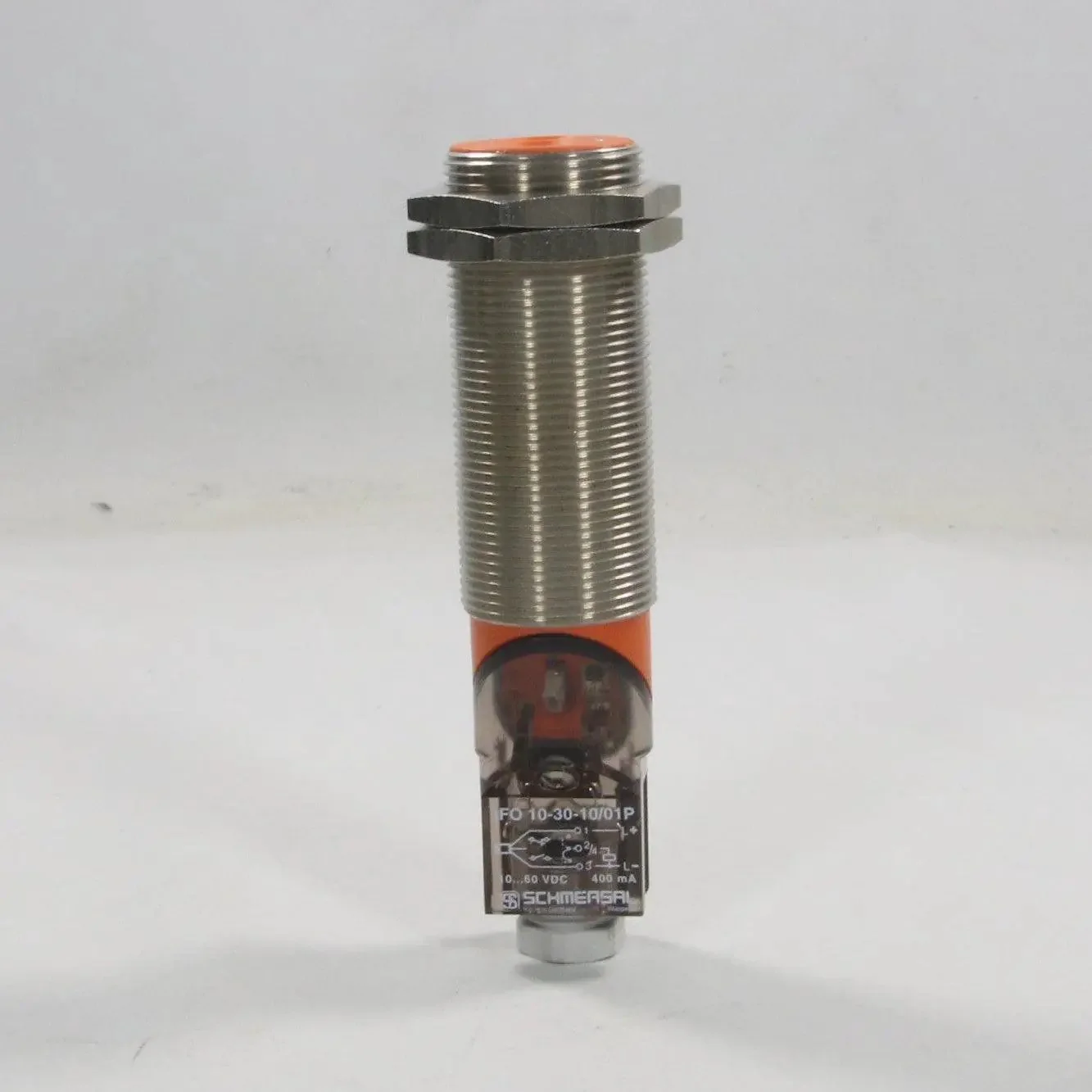

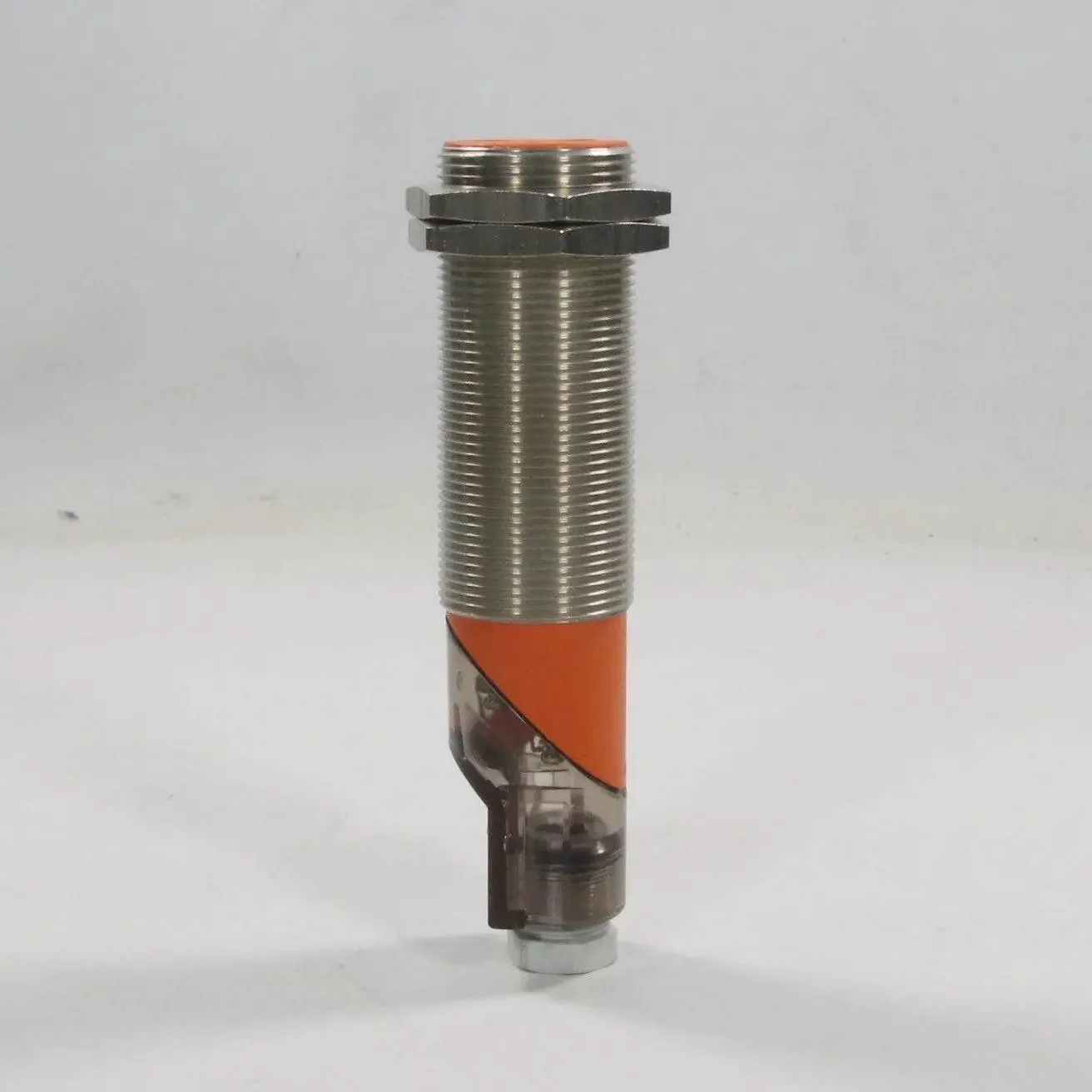

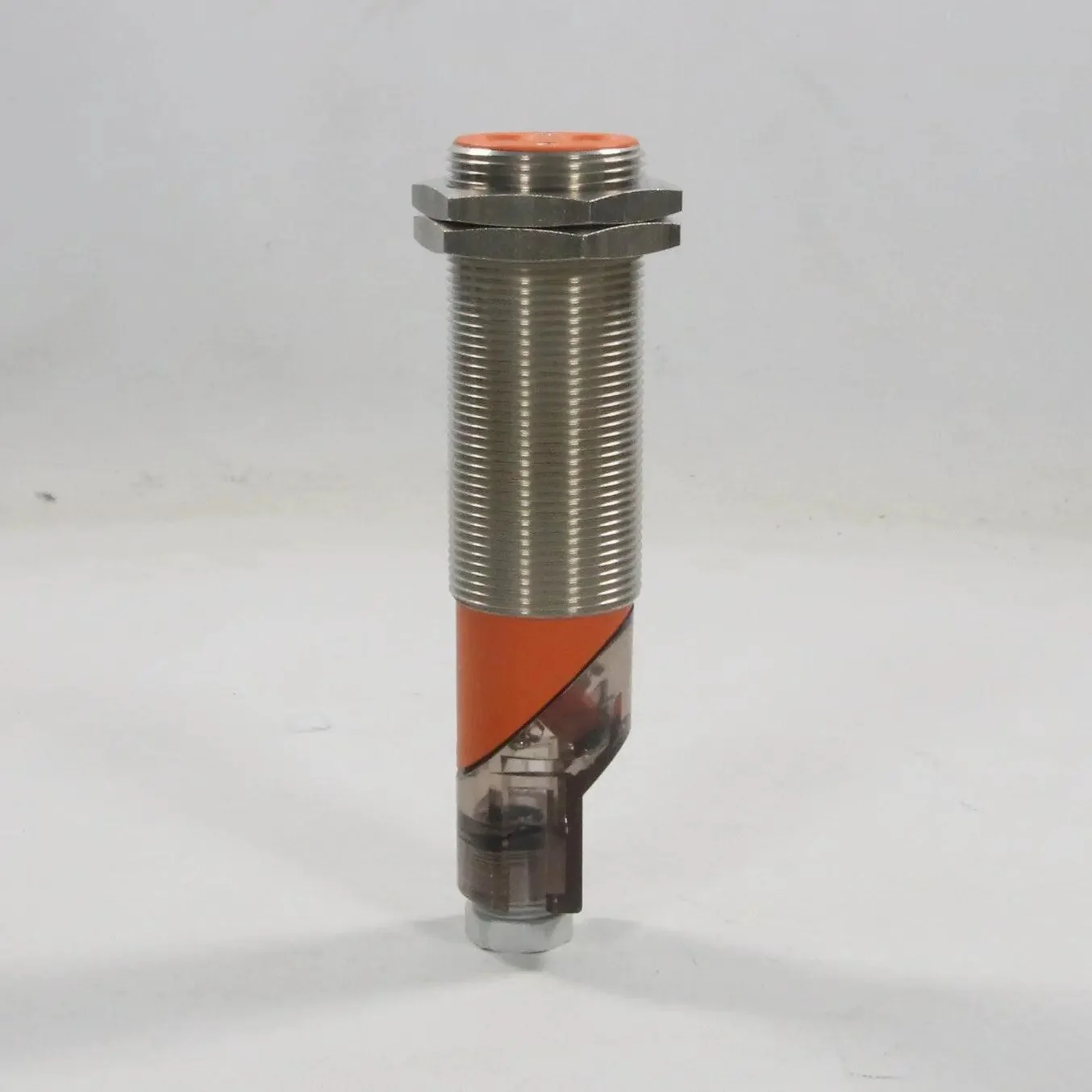

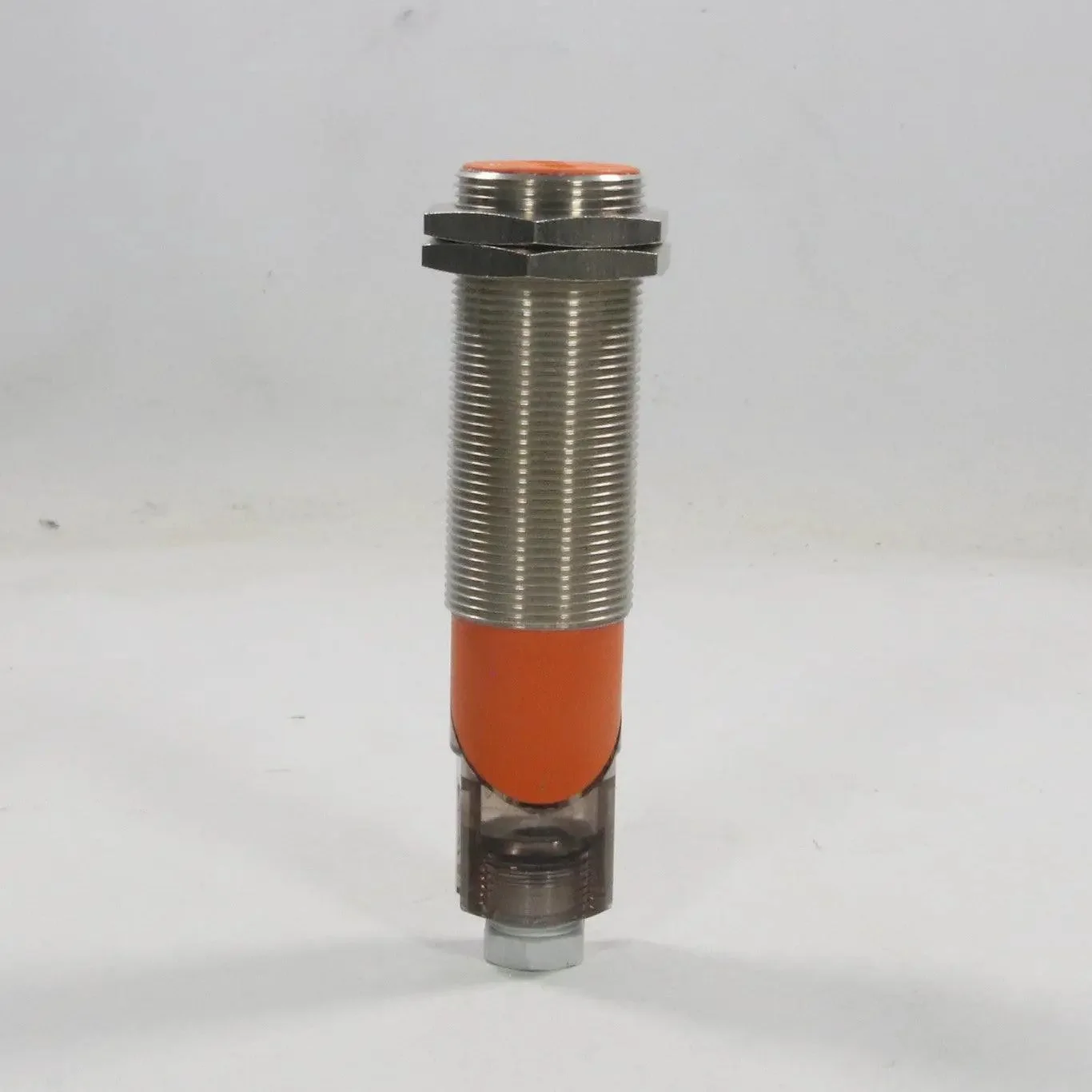

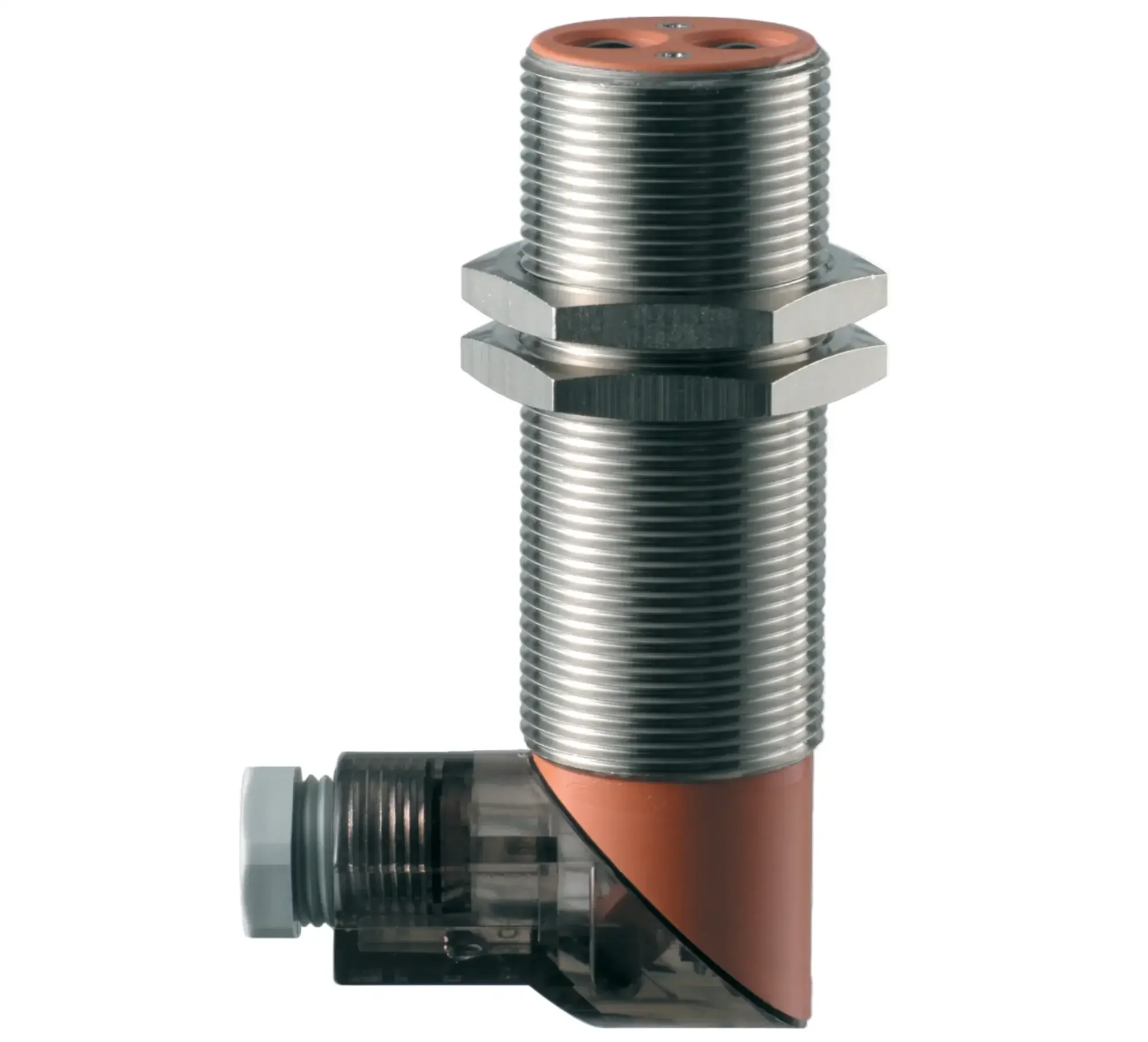

Schmersal IFO 10-30-10/01P Photoelectric Proximity Switch

- Brand: Schmersal

- Model: IFO 10-30-10/01P

- Type: Photoelectric Proximity Switch

- Part number: 101148719

- Technical specifications:
- Sensing principle: Diffuse reflection
- Sensing range: 100–1000 mm
- Light source: Infrared or red light LED
- Output: PNP
- Supply voltage: 10–60 V DC
- No-load supply current I0: 2.4 mA
- Switching current: Max. 400 mA
- Switching frequency: 100 Hz
- Connection: Wiring compartment
- Housing: Cylindrical, M30 threaded (brass, nickel-plated; width across flats 36 mm)
- Length of sensor: 118 mm
- Degree of protection: IP67
- Operating temperature: -25°C to +70°C
- LED indicators: Power and switching status
- Additional features: Robust metal housing; adjustable sensitivity; inductive interference protection; adjustable body, incl. mounting clamp
- Standards: Compliant with IEC/EN 60947-5-2; CE marked

Status: Discontinued

Weight: 150 g

Dimensions: M30 x 130 mm

Country of origin: Germany

HS code: 8536.50
