Schmersal MV10H 330-11Y-M20-1348 Roller Lever Position Switch

- Brand: Schmersal
- Model: MV10H 330-11Y-M20-1348
- Type: Safety Position Switch / Limit Switch (Metal Enclosure, Roller Lever)

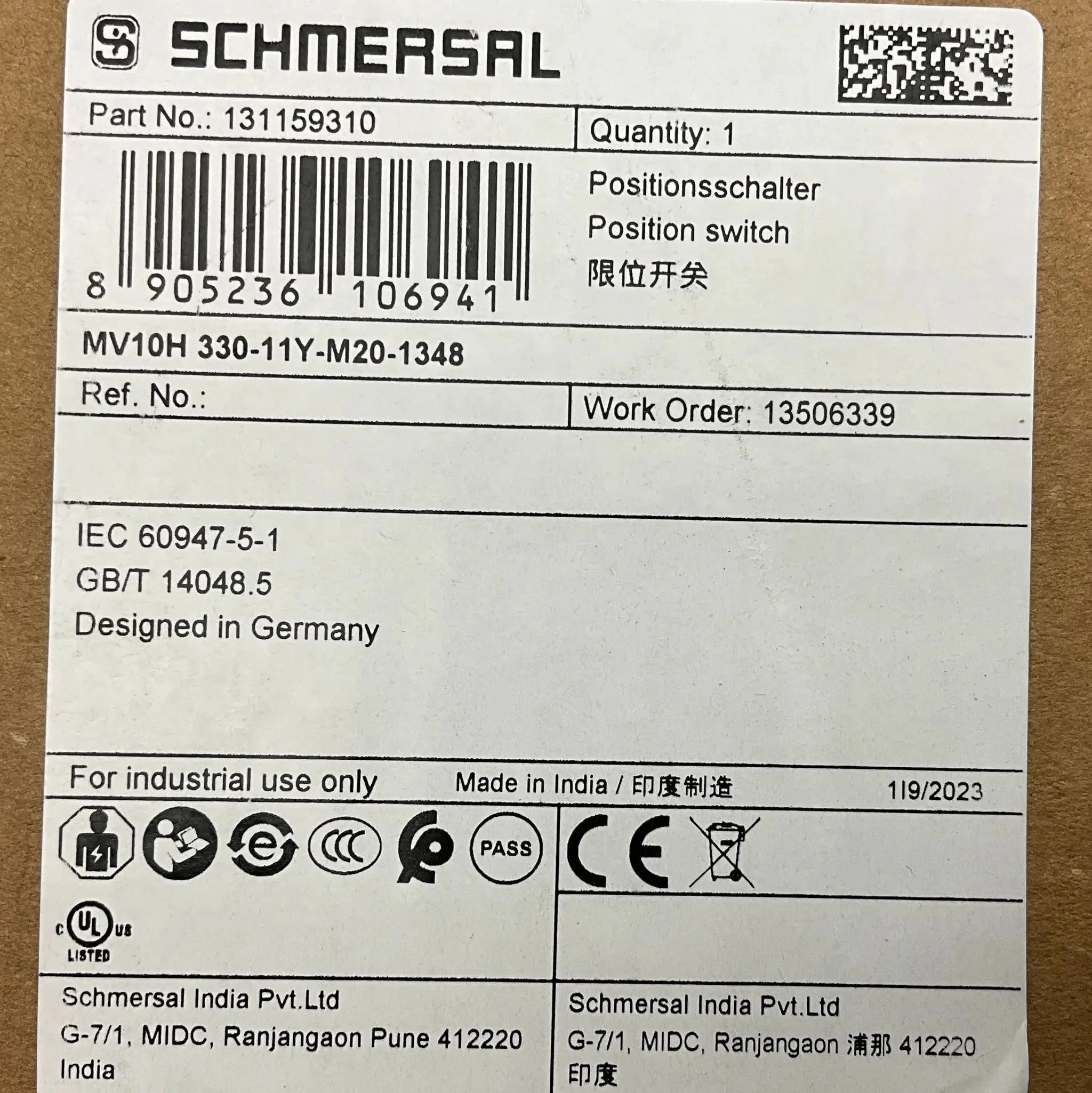

- Part Number: 131159310

- Technical Specs:
- Housing Material: Metal
- Protection Class: IP67
- Actuator Type: Roller lever (adjustable, stainless steel roller Ø 19 mm)
- Contacts: 1 NO + 1 NC
- Switching Capacity: 10 A at 230 V AC (resistive), 3 A at 230 V AC (inductive)
- Mechanical Life: > 30 million operations
- Electrical Life: > 1 million operations at rated load
- Cable Entry: M20 × 1.5 (metal gland)
- Conduit Entry: 1 × M20
- Actuator Adjustment: Adjustable in 10° steps
- Positive Opening: Yes (NC contact opens positively)
- Operating Force: 12 N (actuation), 18 N (positive opening)
- Ambient Temperature: -30 °C to +80 °C
- Vibration Resistance: 10–55 Hz, 0.35 mm amplitude
- Shock Resistance: 30 g / 11 ms
- Additional Features:
  - Robust metal housing for mechanical stress resistance
  - Positive break NC contact for safety applications (EN ISO 13849-1)
  - Adjustable roller lever for precise positioning
  - Easy wiring with large terminal chamber
  - Compatible with safety relays and controllers

Dimensions: 230 x 110 x 80 mm

Weight: 550 g

Country of Origin: India

HS Code: 8536.50
