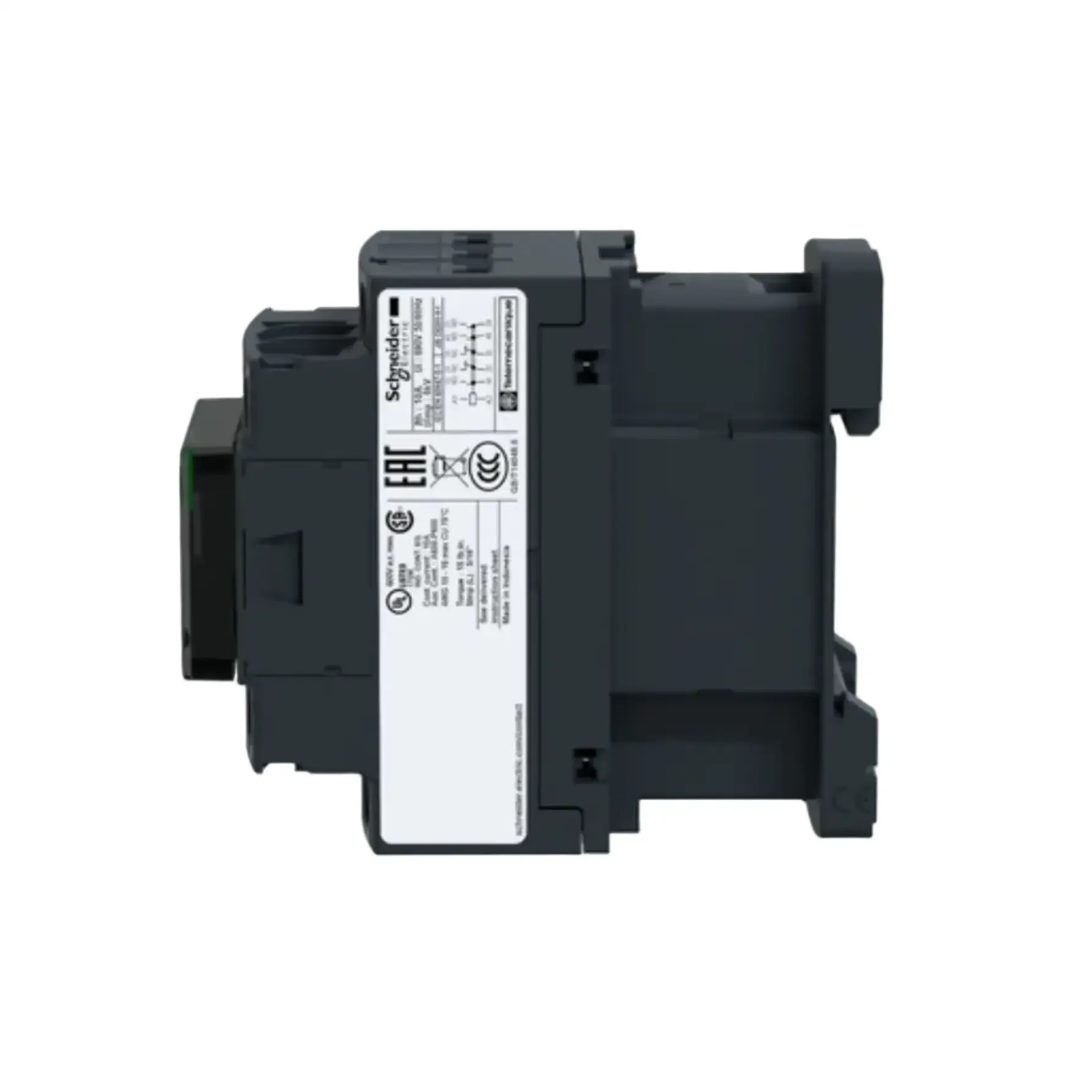

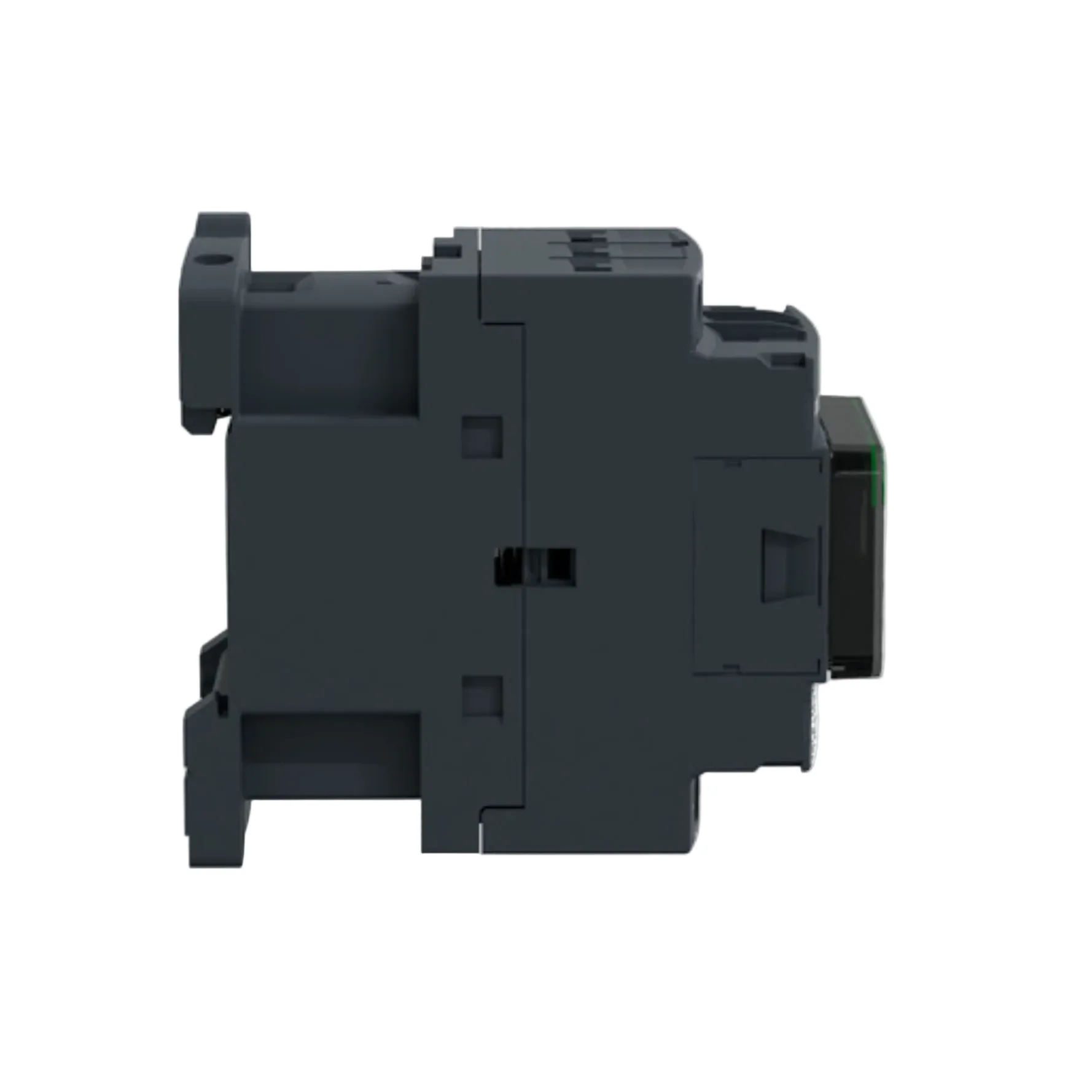

Schneider Electric CAD32P7 Control Relay

- Brand: Schneider Electric

- Model: CAD32P7 (TeSys Control)

- Type: Control Relay / Auxiliary Contactor

- Part number: CAD32P7

- Technical specifications:
- Contact configuration: 3 NO (normally open) + 2 NC (normally closed) – 5 contacts total
- Rated operational current (Ie): 10 A
- Rated operational voltage: ≤690 V AC (main circuit);
- Control circuit voltage: 230 V AC
- Switching voltage: 690 V AC max
- Impulse withstand voltage (Uimp): 6 kV (IEC 60947)
- Rated insulation voltage (Ui): 690 V
- Electrical durability: High
- Mechanical durability: Up to 15 million cycles

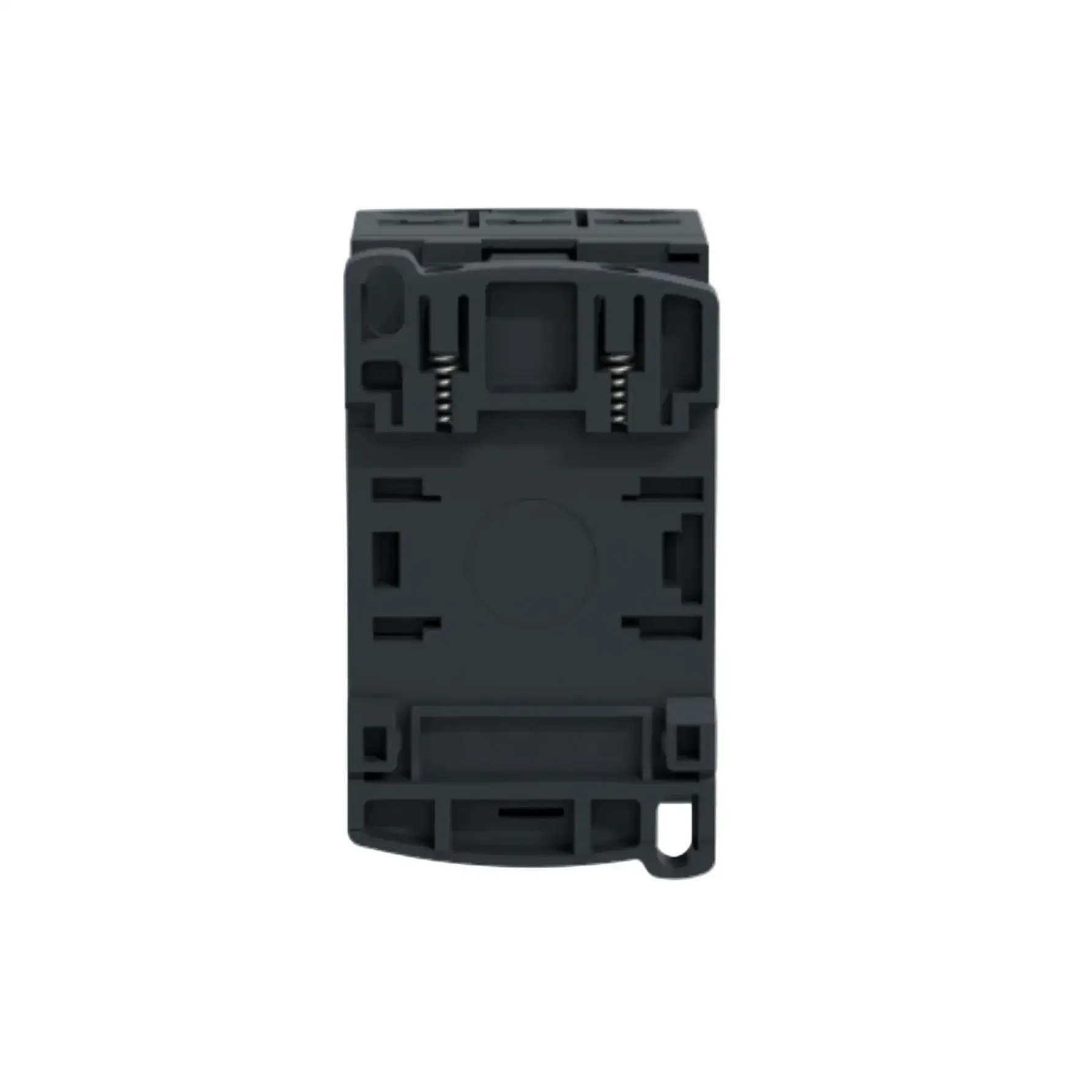

- Mounting: DIN rail
- Connection: Screw clamp terminals
- Additional features: For high operating rates; ambient temperature -40°C to +70°C; integrated surge suppression in coil; suitable for AC/DC control of electromagnetic loads; part of TeSys Deca modular system
- Standards: IEC 60947-5-1 compliant; CE, UL, CSA, CCC approvals

Weight: 400 g

Dimensions: 80 x 45 x 85 mm

Country of origin: France

HS code: 8536.49
