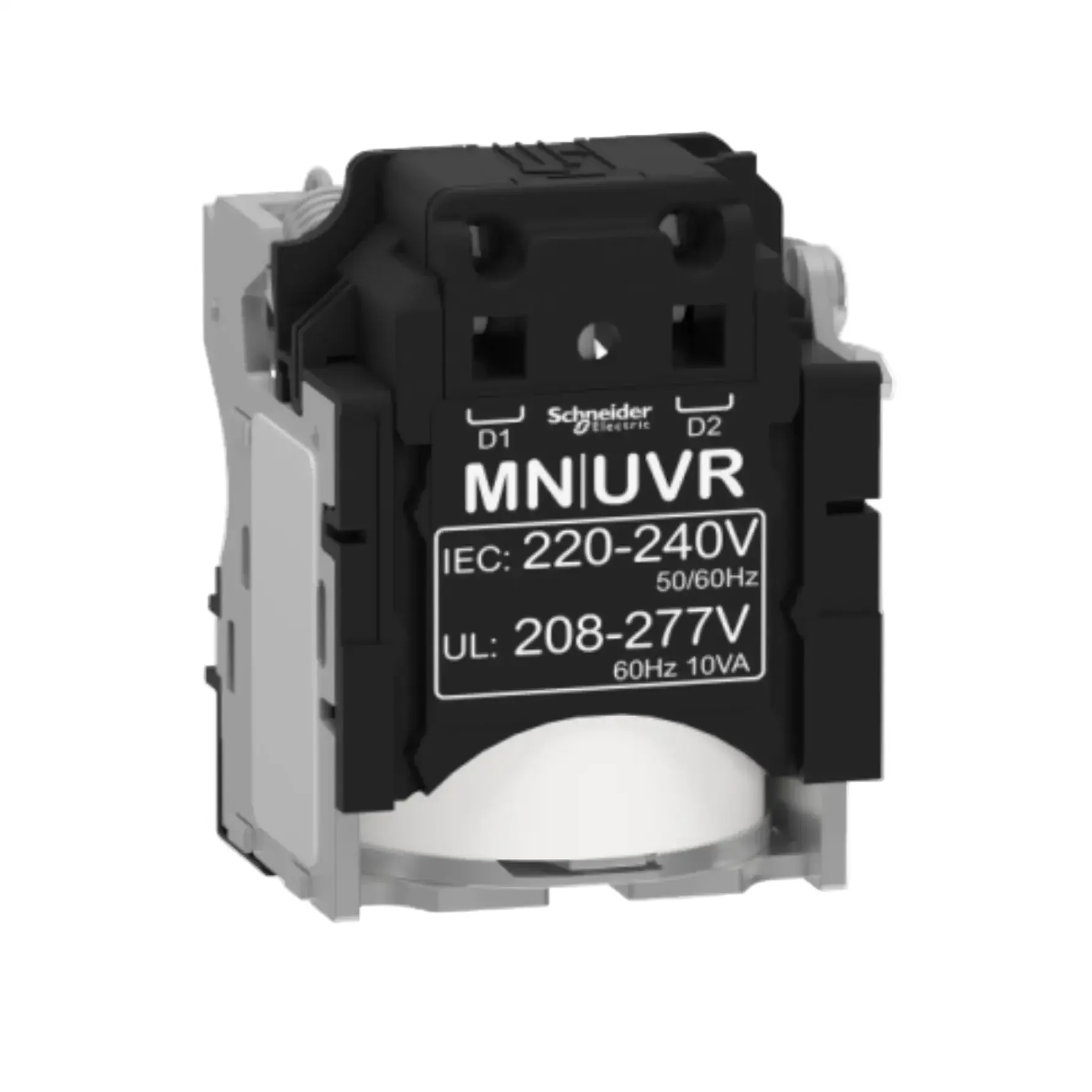

Schneider Electric LV429407 Undervoltage Release

- Brand: Schneider Electric

- Model: LV429407 (for ComPacT NSX series)

- Type: Undervoltage Release / MN Undervoltage Trip Unit

- Part number: LV429407

- Technical specifications:
- Voltage rating: 220–240 V AC 50/60 Hz or 208–277 V AC 60 Hz
- Function: MN undervoltage release
- Connection: Screwless spring terminals
- Compatibility: ComPacT NSX (NSX100/160/250/400/630), Compact NSX, PowerPact Multistandard, EasyPact CVS circuit breakers; also NSX DC variants in some references
- Mounting: Internal auxiliary slot in the breaker
- Additional features: Used for emergency stop, automatic disconnection on undervoltage, or remote control applications; fast response; no power consumption in normal operation; compliant with IEC/EN 60947 standards
- Standards: IEC 60947 compliant

Weight: 130 g

Dimensions: 60 x 50 x 50 mm

Country of origin: Poland

HS code: 8536.30
