Schneider Electric LV432492 3~Phase Terminal Spreaders & Barriers

- Brand: Schneider Electric

- Model: LV432492

- Type: 3-Phase Terminal Spreaders & Barriers

- Part number: LV432492

- Technical specifications:
- Compatibility: ComPacT NSX 400/630, Compact NSX 400/630, EasyPact CVS 400/630 (frames 400–630 A)
- Poles: 3P
- Connection pitch: Increases from 45 mm to 70 mm
- Rated current: Up to 630 A
- Connection type: Flat / straight mounting; screwed to circuit-breaker terminals

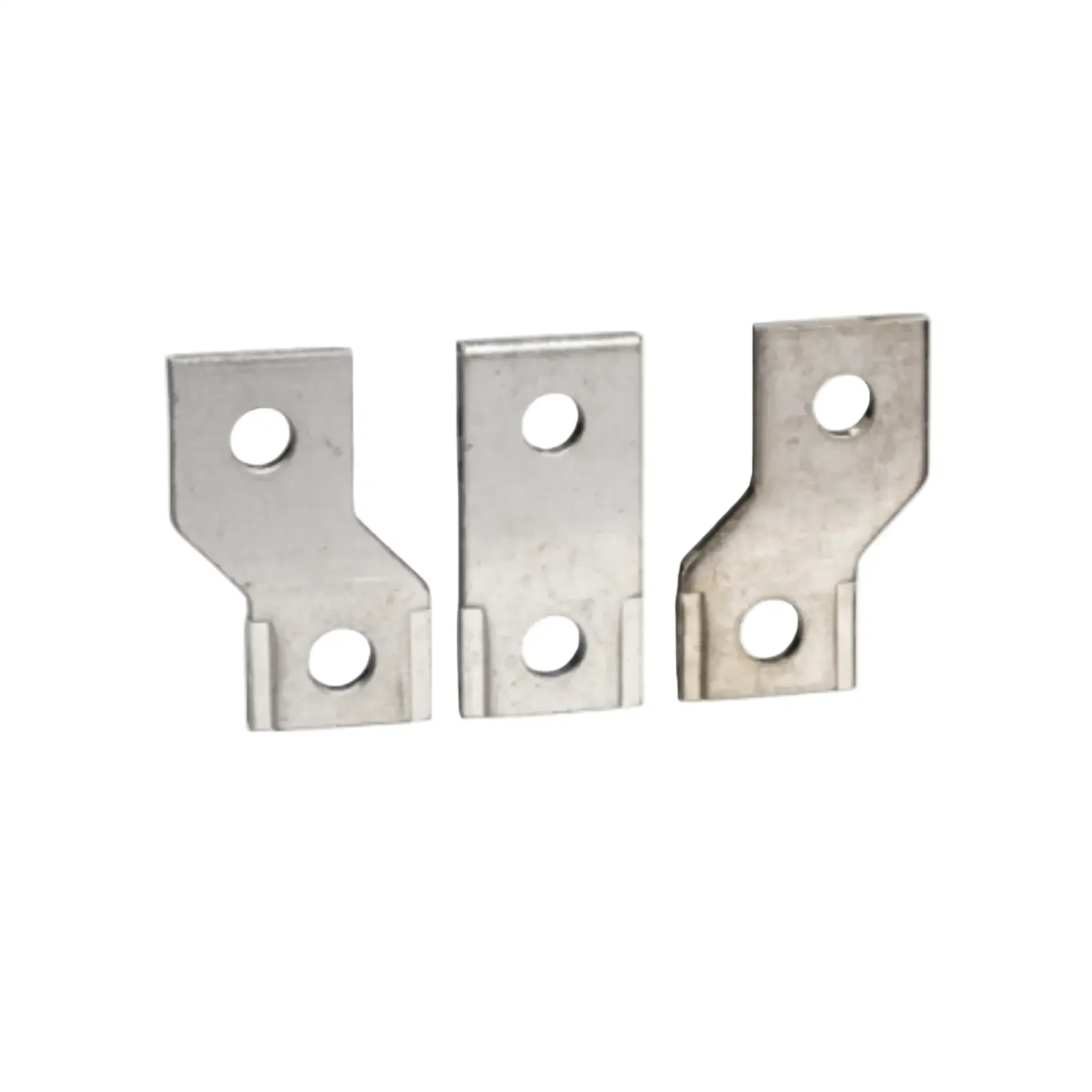

- Features: Set of 3 spreader parts supplied with flexible interphase barriers for insulation reinforcement
- Installation: Screwed directly to breaker terminals; straight mounting position
- Purpose: Facilitates wiring in panels requiring greater terminal spacing; provides insulation via included barriers; passive accessory
- Standards: Compliant with IEC/EN 60947 series

Weight: 1.1 kg

Dimensions: 330 x 220 x 100 mm

Country of origin: France

HS code: 8536.90
