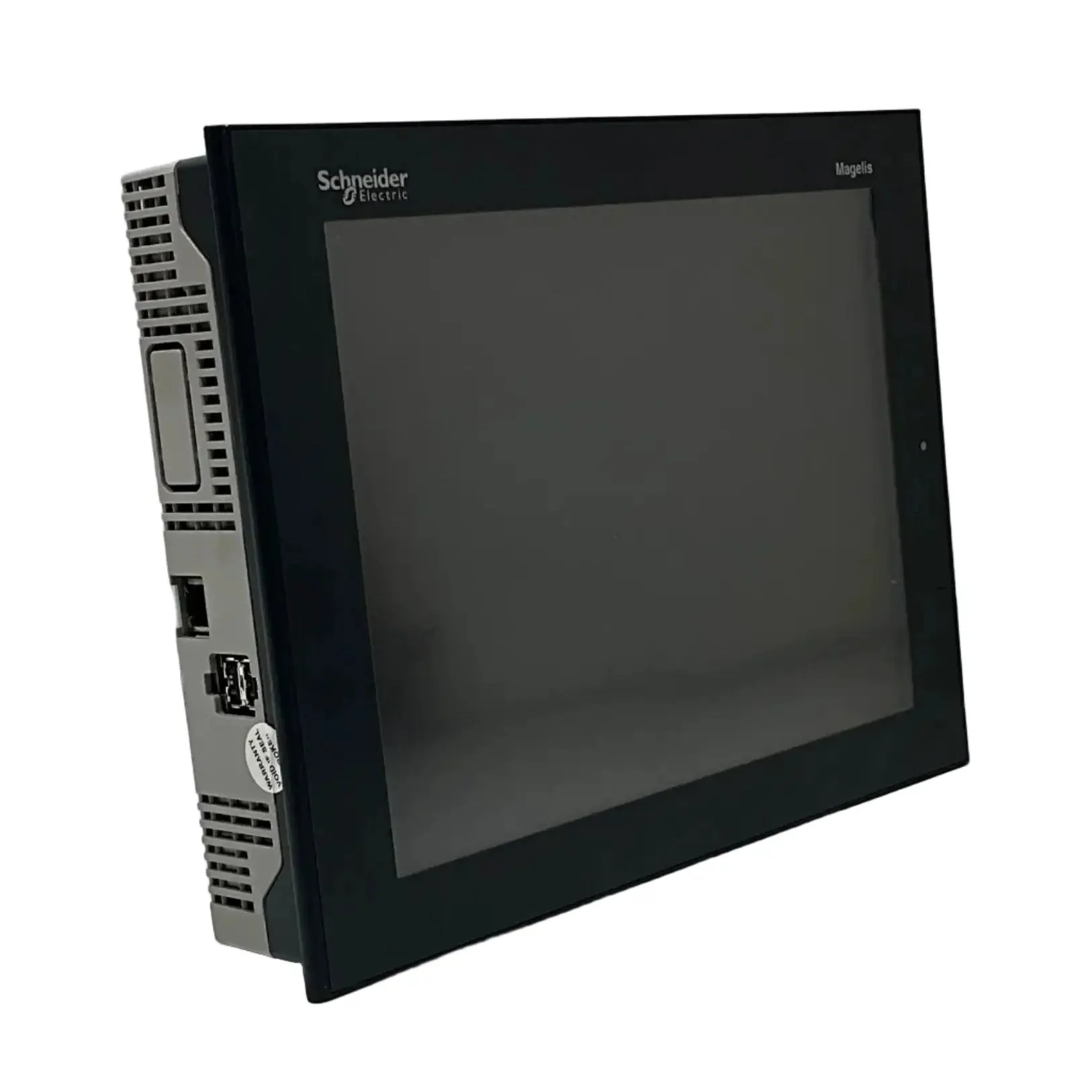

Schneider Electric Magelis XBTGT6330 Touch Panel

- Brand: Schneider Electric

- Model: Magelis XBTGT6330

- Type: Touch Panel / HMI Operator Panel

- Part number: XBTGT6330

Technical specifications:
- Display: 12.1" TFT LCD
- Touch screen: Analog
- Processor: RISC CPU (32-bit) 266 MHz
- Data storage: > 512MB CF (not included)
- Configuration software: Vijeo Designer
- Interfaces:
  - 1 x Ethernet (RJ45; 10/100 Mbps; Modbus TCP, Ethernet/IP, PROFINET)

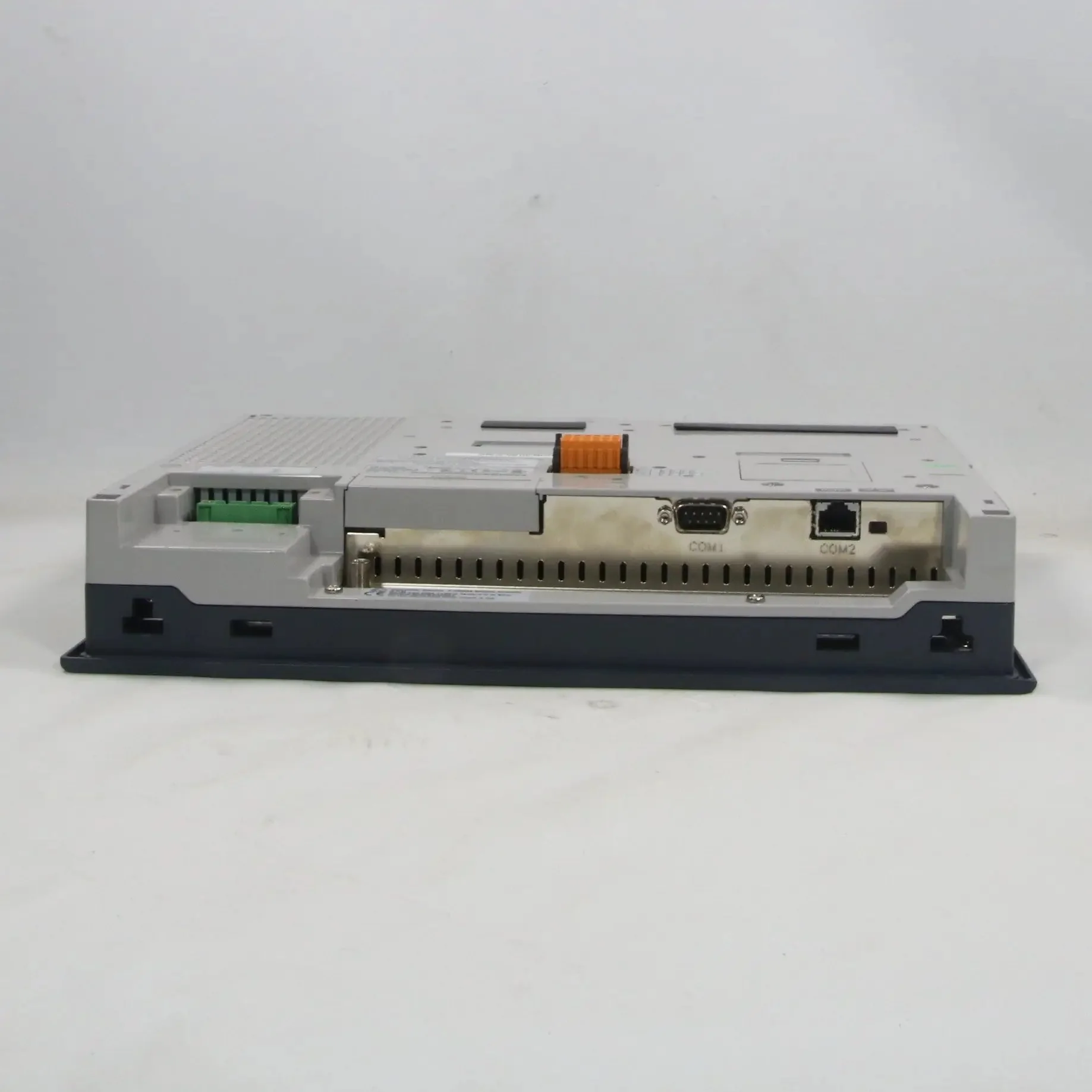

  - 1 x RS232/RS422, 1 x RS485 (serial; COM1, COM2)
  - 1 x USB Host (for USB flash drive, printer, barcode reader)
  - 1 x USB Device (for programming/transfer)
- Power supply: 24 V DC (permissible range 19.2–28.8 V DC; consumption ~20–25 W)  - Operating temperature: 0°C to +55°C (vertical installation)
- Protection: IP65 front (with gasket); IP20 rear
- Mounting: Panel mount
- Additional features: No integrated buttons/keys (pure touch); alarm management; recipe handling; trend curves; multilingual support; password protection; high-brightness display (400 cd/m²); legacy model; replaced by Harmony GTU or STU series)
- Standards: IEC/EN compliant for HMI panels; CE, UL, cULus approvals

Status: Discontinued

Weight: 3.0 kg

Dimensions: 315 x 240 x 50 mm

Country of origin: China

HS code: 8537.10
