Schneider Electric XVBC21A Unit Base & Cover

Brand: Schneider Electric
Model: XVBC21A
Type: Base Unit and Cap (Indicating Bank)
Part Number: XVBC21A

Technical Specs:

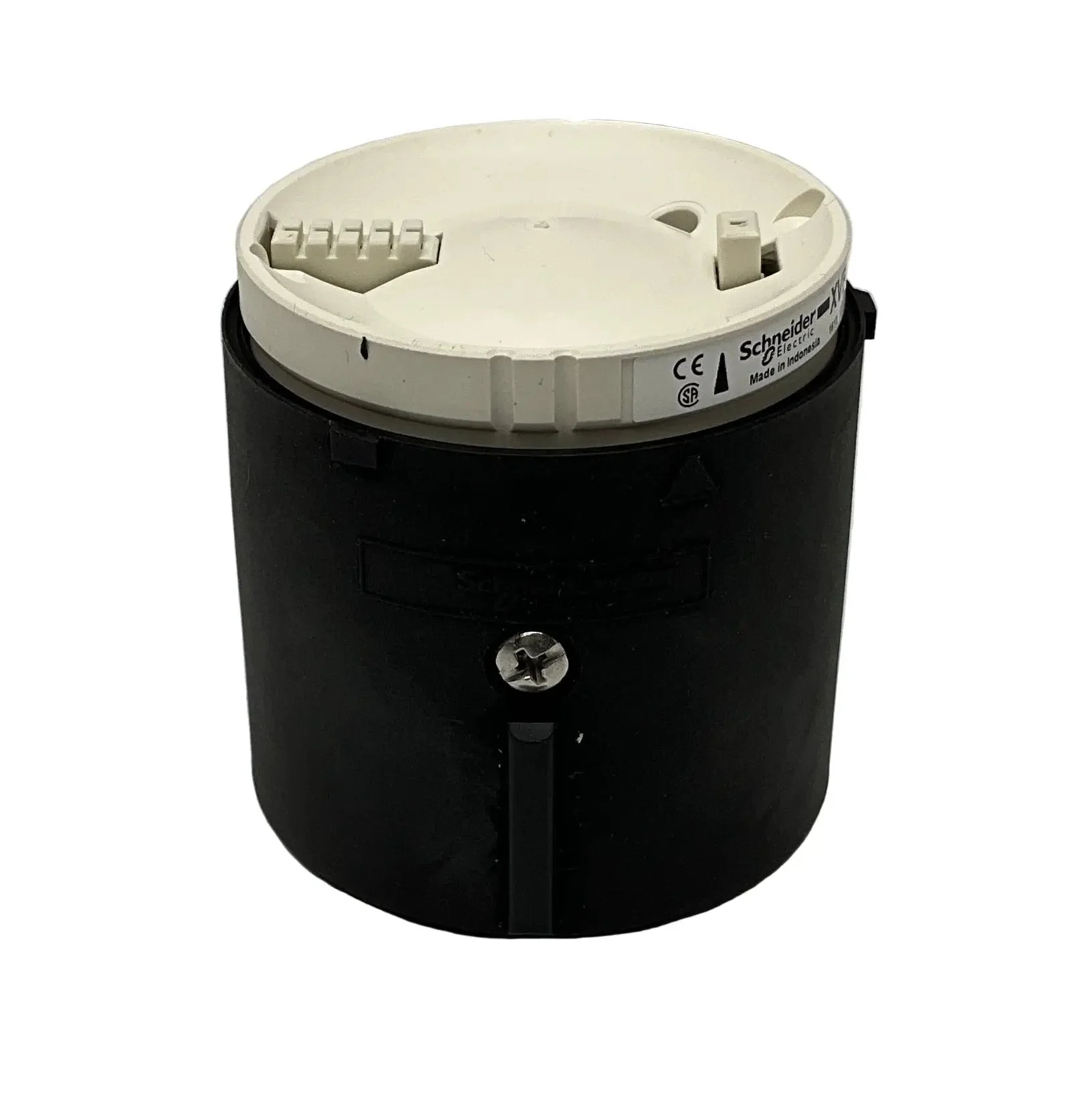

- Function: Base unit with black cover for 70 mm modular beacon stack lights in the Harmony XVB series
- Cable Entry: Bottom or side entry
- Mounting: Direct or tube mounting
- Wiring: Screw terminals with cable clamp
- Sealing: IP66
- Operating Temperature: -25°C to +50°C
- Housing Material: Glass reinforced polyamide (base), polycarbonate (cover)
- Compatibility: Harmony XVB series stack lights for visual signaling
- Additional Features:
  - Units separate for easy bulb replacement
  - Optional colored markers for stacking order indication
  - Discontinued product
- Certifications: UL listed, CSA certified, CE marked

Dimensions: 80 x 70 mm

Weight: 170 g

Country of Origin: Indonesia

HS Code: 8531.80
