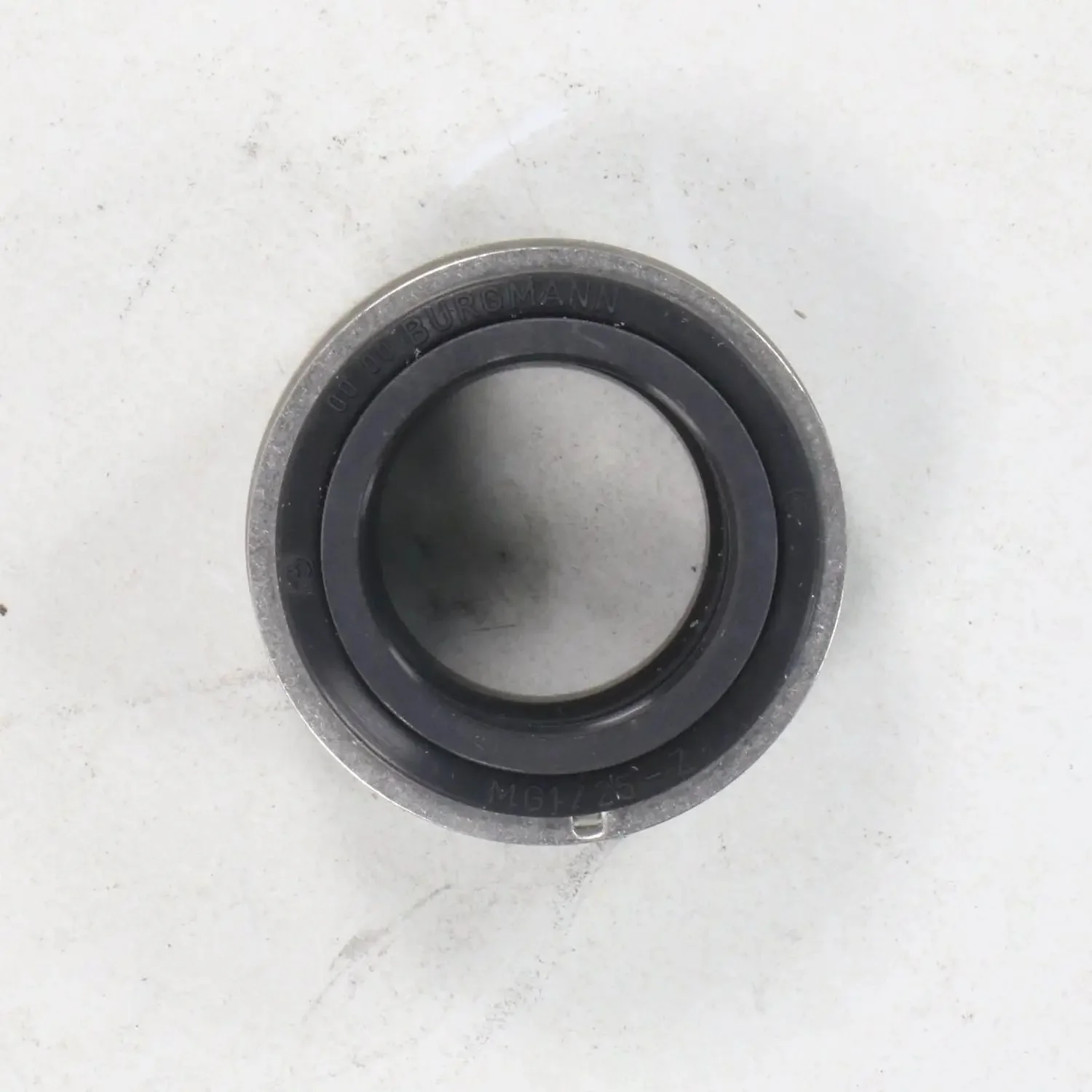

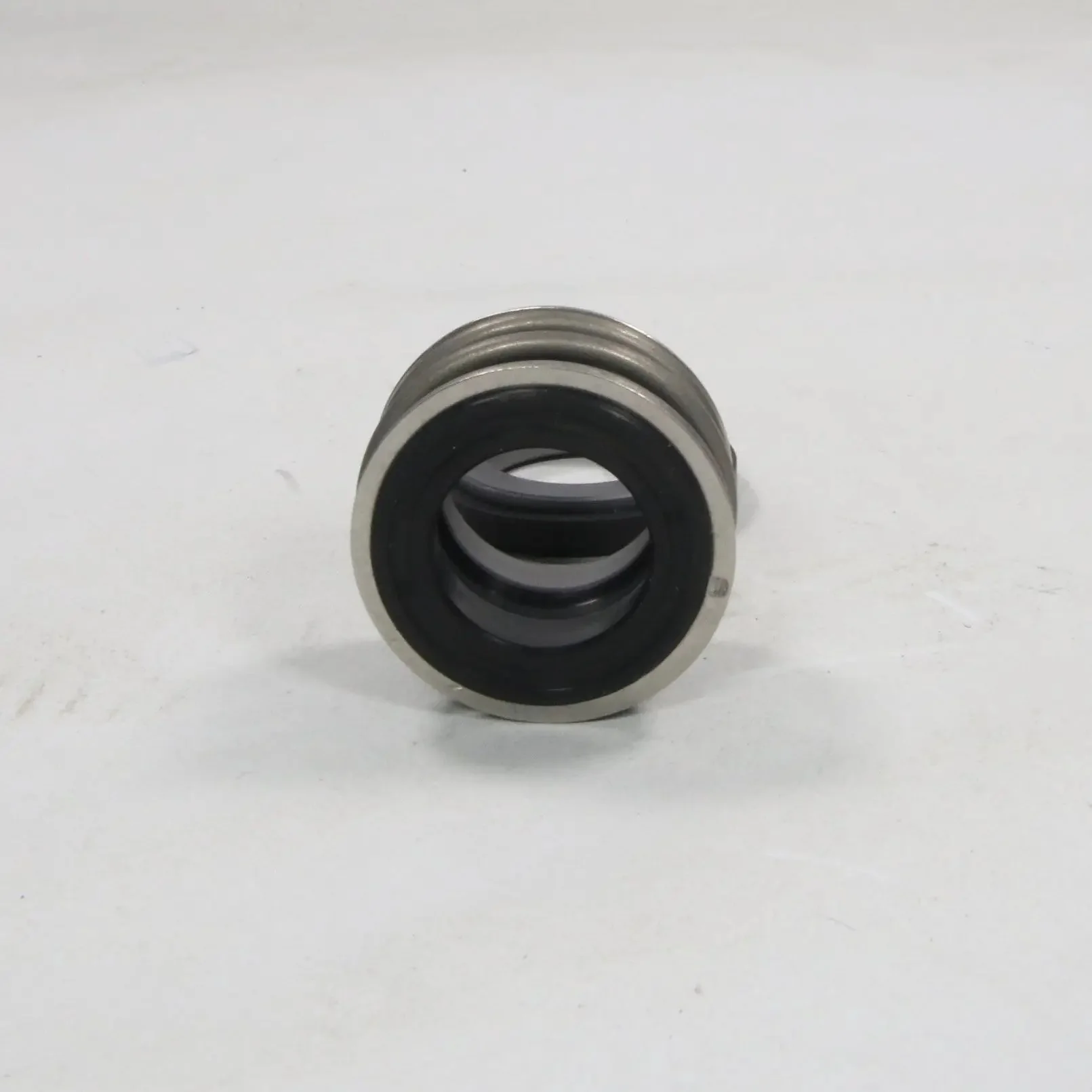

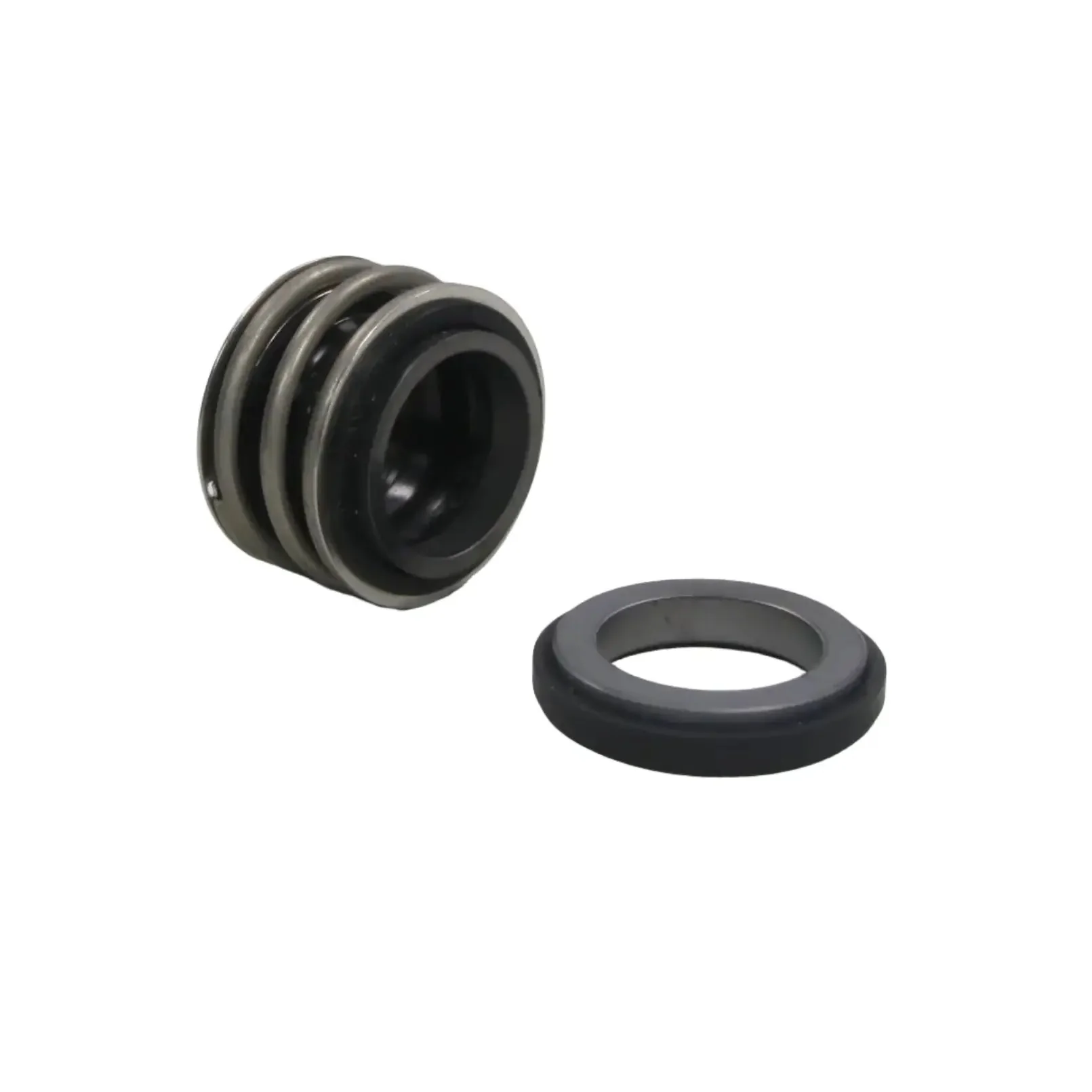

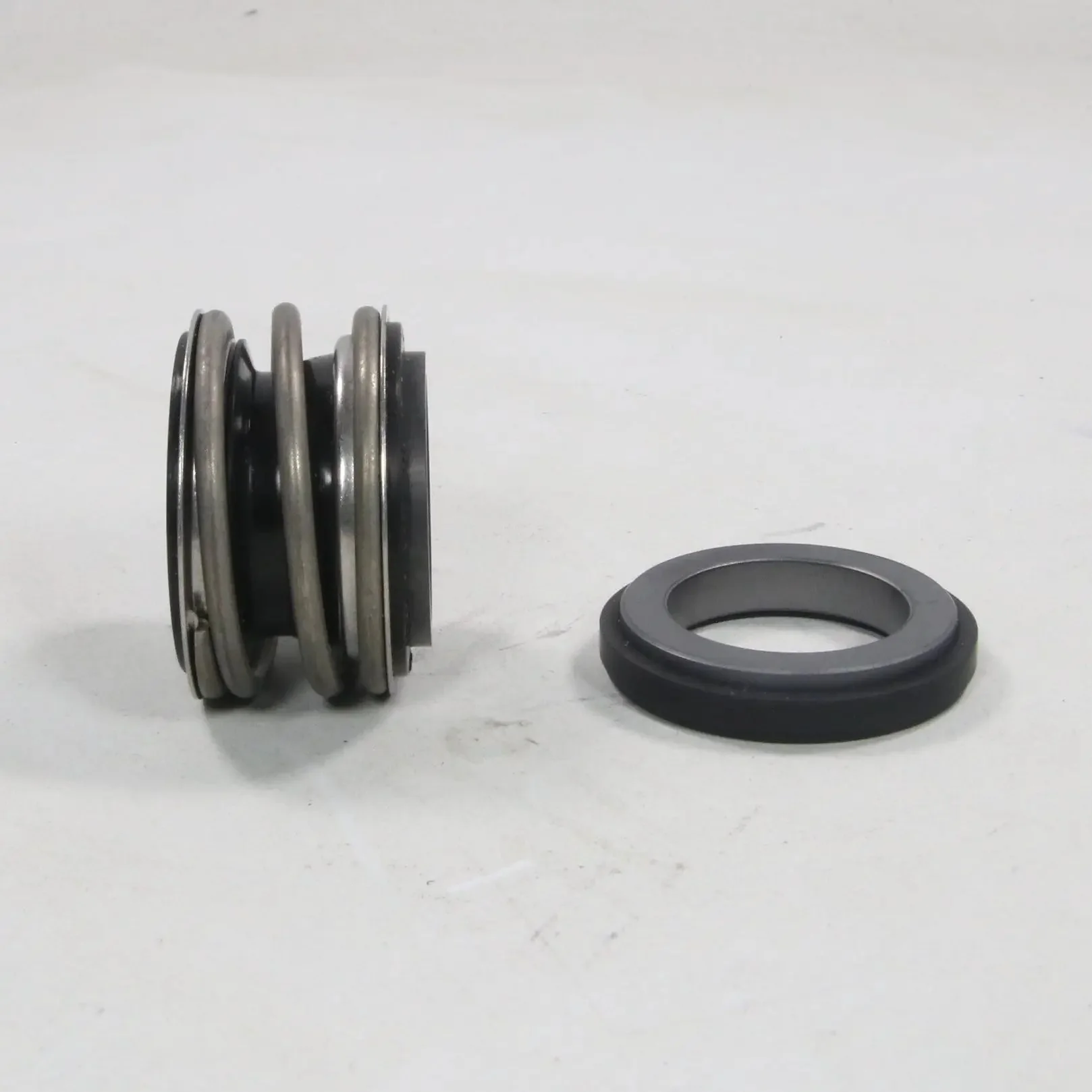

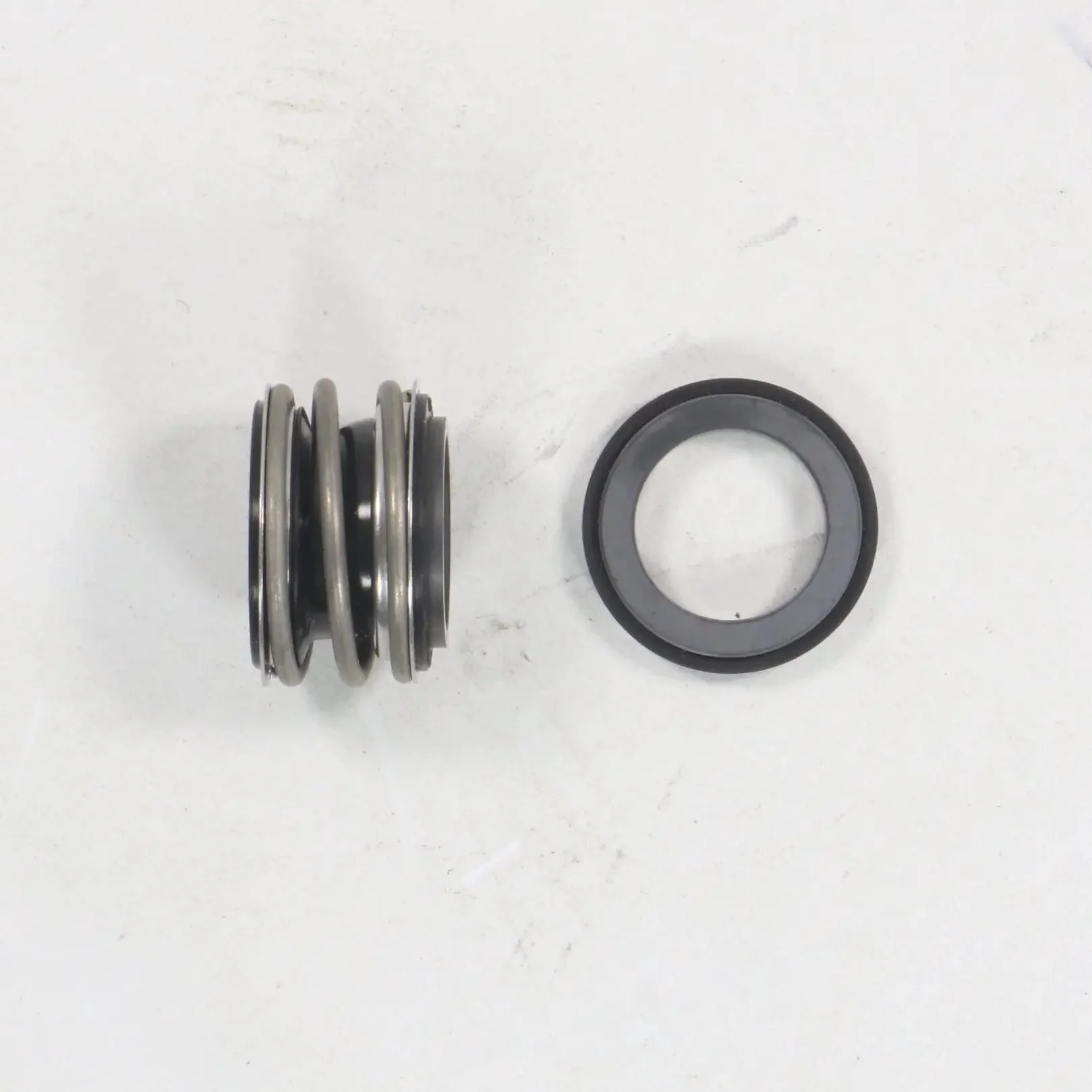

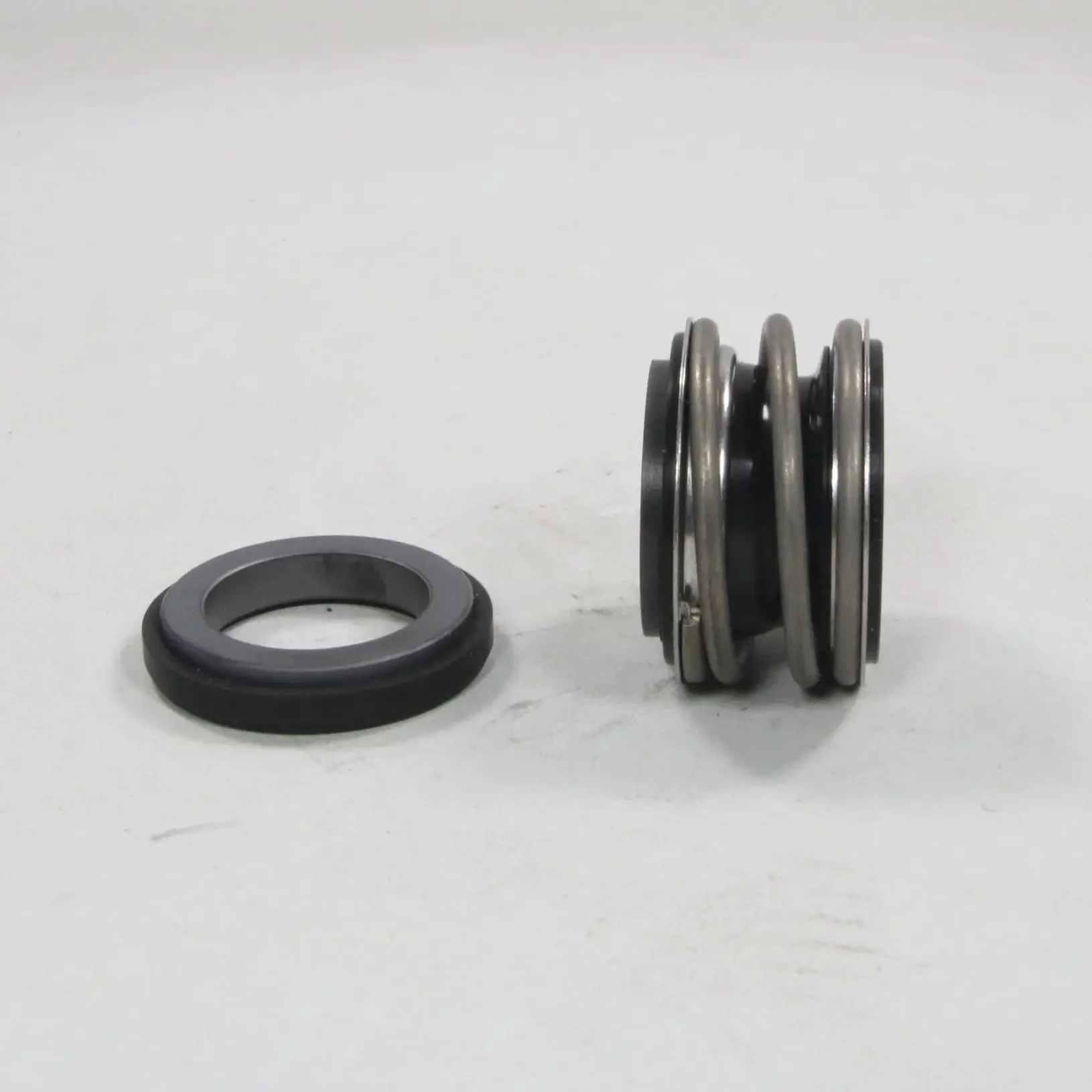

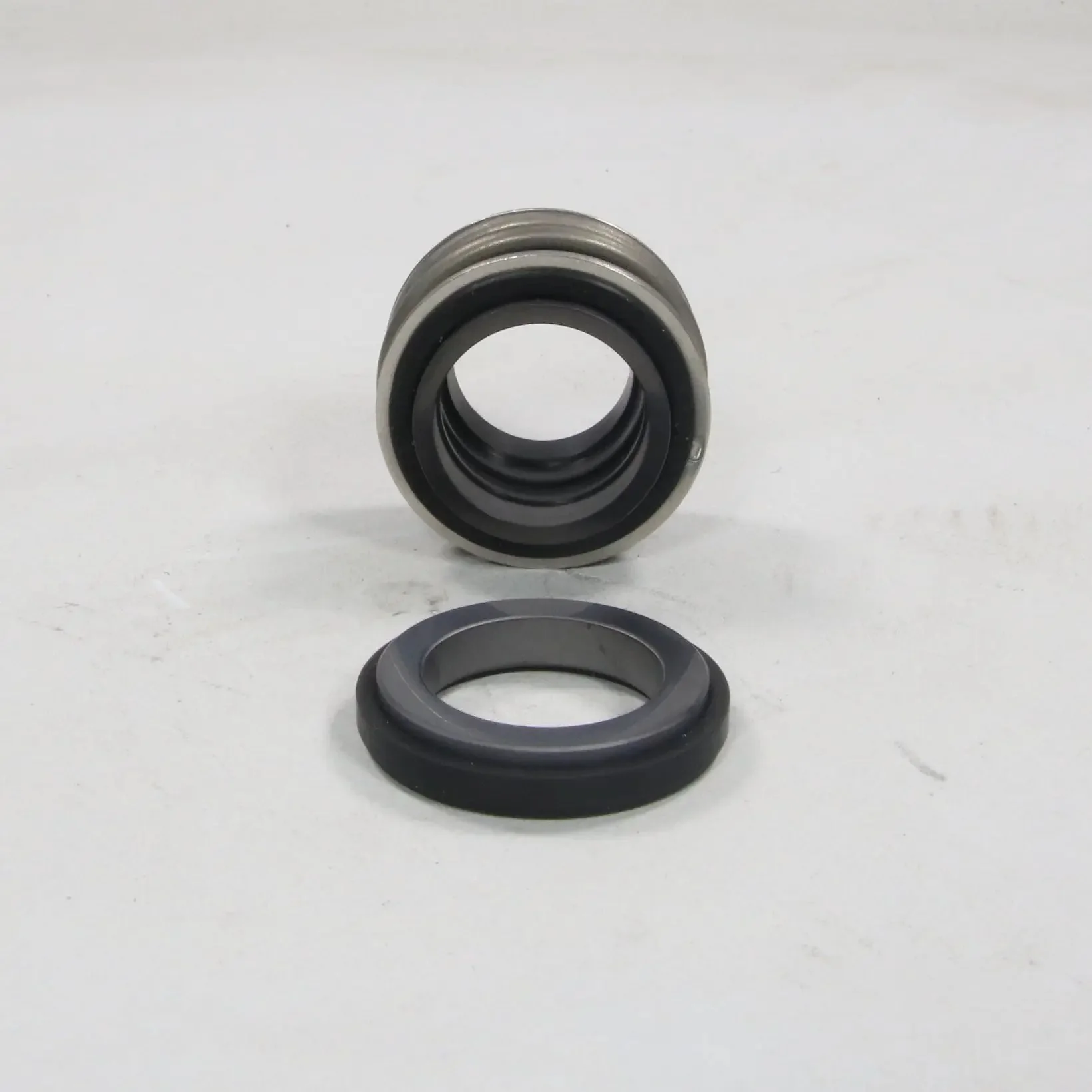

Seepex / EagleBurgmann MG1-G60-025 AQ1 VGG Mechanical Seal

- Brand: Seeppex / EagleBurgmann

- Model: MG1-G60-025 AQ1 VGG (MG1/25 - Z)

- Type: Mechanical Seal / Shaft Seal

- Part number: GRDB15025U41H0A7A7

Technical specifications:
- Shaft diameter: 25 mm
- Seal design: Elastomer bellows
- Materials: AQ1 VGG
  - Metal parts: Stainless steel
- Operating limits:
  - Temperature: -20°C to +120°C
  - Pressure: Up to 12 bar
  - Speed: Up to 10–12 m/s
- Direction of rotation: Independent
- Compatibility: Seepex progressive cavity pumps
- Function: Prevents axial leakage along the pump shaft; suitable for viscous, abrasive, chemical, food, or wastewater media; economical, widely used replacement seal
- Additional features: Easy installation (push-on bellows); no dynamic O-ring for reduced wear; high chemical resistance with Viton for oils, fuels, acids; standard Seepex replacement (GRDB15025U41H0A7A7 matches this Burgmann config)
- Standards: Compliant with relevant EN/ISO for mechanical seals; suitable for industrial/hygienic applications

Weight: 100 g

Dimensions: 65 x 65 x 64 mm (box)

Country of origin: Germany

HS code: 8484.20
