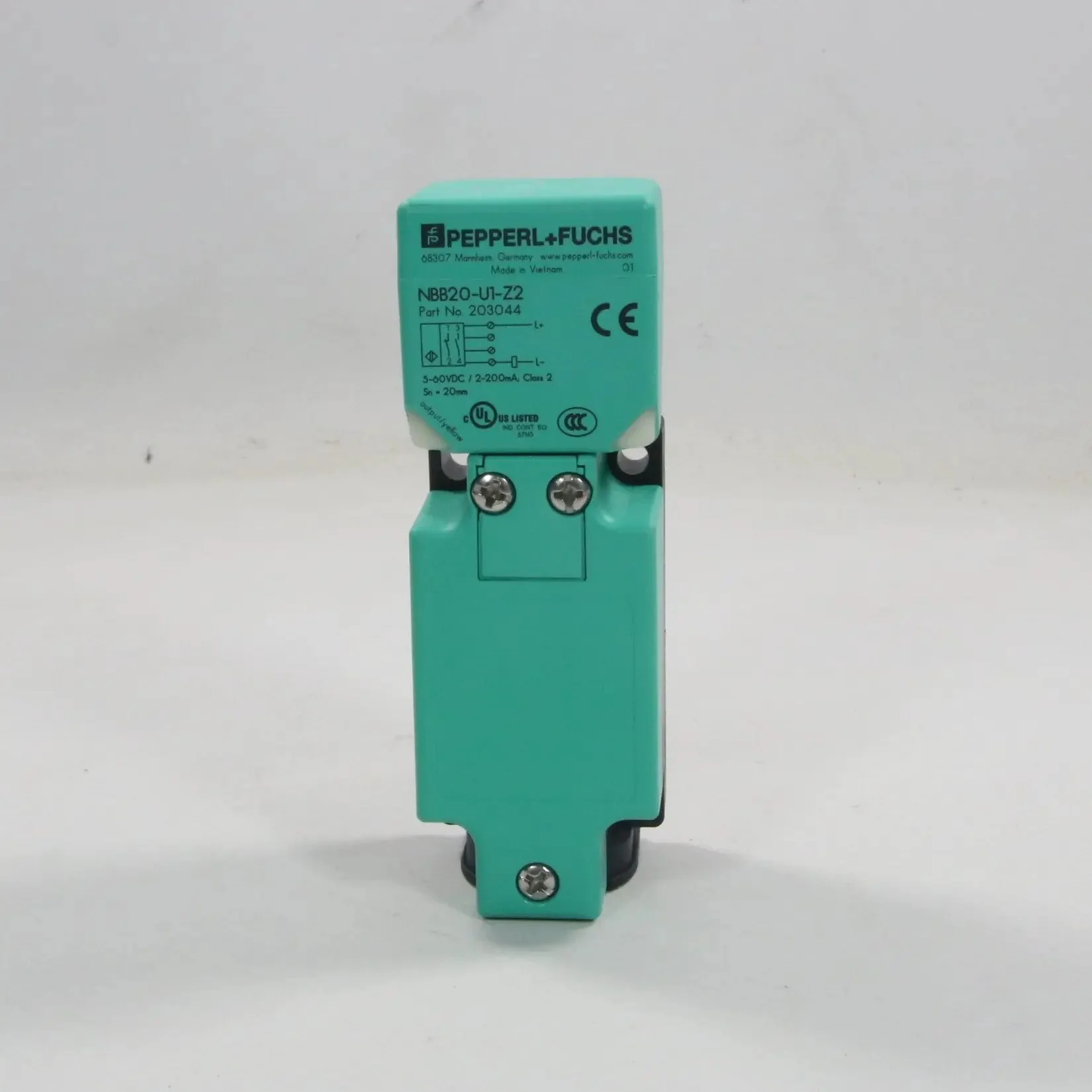

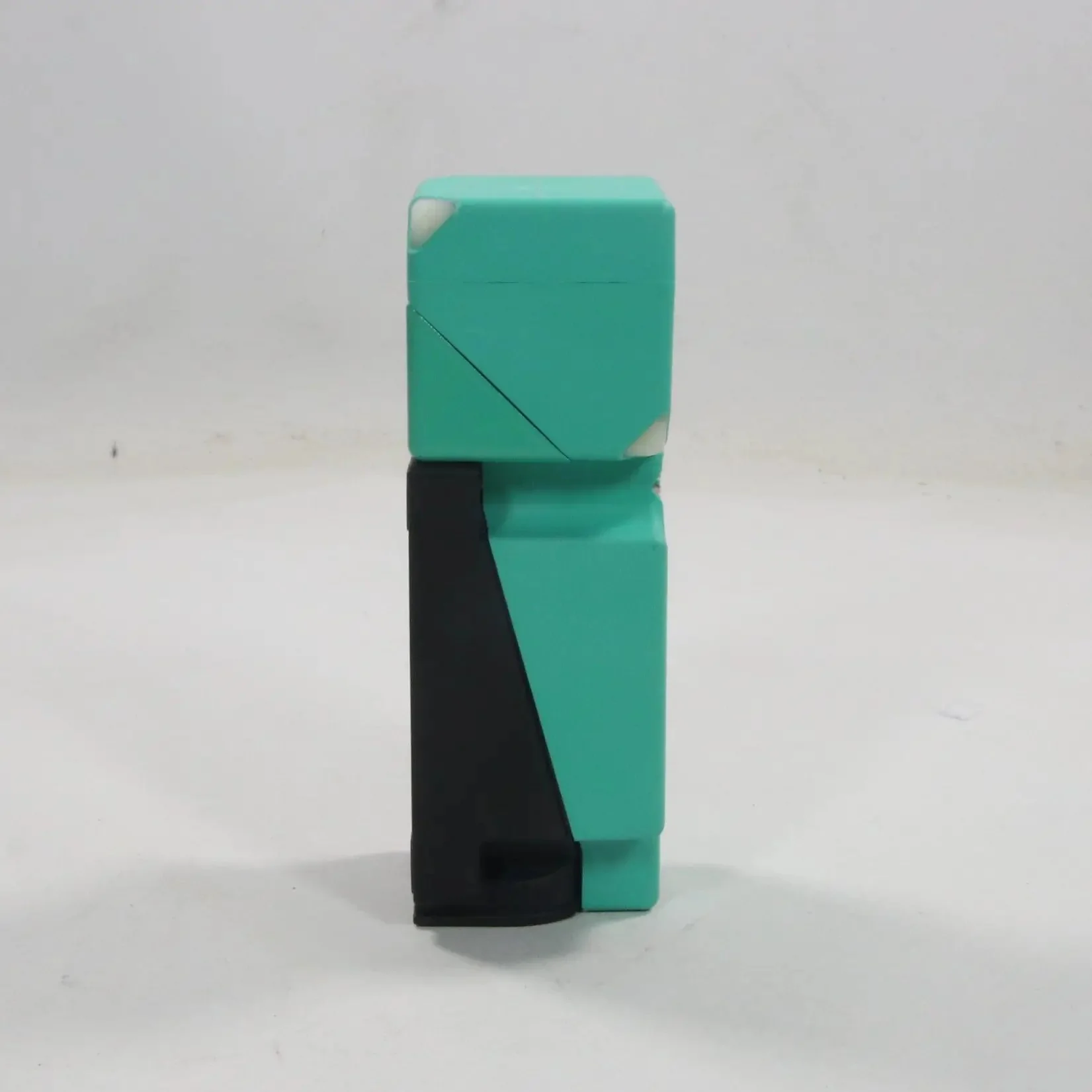

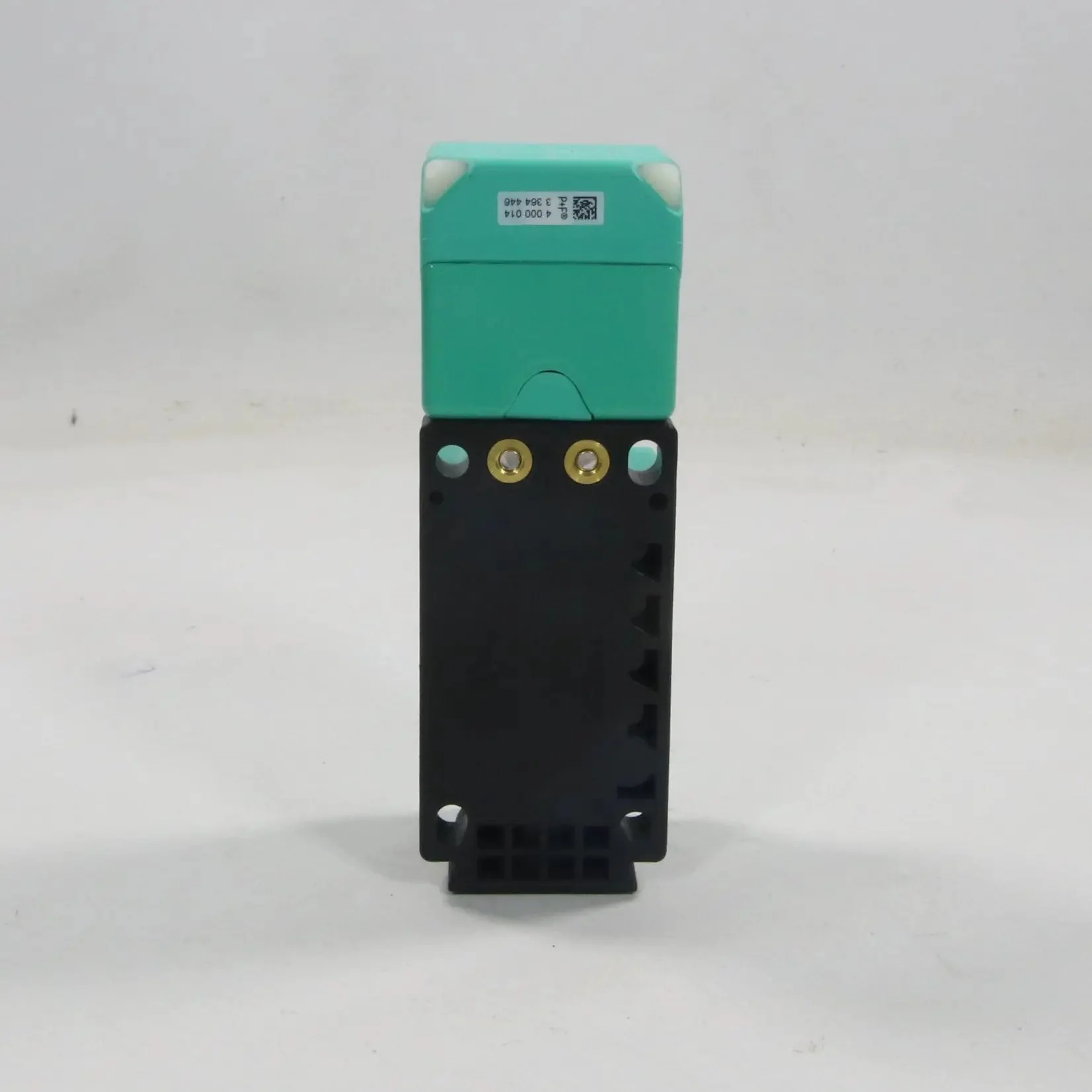

Pepperl + Fuchs NBB20-U1-Z2 Inductive Sensor - 203044

- Brand: Pepperl + Fuchs (P+F)

- Model: NBB20-U1-Z2

- Type: Inductive Sensor

- Part number: 203044

- Technical specifications:
- Sensing range: Rated operating distance sn = 20 mm (flush installation)
- Output: 2-wire
- Output polarity: DC
- Operating voltage: 5…60 V DC
- Switching frequency: 0…250 Hz
- Switching function: Normally open/closed (NO/NC)
- Voltage drop: ≤ 5 V (at IL = 100 mA)
- Load current IL: 2…200 mA
- Off-state current Ir: 0…0.5 mA
- Short-circuit protection: Yes
- Reverse polarity protection: Reverse polarity tolerant
- LED indicators: 2 yellow LEDs (switching state) with 360° visibility
- Sensor head: Bidirectional and rotatable
- Connection: Screw terminals
- Housing material: PA / metal with epoxy powder coating; sensing face PA; housing base plastic
- Degree of protection: IP68 / IP69K
- Ambient temperature: -25…+85 °C
- Additional features: Rotatable sensor head for flexible installation; robust construction for harsh environments; high EMC immunity
- Standards: EN IEC 60947-5-2; cULus Listed; CCC approved

Weight: 280 g

Dimensions: 40 x 40 x 120 mm

Country of origin: Germany

HS code: 8536.50
