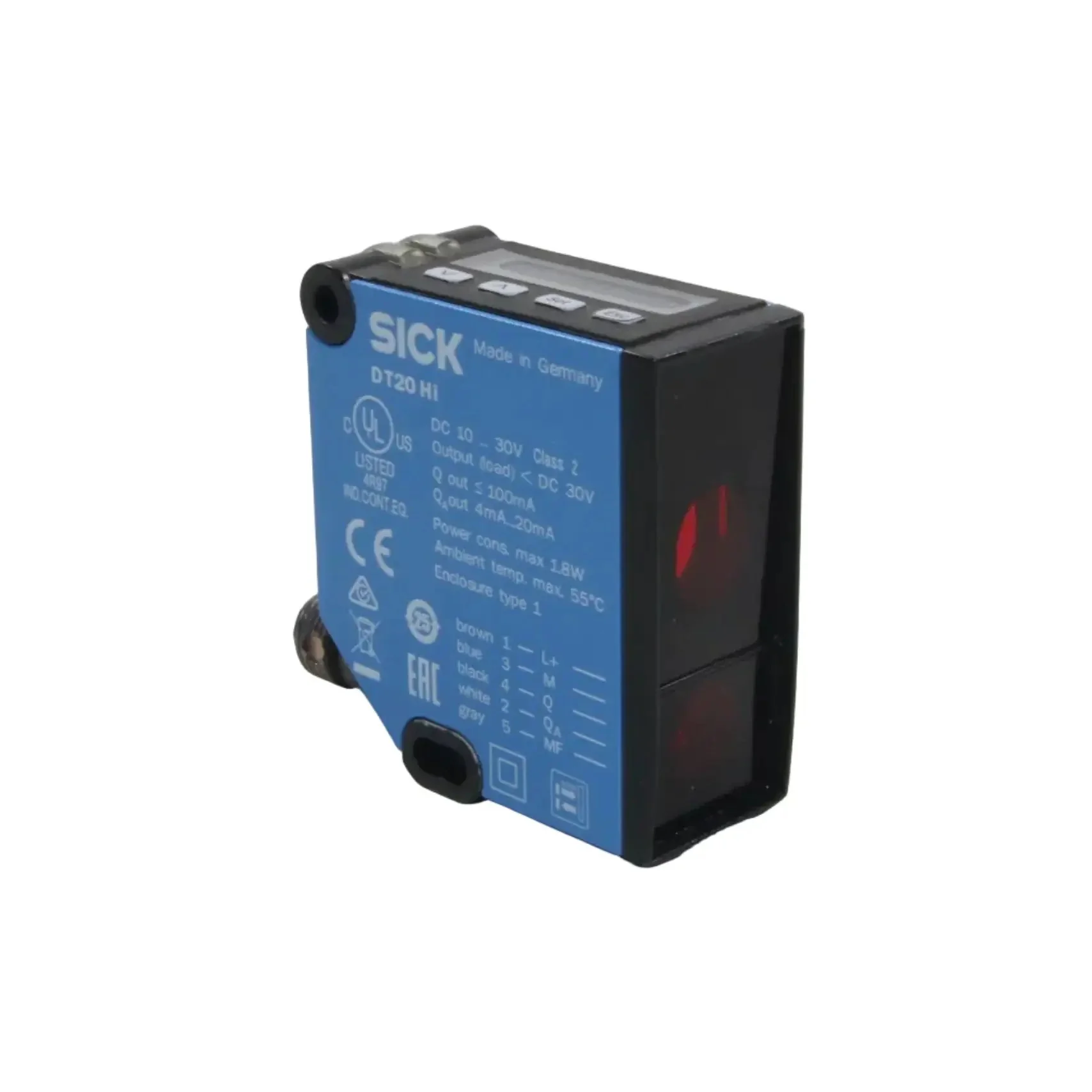

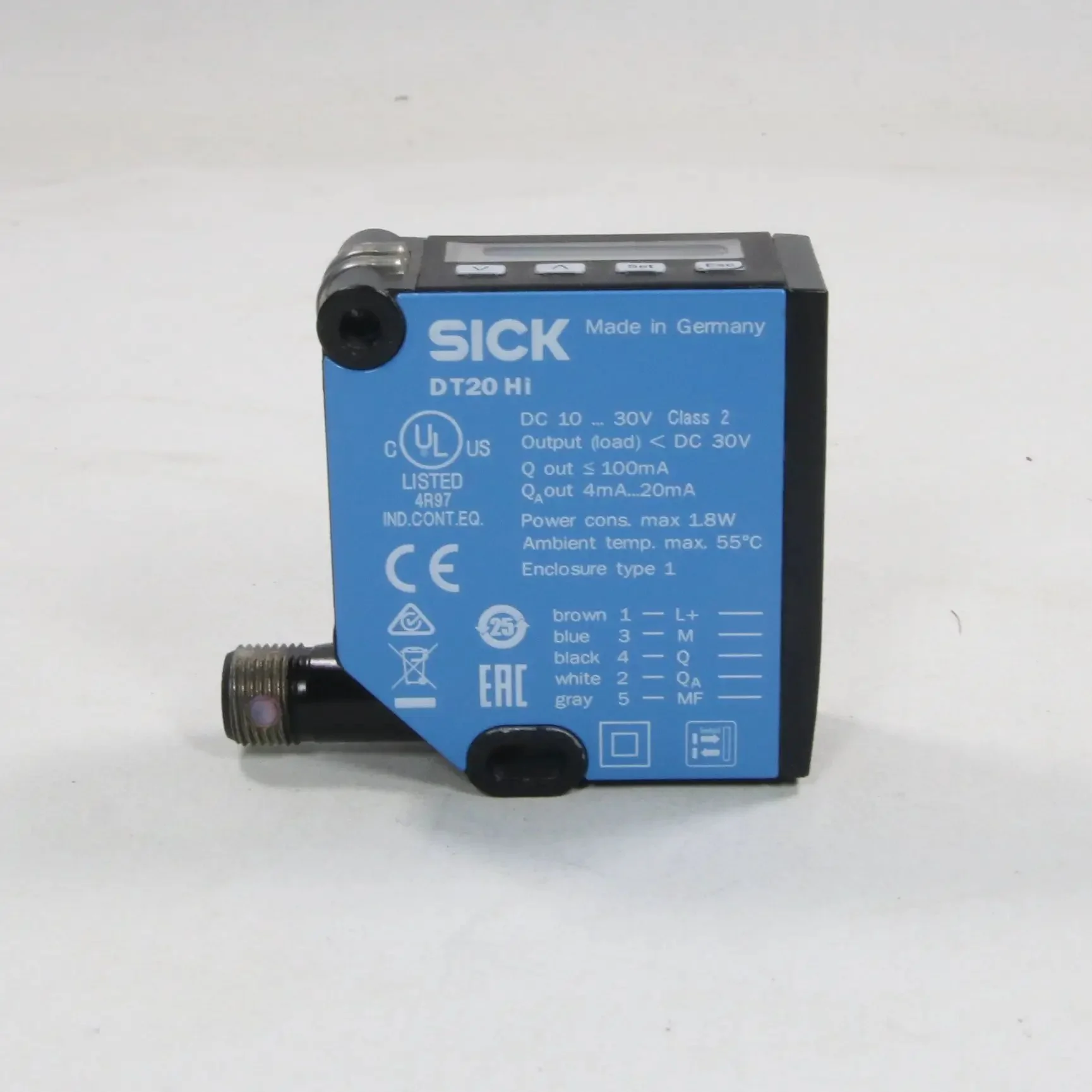

Sick DT20-P224B Displacement Sensor

- Brand: Sick
- Model: DT20-P224B (DT20 Hi)
- type: Displacement Sensor
- Part Number: 1040405
  - Measuring Principle: Time-of-Flight (ToF) laser triangulation
  - Measuring Range: 100 mm ... 1,000 mm
  - Resolution: 0.1 mm
  - Accuracy: ±10 mm

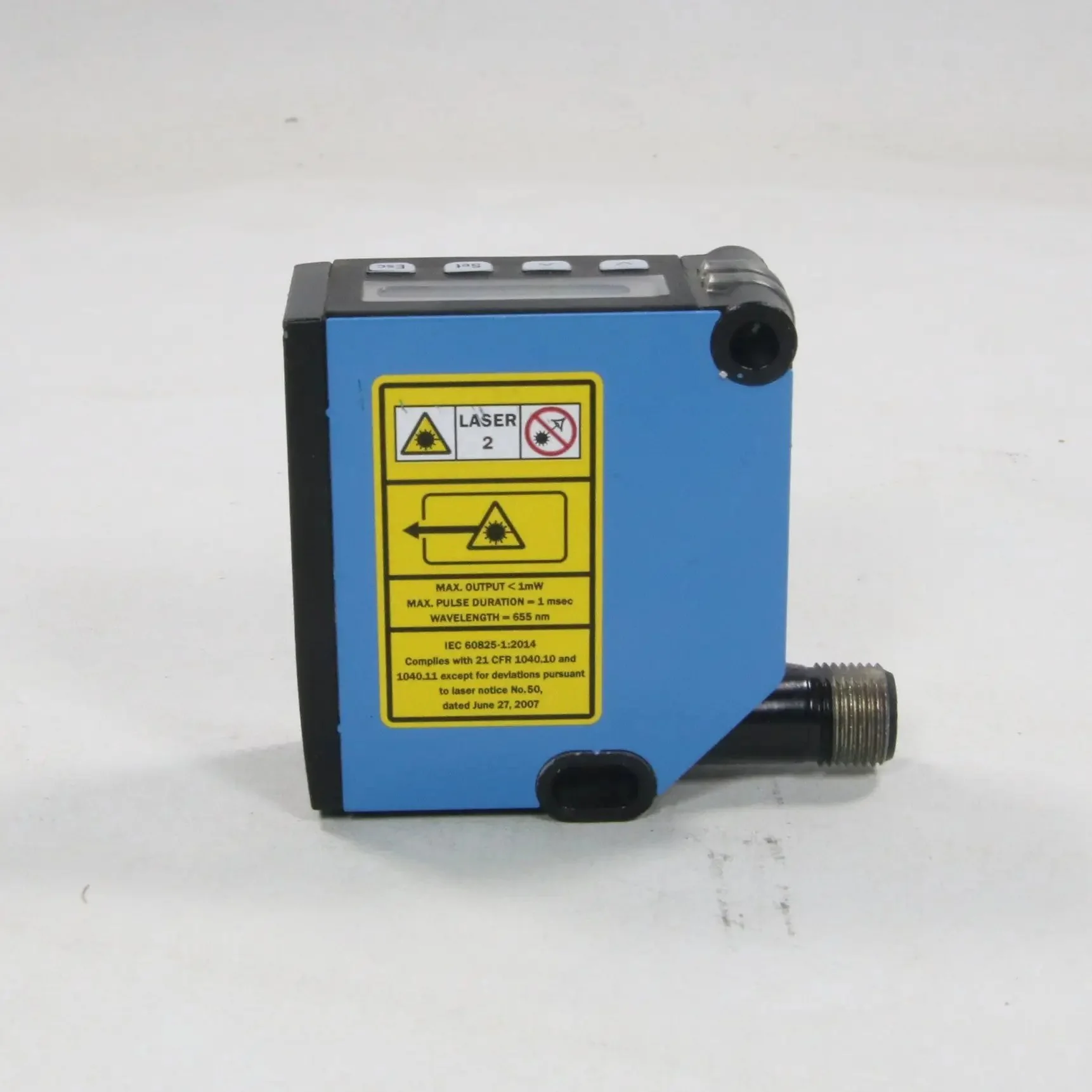

  - Light Source: Laser diode, red
  - Response Time: ≤ 2.5 ms
  - Output Signal: 1 × analog, 1 x digital
  - Switching Output: PNP / Current 4mA....20mA
  - Supply Voltage: 10... 30 V DC
  - Power Consumption: ≤ 2.5 W
  - Enclosure type: 1
  - Protection Rating: IP67
  - Ambient Light Immunity: > 10,000 lx
  - Operating Temperature: -30 °C ... +65 °C
  - Storage Temperature: -40 °C ... +75 °C
  - Housing Material: Zinc die-cast
  - Front Window: PMMA

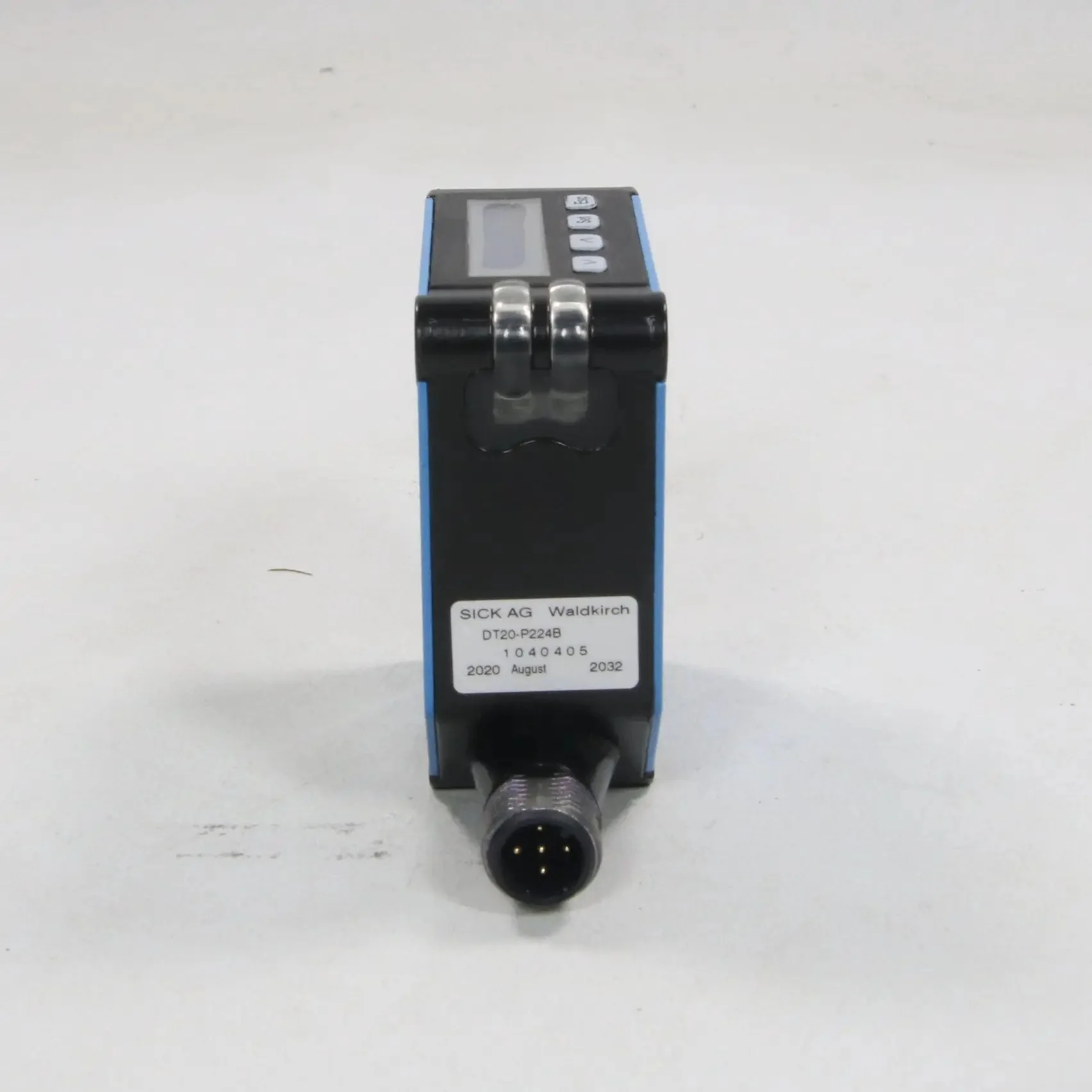

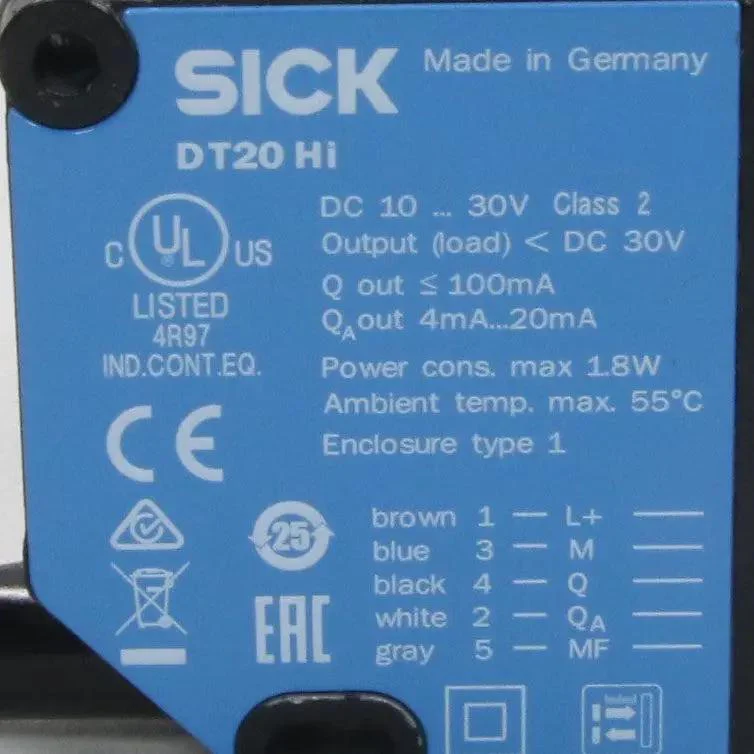

  - Connection: Male connector, 5-pin

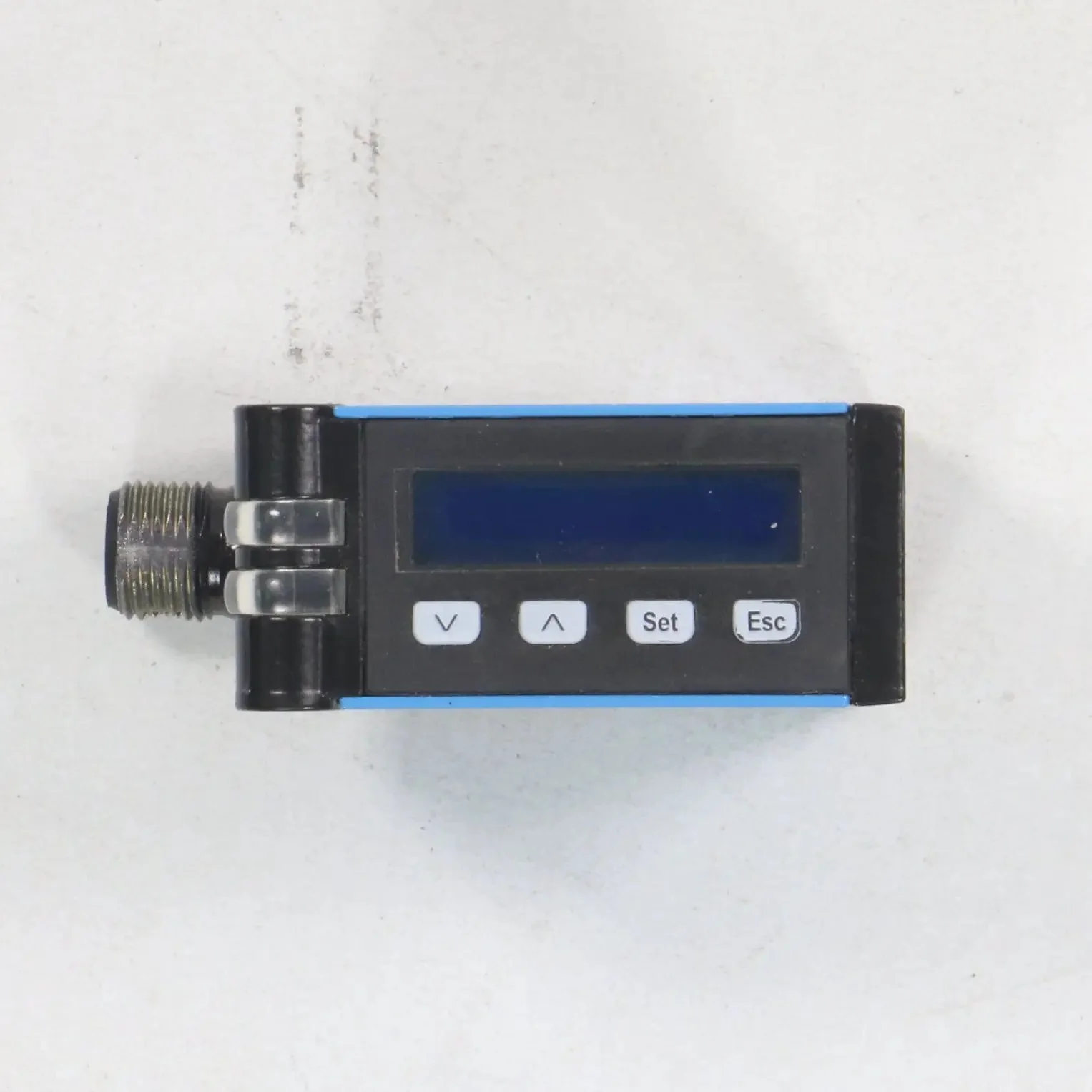

  - Features: Teach-in button for easy adjustment, LED status indicators, background suppression, compact design
- Dimensions: 60 x 50 x 20 mm
- Weight: 160 g
- Country of origin: Germany
- HS code: 903149
