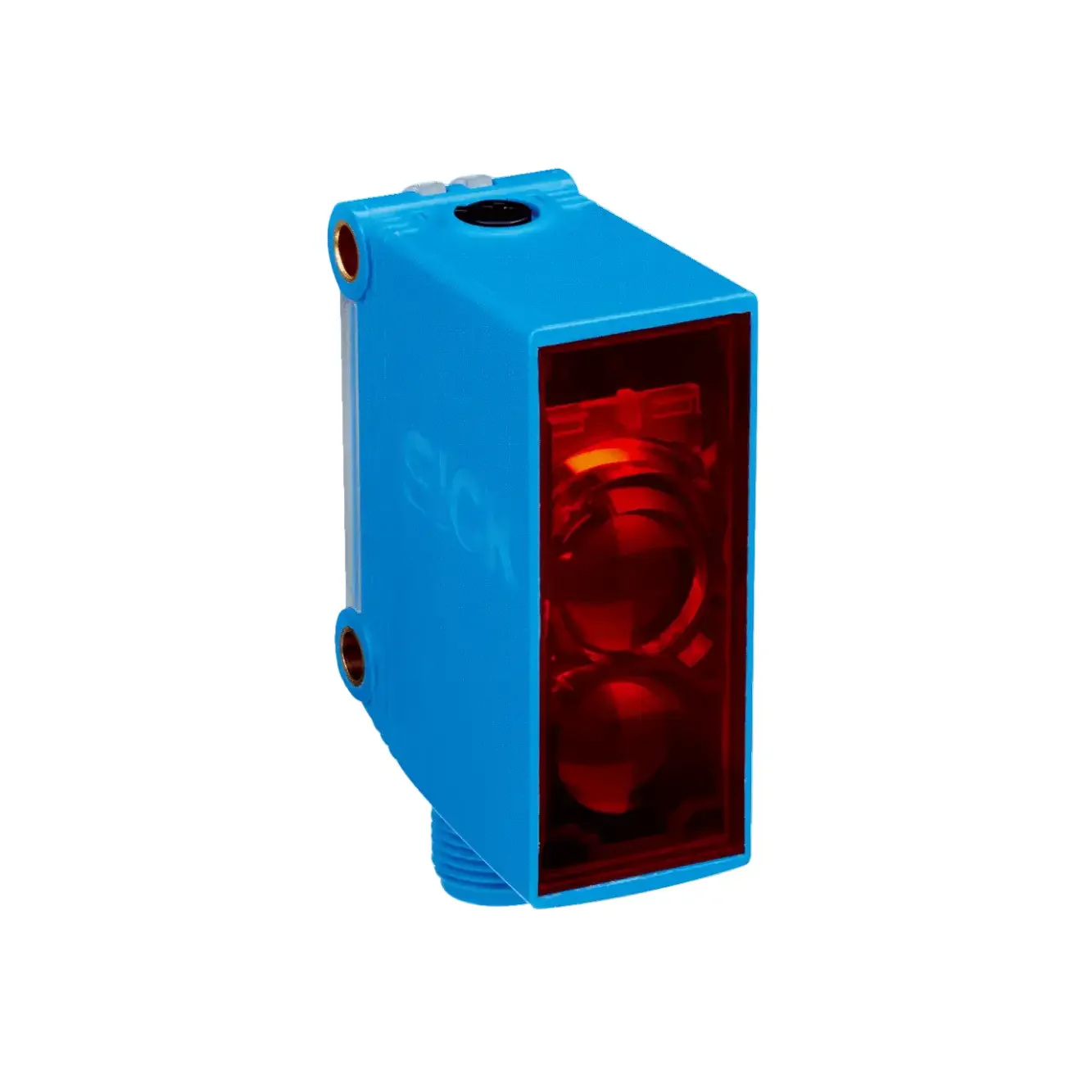

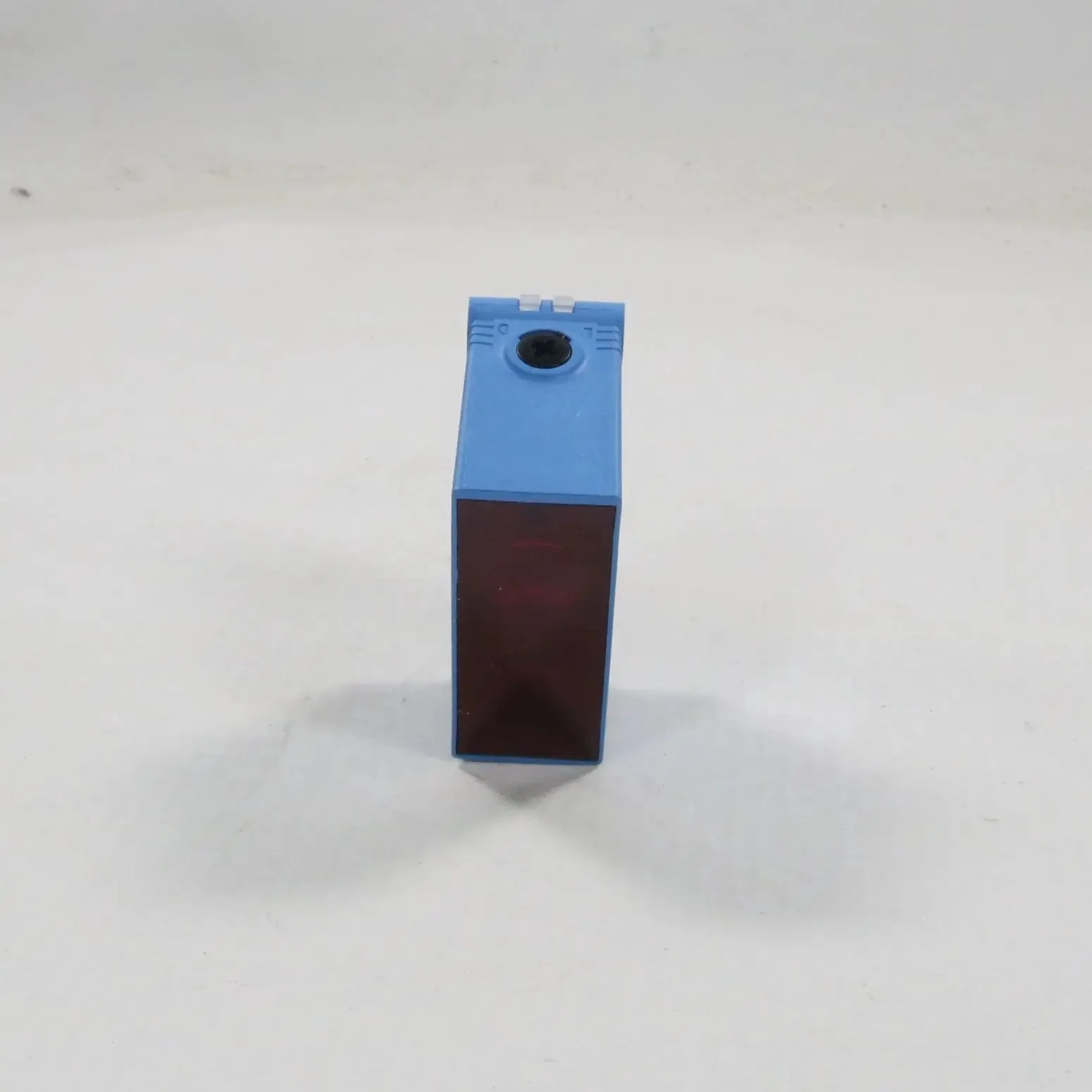

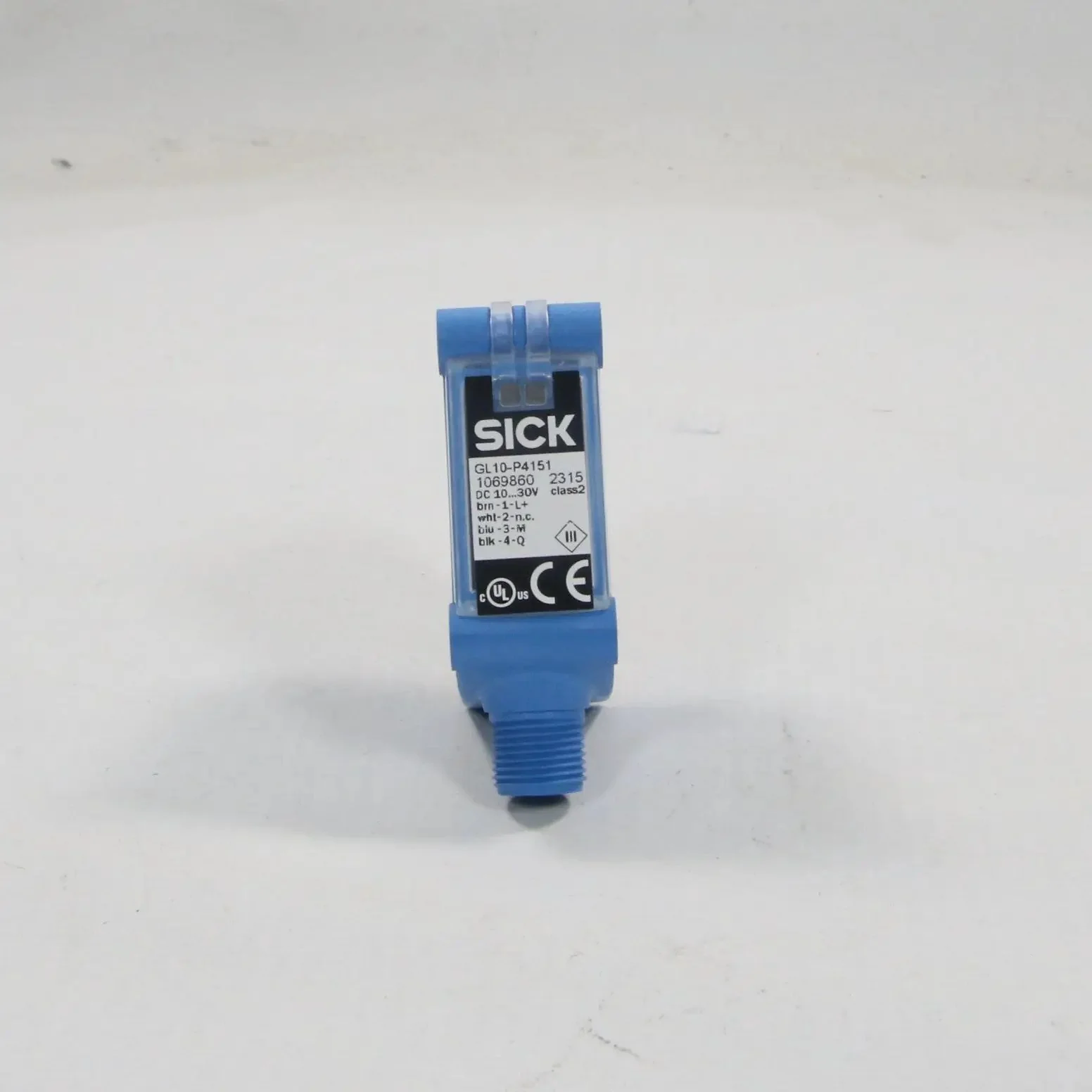

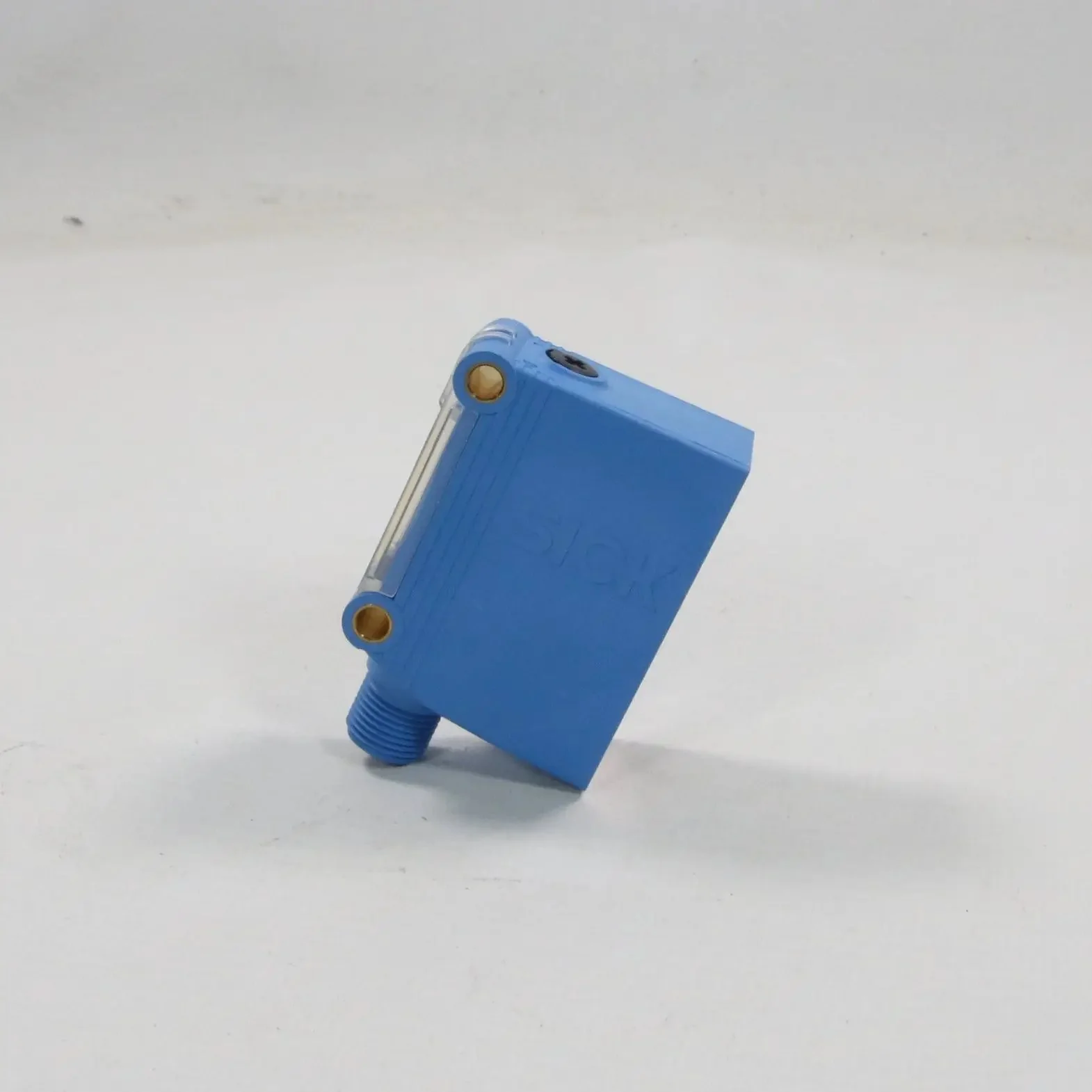

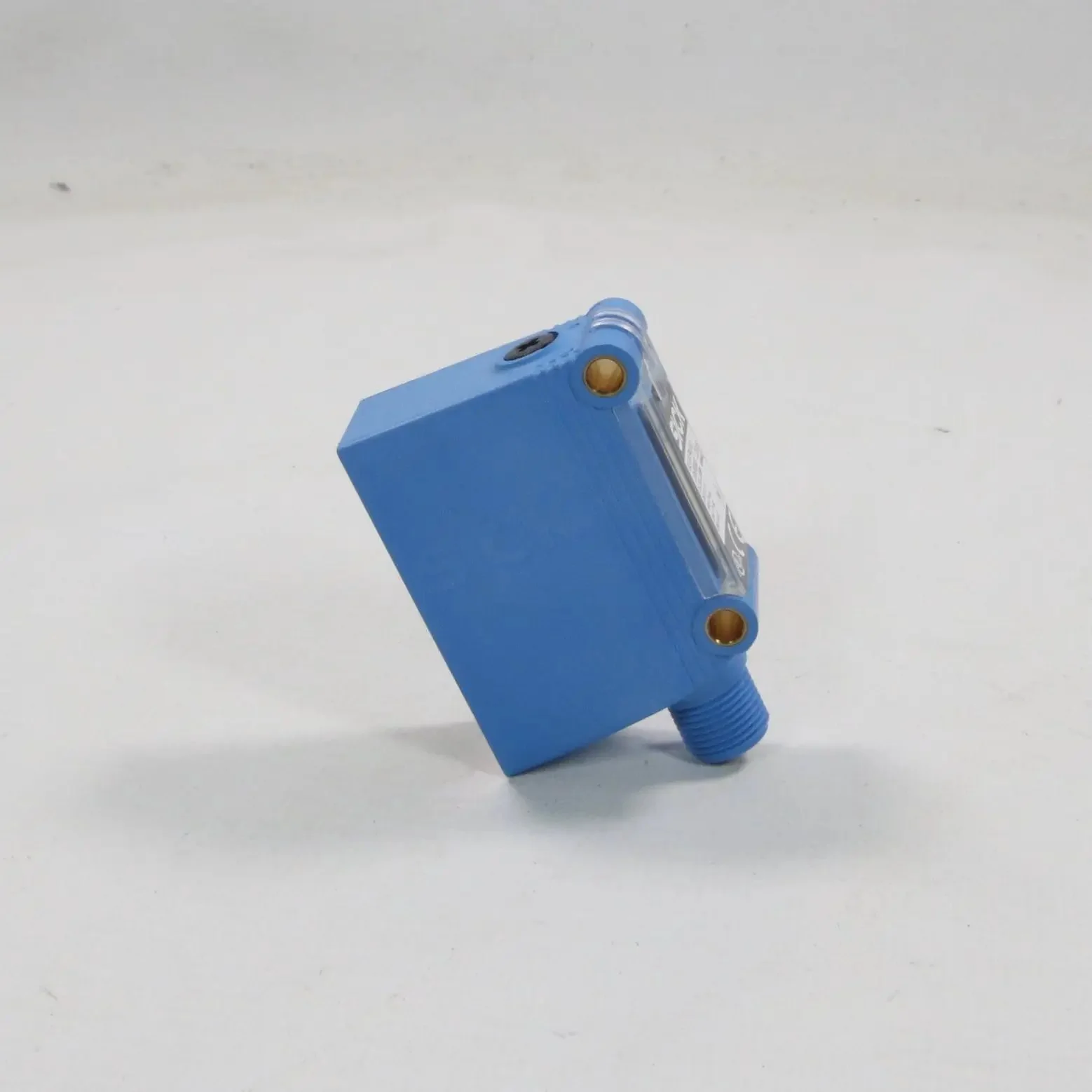

Sick GL10-P4151 Photoelectric Retro-Reflective Sensor

- Brand: Sick

- Model: GL10-P4151

- Type: Photoelectric Retro-Reflective Sensor

- Part number: 1069860

- Technical specifications:
- Sensing principle: Retro-reflective
- Sensing range max.: 0.15–12 m
- Light source: Red light LED (625 nm)
- Output: PNP
- Switching frequency: 500 Hz
- Supply voltage: 10–30 V DC
- Current consumption: ≤30 mA
- Load current: ≤100 mA
- Connection: M12 connector
- Housing: Rectangular plastic housing
- Degree of protection: IP67
- Operating temperature: -30°C to +60°C
- LED indicators: Power ON (green); switching status (yellow)
- Adjustment: Potentiometer for sensitivity/range setting
- Additional features: Polarization filter; high EMC immunity; test input; visible red light spot for alignment; suitable for detection of transparent or reflective objects when used with appropriate reflector (e.g., PL21F or PL80A)
- Standards: Compliant with IEC/EN 60947-5-2; CE marked; UL/CSA approvals

Weight: 100 g

Dimensions: 100 x 60 x 50 mm (box)

Country of origin: Malaysia

HS code: 8536.50
