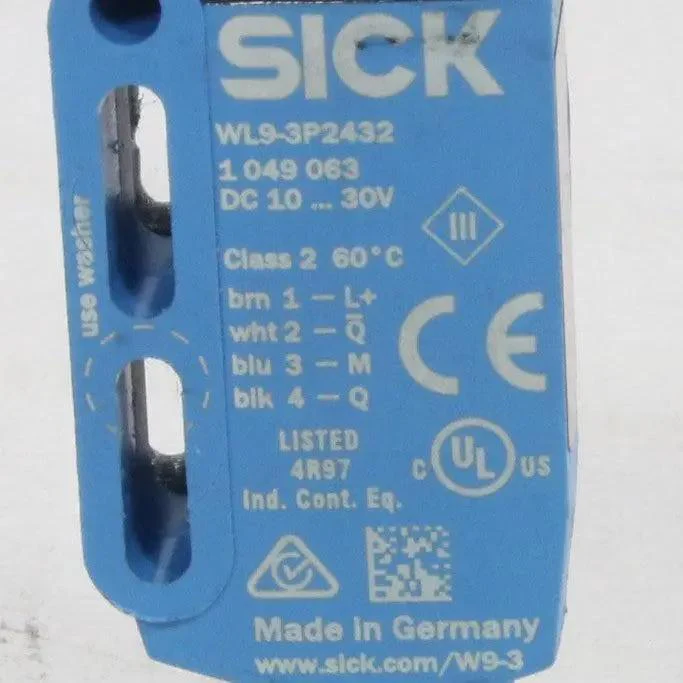

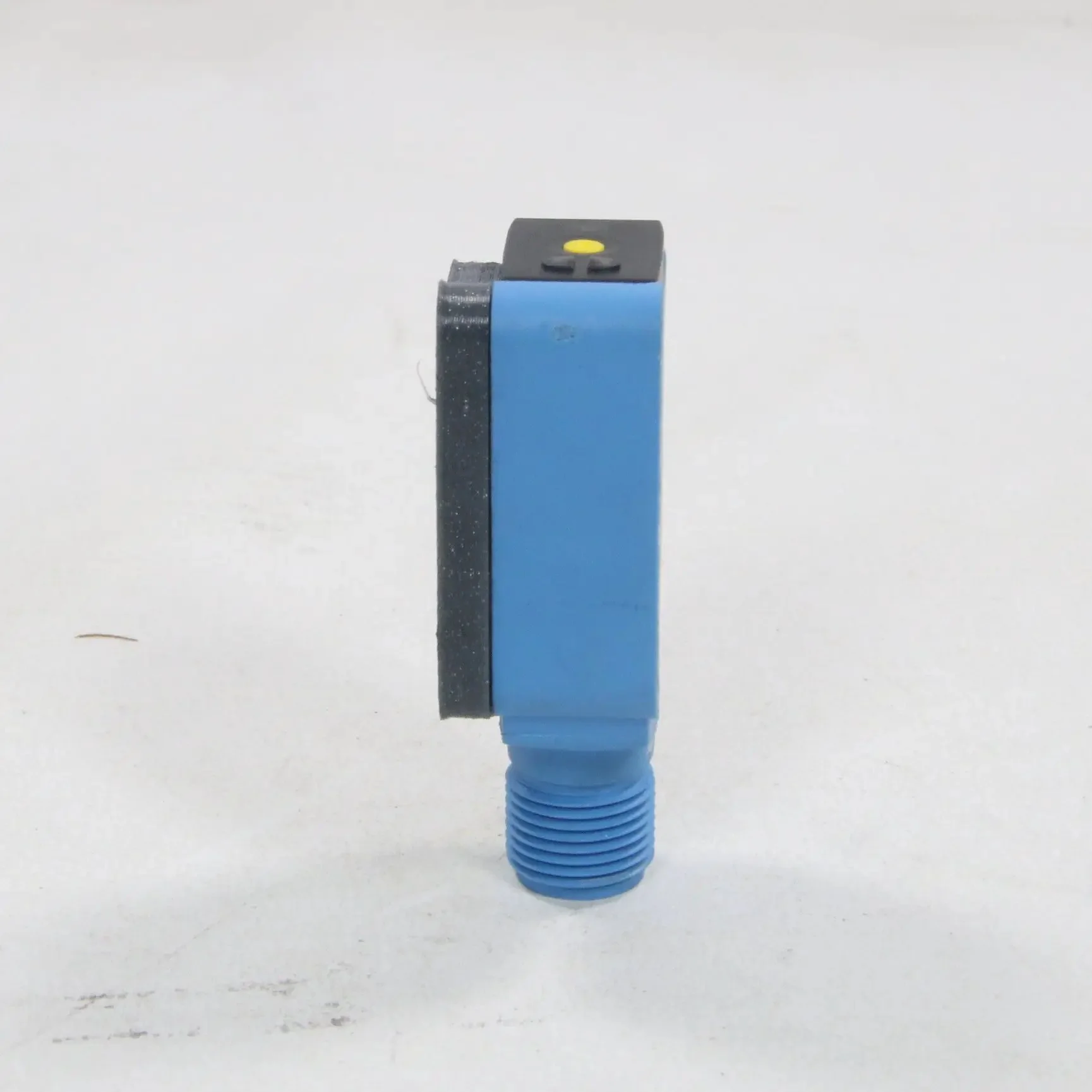

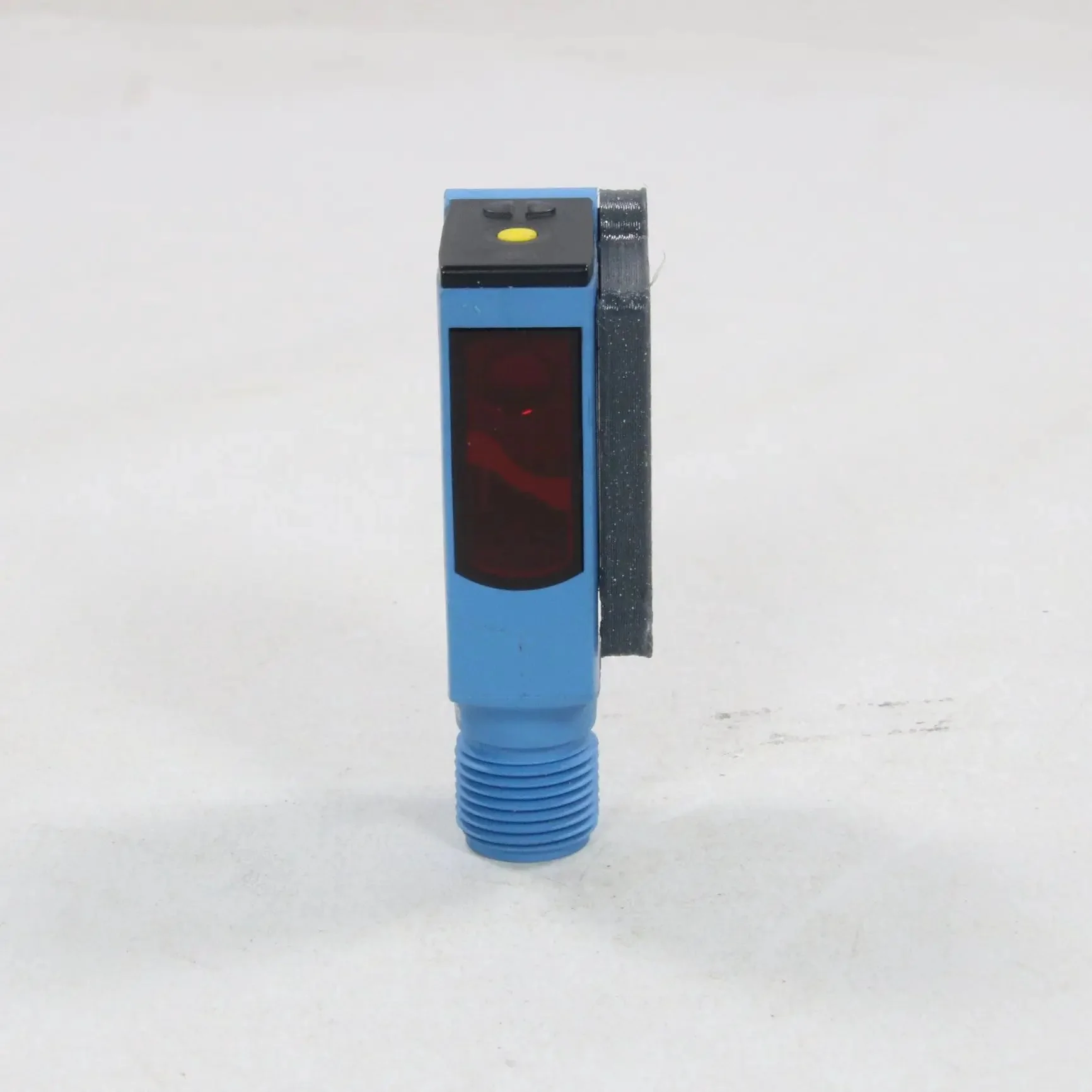

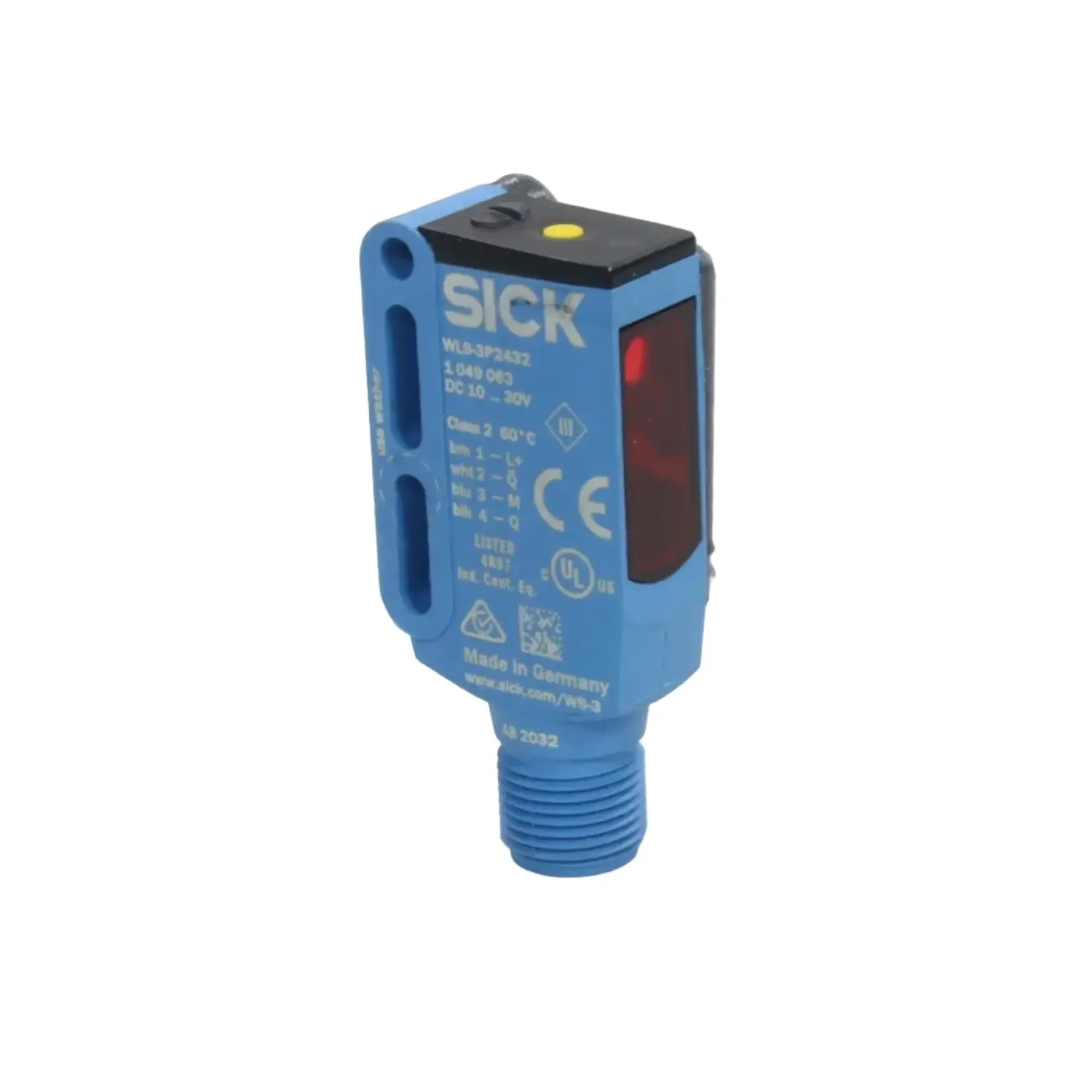

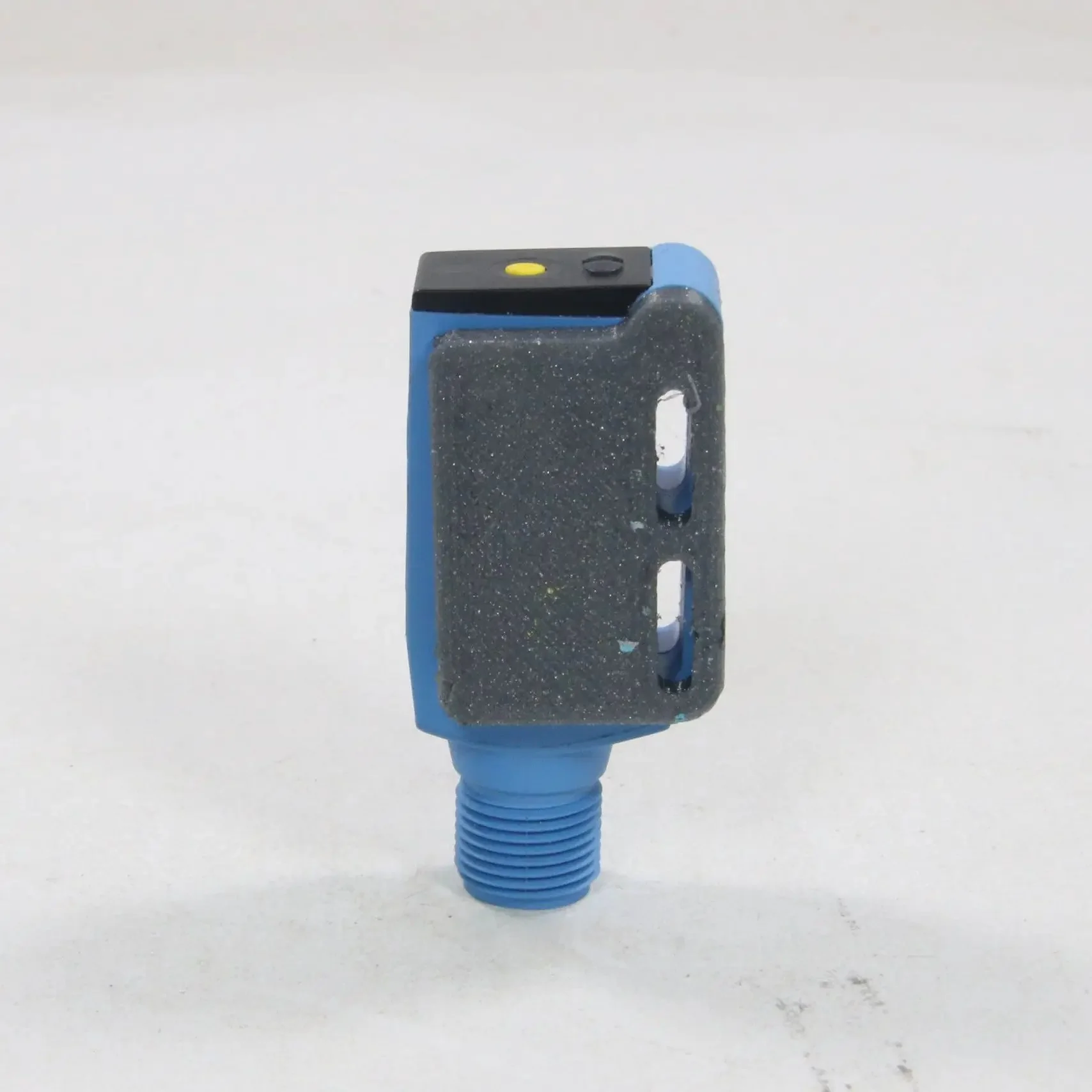

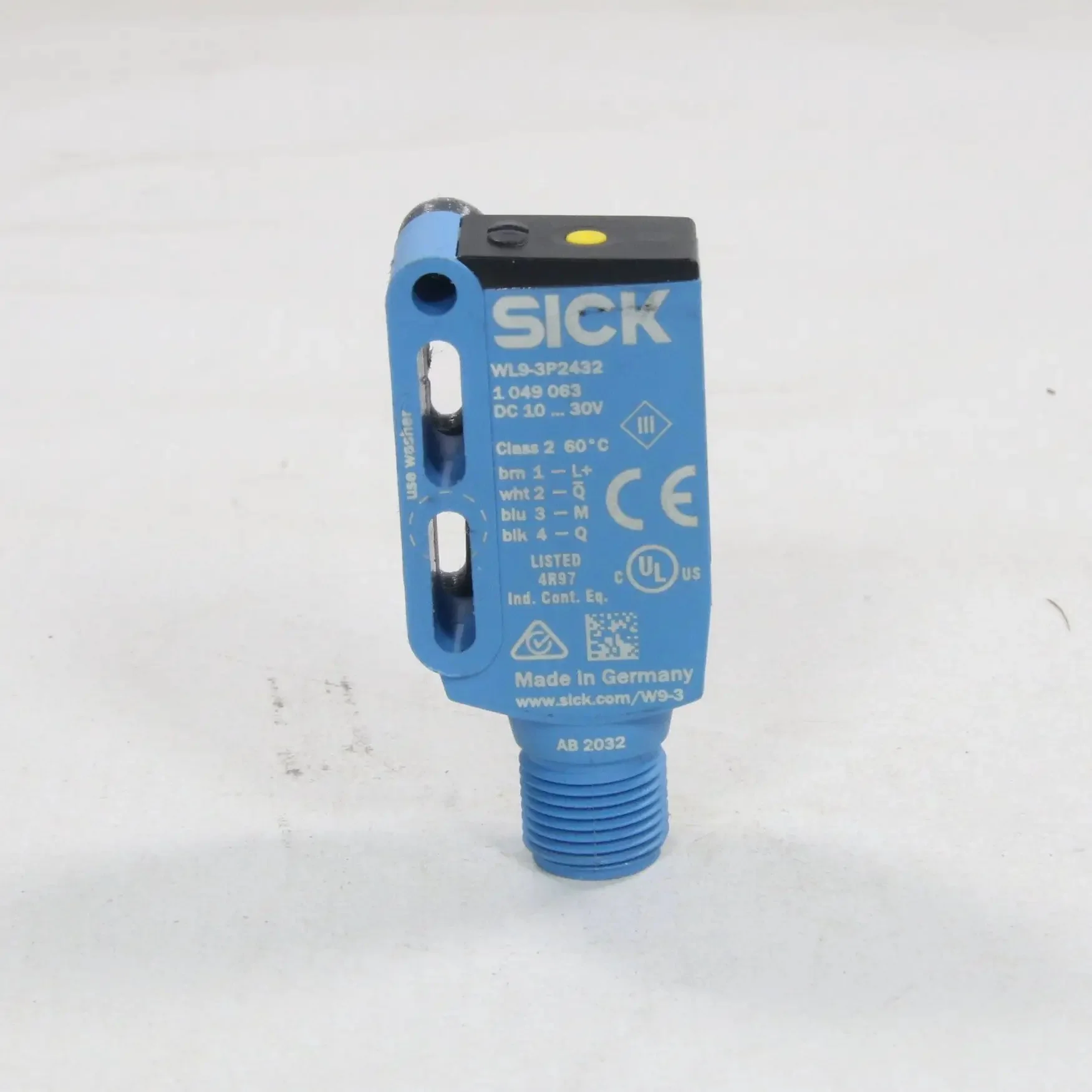

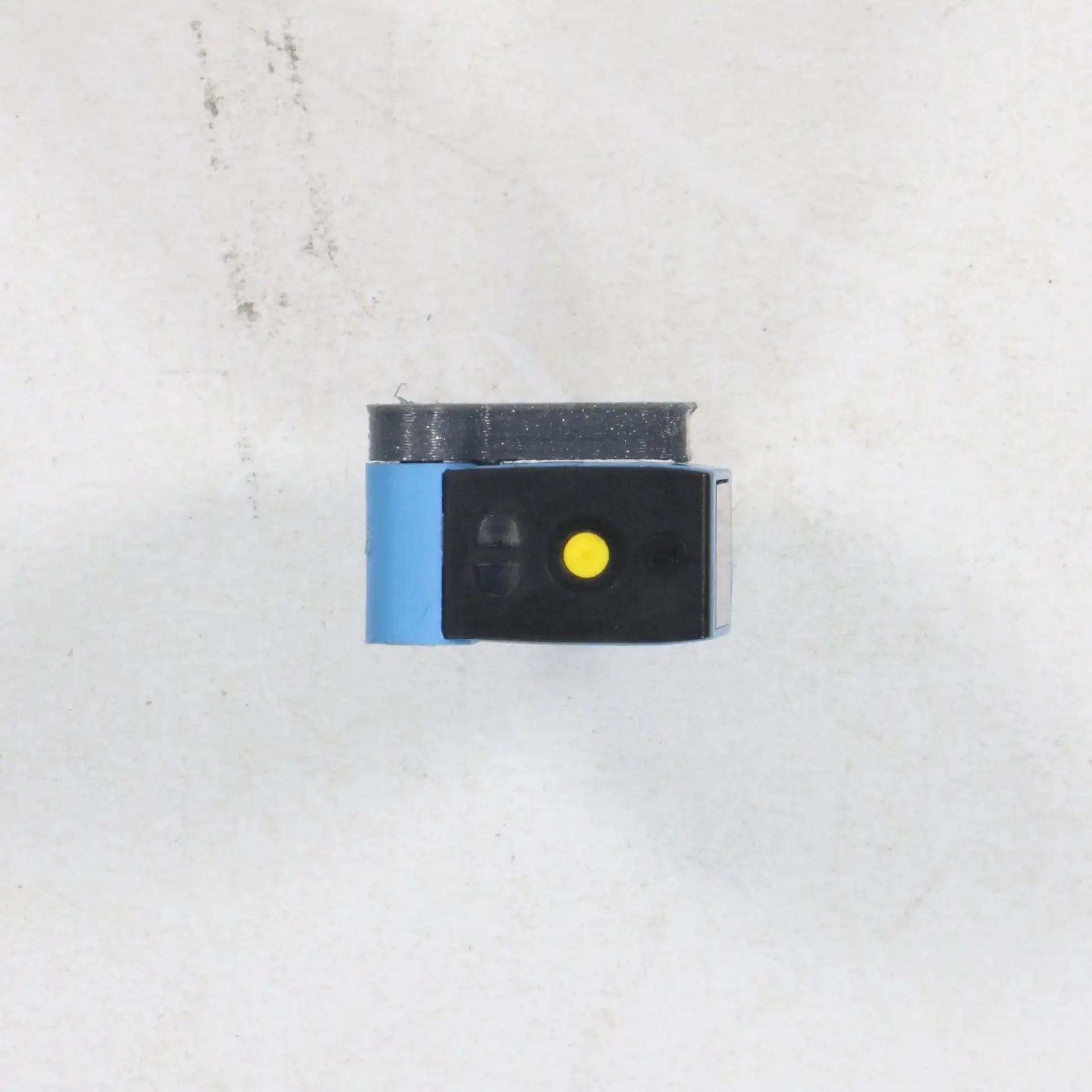

Sick WL9-3P2432 Photoelectric Sensor

- Brand: Sick
- Model: WL9-3P2432
- Type: Photoelectric Sensor
- Part Number: 1049063
  - Sensing principle: Retro-reflective with polarization filter
  - Sensing range: 0 ... 3 m
  - Light source: Pinpoint LED
  - Light spot size: 44 mm at 1.5 m
  - Supply voltage: 10 ... 30 V DC
  - Ripple: ≤ 5 Vpp
  - Current consumption: ≤ 30 mA
  - Output type: PNP
  - Switching output: Light/dark switching, selectable
  - Switching frequency: 1,000 Hz
  - Response time: ≤ 0.5 ms
  - Switching hysteresis: ≤ 5 %
  - Output current: ≤ 100 mA
  - Voltage drop: ≤ 2.5 V
  - Short-circuit protection: Yes
  - Reverse polarity protection: Yes
  - Protection class: III
  - Connection type: M12 connector, 4-pin
  - Housing material: Plastic, VISTAL
  - Degree of protection: IP67 / IP69K
  - Ambient temperature (operation): -40 °C ... +60 °C
  - Ambient temperature (storage): -40 °C ... +75 °C
  - Features: Polarisation filter, teach-in button, LED status indicators
- Dimensions: 12 x 52 x 23 mm
- Weight: 20 g
- Country of origin: Germany
- HS code: 853650
