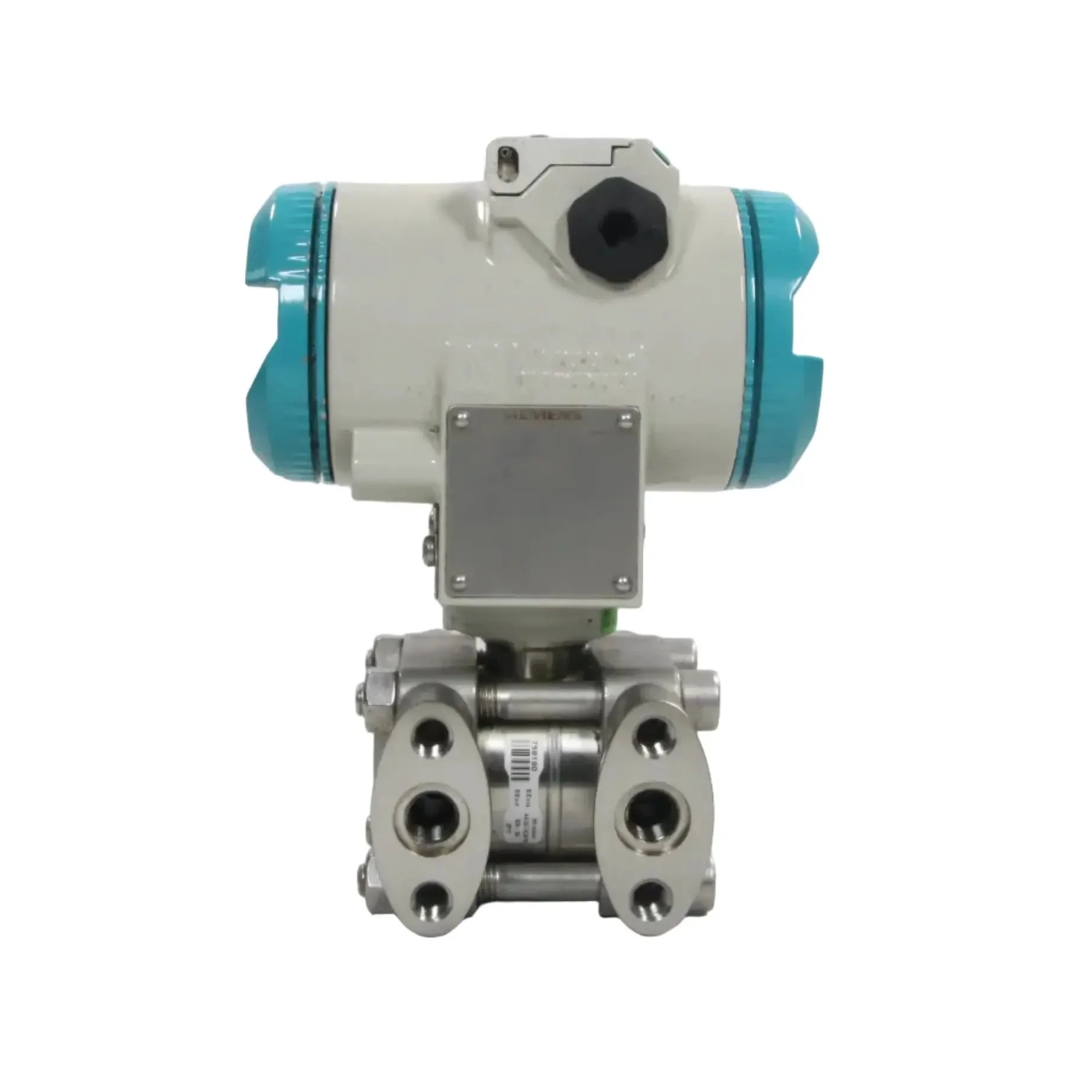

Siemens Sitrans P 7MF4433-1CA02-1AB1 Differential Pressure Transmitter

- Brand: Siemens

- Range: Sitrans P
- Model: 7MF4433-1CA02-1AB1
- Type: Differential Pressure Transmitter

- Fab. Nr.: N1-VN20-9674897
- All tech specs:
  - Function: Measures differential pressure, flow, level or density of gases, vapours and liquids in industrial processes
  - Measuring Range: 0.01 ... 0.6 bar
  - Overpressure Limit: One-sided 160 bar, both-sided 160 bar
  - Accuracy: ±0.075 % of span
  - Long-term Stability: ≤ ±0.125 % per 5 years
  - Temperature Influence: ≤ ±0.15 % per 28 °C span
  - Static Pressure Influence: ≤ ±0.075 % per 70 bar
  - Output Signal: 4 ... 20 mA
  - Supply Voltage: 10.5 ... 45 V DC
  - Power Consumption: < 0.5 W
  - Process Connection: Oval flanges x 2
  - Wetted Parts Material: 316L stainless steel (1.4404)
  - Fill Fluid: Silicone oil DC200
  - Housing Material: Die-cast aluminum with epoxy coating
  - Protection Rating: IP65
  - Operating Temperature: -40 °C to +85 °C
  - Explosion Protection: None in this variant
  - Features: Diagnostics (sensor monitoring, loop check), zero/span adjustment, damping 0-100 s, square root extraction for flow
- Dimensions: 120 x 140 x 200 mm
- Weight: 4.0 kg
- Country of origin: France
- HS code: 902620
