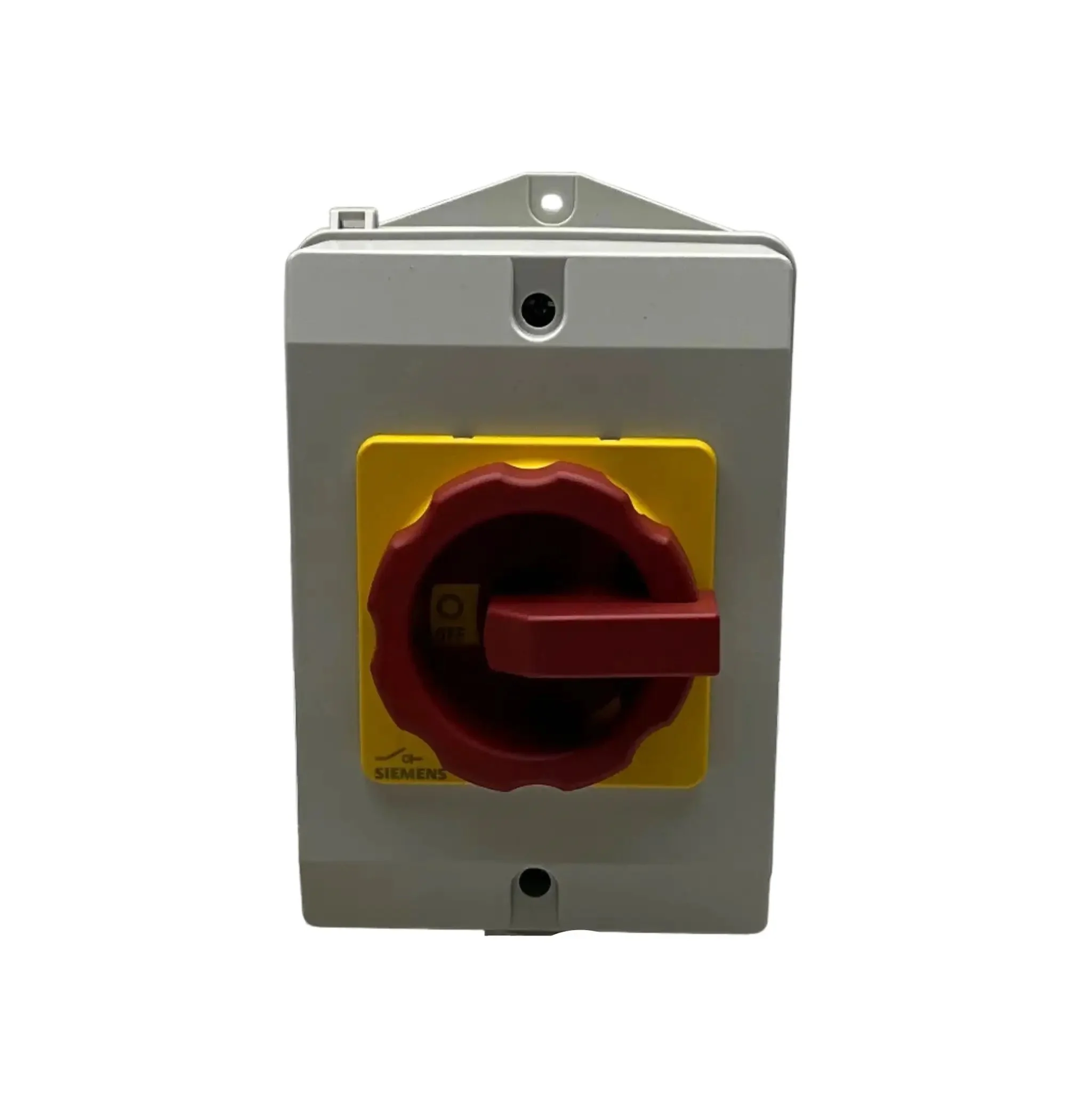

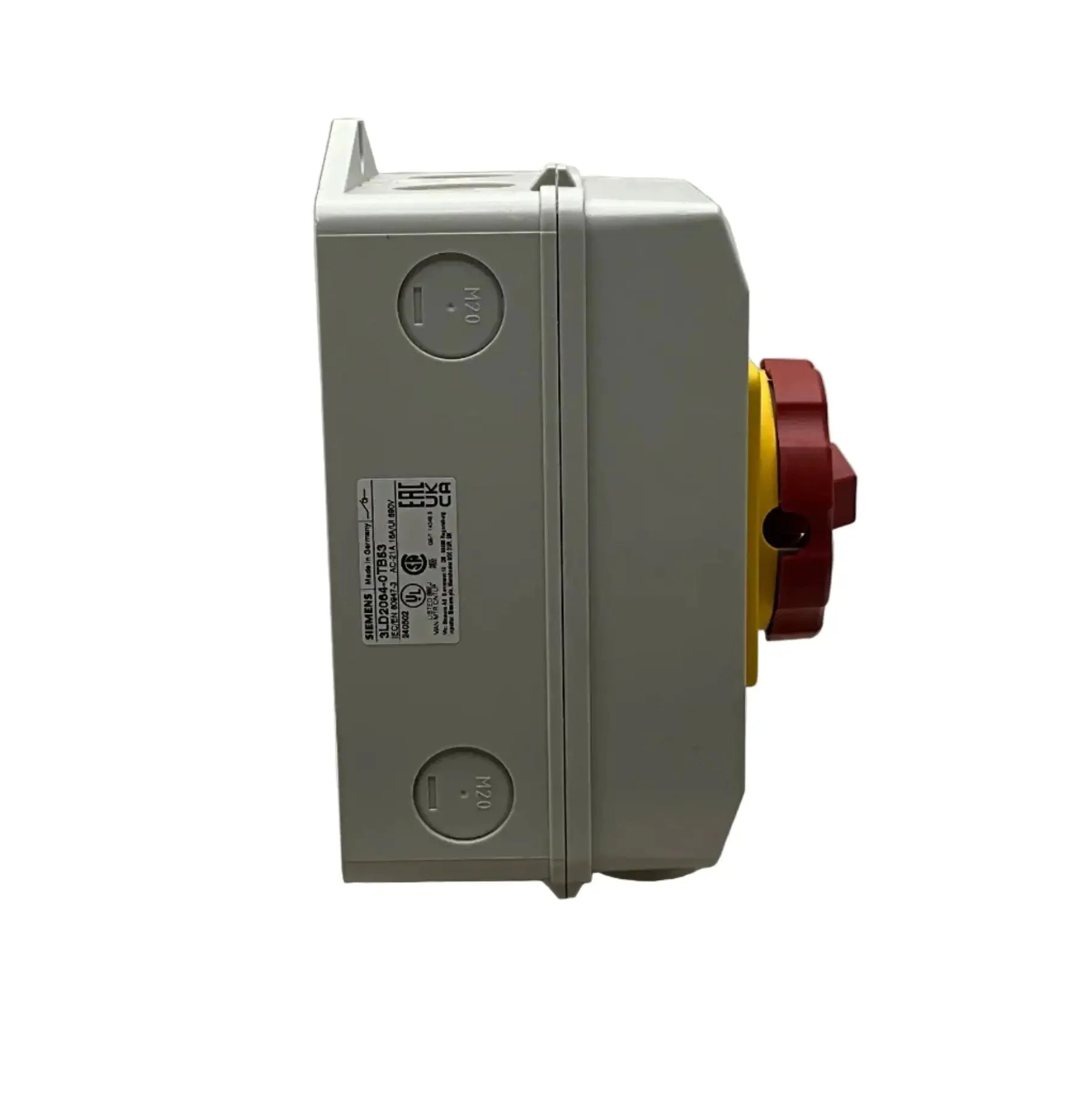

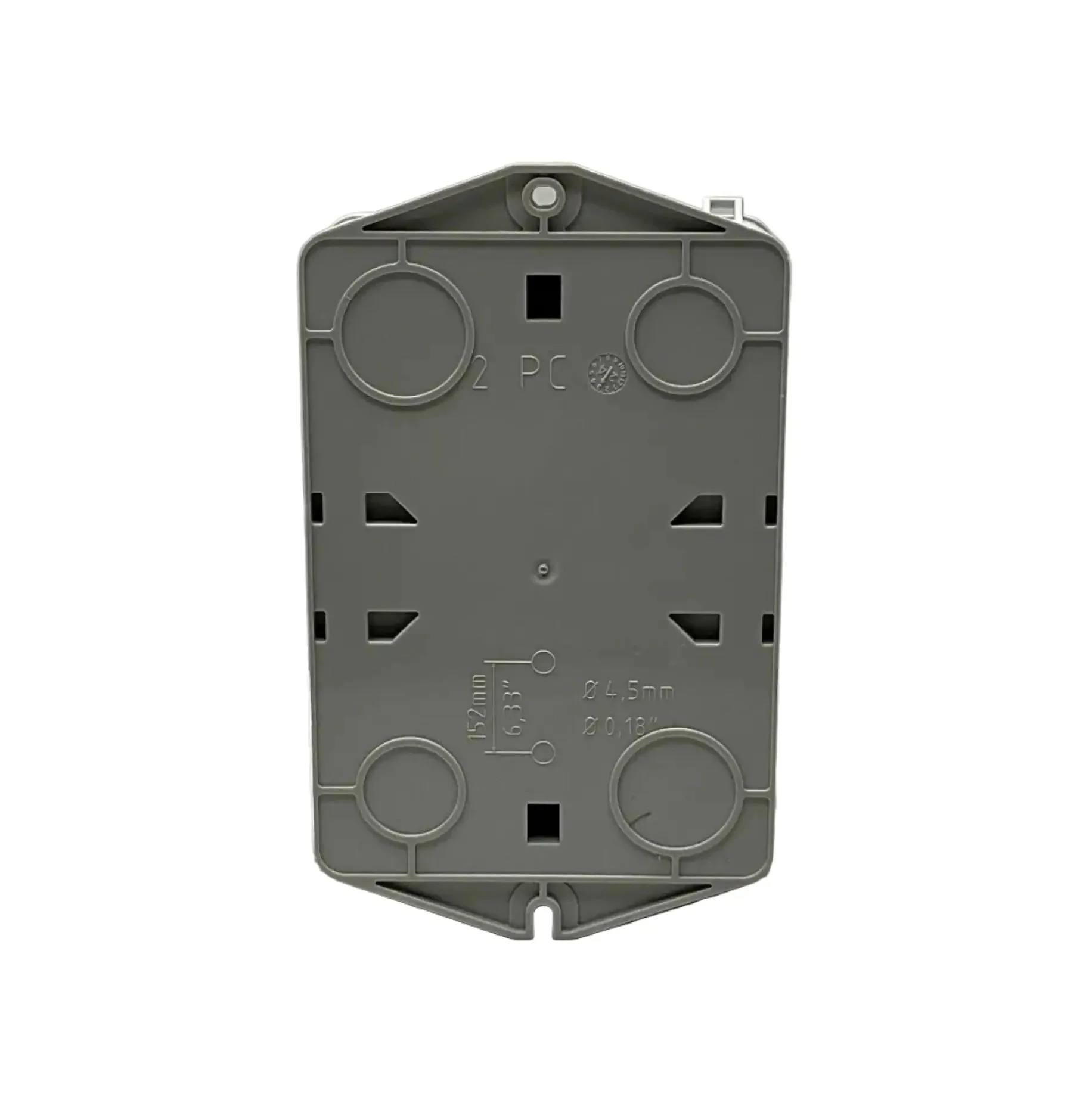

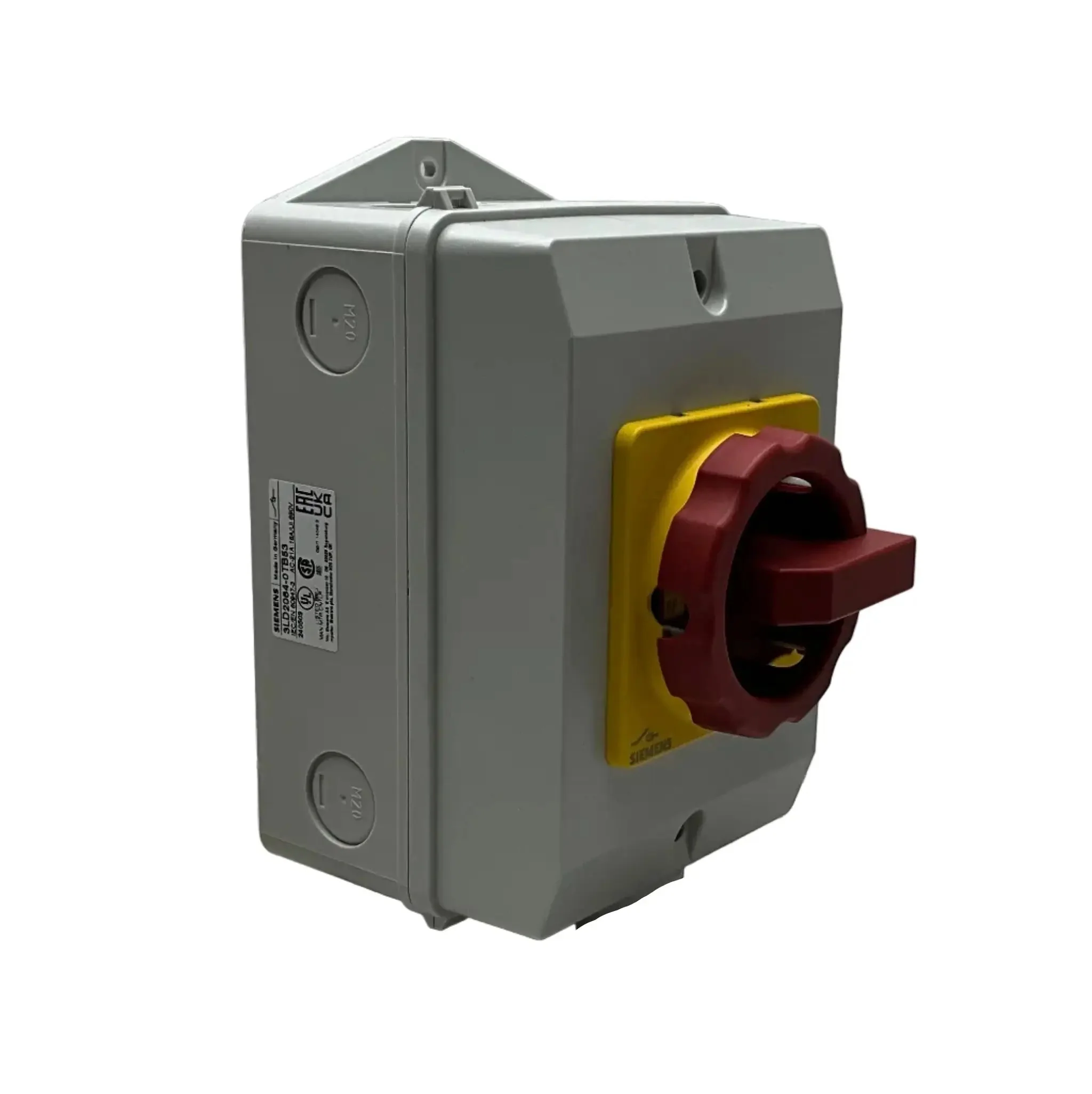

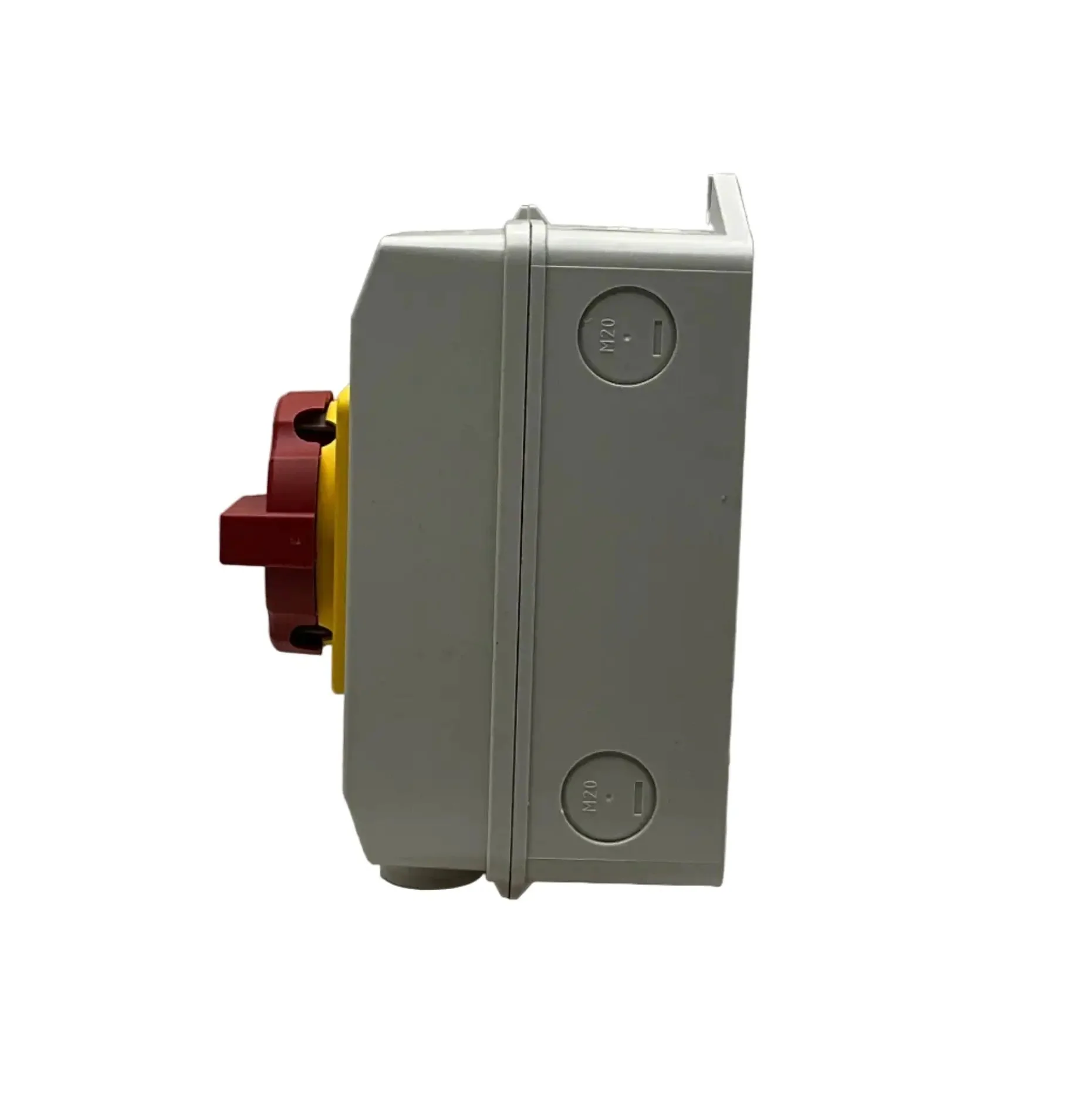

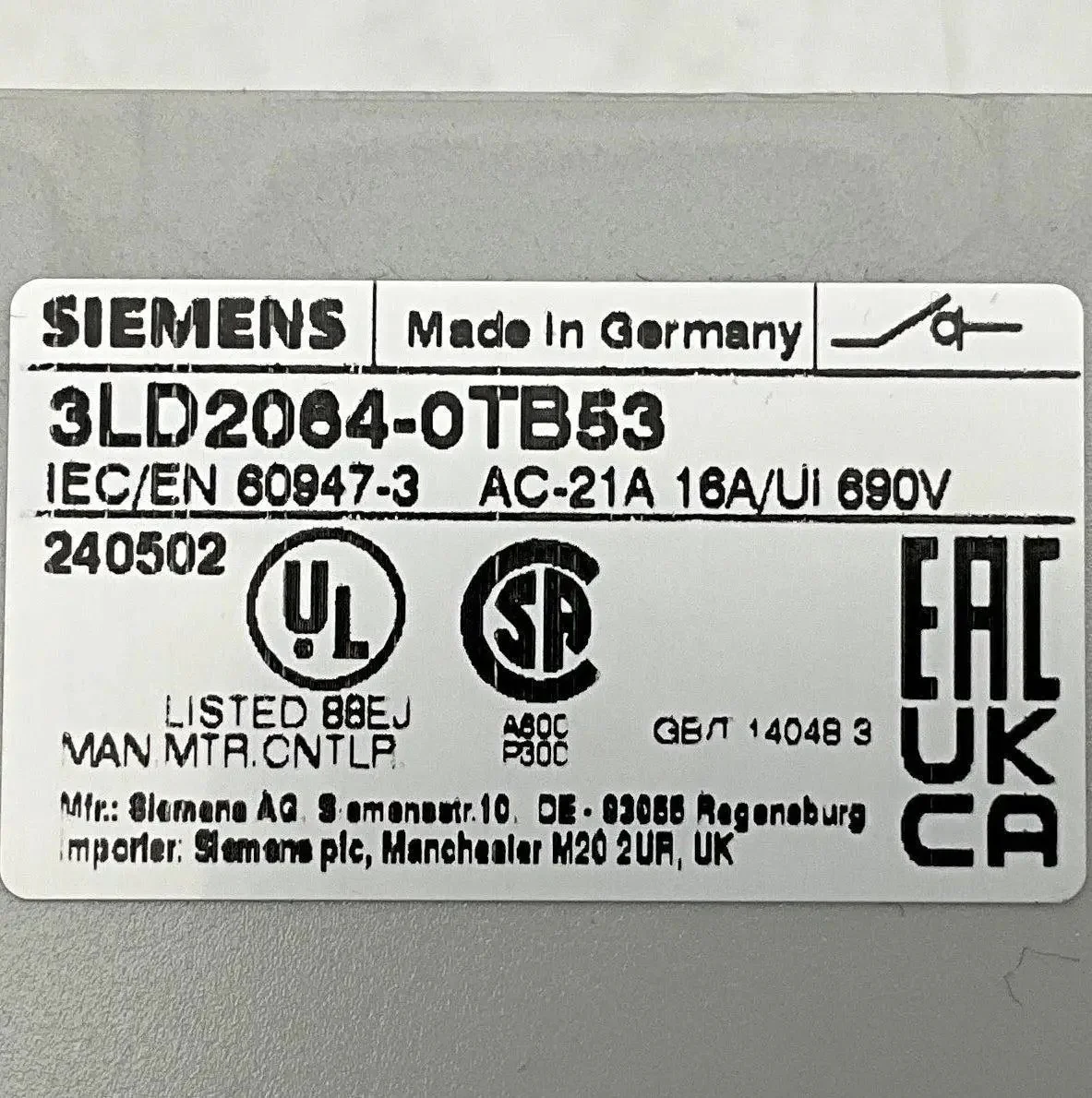

Siemens 3LD2064-0TB53 Switch Disconnector

- Brand: Siemens
- Model: 3LD2064-0TB53
- Type: Switch Disconnector (Isolator Switch)
- Part Number: 3LD2064-0TB53

- Technical Specs:
- Rated Operational Voltage (Ue): 690 V AC (50/60 Hz)
- Rated Operational Current (Ie): 16 A
- Rated Operational Power: 400 V: 7.5 kW
- Rated Insulation Voltage (Ui): 690 V
- Number of Poles: 3-pole
- Switching Capacity: AC-21A
- Utilization Category: AC-21A
- Handle Type: Red/yellow rotary handle
- Degree of Protection: IP65
- Connection Type: Screw terminals
- Conductor Cross-Section: 1.5–25 mm²
- Operating Temperature: -25 °C to +55 °C
- Additional Features:
  - Door coupling rotary mechanism for direct mounting
  - Lockable in OFF position
  - Red/yellow handle for emergency/off indication
  - Positive opening of contacts (positive drive)
  - Compliant with IEC 60947-1, IEC 60947-3

Dimensions: 165 x 120 x 104 mm

Weight: 420 g

Country of Origin: Germany

HS Code: 8536.50
