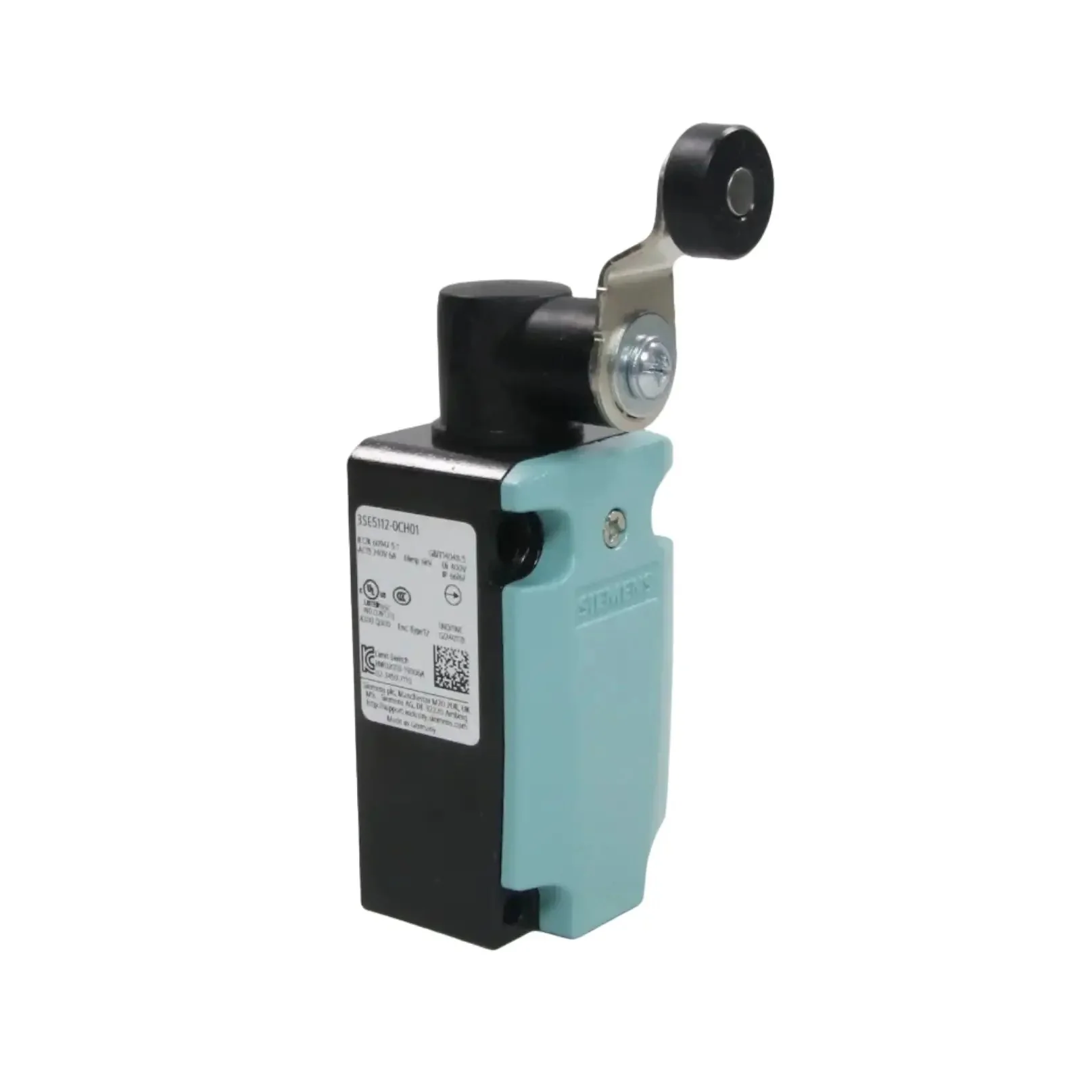

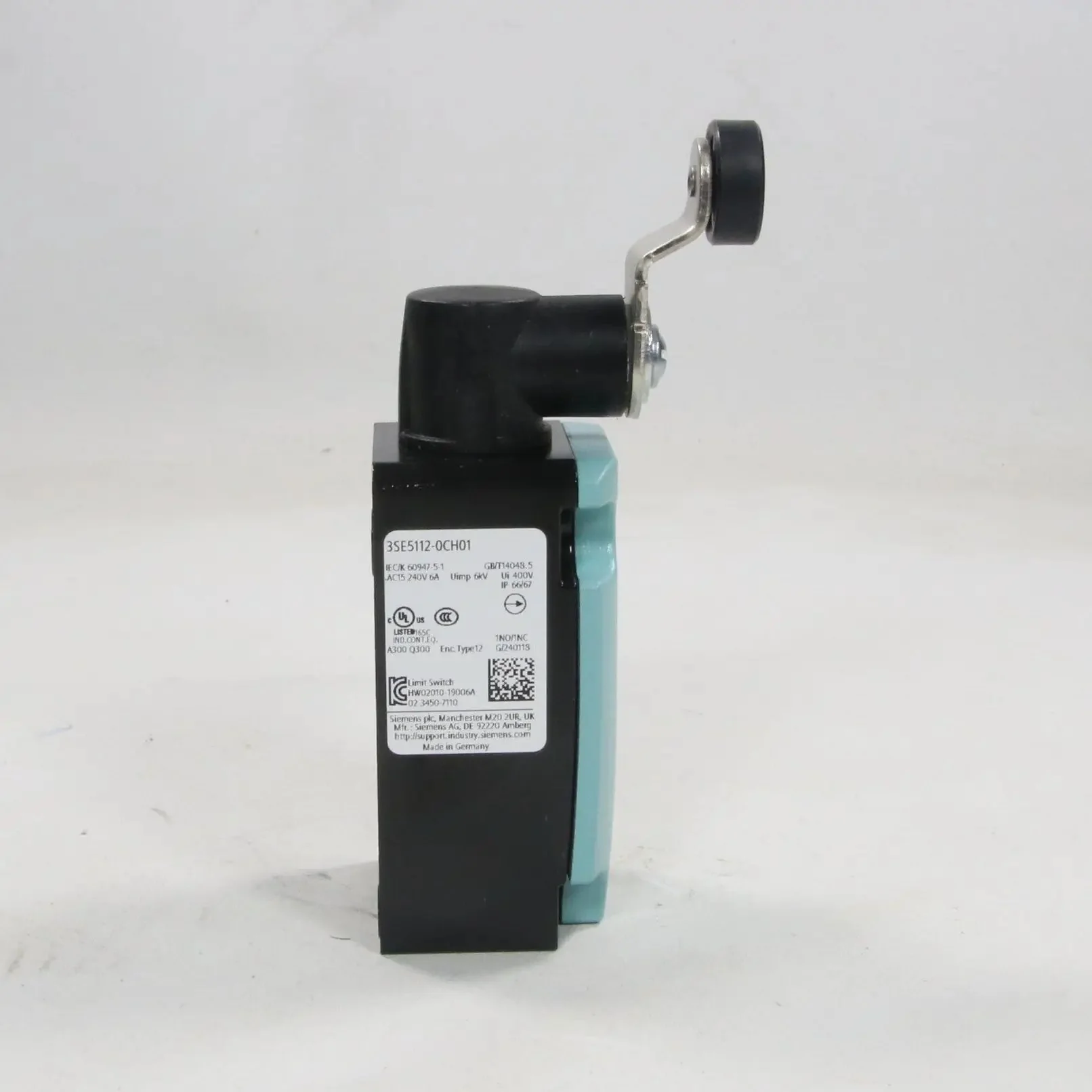

Siemens 3SE5112-0CH01 Limit Switch

Brand: Siemens

Model: 3SE5112-0CH01

Type: Position Switch / Limit Switch

Part number: 3SE5112-0CH01

Technical specifications:
- Actuator type: Plunger (metal plunger with roller; spring return; adjustable in some configurations)
- Contacts: 1 NO + 1 NC
- Rated operational current (Ie): 6 A AC-15 at 230 V; 3 A DC-13 at 24 V
- Rated operational voltage: 400 V AC max
- Degree of protection: IP66 / IP67
- Operating temperature: -25°C to +85°C
- Mechanical durability: 15 million operating cycles
- Electrical durability: 1 million cycles
- Housing material: Metal (die-cast zinc alloy; corrosion-resistant)
- Cable entry: 1 x M20
- Mounting: Surface mounting
- Additional features: Positive opening contacts; high vibration/shock resistance; compact metal design; suitable for industrial use; modular with interchangeable actuators
- Standards: IEC/EN 60947-5-1 compliant; CE, UL, CSA approvals; suitable for Category 4 / PL e when used in safety circuits

Weight: 400 g

Dimensions: 165 x 55 x 80 mm

Country of origin: Germany

HS code: 8536.50
