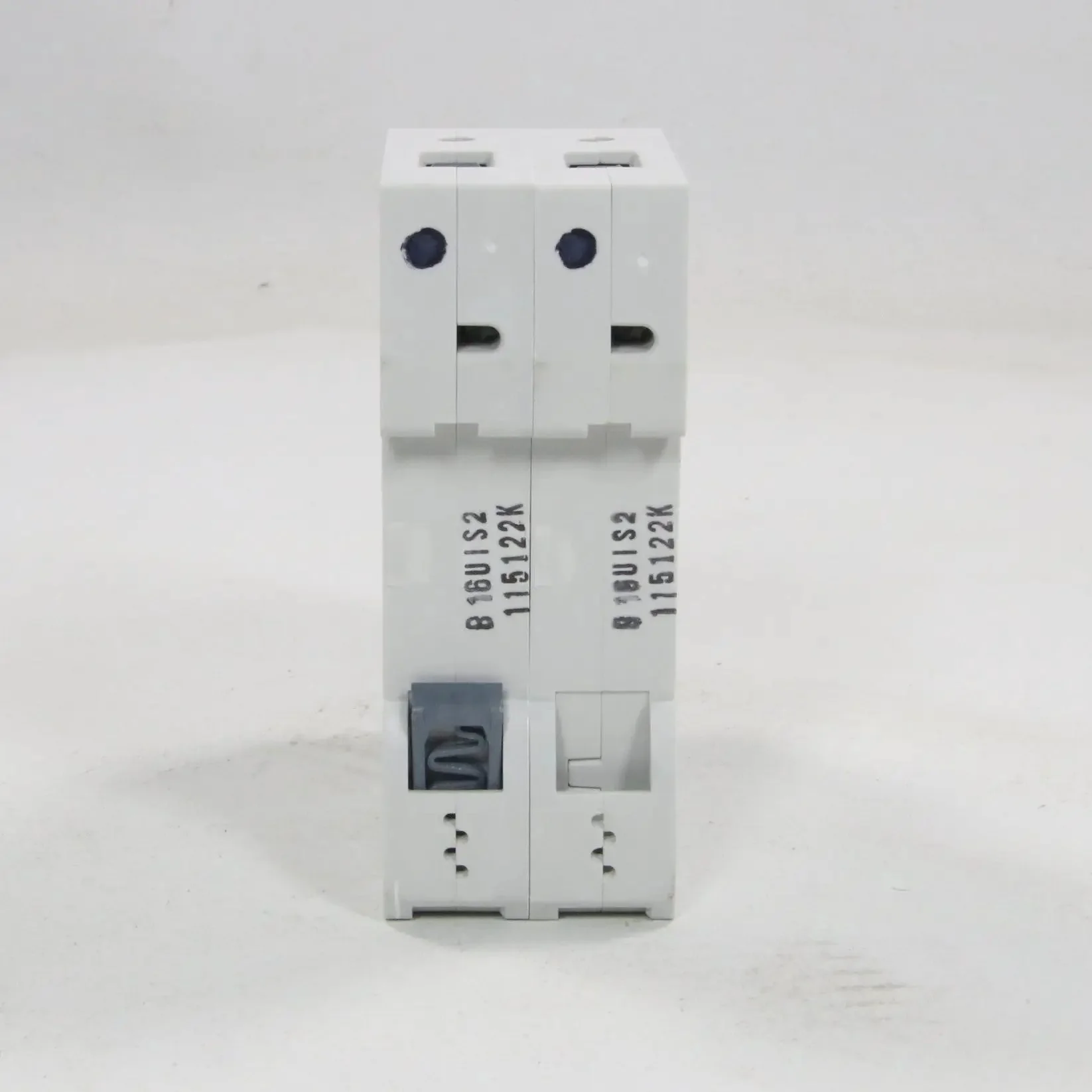

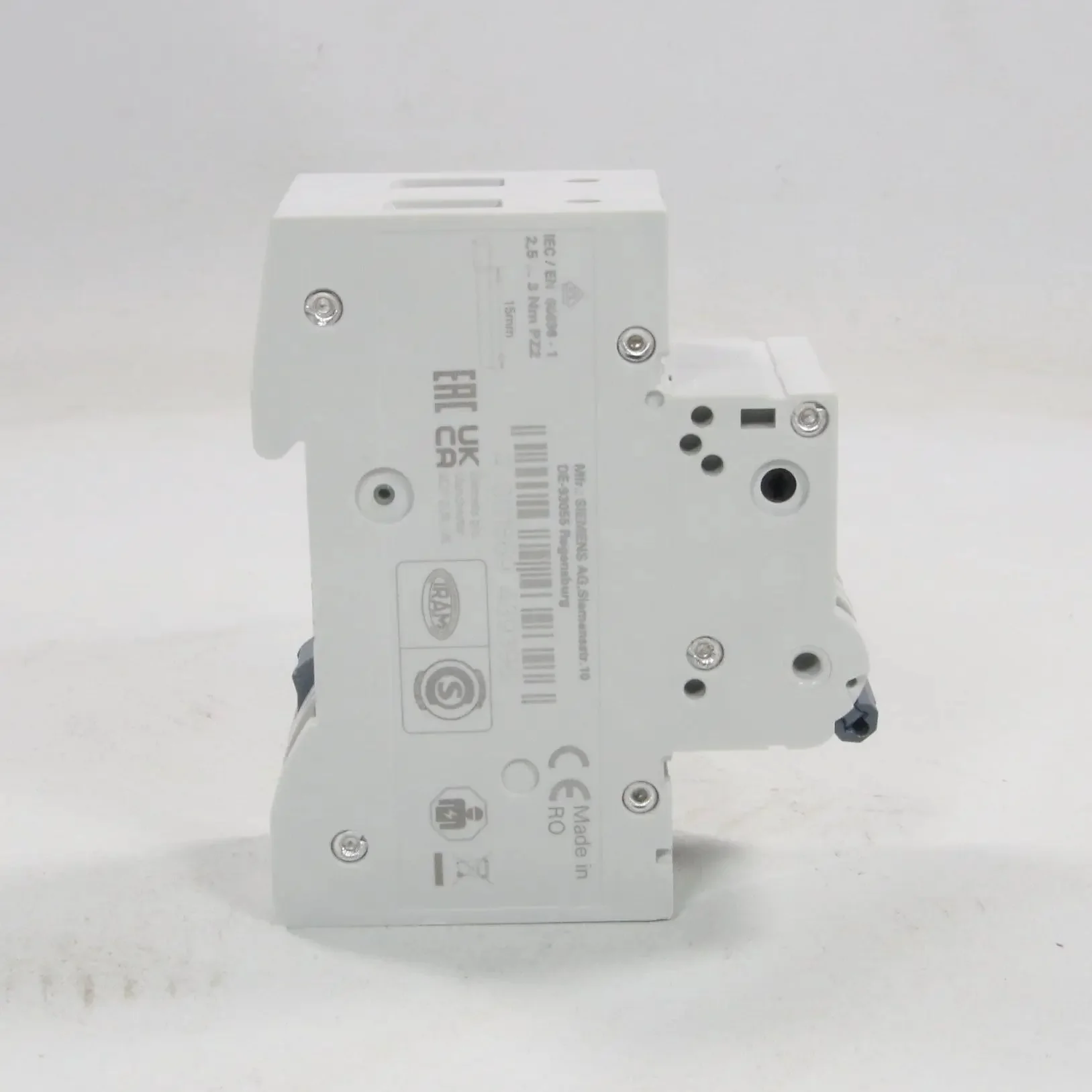

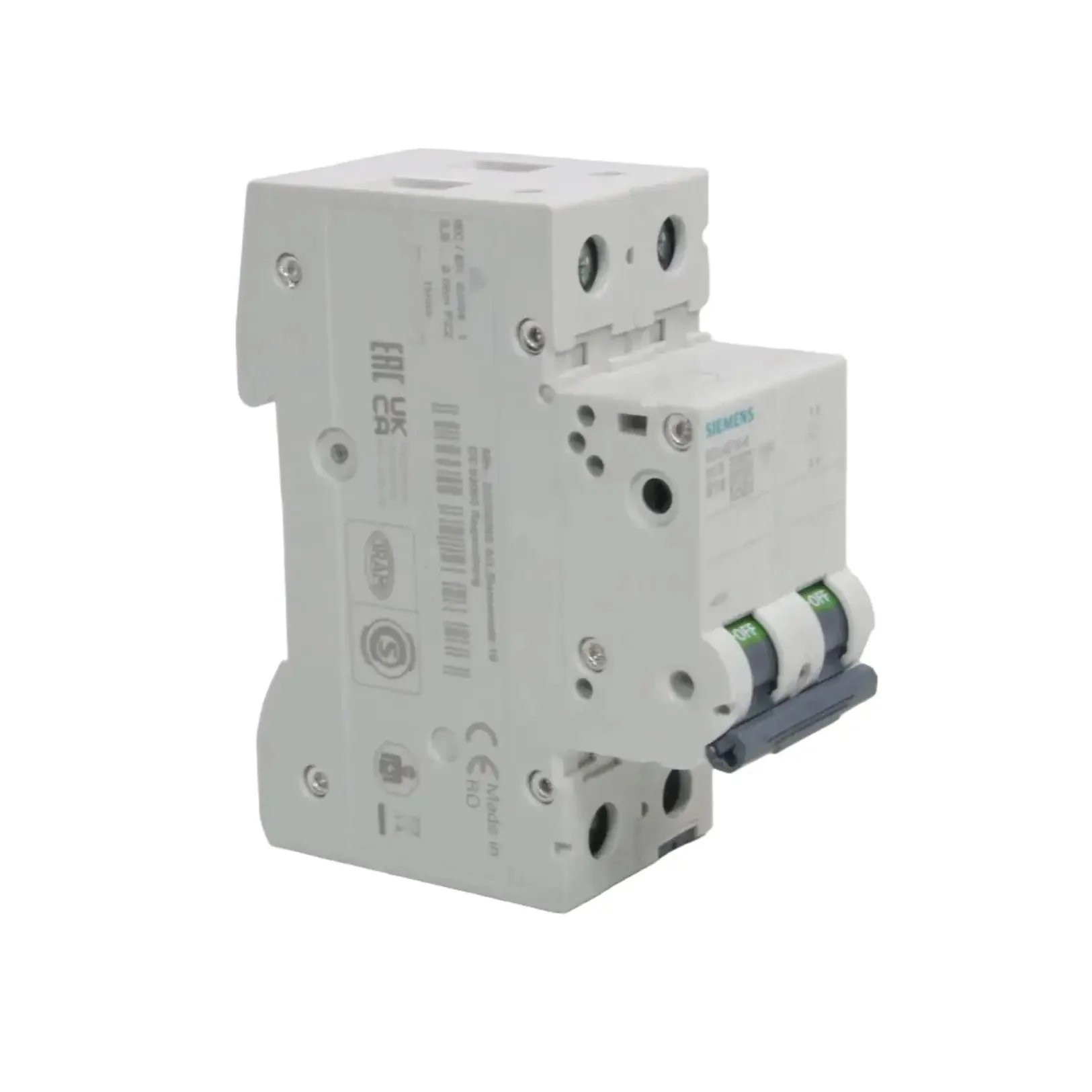

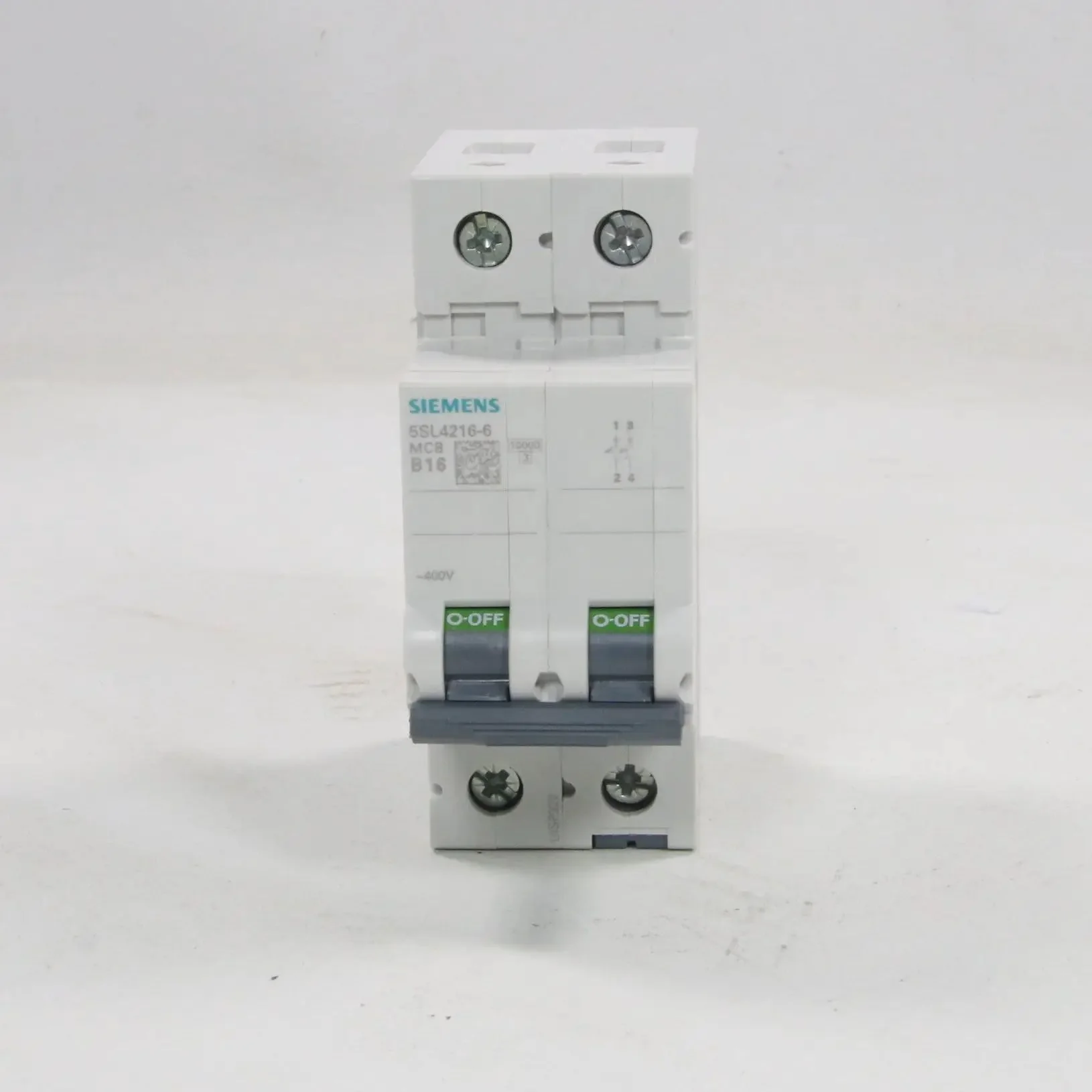

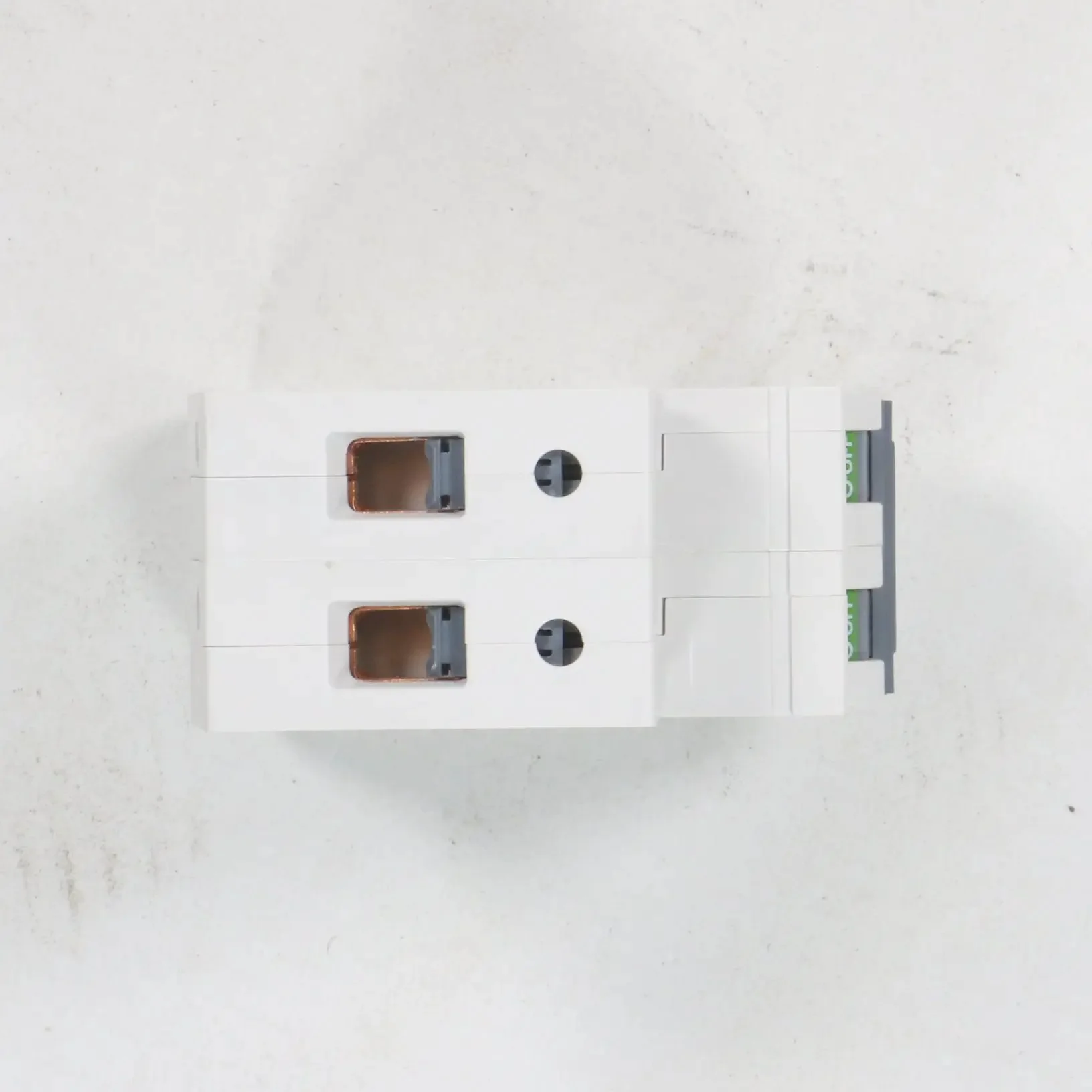

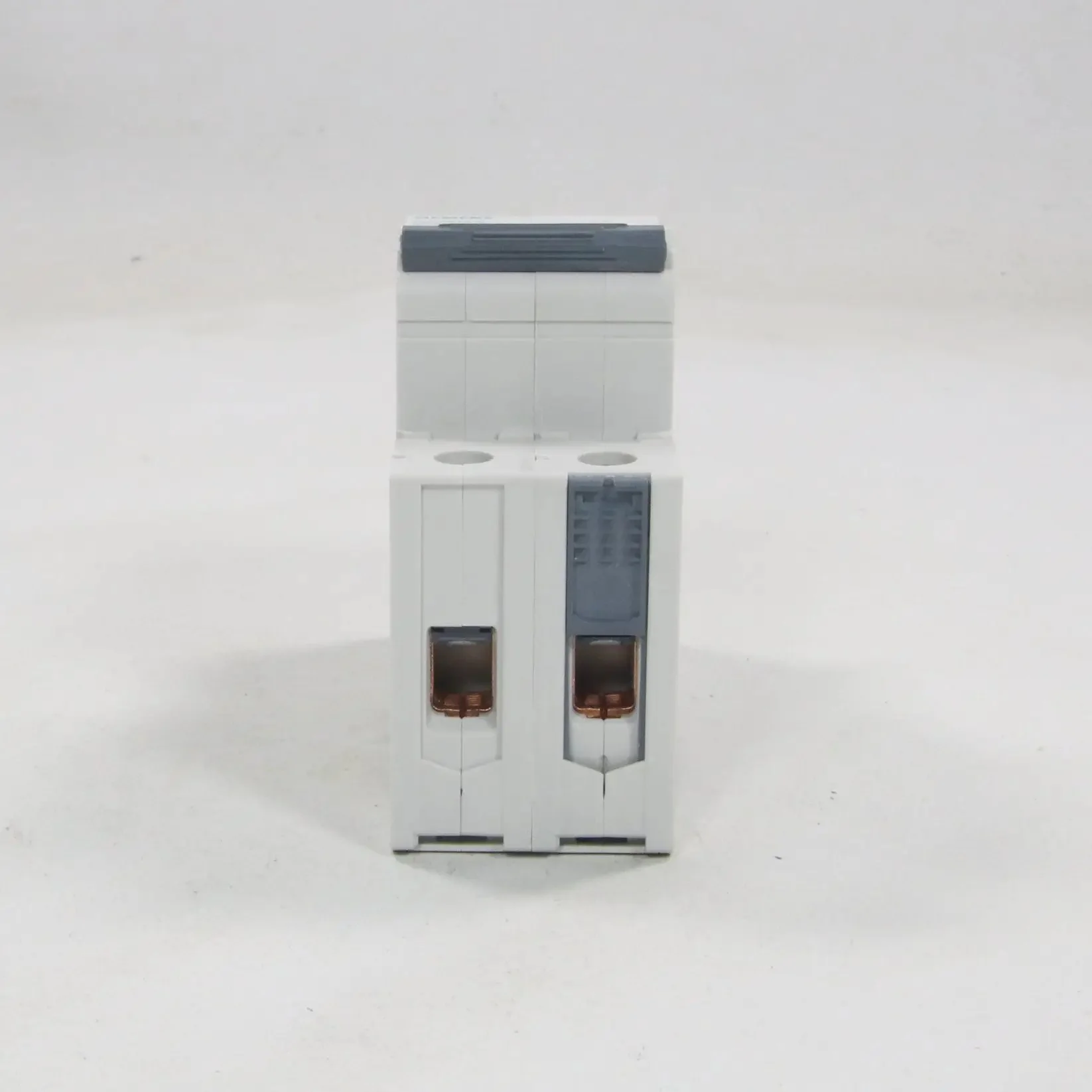

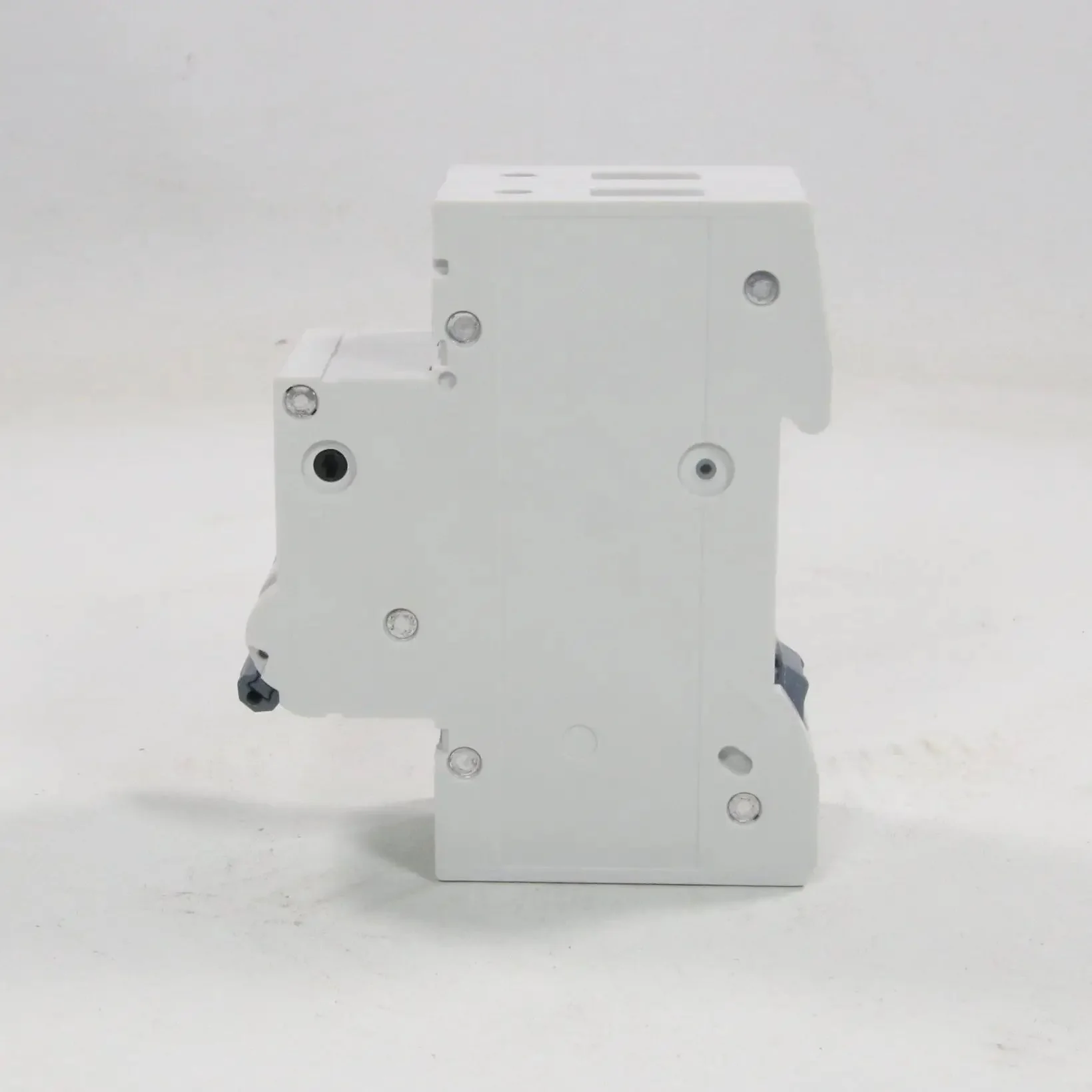

Siemens 5SL4216-6 Miniature Circuit Breaker

- Brand: Siemens

- Model: 5SL4216-6 (part of SENTRON 5SL4 series)

- Type: Miniature Circuit Breaker (MCB)

- Part number: 5SL4216-6

- Technical specifications:
- Poles: 2P (2 poles total, 2 protected poles)
- Rated current (In): 16 A
- Tripping characteristic: B
- Rated operational voltage: 400 V AC
- Breaking capacity (Icu): 10 kA (IEC/EN 60898-1 compliant)
- Frequency: 50/60 Hz
- Rated insulation voltage (Ui): 440 V
- Mounting: DIN rail
- Additional features: Finger-safe terminals; quick latching release from busbar; mechanical service life high; suitable for AC applications; no auxiliary contacts integrated; RoHS compliant
- Standards: IEC/EN 60898-1 (household and similar), suitable for overcurrent protection in final circuits

Weight: 350 g

Dimensions: 95 x 80 x 40 mm (box)

Country of origin: Romania

HS code: 8536.20
