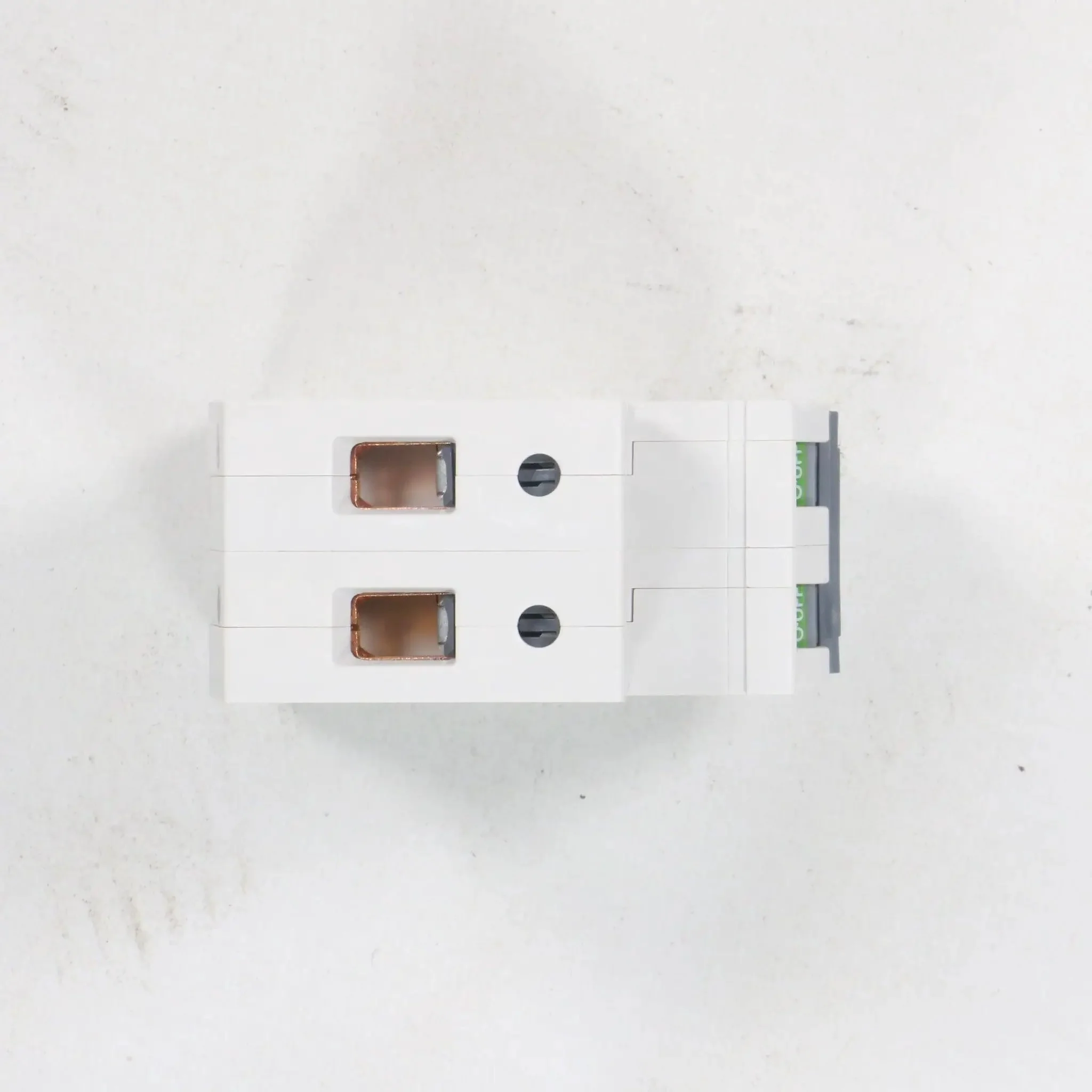

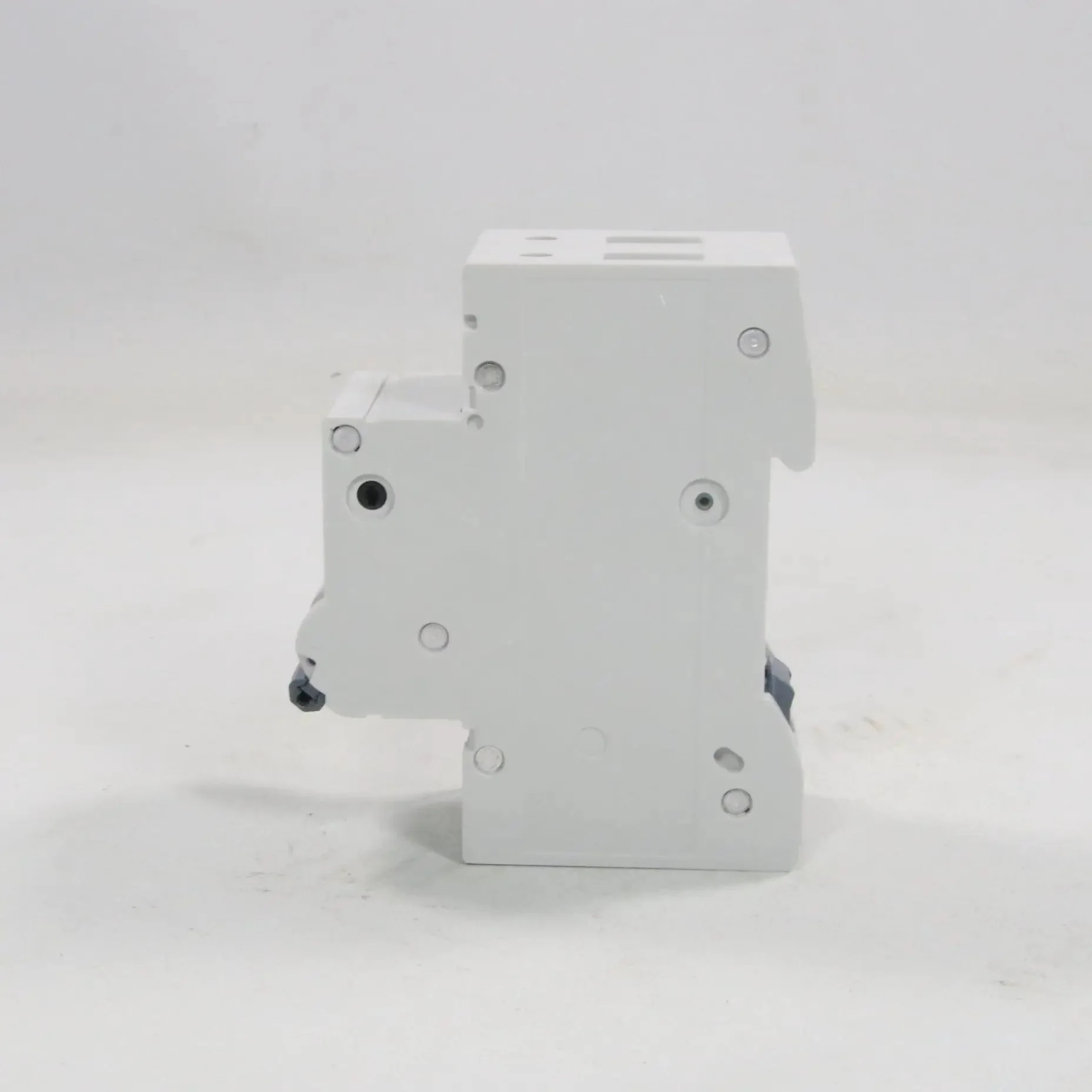

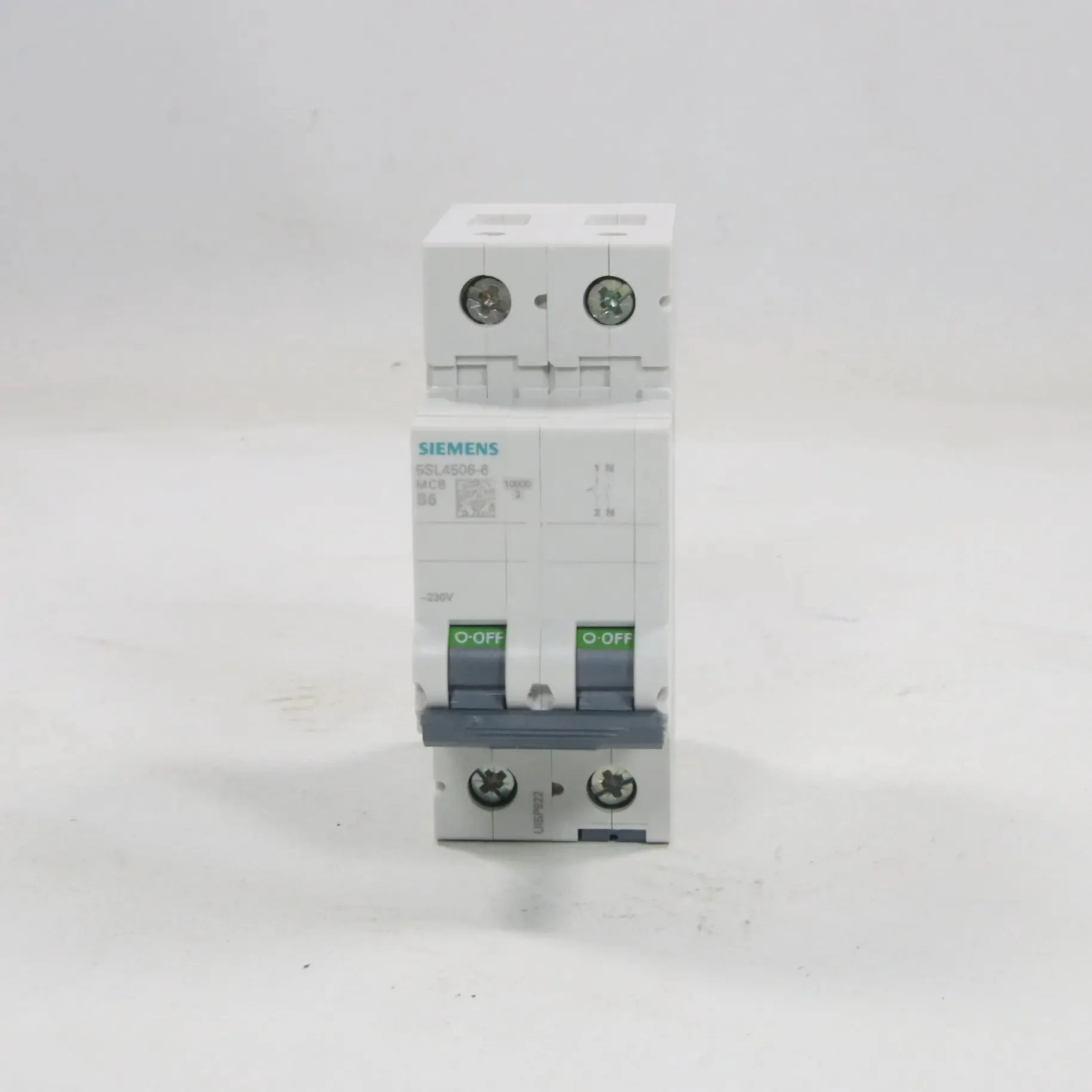

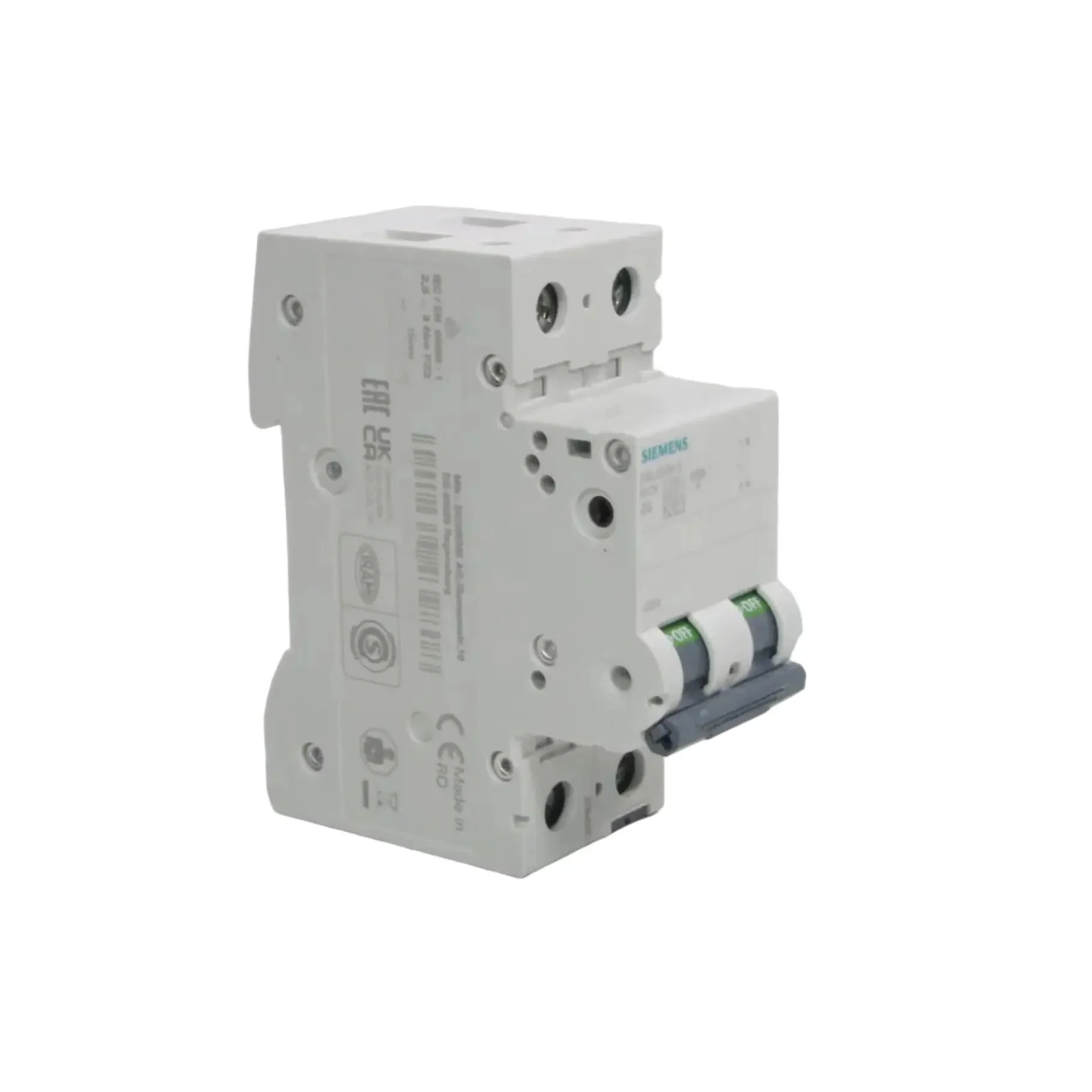

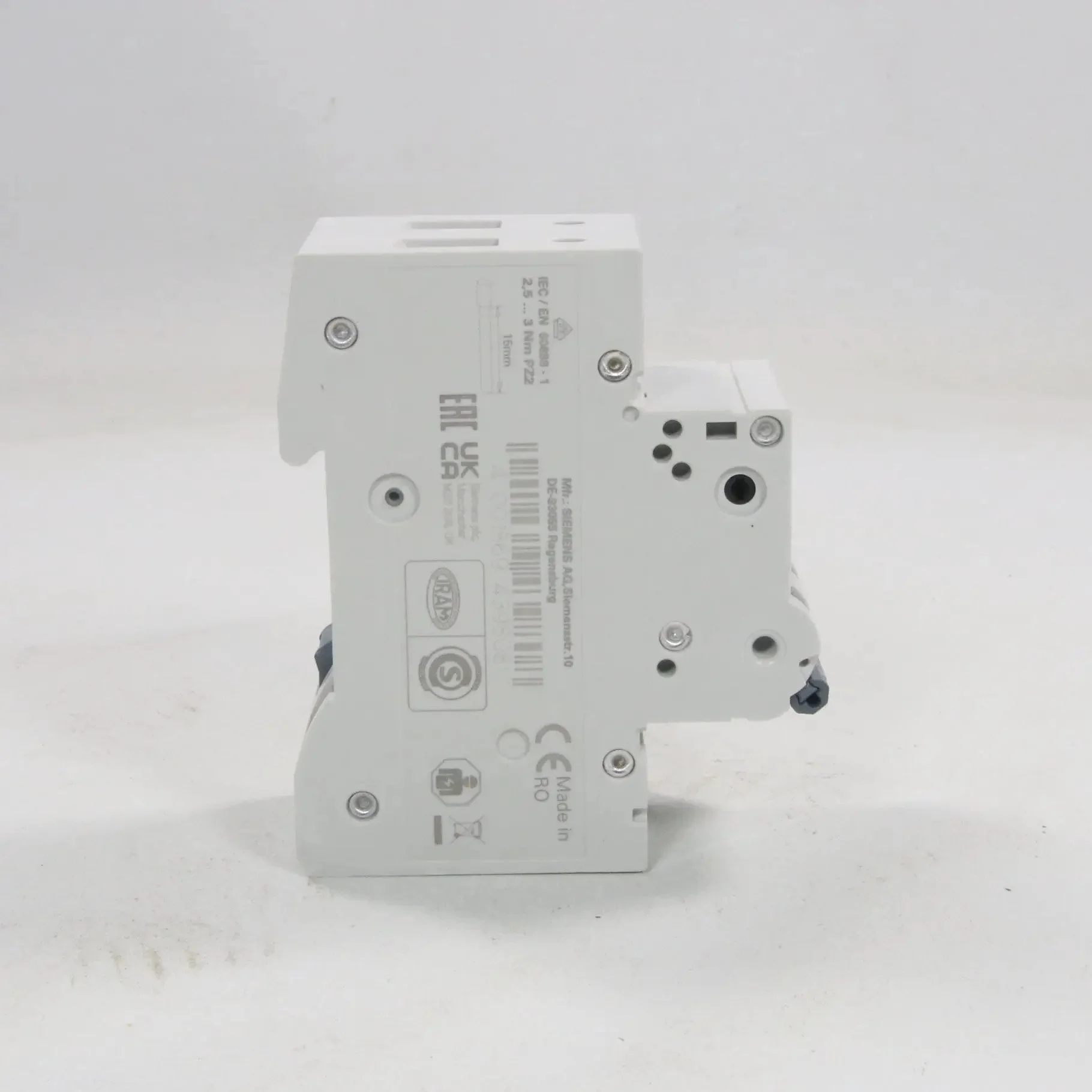

Siemens 5SL4506-6 Miniature Circuit Breaker

- Brand: Siemens

- Model: 5SL4506-6 (part of SENTRON series)

- Type: Miniature Circuit Breaker (MCB)

- Part number: 5SL4506-6

- Technical specifications:
- Poles: 2 (total), 1+N (1 protected pole + neutral pole; 1P+N)
- Rated current (In): 6 A
- Tripping characteristic: B
- Rated operational voltage: 230 V AC
- Breaking capacity (Icu): 10 kA (IEC/EN 60898-1 compliant)
- Frequency: 50/60 Hz
- Rated insulation voltage (Ui): Typically 440 V
- Overvoltage category: 3
- Mounting: DIN rail
- Additional features: Finger-safe terminals; quick latching release from busbar; mechanical service life high ; suitable for AC applications; no integrated auxiliary contacts; overload and short-circuit protection; compliant with IEC/EN 60898-1  and IEC/EN 60947-2; operating temperature -25°C to +55°C; connectable conductor cross-section typically 0.75–35 mm² solid/stranded
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, RoHS compliant

Weight: 320 g

Dimensions: 90 x 35 x 70 m

Country of origin: Romania

HS code: 8536.20
