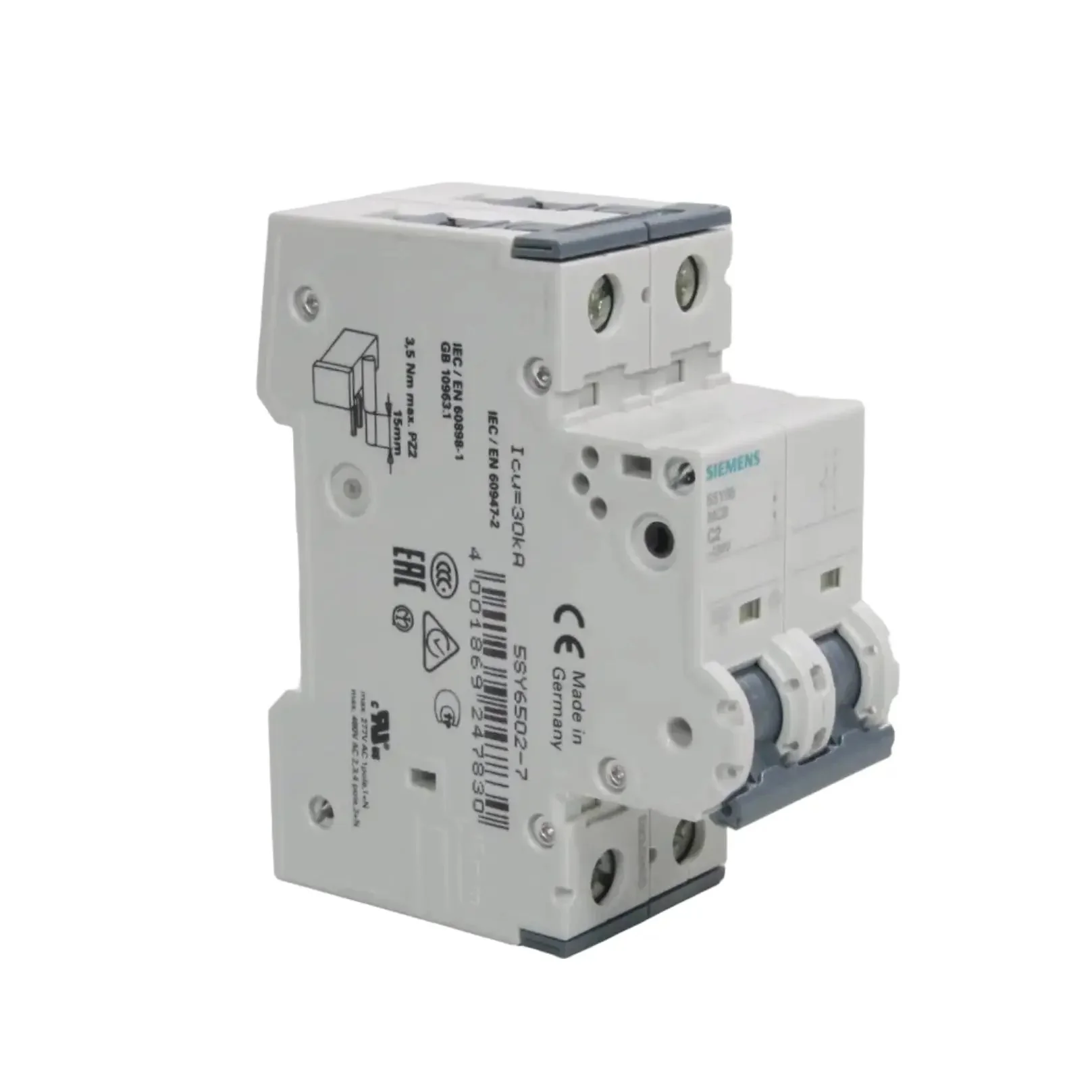

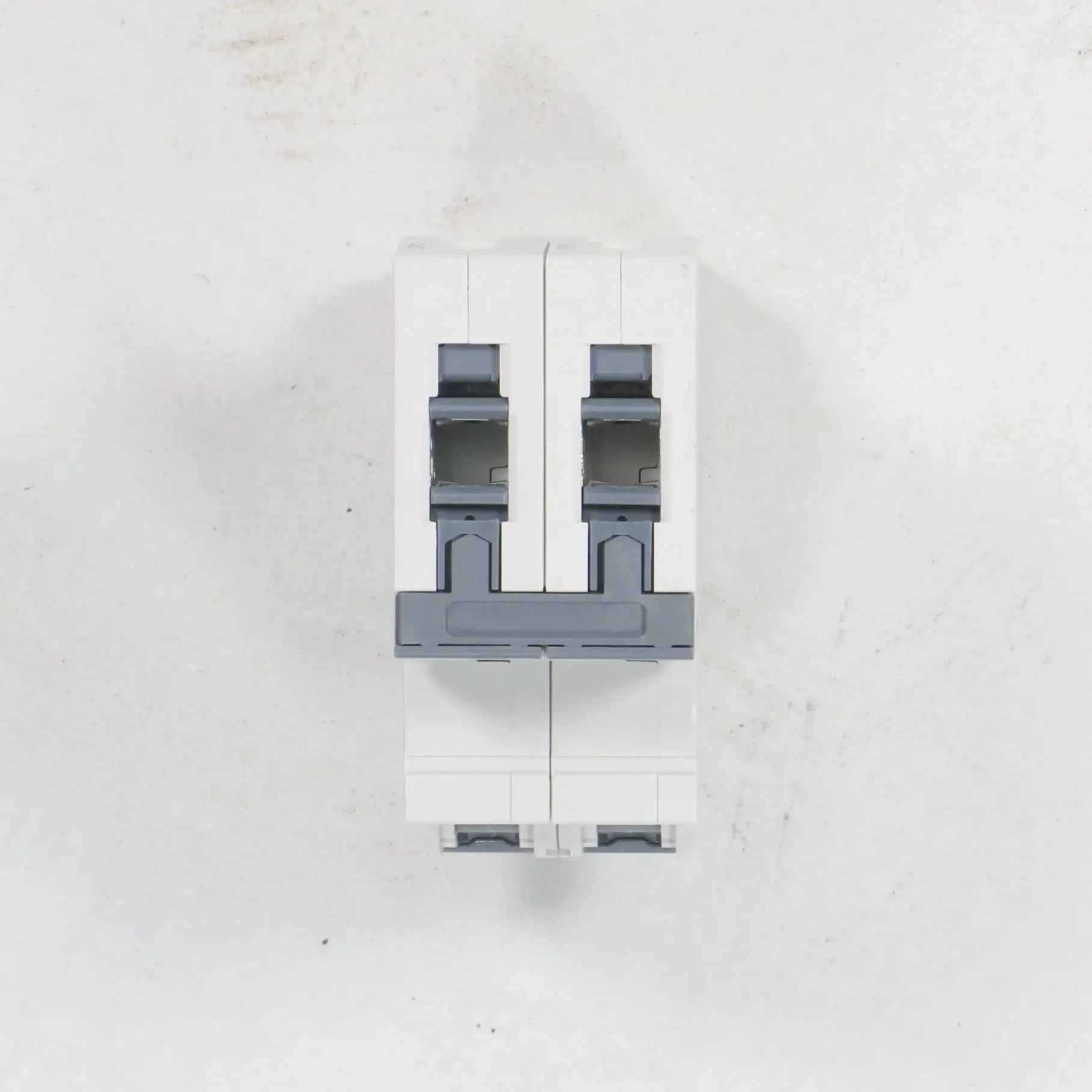

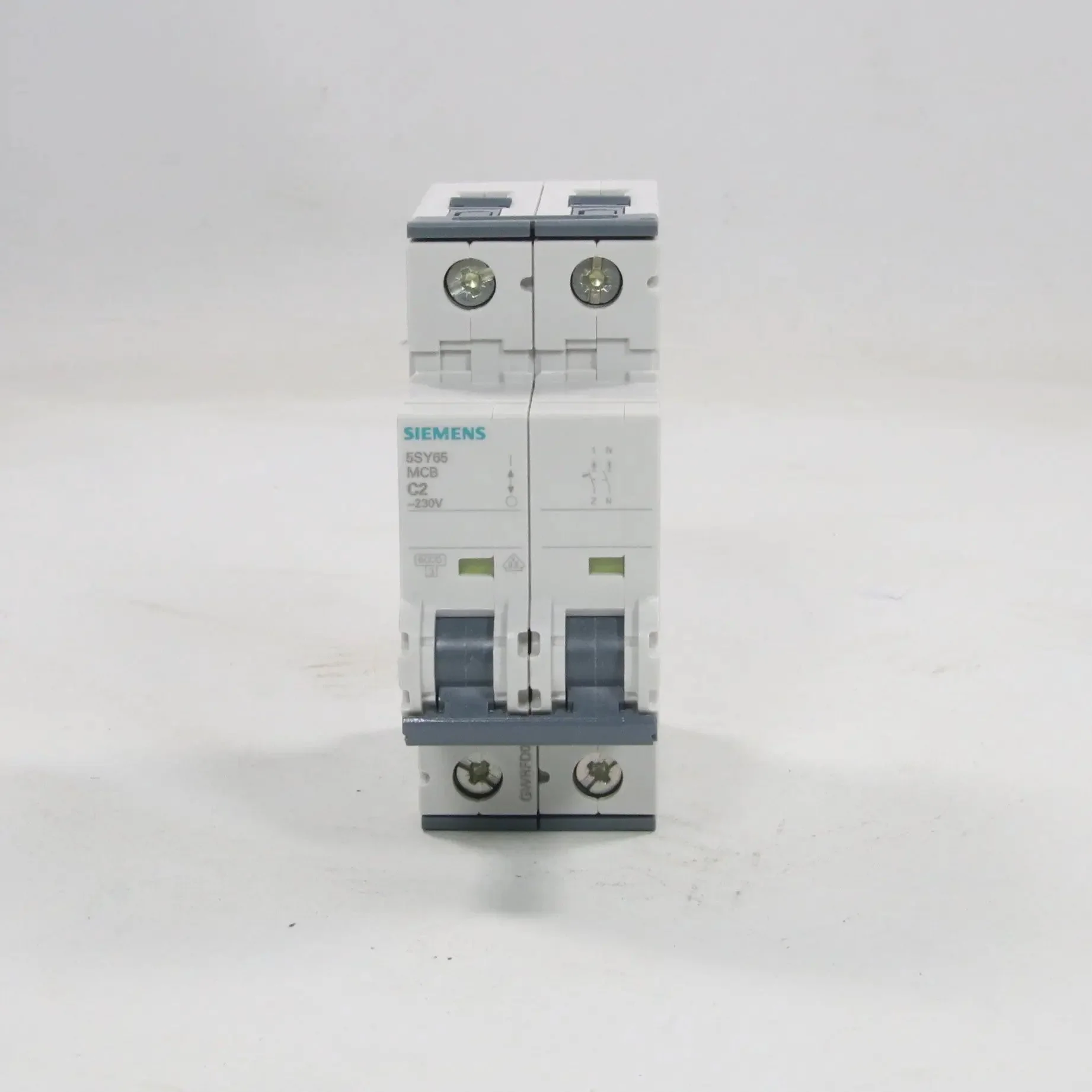

Siemens 5SY6502-7 Miniature Circuit Breaker

- Brand: Siemens

- Model: 5SY6502-7 (part of SENTRON 5SY6 series)

- Type: Miniature Circuit Breaker (MCB) / Miniature Circuit Breaker

- Part number: 5SY6502-7

- Technical specifications:
- Poles: 2 (total), 1+N (1 protected pole + neutral pole; 1P+N)
- Rated current (In): 2 A
- Tripping characteristic: C
- Rated operational voltage: 230 V AC
- Breaking capacity (Icu): 6 kA
- Frequency: 50/60 Hz
- Rated insulation voltage (Ui): 250 V
- Overvoltage category: 3
- Mounting: DIN rail
- Additional features: Finger-safe terminals; quick installation/removal from busbar; mechanical service life high (thousands of cycles); suitable for AC applications; no integrated auxiliary contacts; overload and short-circuit protection; compliant with IEC/EN 60898-1 (household/similar) and IEC/EN 60947-2 (industrial)
- Operating temperature: -25°C to +55°C (ambient)
- Connectable conductor cross-section: Solid/stranded min. 0.75 mm² to max. 35 mm²; finely stranded with ferrule up to 25 mm²; AWG equivalents supported
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL1077

Weight: 320 g

Dimensions: 90 x 35 x 80 mm

Country of origin: Germany

HS code: 8536.20
