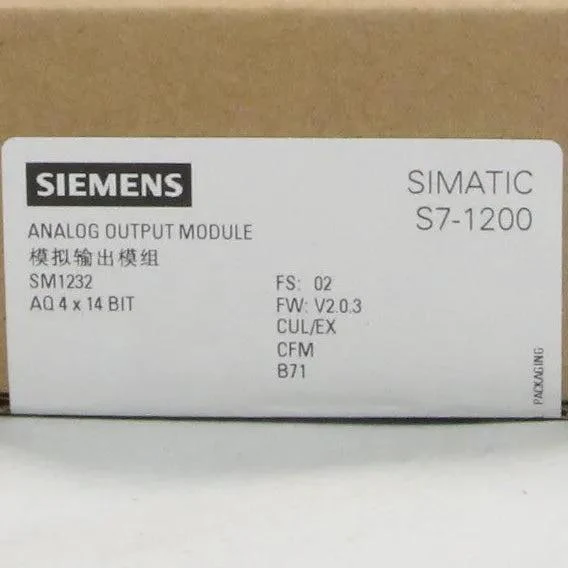

Siemens 6ES7 232-4HD32-0XB0 Analog Output Module

- Brand: Siemens

- Model: SM 1232

- Type: Analog Output Module

- Part number: 6ES7232-4HD32-0XB0

- Technical specifications:
- Channels / outputs: 4 analog outputs
- Output ranges: Voltage: ±10 V
- Resolution: 14 bits for voltage (±10 V); 13 bits for current (0/4–20 mA)
- Accuracy: Typically 0.3%
- Supply voltage: 24 V DC
- Input current: Approx. 45 mA
- Power dissipation: 2.0 W
- Update time / cycle: Dependent on PLC scan
- Short-circuit protection: Yes
- Diagnostics: Diagnostic capable
- Connection: Front connector (20-pin required, not included)
- Mounting: DIN rail
- Additional features: High-resolution outputs for precise control; scalable in TIA Portal; suitable for industrial automation, process control, machine building; no isolation between channels
- Standards: IEC/EN compliant for SIMATIC S7-1200; CE, UL, cULus

Weight: 250 g

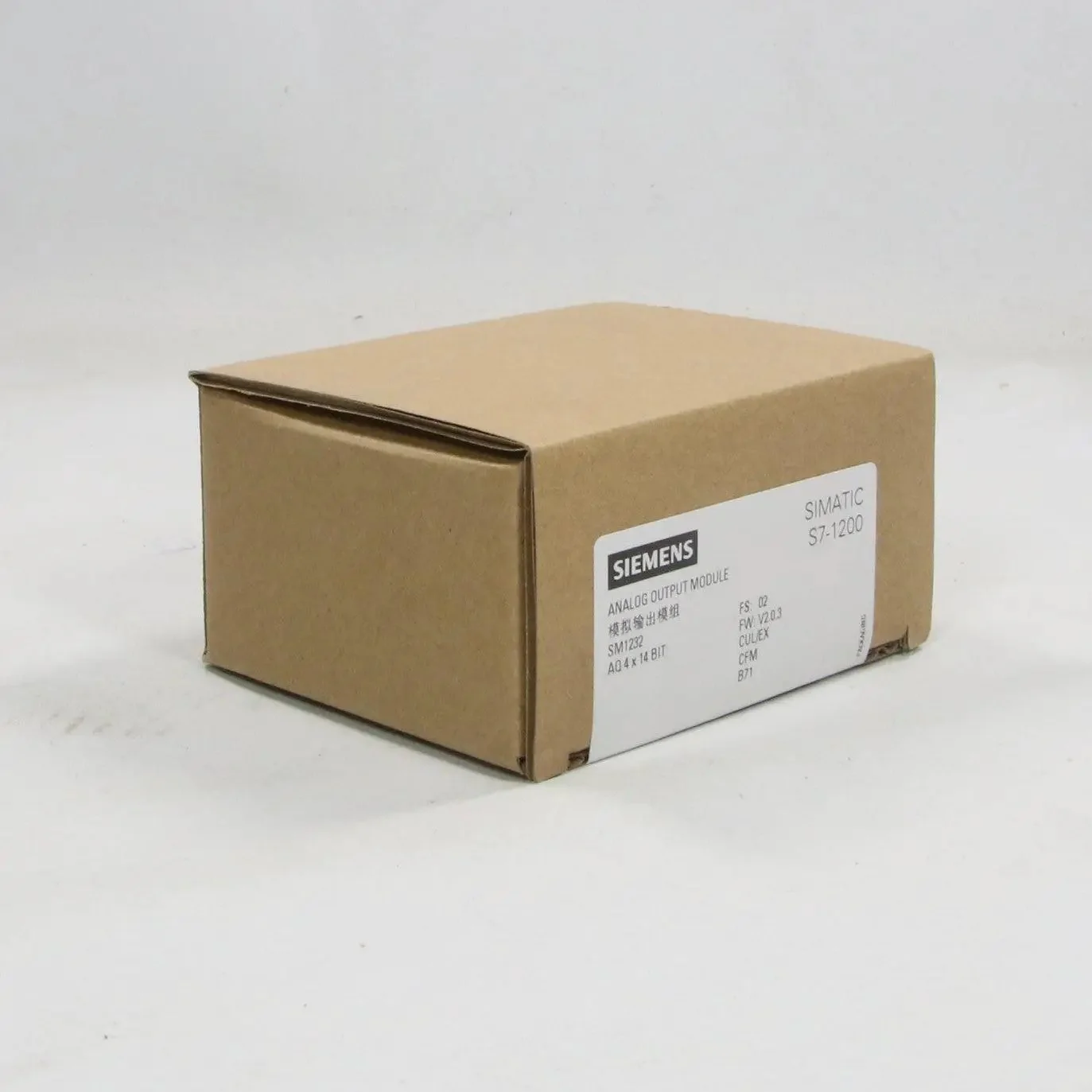

Dimensions: 110 x 60 x 90 mm (box)

Country of origin: China

HS code: 8538.90
