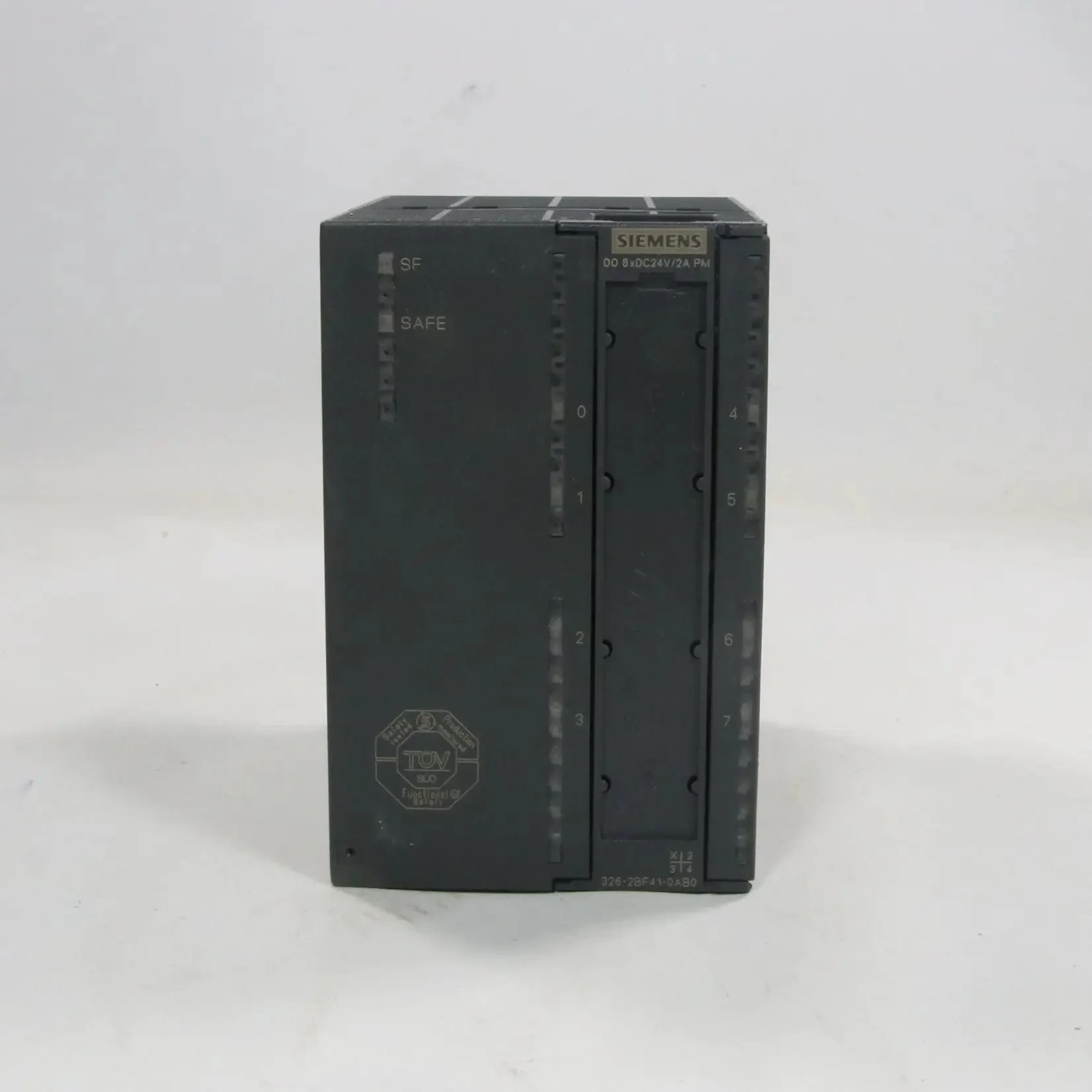

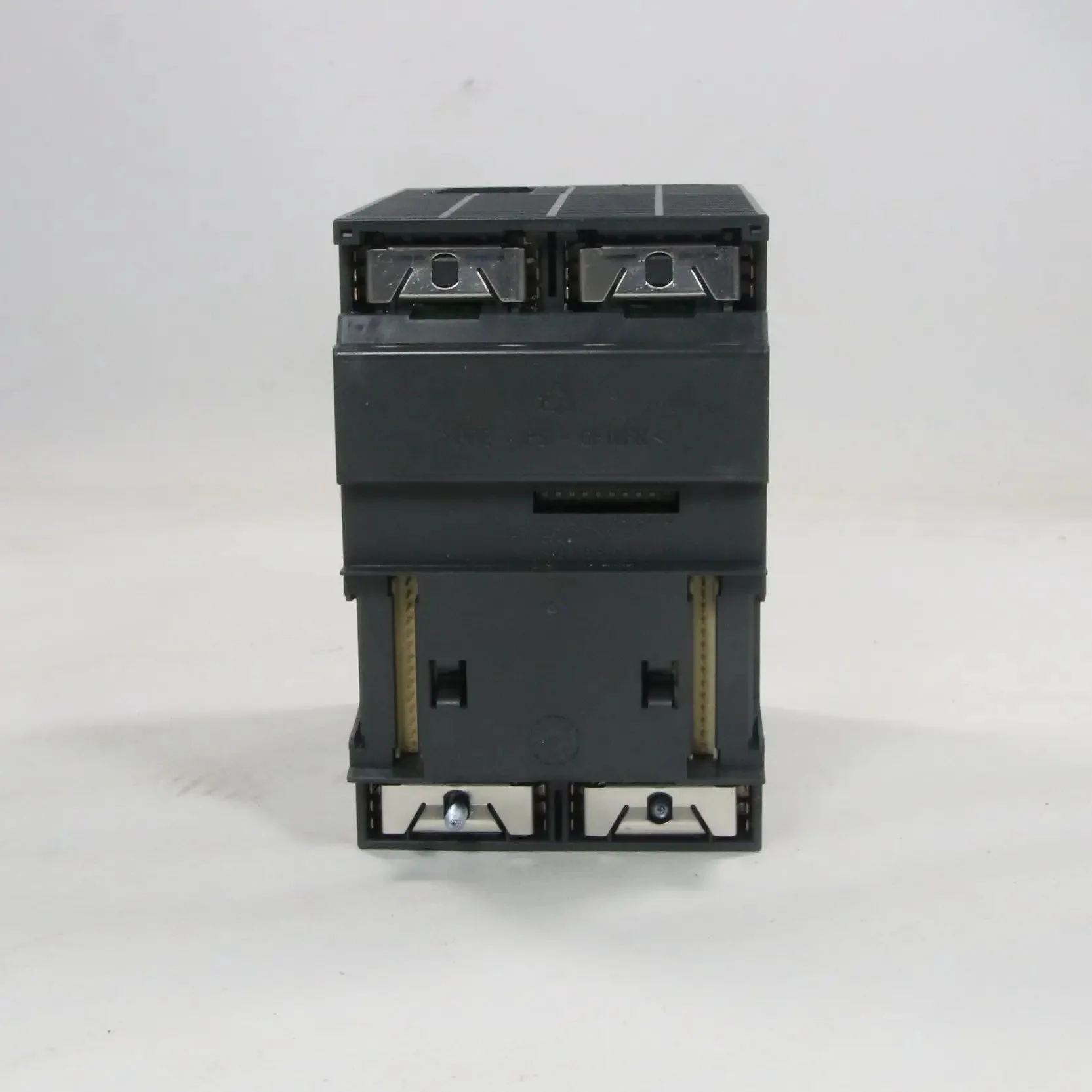

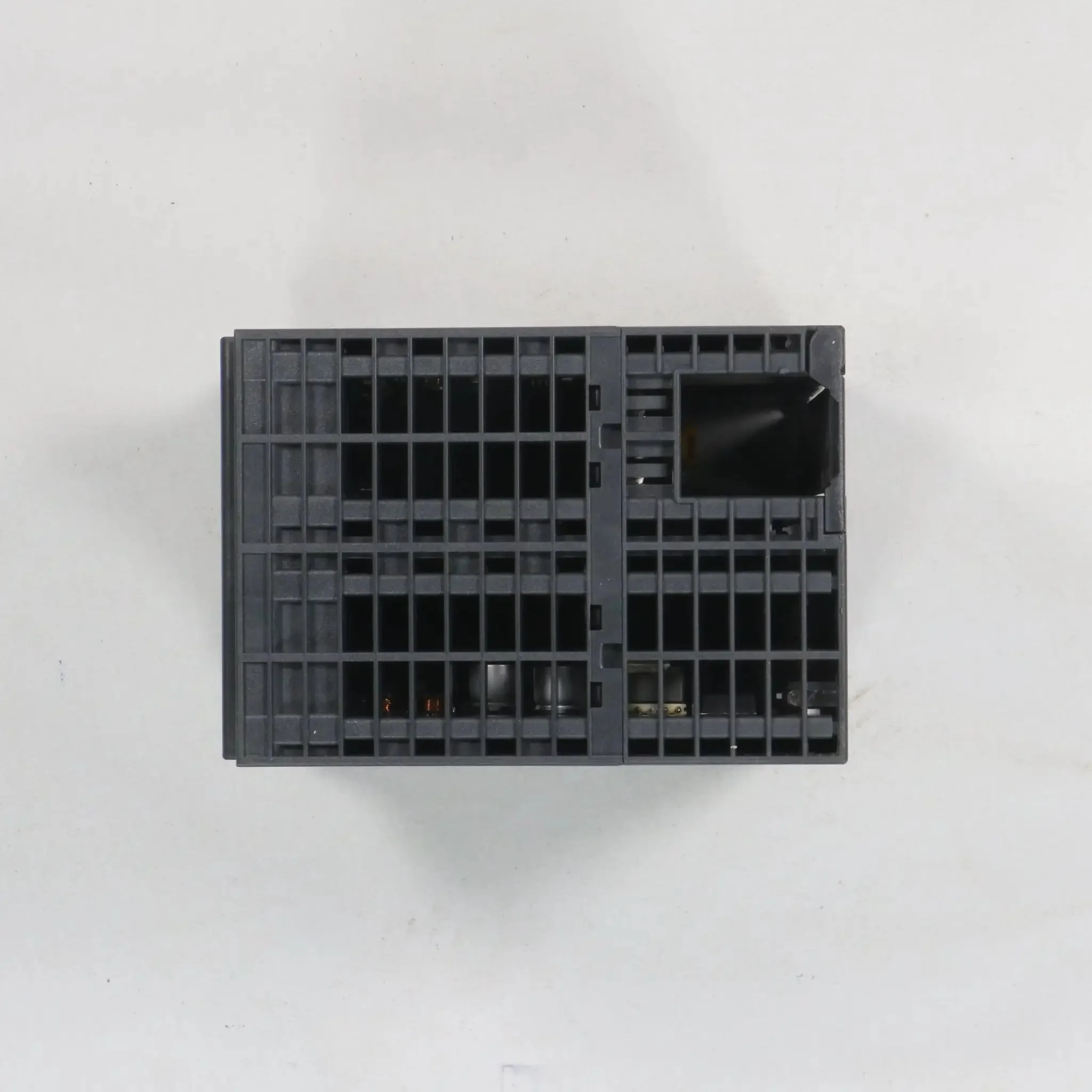

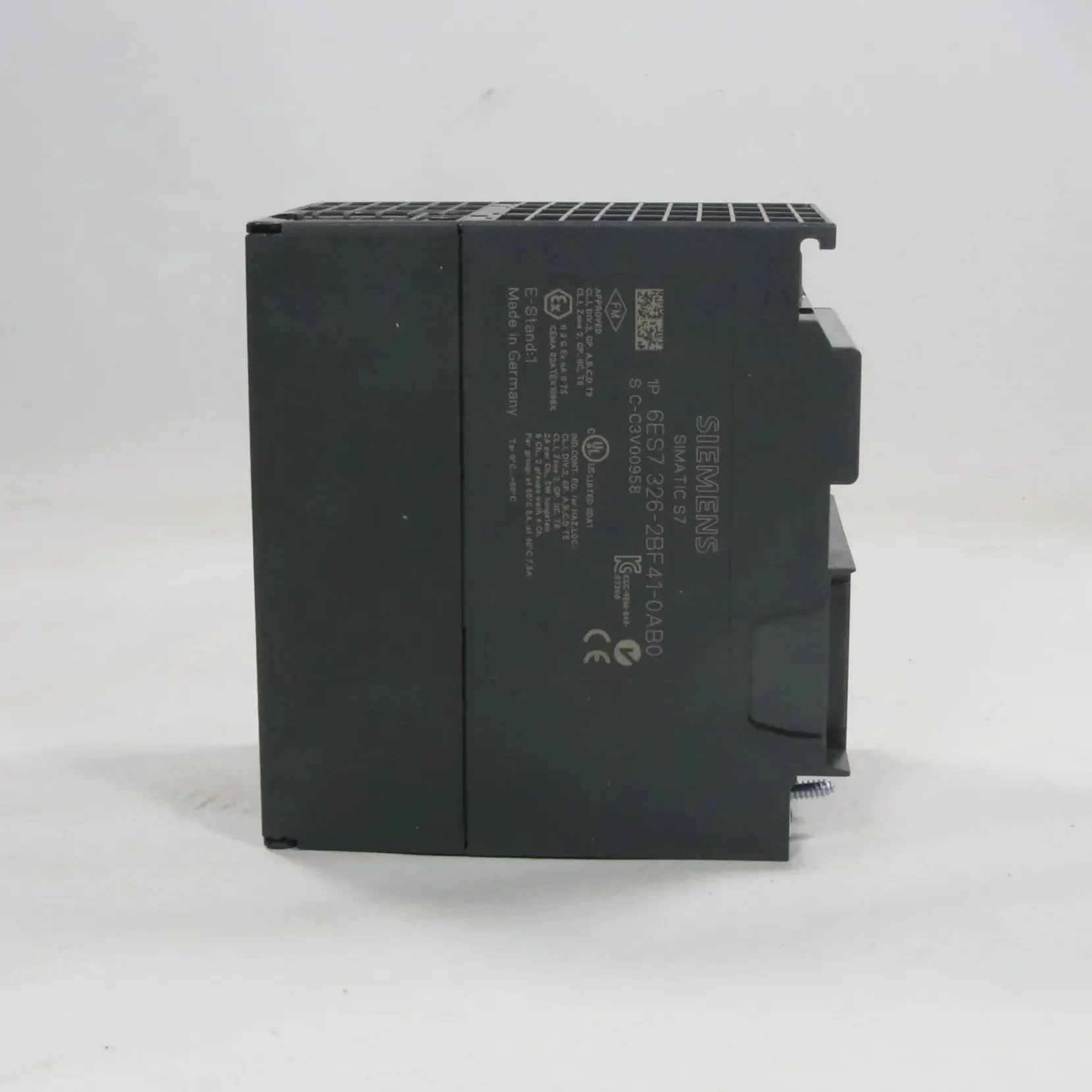

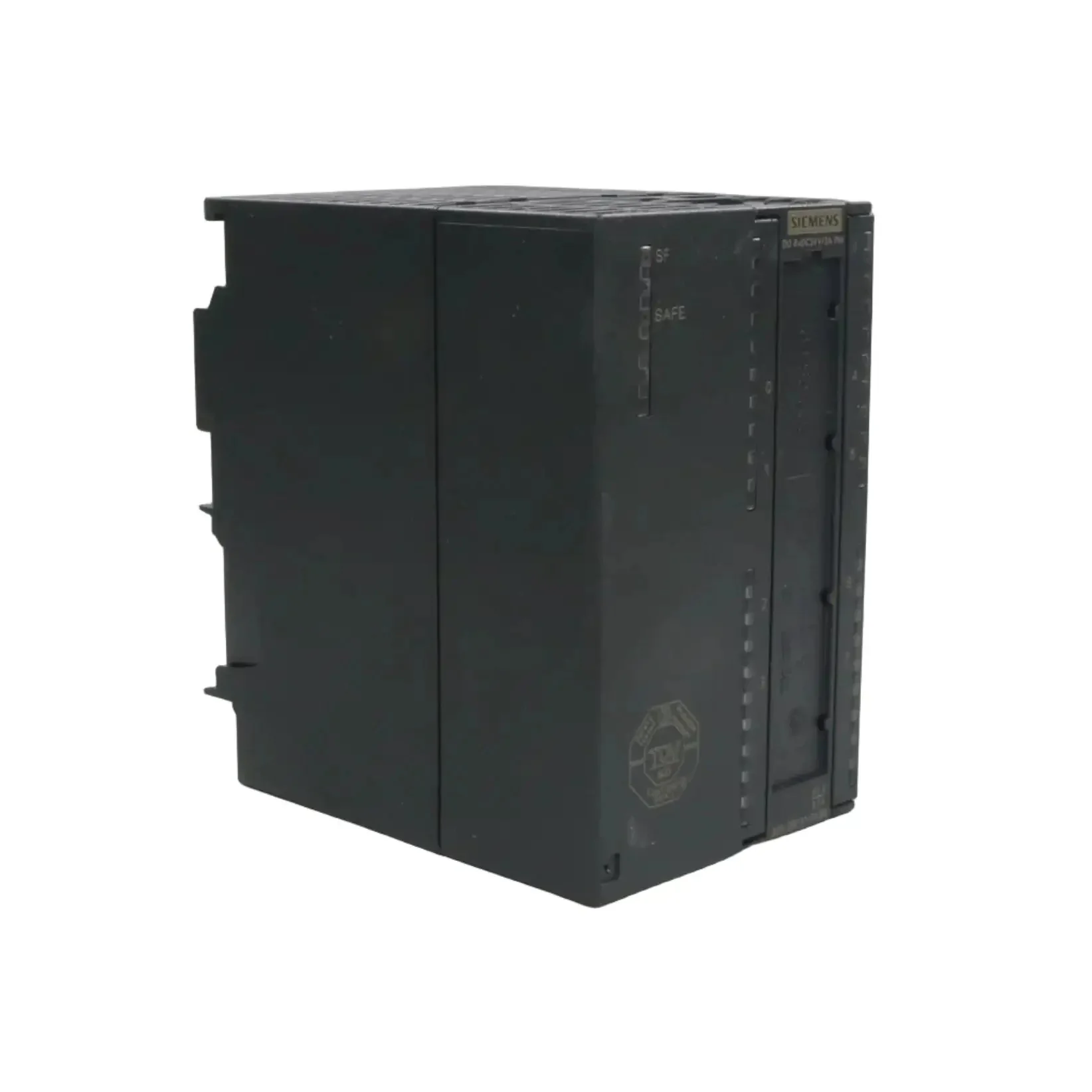

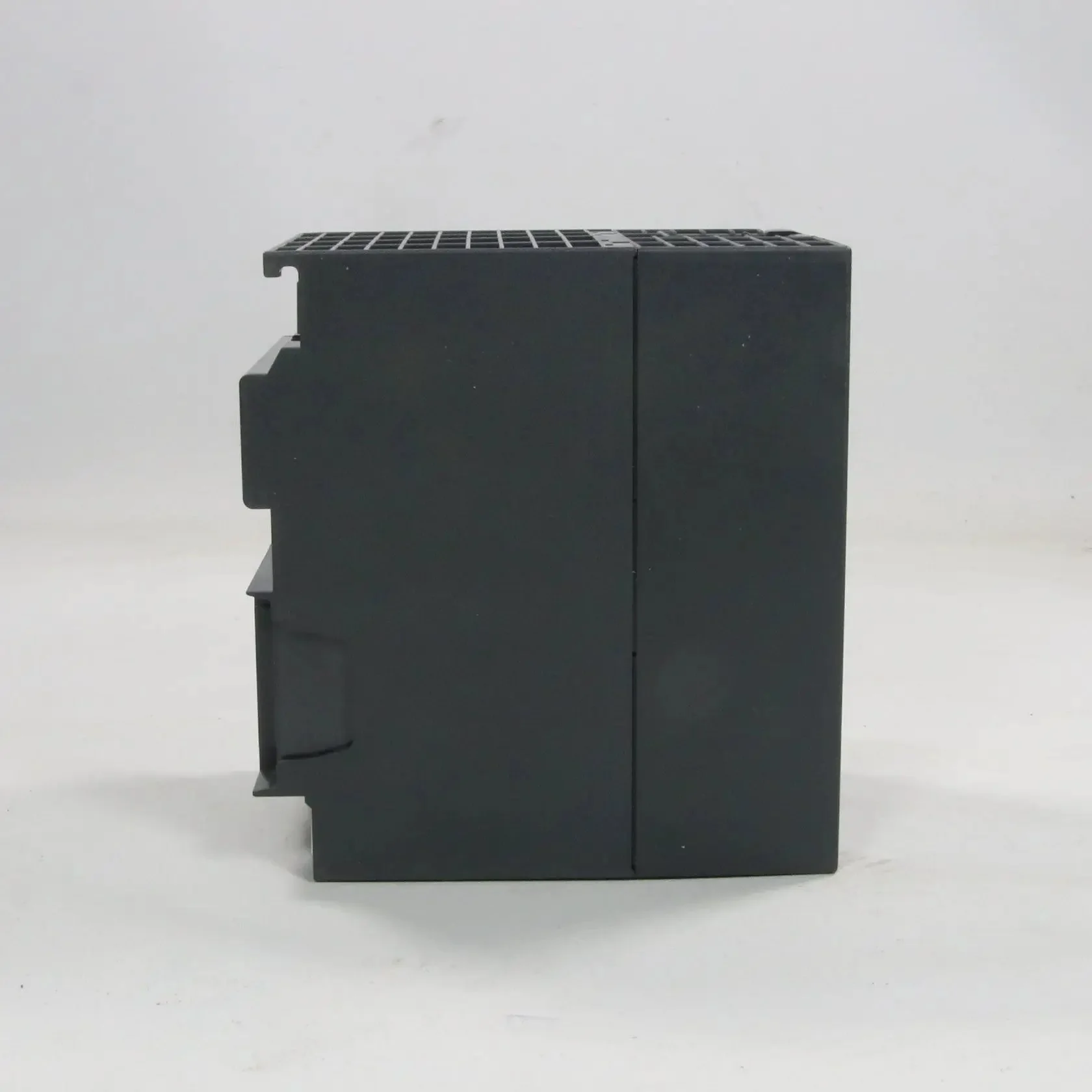

Siemens 6ES7-2BF41-0AB0 Digital Output Module

- Brand: Siemens

- Model: SM 326 F-DO 8x24 V DC/2 A PM

- Type: Digital Output Module

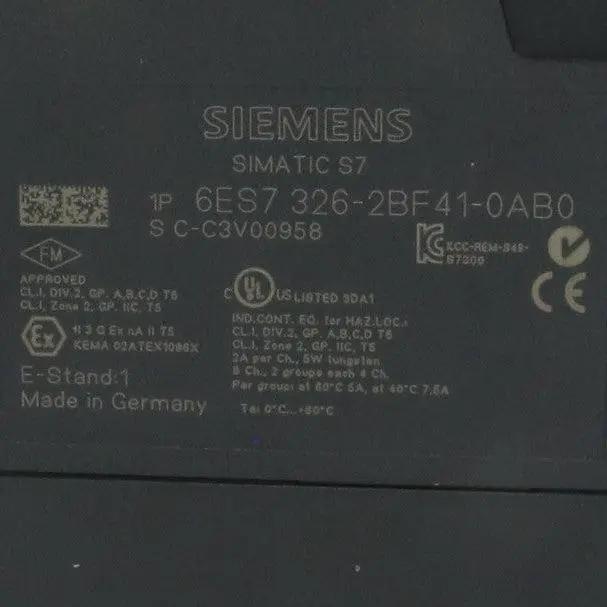

- Part number: 6ES7 326-2BF41-0AB0

- Technical specifications:
- Channels / outputs: 8 digital outputs (F-DO: fail-safe digital outputs)
- Output voltage: 24 V DC
- Output current: 2 A per channel
- Switching type: P-M switching
- Supply voltage: 24 V DC
- Safety ratings: Up to Category 4 (EN 954-1), SIL 3 (IEC 61508), PL e (ISO 13849)
- Diagnostics: Diagnostic alarm capable; residual current for signal "0" max. 0.5 mA
- Switching frequency: Max. 30 Hz with resistive load; lower with inductive loads
- Additional features: Fail-safe outputs for safety-critical actuators; two-channel internal structure for fault detection; PROFIsafe communication; suitable for redundant or high-availability setups in F-systems
- Connection: 40-pin front connector required
- Standards: IEC 61508, ISO 13849, EN 954-1 compliant for safety; general IEC/EN for S7-300 modules

Status: Discontinued

Weight: 500 g

Dimensions: 130 x 90 x 150 mm

Country of origin: Germany

HS code: 8538.90
