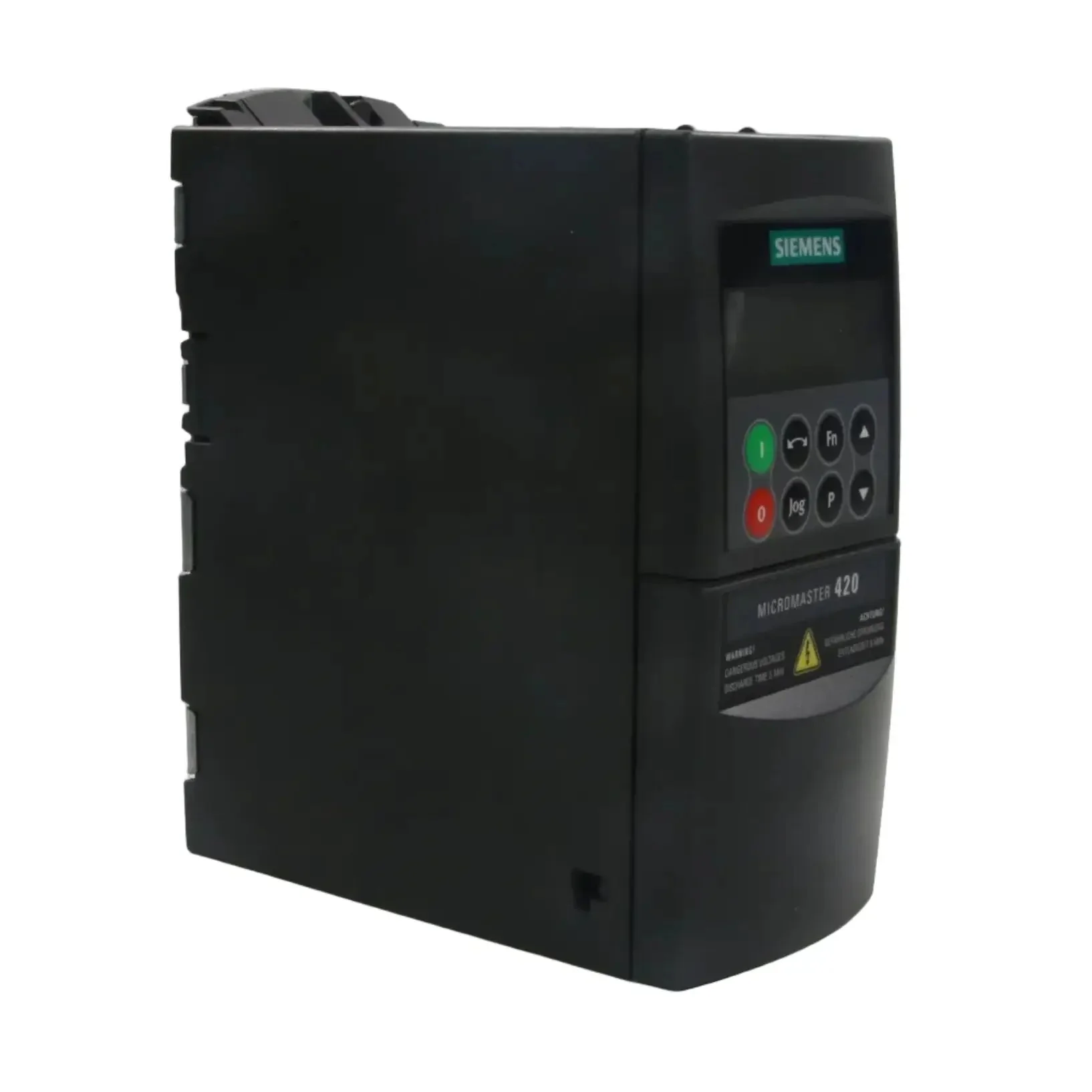

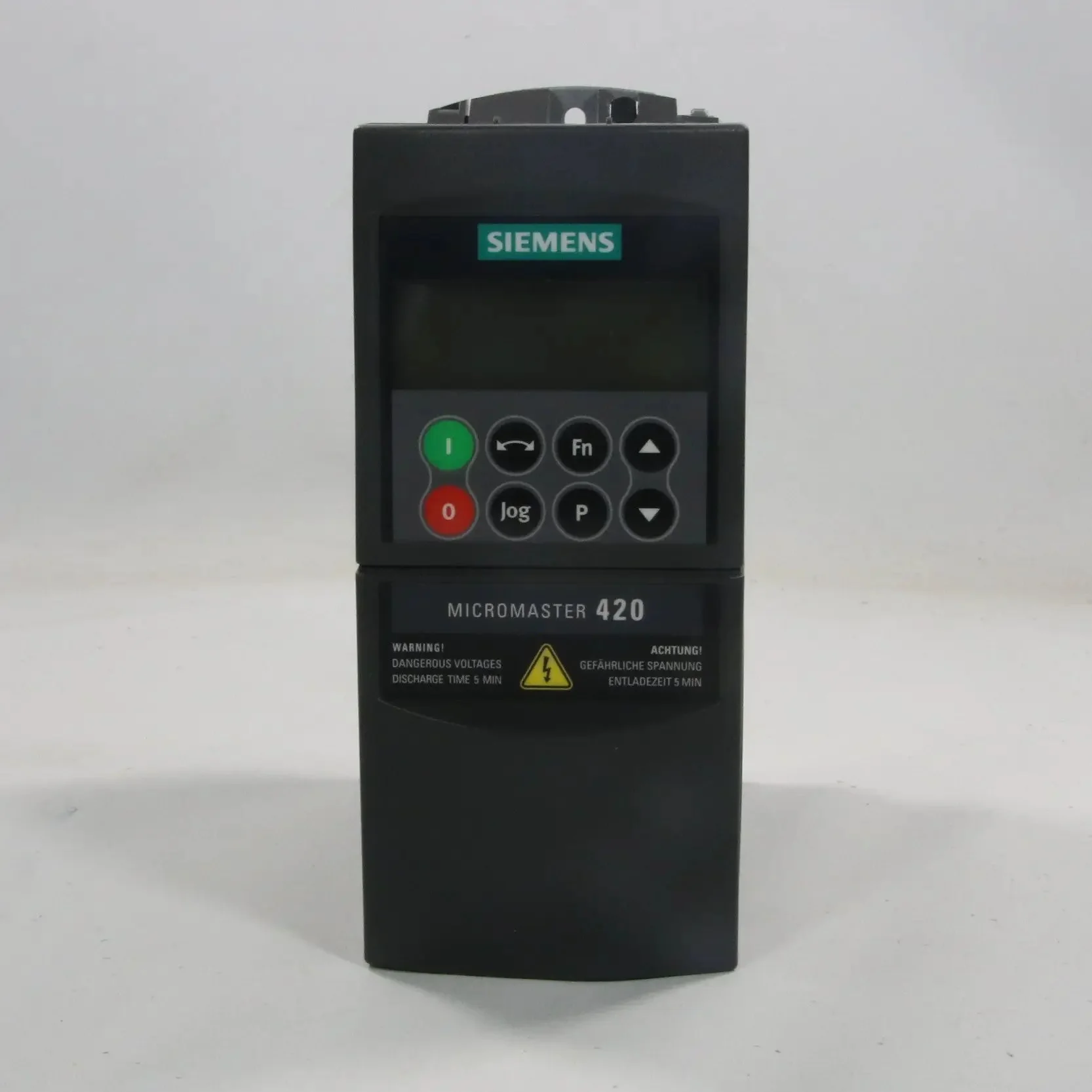

Siemens Micromaster 420 Frequency Inverter - 6SE6420-2AB15-5AA1

- Brand: Siemens

- Model: MICROMASTER 420

- Type: Frequency Inverter / Variable Frequency Drive (VFD)

- Part number: 6SE6420-2AB15-5AA1

- Technical specifications:
- Input: 1 AC 200–240 V ±10%
- Output: 3 AC 0–240 V (0.... 650 Hz)
- Rated power: 0.55 kW (0.75 HP)
- Rated output current: 3.0 A
- Overload capability: 150% for 60 s
- Control mode: V/f control; vector control without sensor
- Protection class: IP20
- Operating temperature: -10°C to +50°C
- Interfaces:
  - Analog input (0–10 V or 0–20 mA)
  - Digital inputs (6; configurable)
  - Relay output (1)
- Braking chopper: Integrated
- Filter: No integrated filter
- Additional features: Parameterisation via BOP (Basic Operator Panel) or PC (DriveMonitor software); motor overload protection (I²t); ramp-up/down times adjustable; flying restart; PID controller; compound braking; compact design for DIN rail or screw mounting
- Standards: IEC/EN 61800-3 (EMC); CE, UL, cUL, c-Tick approvals

Weight: 1.2 kg

Dimensions: 150 x 75 x 160 mm

Country of origin: United Kingdom

HS code: 8504.40
