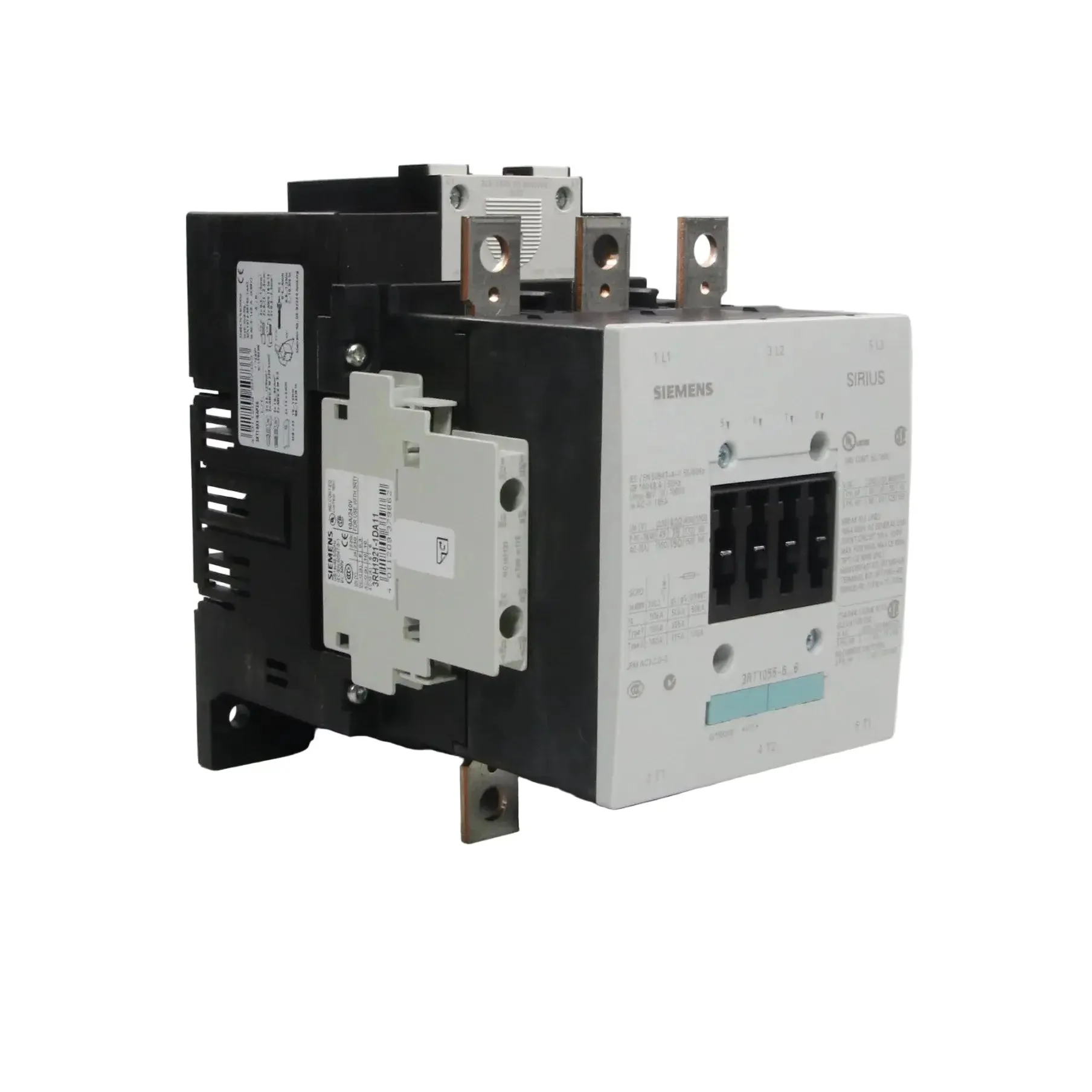

Siemens Sirius 3RT1055-6AP36 Power Contactor

- Brand: Siemens

- Model: 3RT1055-6AP36

- Type: Power Contactor / Magnetic Contactor

- Part number: 3RT1055-6AP36

- Technical specifications:
- Poles: 3-pole
- Rated operational current (Ie): 150 A AC-3 (at 400 V, 50/60 Hz; motor rating)
- Rated operational power: 75 kW AC-3 at 400 V
- Rated operational voltage (Ue): Up to 690 V AC
- Coil voltage: 230 V AC
- Auxiliary contacts: 2 NO + 2 NC integrated
- Rated control supply voltage (Us): 230 V AC
- Control circuit: Electronic coil
- Switching capacity: AC-1: 250 A (resistive); AC-3: 185 A (motor); AC-4: 160 A (squirrel-cage motor reversing)
- Short-circuit protection: Recommended fuses or circuit breakers
- Mechanical endurance: 10 million operating cycles
- Electrical endurance: Up to 1 million AC-3 cycles
- Mounting: Screw mounting
- Connection: Screw terminals
- Additional features: Integrated surge suppression (varistor); low noise operation; high switching reliability; suitable for reversing starters or star-delta combinations with accessories; part of SIRIUS modular system
- Standards: IEC/EN 60947-4-1 compliant; CE, UL, CSA, CCC approvals

Weight: 3.5 kg

Dimensions: 190 x 120 x 180 mm

Country of origin: Germany

HS code: 8536.49
