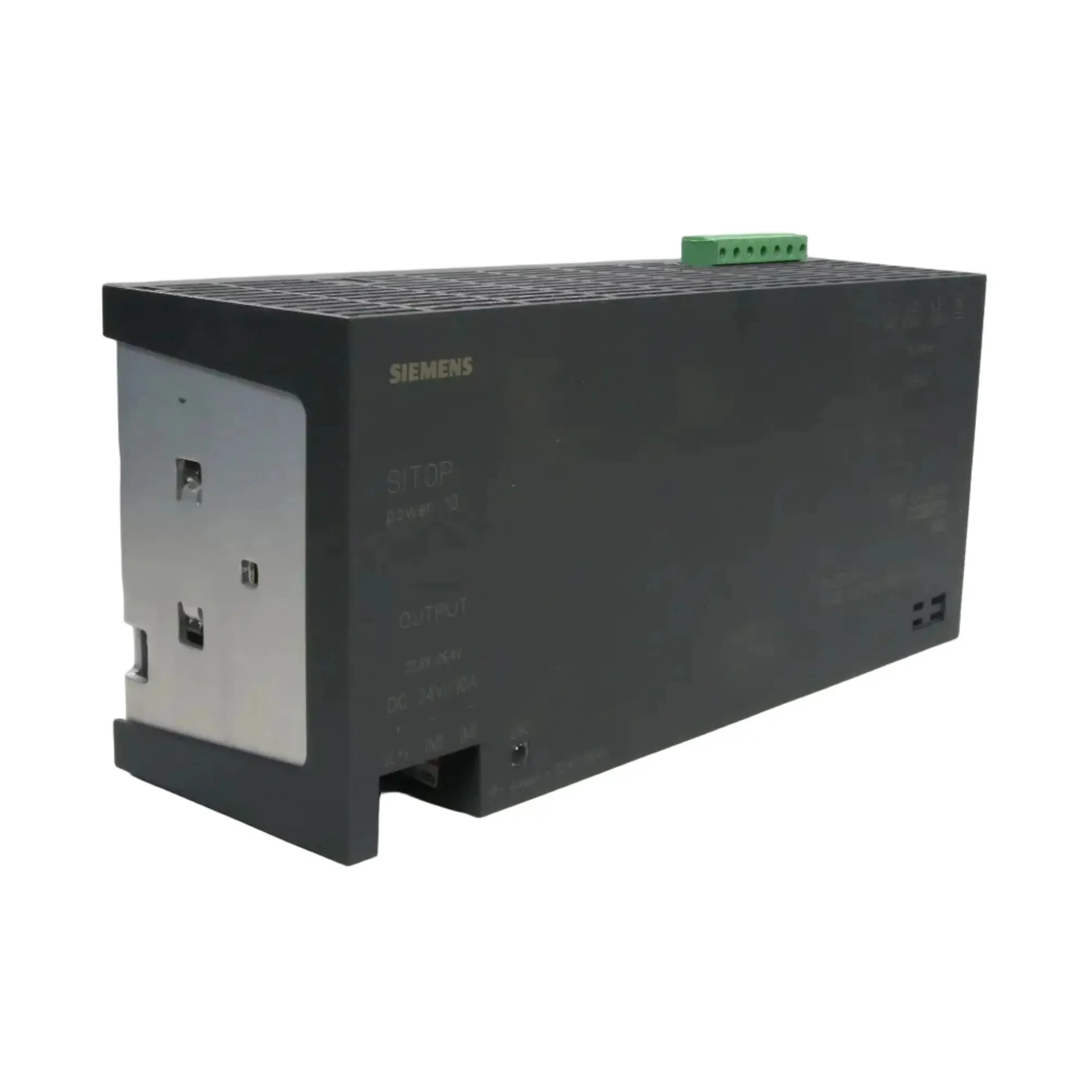

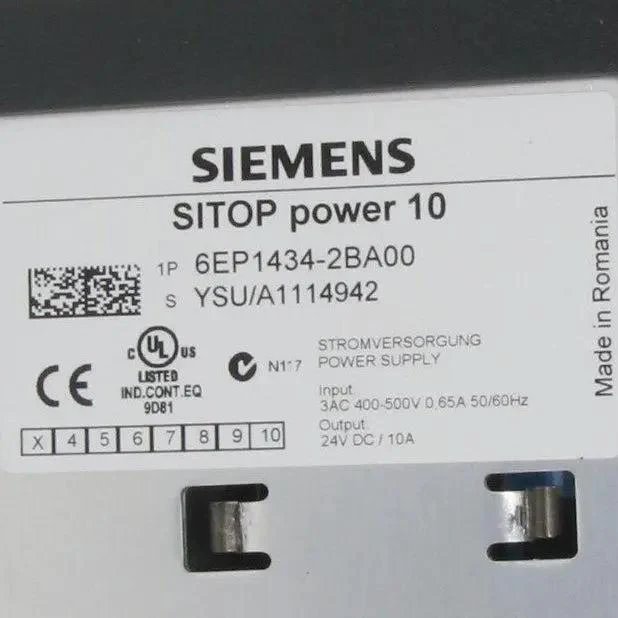

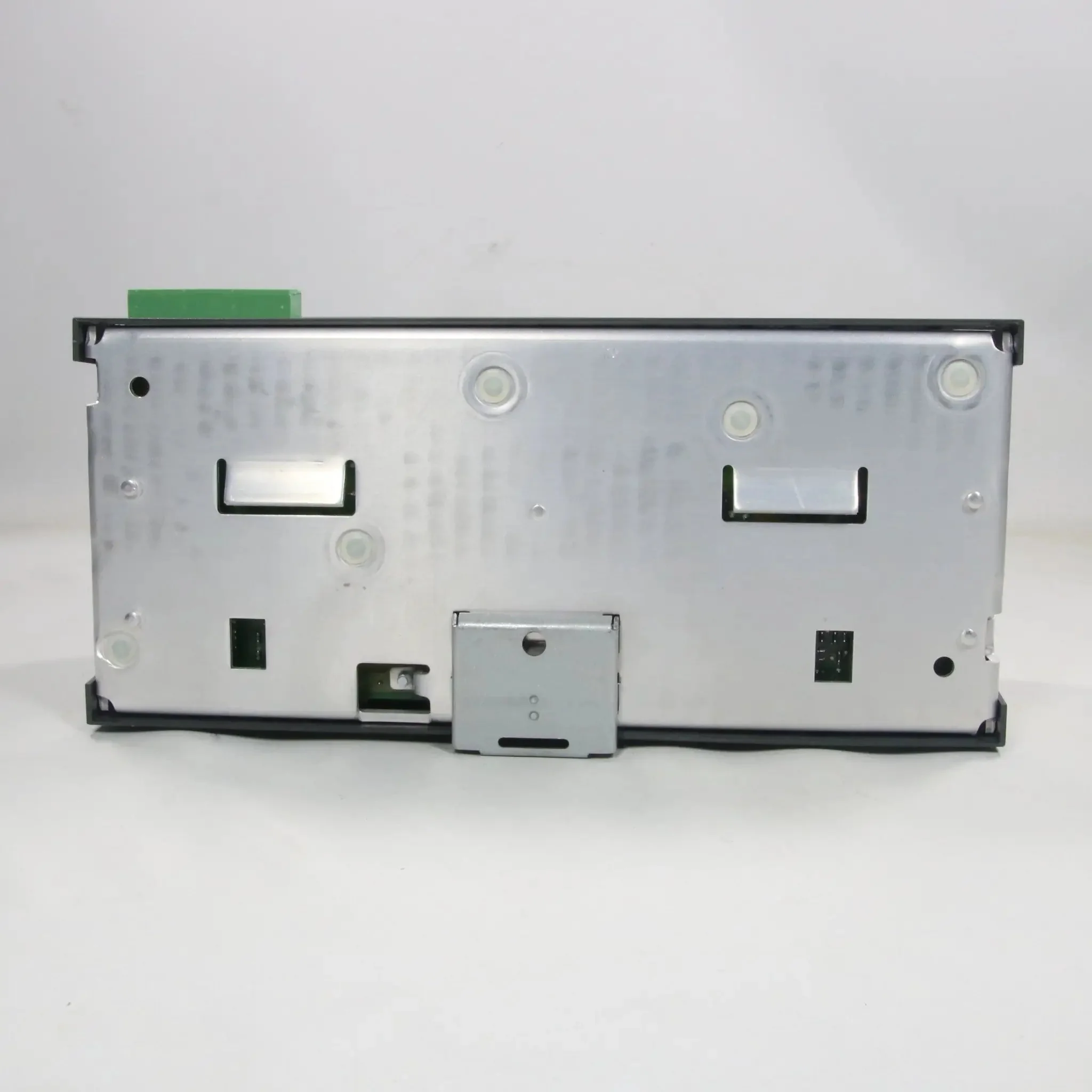

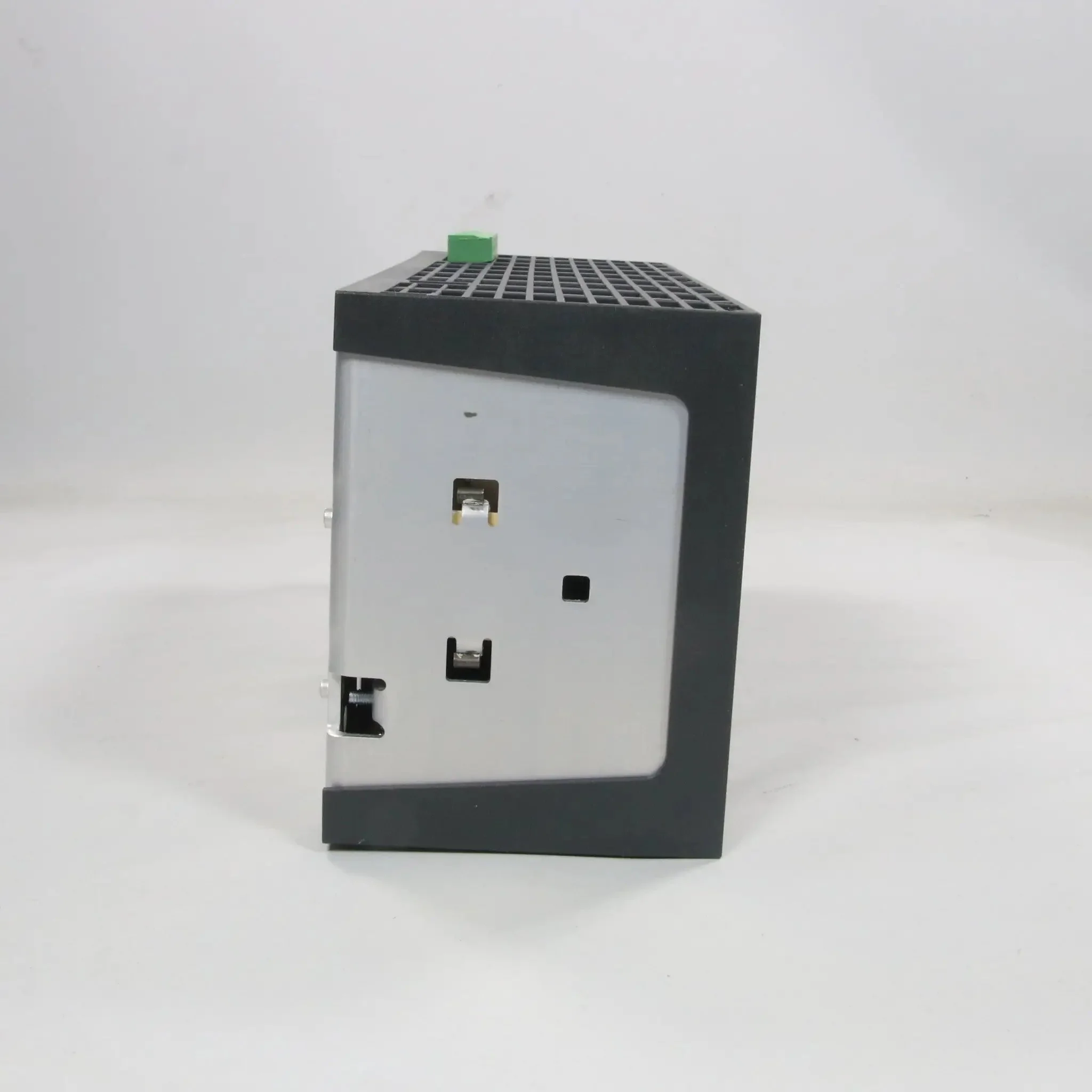

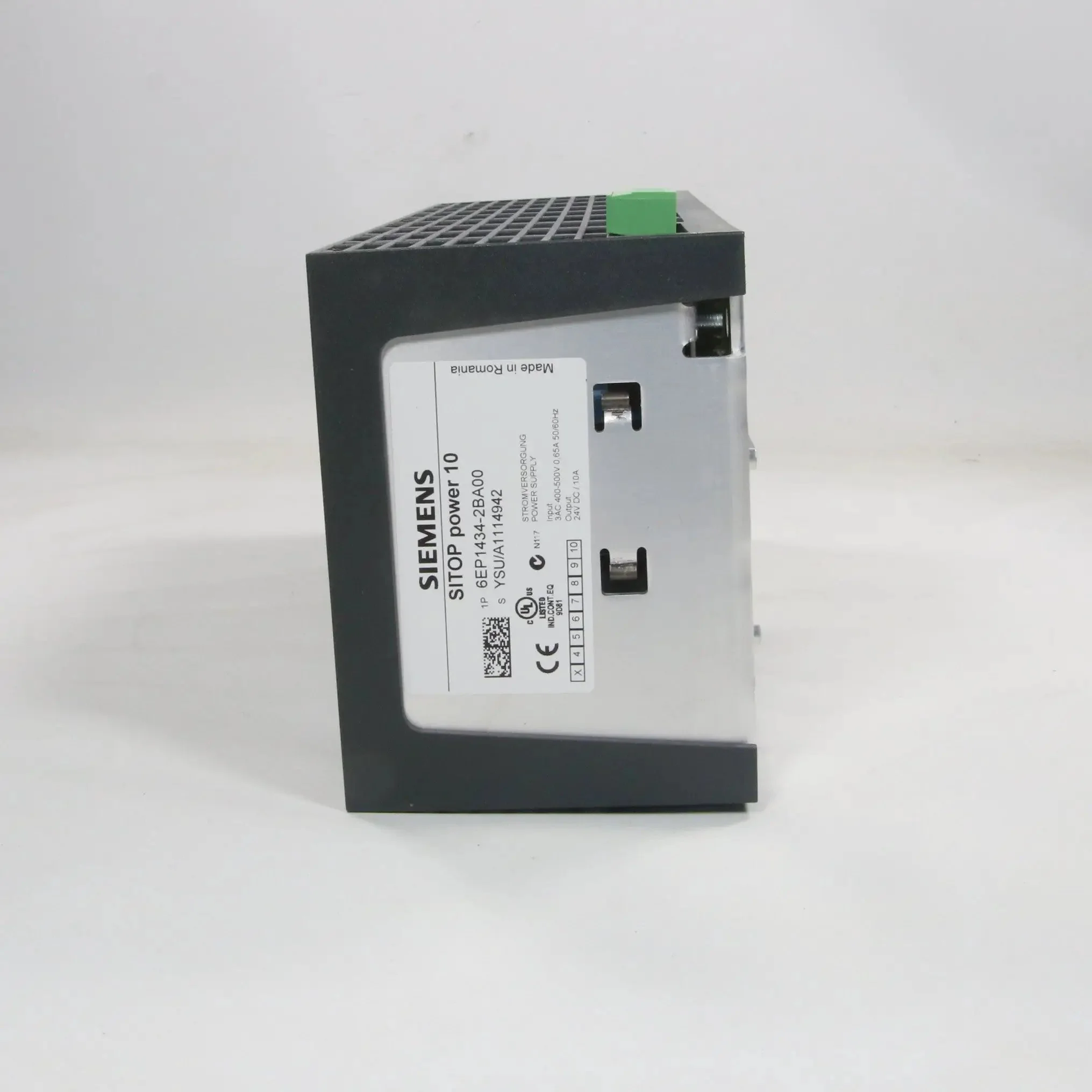

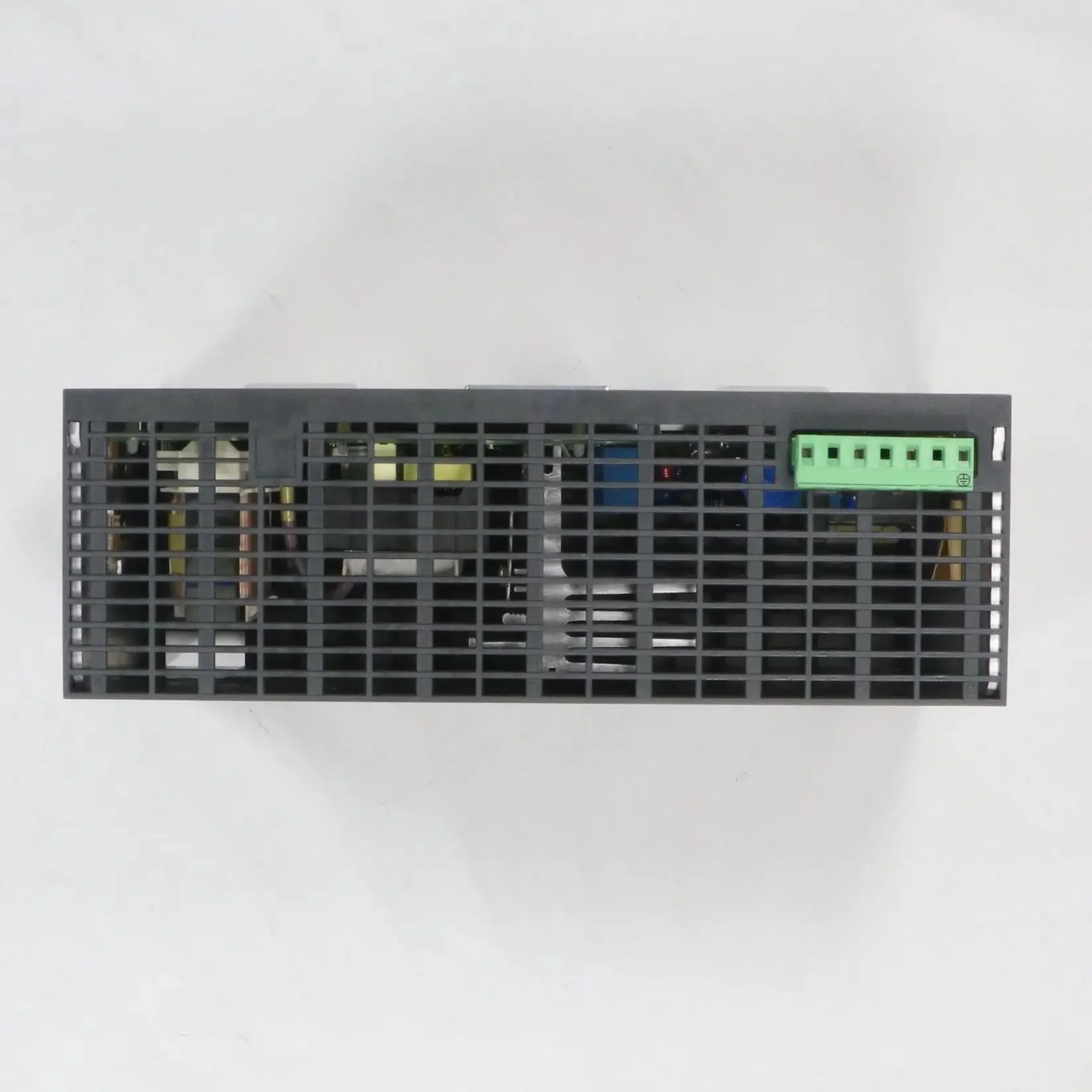

Siemens Sitop Power 10 6EP1434-2BA00 Stabilized Power Supply

- Brand: Siemens
- Model: 6EP1434-2BA00
- Type: Stabilized Power Supply
- Technical Specs:
  - Input Voltage: 3-phase AC 400–500 V
  - Input Frequency: 50/60 Hz
  - Input Current: 1.4 A at 400 V / 1.2 A at 500 V
  - Output Voltage: 24 V DC
  - Output Current: 10 A (rated), 15 A (short-time overload for 5 s)
  - Output Power: 240 W
  - Efficiency: > 90 % at 400 V
  - Ripple Voltage: < 50 mVpp
  - Hold-up Time: ≥ 20 ms at 400 V
  - Inrush Current: ≤ 20 A (cold start)
  - Power Factor: > 0.9
  - Overload Protection: Electronic overload and short-circuit protection
  - Overvoltage Protection: Yes
  - Parallel Operation: Yes (for power increase or redundancy)
  - Operating Temperature: 0 °C to +60 °C (derating above 60 °C)
  - Storage Temperature: –40 °C to +85 °C
  - Protection Rating: IP20
  - Connection: Screw terminals
  - Features: Adjustable output voltage, LED status indicators (green = OK, red = fault), high efficiency, low no-load power, reliable for industrial applications
- Dimensions: 280 x 90 x 130 mm
- Weight: 2.3 kg
- Country of origin: Romania
- HS code: 850440
