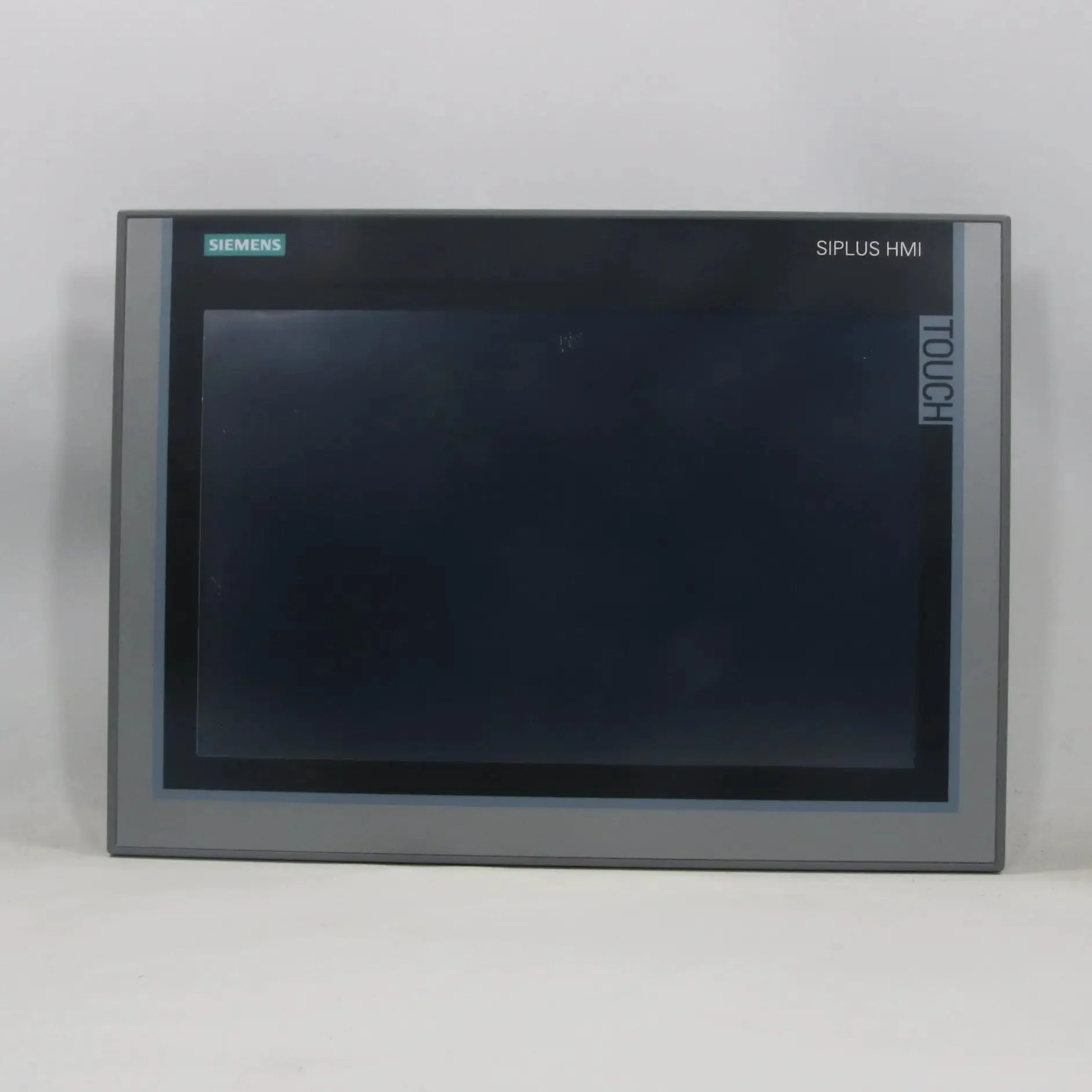

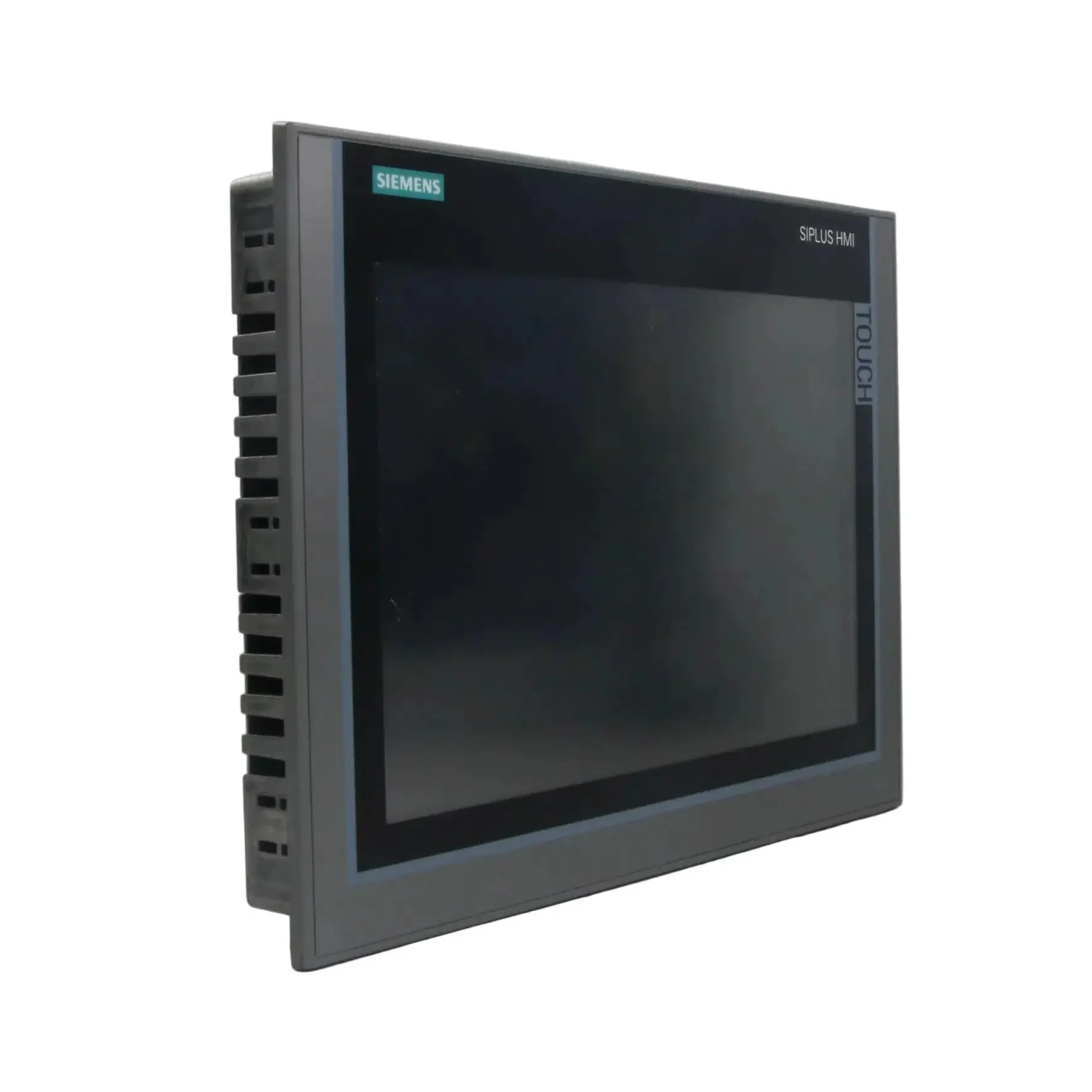

Siemens TP1200 Comfort Touch Panel - 6AG1124-0MC01-4AX0

- Brand: Siemens

- Model: TP1200 Comfort (SIPLUS version)

- Type: Touch Panel

- Part number: 6AG1124-0MC01-4AX0

- Technical specifications:
- Display: 12" widescreen TFT color display, 1280 x 800 pixel resolution, 16 million colours
- Touch screen: Analog resistive
- Processor: X86
- Memory: 12 MB User memory

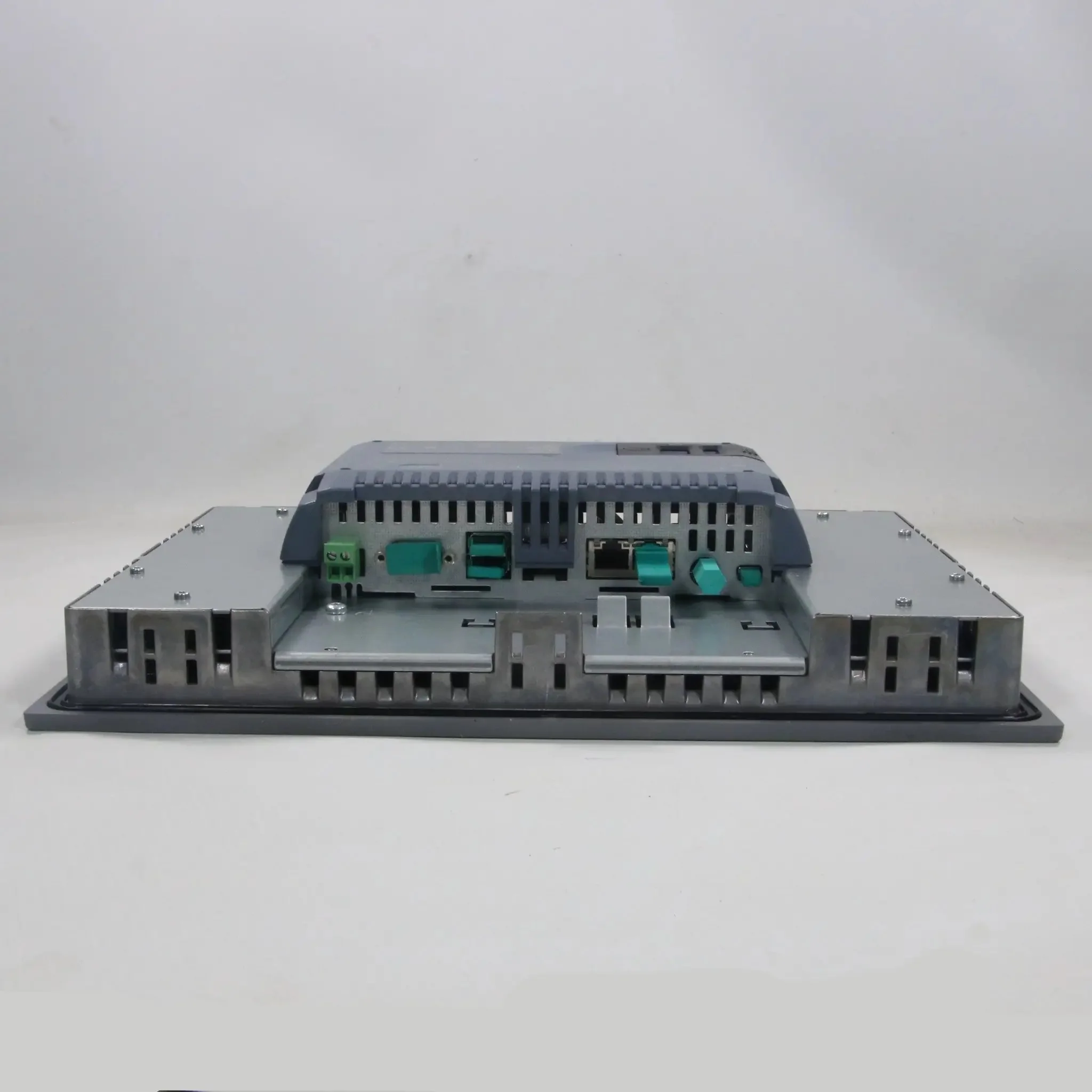

- Interfaces: 1 x PROFINET (Ethernet ports), 1 x PROFIBUS DP, 2 x USB, Audio output, SD card slot
- Operating system: WinCC V12
- Supply voltage: 24 V DC
- Power consumption: 20 W
- Front protection: IP65
- Ambient temperature: 0…+50 °C
- Additional features: Conformal coating for protection against humidity, dust, and aggressive atmospheres; integrated web server; recipe management; alarm logging; trend curves; suitable for harsh industrial environments
- Standards: Compliant with IEC 61131, UL, CE, RoHS; SIPLUS quality for extended environmental conditions

Weight: 3.0 kg

Dimensions: 330 x 240 x 75 mm

Country of origin: Germany

HS code: 8537.10
