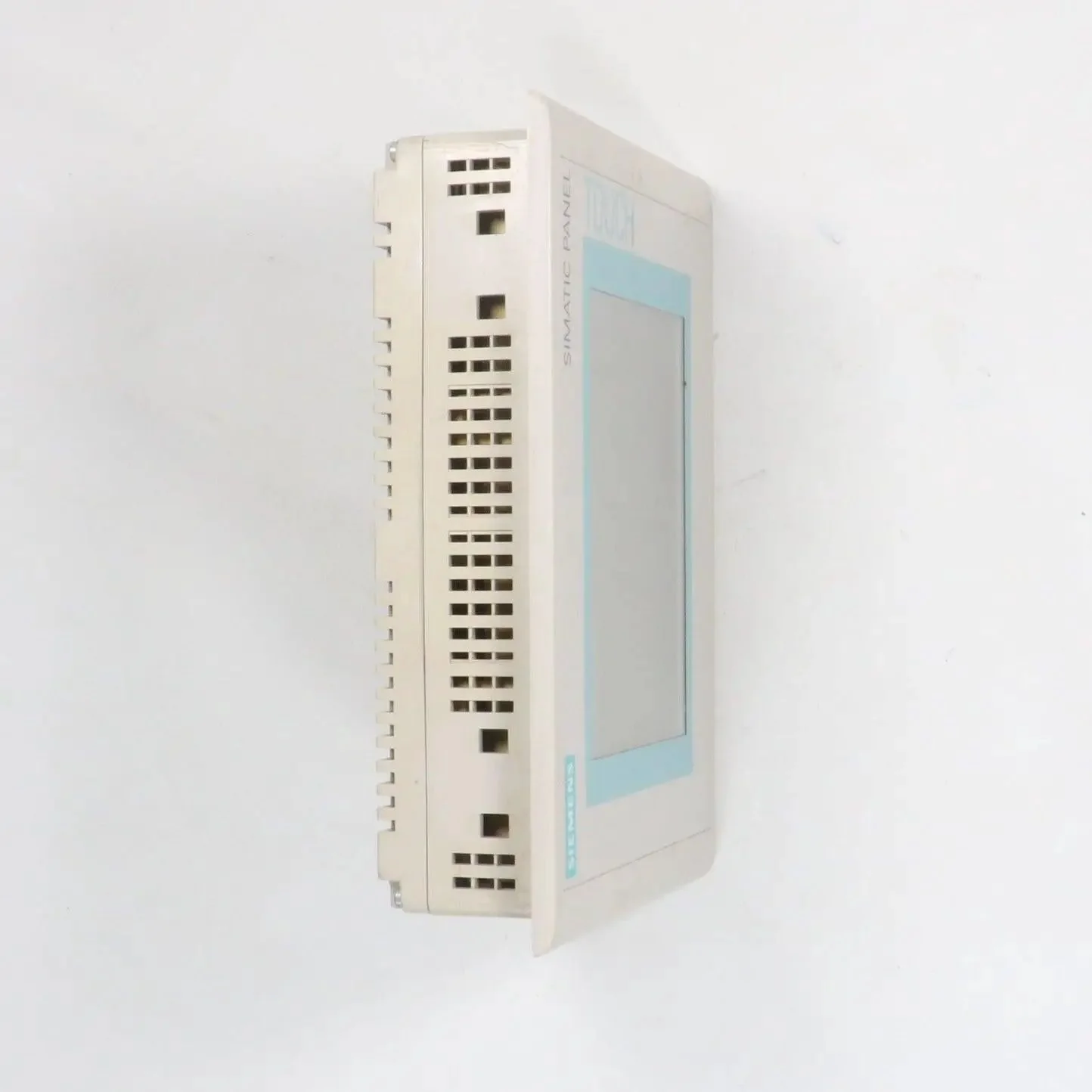

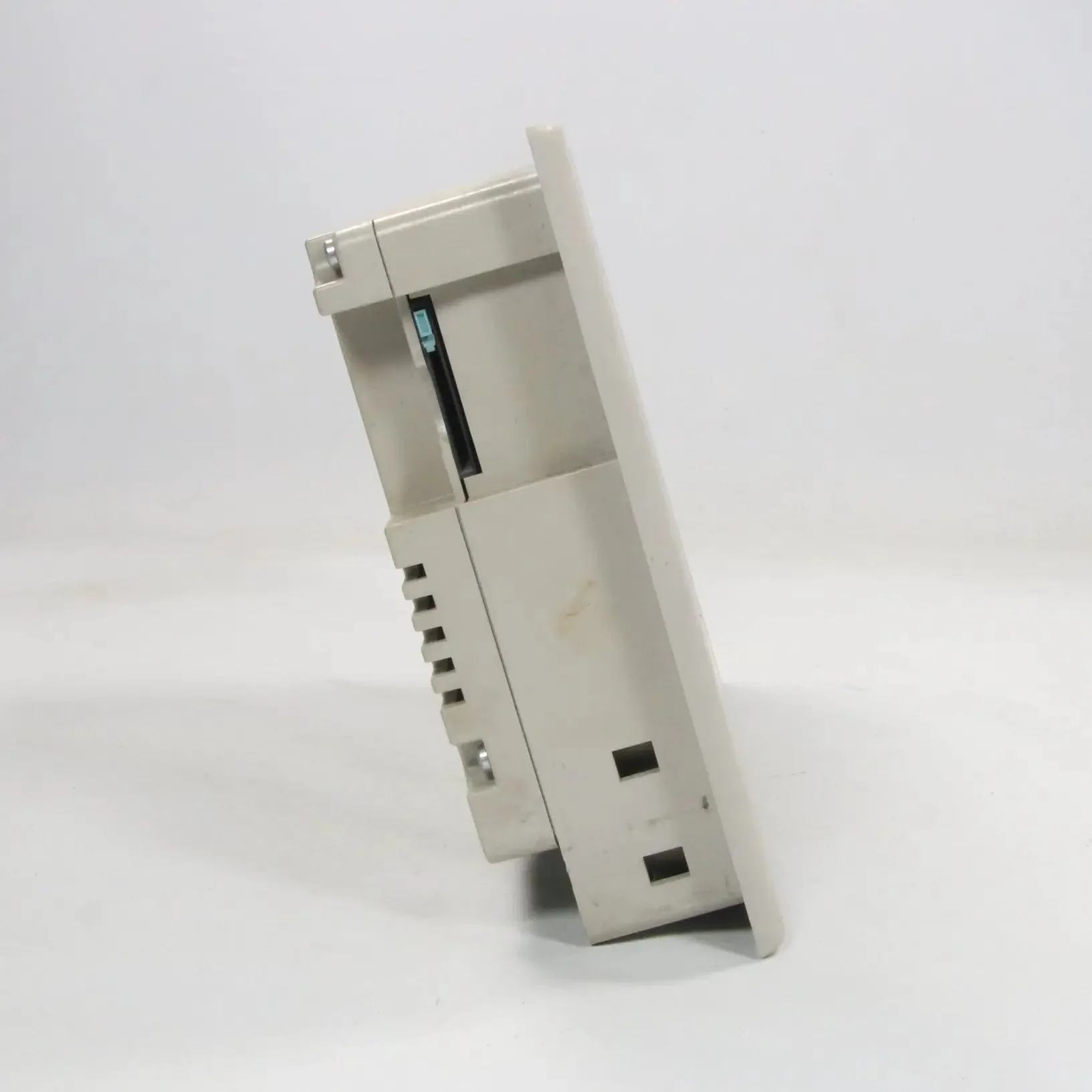

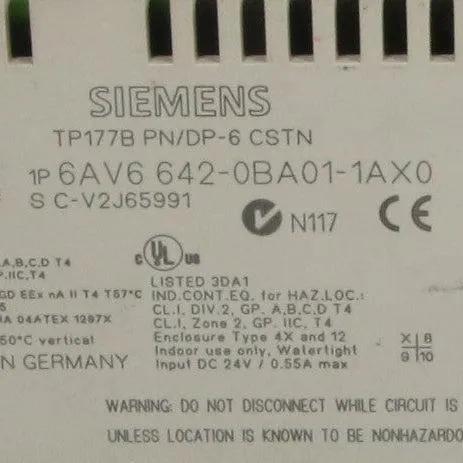

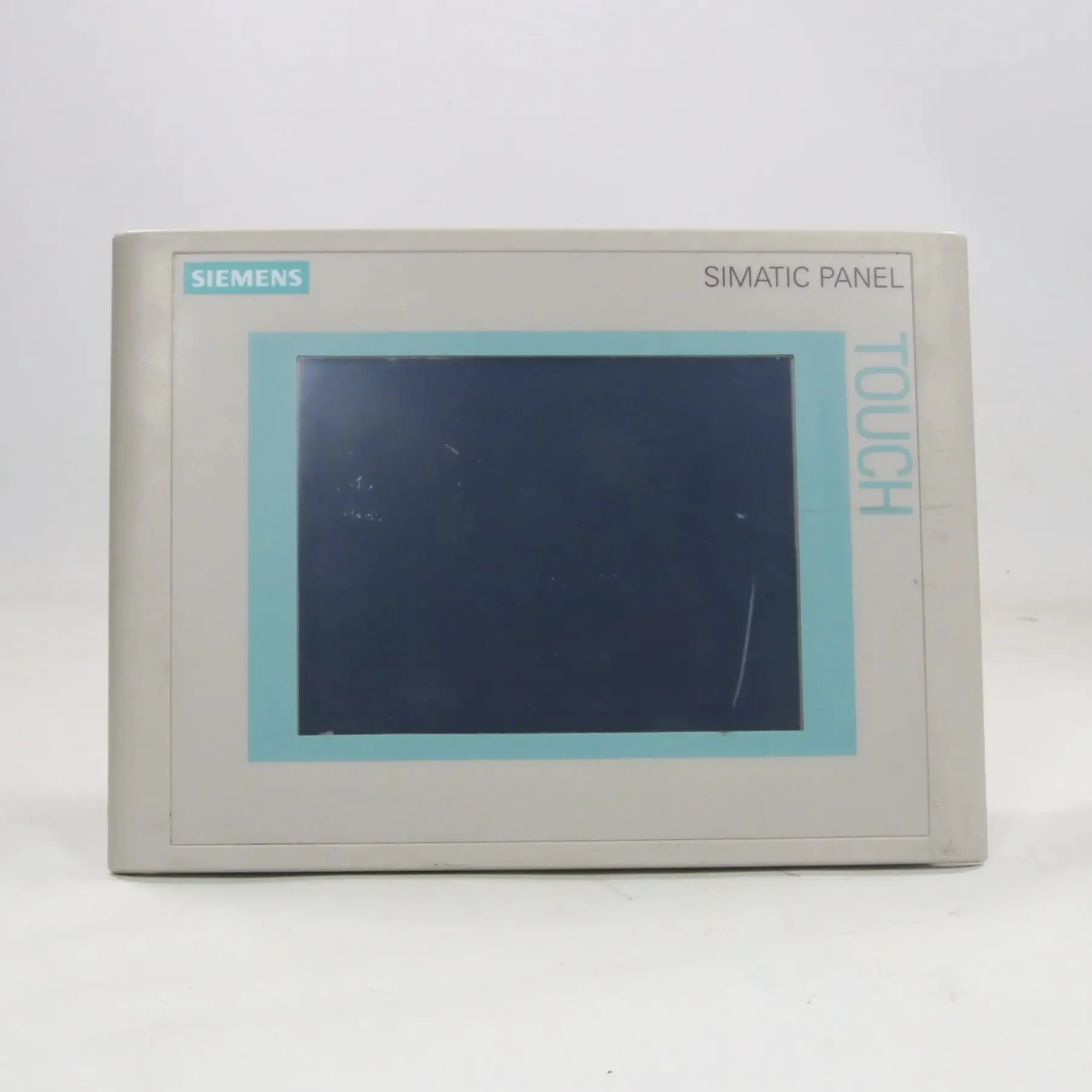

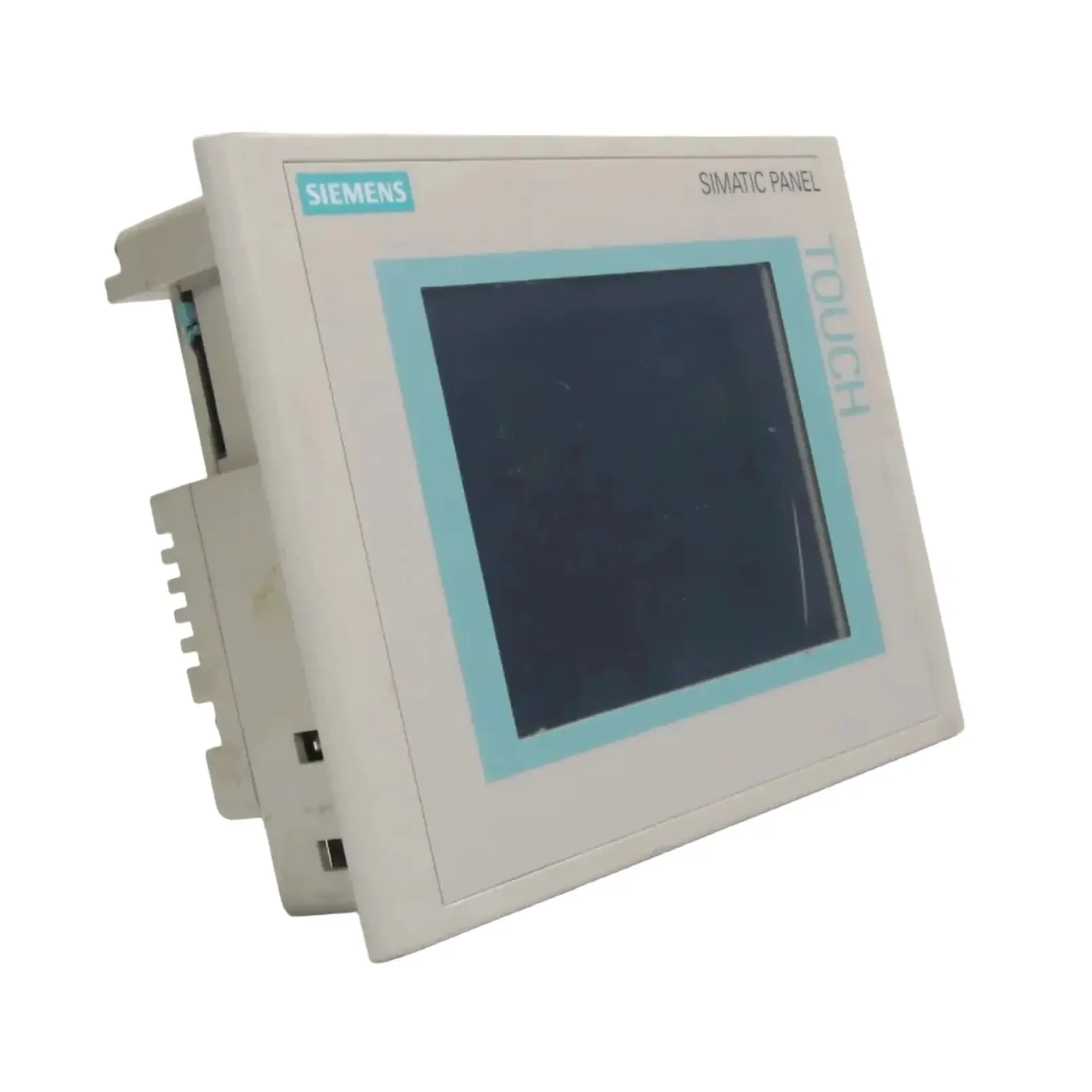

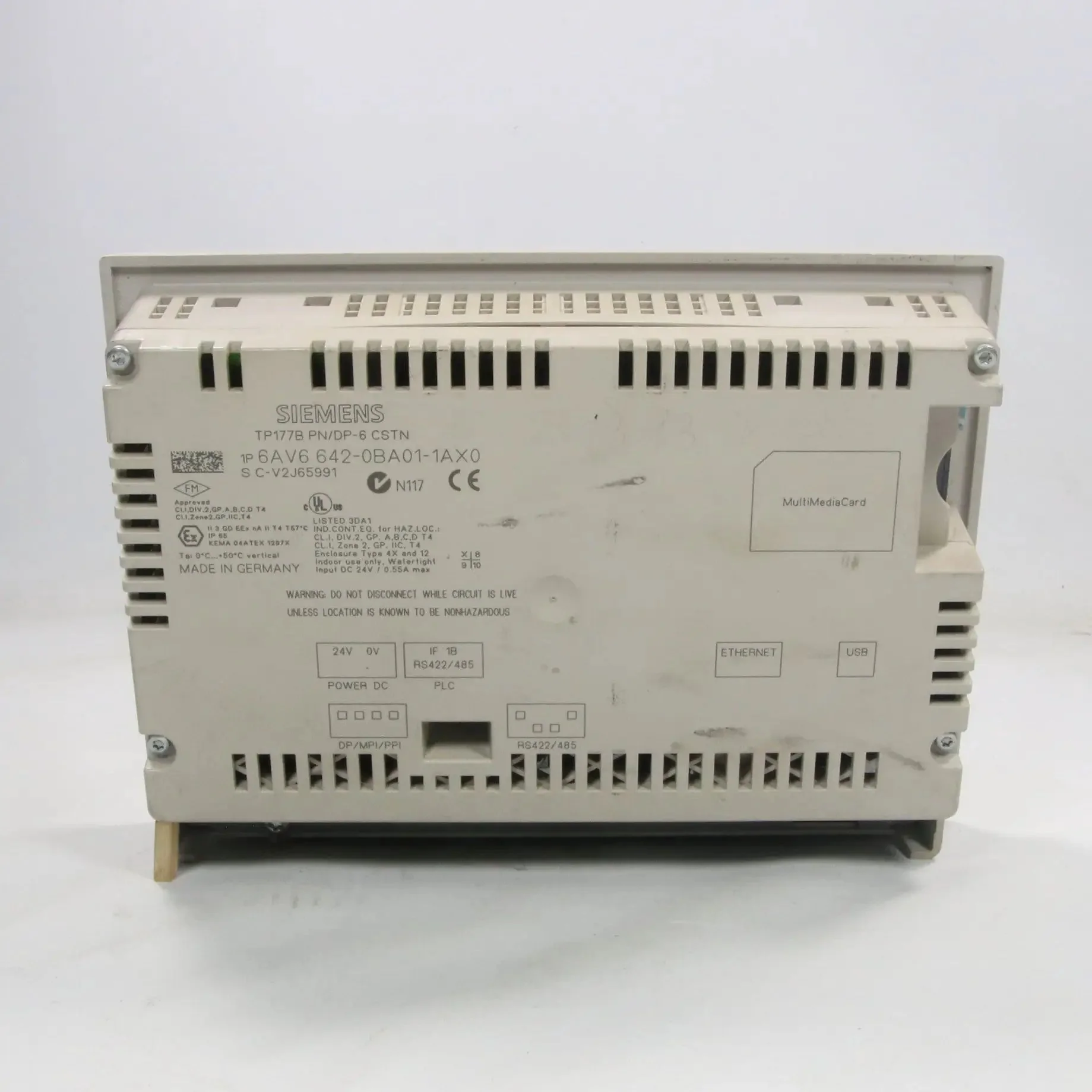

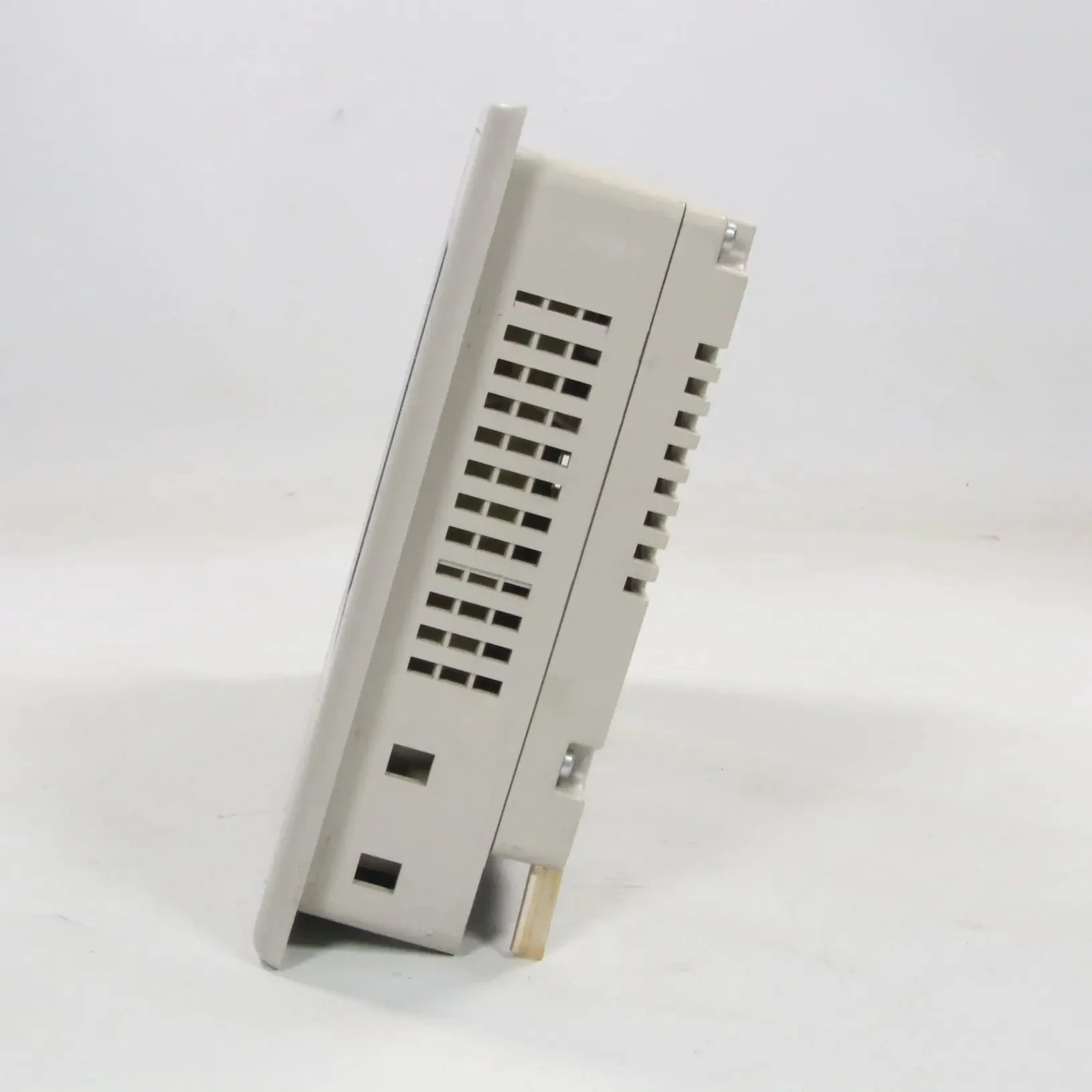

Siemens TP177B PN/DP-6 CSTN Touch Panel - 6AV6 642-0BA01-1AX0

- Brand: Siemens

- Model: TP177B PN/DP-6" CSTN

- Type: Touch Panel / HMI Operator Panel

- Part number: 6AV6642-0BA01-1AX0

- Technical specifications:
- Display: 6" CSTN (Color Super-Twisted Nematic) TFT LCD; resolution 320 x 240 pixels (QVGA); 256 colors
- Touch screen: Analog resistive touch

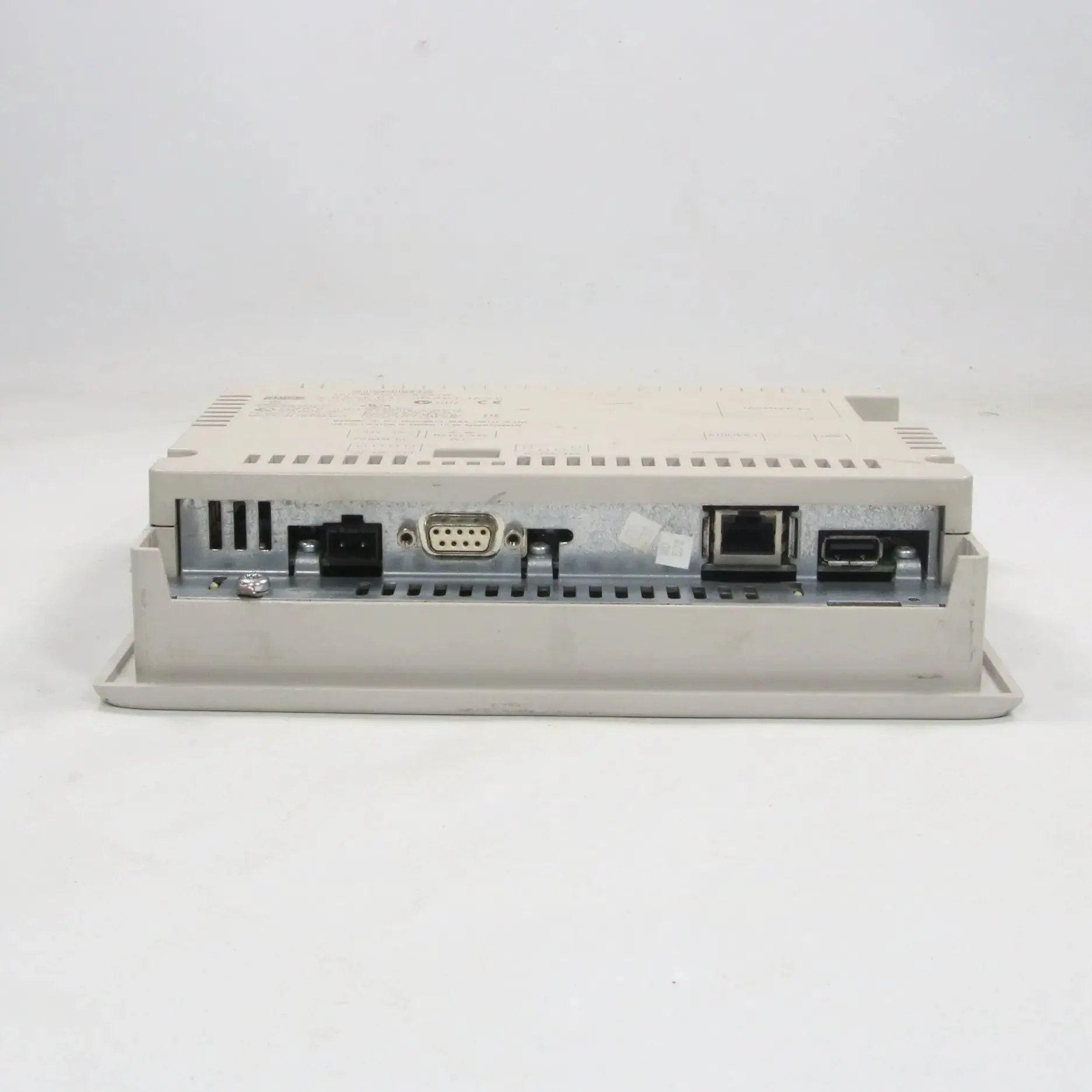

- Interfaces: 1 x PROFINET / Ethernet (RJ45; 10/100 Mbps); 1 x PROFIBUS DP (9-pin D-sub); 1 x RS485/RS422 (serial), 1 x USB
- Memory: 2 MB
- Power supply: 24 V DC
- Configuration software: WinCC Flexible 2005
- Operating temperature: 0°C to +50°C
- Protection: IP65 front (with gasket); IP20 rear
- Mounting: Panel mount
- Additional features: No integrated buttons/keys (pure touch); alarm management; recipe handling; trend curves; multilingual support; password protection; high contrast CSTN display for industrial readability; legacy model
- Standards: IEC/EN compliant for HMI panels; CE, UL, cULus approvals

Status: Discontinued

Weight: 800 g

Dimensions: 210 x 160 x 50 mm

Country of origin: Germany

HS code: 8537.10
