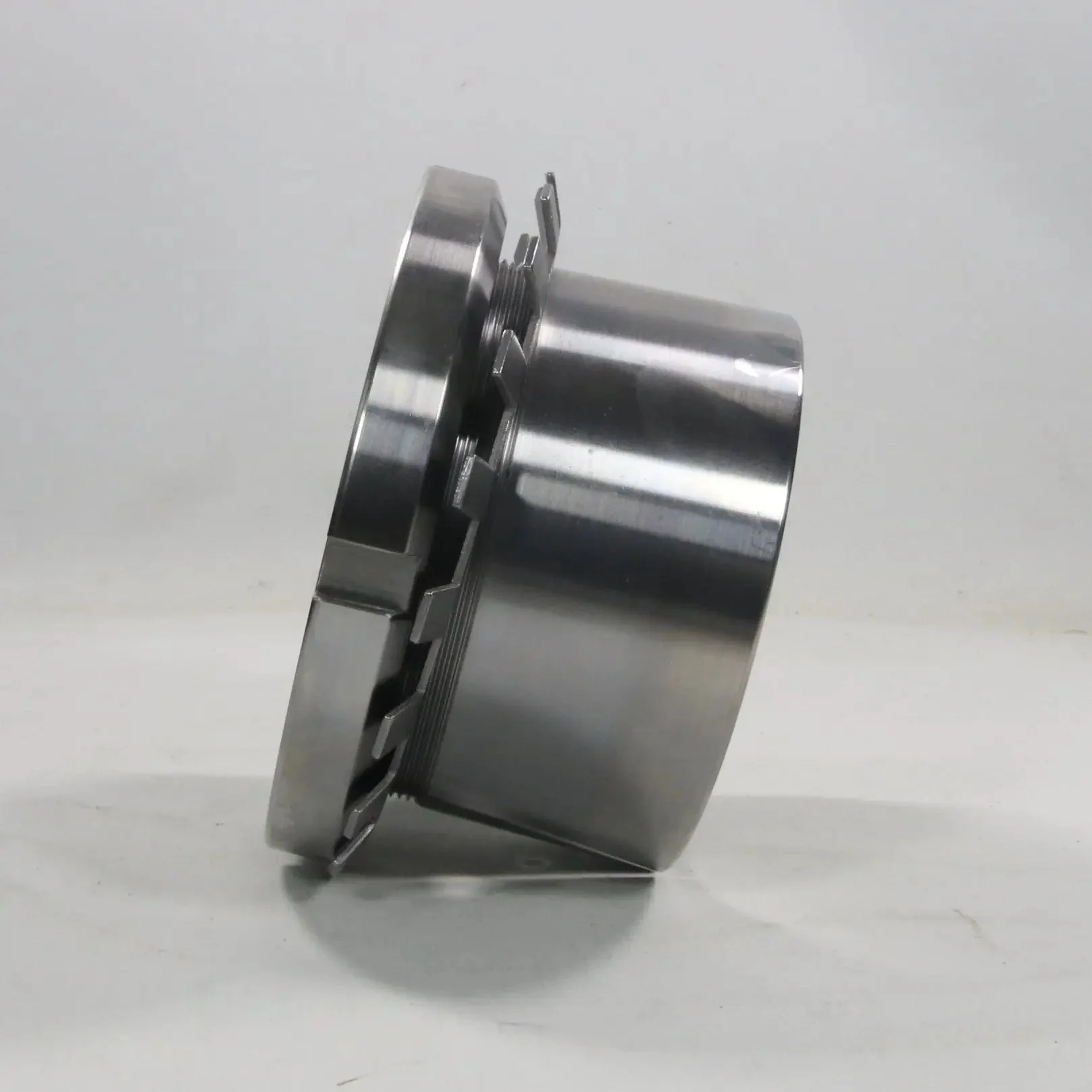

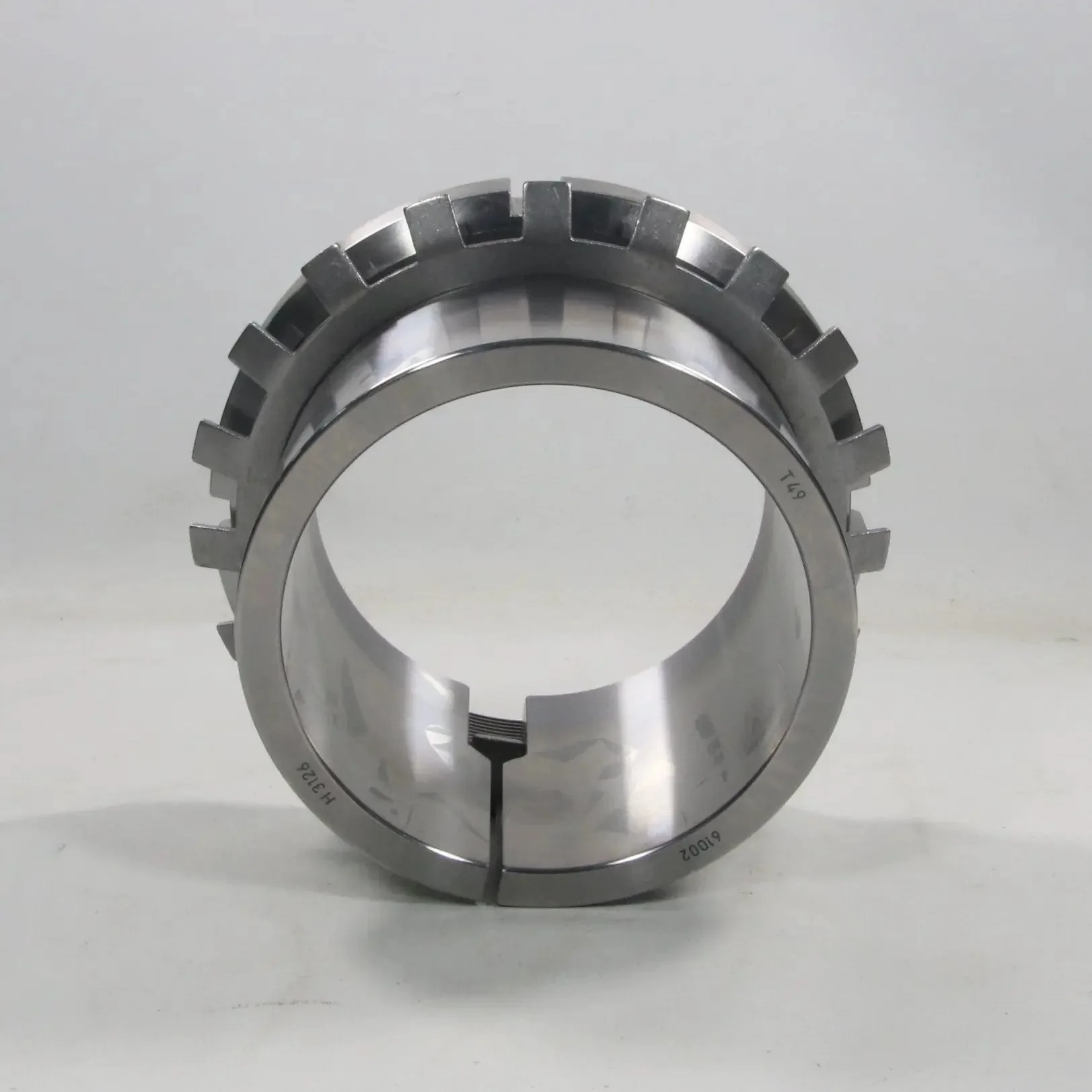

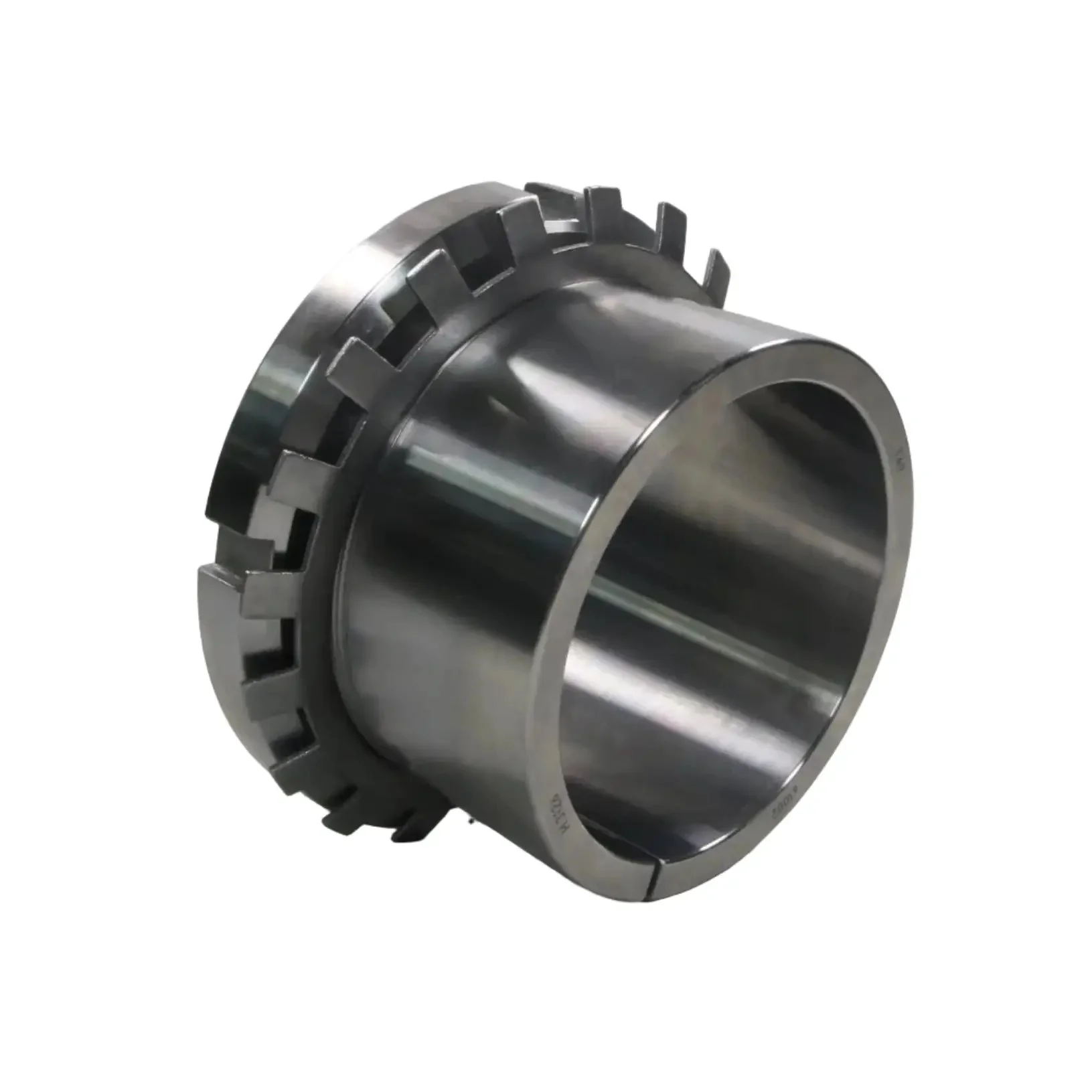

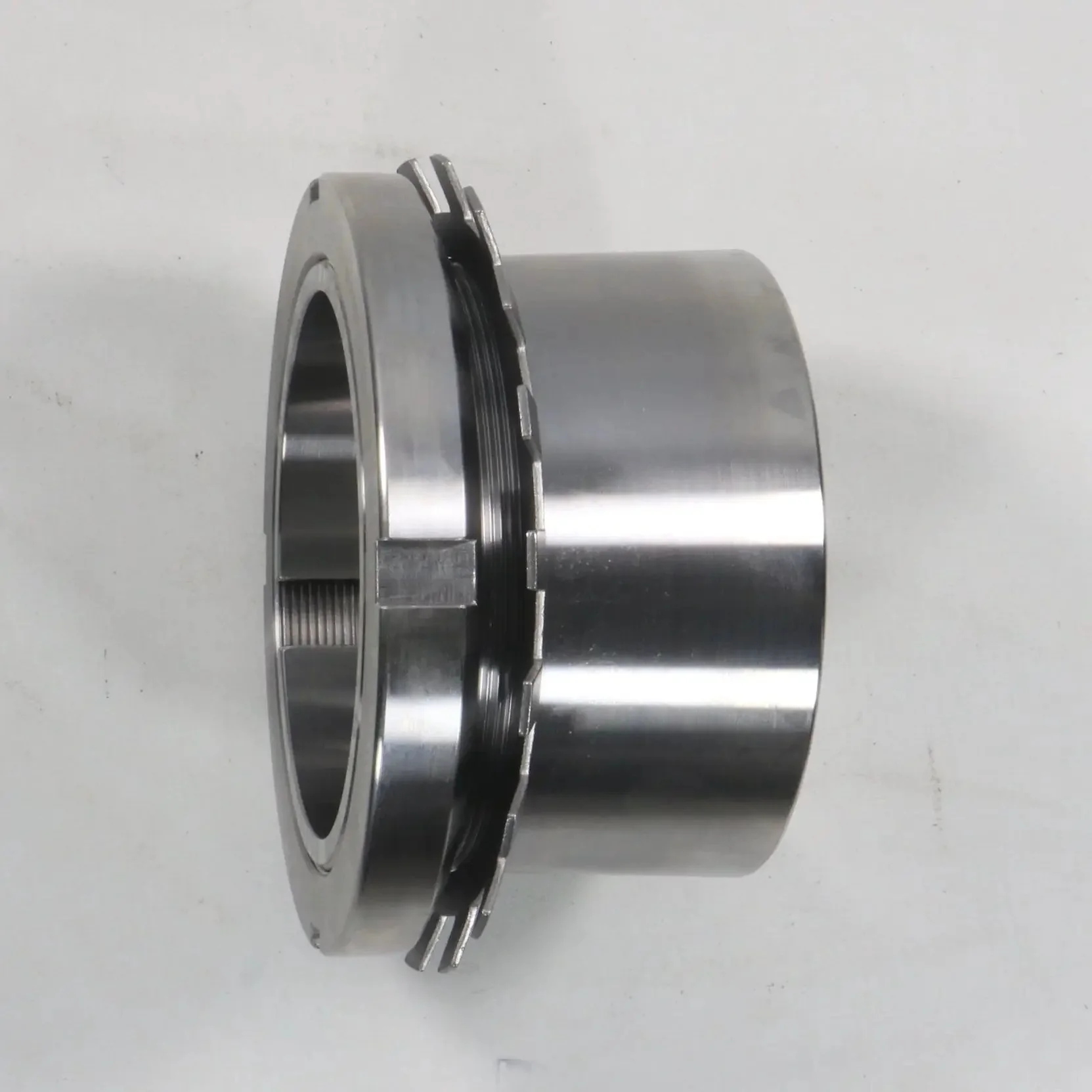

SKF / Blassinger Gruppe H3126 Adapter Sleeve

- Brand: SKF (manufactured by SKF; distributed Blassinger Gruppe)

- Model: H3126

- Type: Adapter Sleeve / Withdrawal Sleeve

- Part number: H3126 (SKF designation; complete kit H3126 + KM26 locknut)

- Technical specifications:
- Bore diameter: 115 mm
- Taper: 1:12
- Sleeve length: 92 mm
- Compatible bearings:
  - Spherical roller bearings: 22226 K, 23026 K, or similar
  - Self-aligning ball bearings: equivalents in tapered bore series
- Locknut: KM26
- Material: Steel
- Installation: Slide-on sleeve, tighten locknut..
- Additional features: Easy axial adjustment; reduces risk of shaft damage; reusable; cost-effective alternative to direct shaft machining; suitable for heavy-duty industrial applications
- Standards: Compliant with ISO 2982-1 (adapter sleeves); DIN 5415 (locknuts); SKF precision tolerances

Weight: 3.7 kg

Dimensions: 170 dia. x 95 mm

Country of origin: Germany

HS code: 8482.99
